SA809 INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520. We’re ready to help!
Scan for more information
san.us/448
2
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Do you have all of the tools needed?
Before getting started, let’s make sure this product is perfect for you!
1
2
3
4
What is your wall made of?
Unsure? Call 1-800-359-5520 [UK: 0800 056 2853]
Perfect!
Drywall with
wood studs ?
Will your accessories weigh more than 30 lb (13.6 kg)?
No
—
Perfect!
Yes
—
This product is NOT compatible. Visit Sanus.com or call 1-800-359-5520 [UK: 0800 056 2853] to find a compatible product.
30 lb
(13.6 kg)
Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service at 1-800-359-5520 [UK: 0800 056 2853].
CAUTION: Avoid potential personal injuries and property damage!
ƕDo not use this product outdoors
ƕThis in-wall system is for use with ITE or Audio/Video equipment only
ƕThe maximum specified ambient temperature of the cabinet system is 40o - 120oF (4o - 49oC)
ƕDo not use this product for any purpose not explicitly specified by manufacturer
ƕManufacturer is not responsible for damage or injury caused by incorrect assembly or use
3
WARNING! This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item
to your dealer; contact Customer Service. Never use damaged parts!

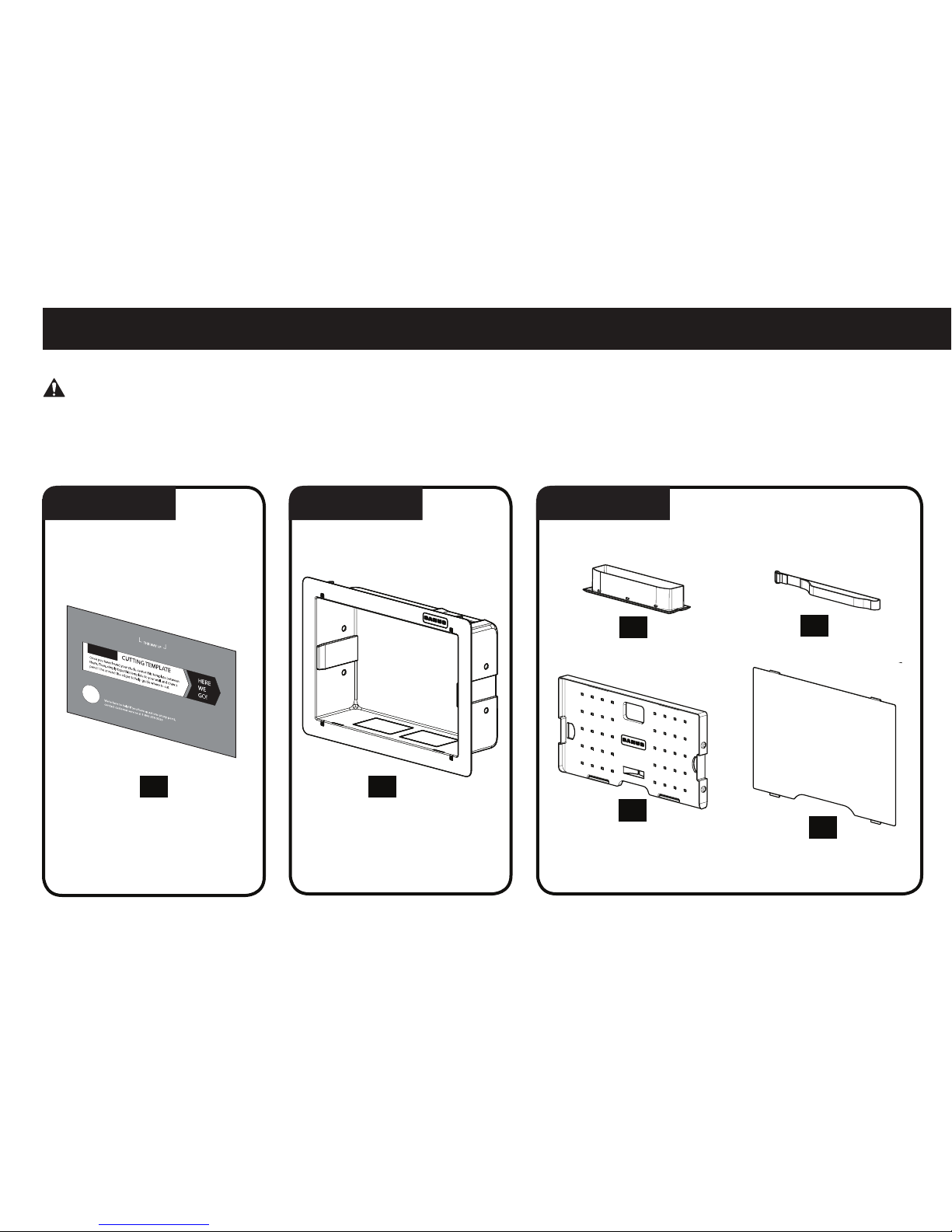

Supplied Parts
STEP 1 Parts STEP 2 Parts STEP 3 Parts
04
05 (2)
06
ECO-Mini Bracket
Component Panel
Elastic-Velcro Strap
Cover
01
Template
02
03
Housing
4
1 2
≤ 16 mm
(5/8 in.)
STEP 1 Cut Hole for Housing
01
CAUTION: Avoid potential personal injuries and property damage!
ƕDrywall covering the wall must not exceed 16 mm (5/8 in.).
ƕBox must be mounted between studs that are at least 406 mm (16 in.) apart. After installation there will not be enough space between the
SA809 and the studs for electrical wires/cables, plumbing, ductwork, or insulation. Choose your SA809 location carefully.
1. Locate the studs using an edge-to- edge stud finder. Verify the edges of the studs using an awl or thin nail. Mark the edges of the studs
with pencil.
2. Center the template 01 between the two studs. Level the template 01 and use a pencil to mark the open area of the template 01 .
5
STEP 1 Cut Hole for Housing cont.
3 4
3. Use a drywall saw or similar tool to cut the drywall where marked. Remove cut section of drywall.
WARNING! ELECTRICAL SHOCK HAZARD! CUTTING OR DRILLING INTO ELECTRICAL WIRES OR CABLES CAN CAUSE DEATH OR
SERIOUS PERSONAL INJURY! Always make certain the area behind mounting surfaces is free of electrical wires and cables before cutting,
drilling, or installing fasteners.
WARNING! EXPLOSION AND FIRE HAZARD! CUTTING OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH OR SERIOUS
PERSONAL INJURY! Always make certain the area behind mounting surfaces is free of gas, water, waste, or any other plumbing before
cutting, drilling, or installing fasteners.
4. Install wires and cables.
6
1 2
02 02
STEP 2 Install Housing
1. Break out the sections of the housing 02 . Optionally, install a UL Listed 120 VAC electrical outlet box (not included) capable of attaching
to the SA809 housing 02 following the instructions included with the outlet box.
NOTE: Knockouts are provided for ease of installation. Any unused knockouts that have been punched are to be closed up with a metal
plug.
2. Carefully fit the housing 02 into the cutout section of the wall.
7
3
View Behind the Wall
STEP 2 Install Housing cont.
02
02
3. Using a screwdriver, turn the screws in the corners of the housing 02 . These will raise the locking tabs in the rear of the housing 02 to
secure it to the wall. Tighten only until secure. Do not over-tighten screws.
8
STEP 3 Install Components
1
ECO-Mini (purchased separately) with the SA809 - Optional
NOTE: Minimum spacings between the accessories and components and the housing for Information Technology Communication Equipment
shall be maintained for safe operation of the equipment when installed in accordance with the National Electric Code, ANSI/NFPA 70-1999.
Refer to communication equipment manufacturer’s specifications for minimum spacings.
1. To use the ECO-Mini (purchased separately) in the SA809, first remove feet.
2. Fit the ECO-Mini into the ECO-Mini bracket 03 supplied with the SA809.
2
03
9
4
STEP 3 Install Components cont.
03
02
ECO-Mini (purchased separately) with the SA809 - Optional
3
3. Use two of the screws from the feet to secure the ECO-Mini in the bracket 03 .
4. Slide the ECO-Mini and bracket 03 into the top of the housing 02 . Lock the bracket 03 into the housing 02 by sliding it towards the
corner until you feel it catch.
03
10
STEP 3 Install Components cont.
5
04
04
5. Use elastic-velcro straps 05 to attach components to the front of the component panel 04 and to secure wires to the back of the panel.
NOTE: Zip ties can also be used by looping them through the holes of the component panel 04 to secure components to the
component panel
04 .
05
05
05
05
