HMT1
INSTRUCTION MANUAL
Recommended placement Our US-based
install experts
are standing
by to help.
Call us at:
888-384-1115
Or, chat at:
SANUS.com/chatSH
Get it right the
first time.
HeightFinder™
shows you
where to drill.
Check it out at:
SANUS.com/2933
Want to watch a
video that shows
how easy this DIY
project will be?
Watch it now at:
SANUS.com/2939
WE’RE HERE TO HELP
2
80 lbs.
(36.3 kg)
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this mount is perfect for you!
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit MountFinder.Sanus.com or call
888-384-1115 to find a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 888-384-1115.
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of?
Ready to begin?
Does your TV
(including accessories)
weigh more than
80 lbs. (36.3 kg)?
CAUTION:
DO NOT install
into drywall alone
Unsure?
Drywall with
wood studs? Solid concrete or
concrete block?
Call Customer Service: 888-384-1115
Perfect!
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Wood Stud Install
Concrete Install
Awl
Pencil Level Stud Finder
Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
Concrete Installation kit required (not included)
3
Dimensions
7.87in
200mm
MIN
0.35in
8.8mm
15.75in
400mm
MAX
7.87in
200mm
MIN
15.75in
400mm
MAX
4.75in
120.7mm
15.42in
391.7mm
2.93in
74.4mm
3.91in
99.4mm
0.33in
8.4mm
17.78in
451.6mm
16.93in
430mm
0.38in
9.7mm
OFFSET
7.87in
200mm
LATERAL SHIFT
AT 200 VESA
0.35in
8.8mm
6.50in
165.2mm
2.04in
51.8mm
LEVEL
ADJUST
SCREW
5deg
TIL
UP
10deg
TILT
DOWN
TV INTERFACE
WALL PLATE
FRONT VIEW - LATERAL SHIFT
3-D
SIDE VIEW - TILT
SIDE VIEW
FULLY ASSEMBLED MOUNT
Before getting started, let’s make sure this mount is perfect for you!
4
Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
STEP 1 Parts and Hardware
M6 x 12mm
M6 x 35mm
M6 x 20mm
M4 x 12mm M4 x 35mm
M8 x 16mm M8 x 35mm
M8 x 25mm M8 x 50mm
TV Bracket
TV Screws
(qty. 4 each) [Only one size fits your TV] Washers Spacer
[If necessary]
03
02
01
M6/M8
M4
M4/M6/M8
22 mm
M4/M6/M8
2.5 mm
M4
M6
M8
(qty. 1)
04 (qty. 1)
05
(qty. 4)
(qty. 4)
5
Wall Plate Template Wall Plate
Concrete Installation Kit CMK1 (NOT INCLUDED)
Parts and Hardware for STEP 2
5/16 x 2¾ in.
.695 x .350 x .075 in.
5/16 x 2¾ in.
.695 x .350 x .075 in.
5/16 x 2¾ in.
.695 x .350 x .075 in.
5/16 in.
5/16 x 2 ¾ in.
Contact Customer Service at 888-384-1115 to inquire about the CMK1 Concrete Installation Kit.
Fischer UX 10 x 60R Anchor
M4/M5 M6/M8
M4 x 12mm M8 x 16mm M8 x 20mm
M4 x 35mm
M8 x 35mm
M6 x 12mm
M6 x 35mm
M6 x 20mm
⁄ x2 ⁄ in.
M5 x 12mm
M5 x 35mm
⁄ in.
M8 x 50mm
M8 x 40mm
M8 x 30mm
2.5mm 5mm
22mm
Lag Bolt
Washer
09
5/16 x 2¾ in.
.695 x .350 x .075 in.
5/16 x 2 ¾ in.
08
5/16 in.
(qty. 1)
06 (qty. 1)
07
(qty. 2)
(qty. 2)
C1 (qty. 3) C2 (qty. 3) C3 (qty. 3)
6
STEP 1 Attach Brackets to TV
FLAT BACK ROUND BACK CABLESINSET HOLES
1-1 Select TV
Screw Diameter
1-2 Select TV
Screw Length
ab
If your TV has a flat back AND you want your TV closer to
the wall, use the shorter screws (a).
Use the spacers and longer screws (b) to accommodate:
●Round/irregular back TVs
●TVs with inset mounting holes
●Extra space needed for cables
Too Short
Too Long
CAUTION:
Verify adequate thread
engagement with the screw or
screw/spacer combination.
-Too short will not hold the TV.
-Too long will damage the TV.
Correct
M4 M6 M8
Only one size fits your TV.
If your TV included inset
spacers or wall mount adapters,
use them
UNDER the
mount hardware.
03
7
STEP 1 Attach Brackets to TV
1-3 Attach TV Brackets
Ensure that your brackets 04 and 05 are level on the back of the TV. Standard configurations are shown. For special applications, or if you
are unsure about your hardware selection, contact Customer Service.
aFlat Back
bRound Back / Extra Space
03
02
02
01
01
04
05
Spacer Options
8
STEP 2A Attach Wall Plate to Wall Wood Stud Option
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)
1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the wall plate template 06 at your desired height and line up the holes with your stud center line. Level the template and tape in
place.
2
1
Max. 5/8 in.
(16 mm)
06
9
3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. Remove wall plate template 06 .
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
4. Install wall plate 07 using two lag bolts 08 and two washers 09 . Tighten the lag bolts only until they are pulled firmly against the wall
plate.
CAUTION: Avoid potential personal injury or property damage! Both lag bolts 08 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 07 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
4
08 09
33 in.
(75 mm)
7/32 in.
(5.5 mm)
06
07
10

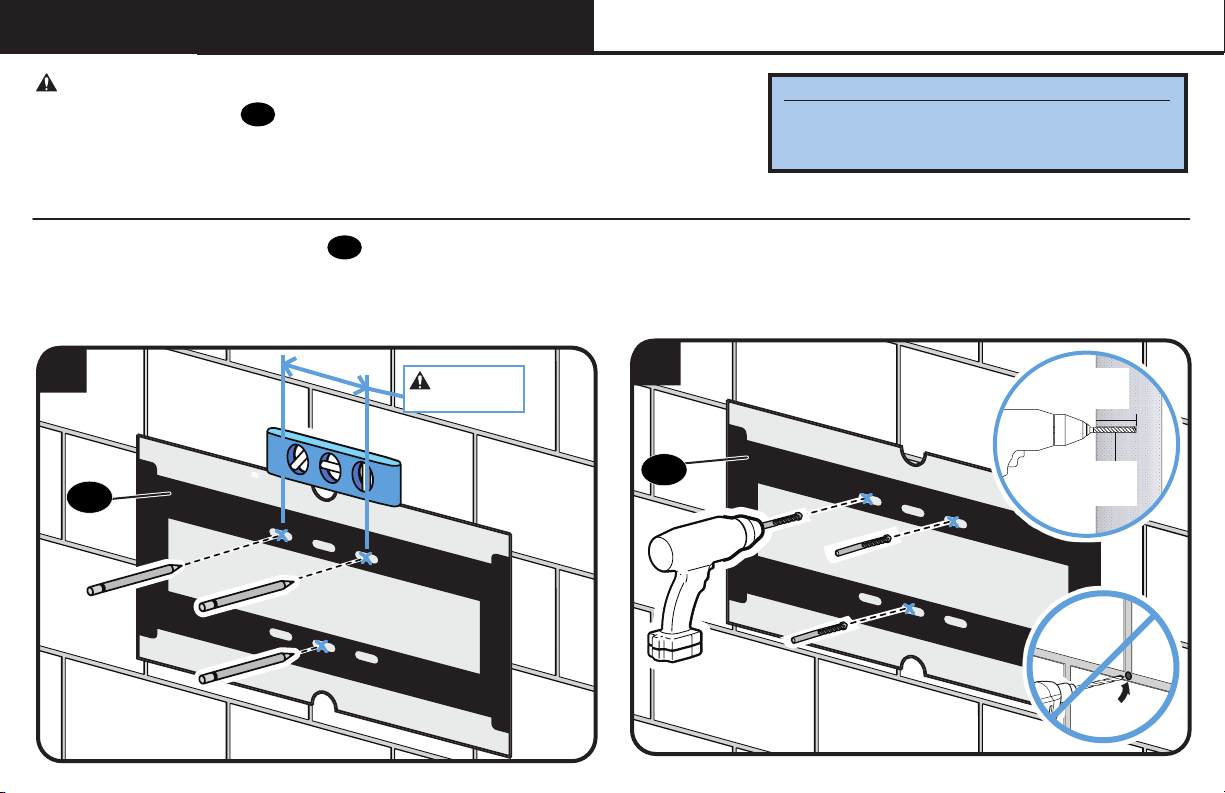

STEP 2B Attach Wall Plate to Wall Solid Concrete or Concrete Block Option
2
1
002862.eps
Concrete Installation Kit CMK1 is not included
(see page 5) Contact Customer Service at
888-384-1115 to inquire about the additional
hardware.
3/8 in.
(10 mm)
3 in.
(75 mm)
Min. 4 ¾ in.
(120.6 mm)
CAUTION: Avoid potential personal injuries and property damage!
●Mount the wall plate 07 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)
●Minimum horizontal space between the top two fasteners: 4 ¾ in. (120.6 mm)
1. Position the wall plate template 06 on the wall at your desired height. Level the wall plate template and mark the hole locations.
2. Drill three (3) pilot holes (2 on top, 1 on bottom) using a 3/8 in. (10 mm) diameter masonry drill bit.
06
06
