Samsung ERV Mode d’emploi

ERV Wired remote controller

MWR-VH12N

ERV(Energy Recovery Ventilator)

installation manual

imagine the possibilities

Thank you for purchasing this Samsung product.

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 3 2016-12-23 오후 6:02:52

ENGLISH-2

PREPARATION

Safety Precautions.........................................................................................3

Before installing ERV wired remote controller...............................................................5

INSTALLATION

Installing the ERV wired remote controller..................................................................6

Using installation/service mode of ERV wired remote controller ........................................... 15

Contents

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 2 2016-12-23 오후 6:02:53

ENGLISH-3

01 PREPARATION

Safety Precautions

This installation manual explains how to install a ERV Wired Remote Controller connected to the indoor unit

of your system air conditioner.

Please read this manual thoroughly before installing the product.

(Please refer to appropriate installation for any optional product installation.)

WARNING Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION Hazards or unsafe practices that may result in minor personal injury or property

damage.

WARNING

Contact a service center for installation.

 Potential risk of malfunction, water leak, electric shock and re.

Install the product with proper power supply.

 Potential risk of re or product damage.

Consult the place of purchase or a contact center to disassemble or repair the product.

 Potential risk of malfunction, electric shock, or re.

The electric work must be done by qualied person according to national wiring regulations and

installation guide.

 If an unauthorized person performs the installation, any resulting defects can cause malfunctions,

electrical shocks, or re accidents.

Install the product on a hard and even place that can support its weight.

 If the place cannot support its weight, the product may fall down and it may cause product damage.

Do not move or reinstall the product on your discretion.

 Potential risk of electric shock or re.

Check if the installation work is done correctly according to the installation manual.

 Incorrect installation may cause electric shock or re.

When you want to dispose your Wired Remote Controller, ask the service center.

PREPARATION

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 3 2016-12-23 오후 6:02:53

ENGLISH-4

Safety Precautions

CAUTION

Do not install the product where there’s combustible gas.

 Potential risk of re and explosion.

Ensure no water gets into the Wired Remote Controller.

 Potential risk of electric shock or re.

Install the air conditioner away from direct exposure to sunlight, in room temperature range of

0°C(32°F)~39 °C(102 °F).

 Potential risk of electric shock or malfunction.

Do not handle the product with sharp objects.

 Potential risk of electric shock or product damage.

Do not install the product in areas exposed to oil or vapor.

 Potential risk of product damage or malfunction.

Do not put undue stress on the power cable.

 Potential risk of broken cable and re.

Do not install the product in areas with frequent use of acid or alkali spray.

 Potential risk of electric shock or product malfunction

Do not connect power cable to a communication terminal.

 Potential risk of re.

Be cautious not to interfere any other electrical devices if the product is installed in a place such as

hospital.

 Potential risk of product malfunction.

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 4 2016-12-23 오후 6:02:53

ENGLISH-5

01 PREPARATION

Before installing ERV wired remote controller

Accessories

ERV wired

remote controller

(1)

Cable tie (2) Cable clamp (2) M4X16 screw

(2) User manual (1) Installation

manual (1) U terminal (3)

• The ERV wired remote controller should be installed by an installation expert.

• Check and conrm the power is o before installing ERV wired remote controller.

• Install the ERV wired remote controller cables in accordance with the electrical wiring rules, and

allow it to pass through the inner area of the wall so that other people can’t reach it.

Caution

External dimension

[Unit: mm(inch)]

122.0(4.80)

75.0(2.95) 16.6

(0.65)

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 5 2016-12-23 오후 6:02:53

ENGLISH-6

Installing the ERV wired remote controller

Installation procedure

1. Push up the bottom part of the ERV wired remote

controller's front cover to disassemble the front cover

from the mounting plate.

ū ERV wired remote controller can be opened in the sliding

way. (Hold the front cover and then lift it up to disassemble

the front cover.)

2. Fix the mounting plate of the ERV wired remote

controller on the wall with 2 screws.

3. Connect the F3, F4 of PCB terminal in ERV to F3, F4 of

ERV wired remote controller terminal.

4. Arrange the connected communication wires

correctly depending on the installation condition.

ū When the ERV wired remote controller is embedded on the

wall: Make the wire go through the hole in the center of the

mounting plate.

ū When the ERV wired remote controller is installed on the

wall: Remove the thin parts on the front and mounting plate

to make the wires go through as seen in the picture.

ū When the wire is extended from the upper side of the ERV

wired remote controller and covered with a protection tube:

Remove the contact point of the protection tube about

1 cm or more so that the front cover can be assembled

without a problem.

5. Reassemble the ERV wired remote controller.

INSTALLATION

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 6 2016-12-23 오후 6:02:53

ENGLISH-7

02 INSTALLATION

• When installing the ERV wired remote controller by using a wire longer than 10 m, you must

install the communication wire of the ERV wired remote controller and the AC power cable

separately. (Electrical interference can cause your ERV wired remote controller to malfunction.)

• When installing your ERV wired remote controller on the wall, consider the size of the wire hole,

and select a wire with a proper thickness.

• Wire that is connectable to ERV wired remote controller PCB.

ū If you install the ERV wired remote controller by embedding it on the wall, install it

according to U-terminal cable specication.

ū If you install the ERV wired remote controller by using two pieces of PVC wire, remove

the 30 cm of the sheath of the cable and install it only with the two pieces of wires.

(Recommended specication: AWG21)

• The followings are the specs of the compressed U terminal connectable to your ERV wired

remote controller PCB.

Stud D

Range of

Permitted Wires

Rated

Size Stud Size Basic Size [mm (inch)]

AWG mm2

(inch2)

mm2

(inch2)

(inch) t øD G E F W L

22~16

0.25~1.65

(0.0003 ~

0.0025)

1.5

(0.0023)

(0.1181)

0.7

(0.0275)

3.8

(0.1496)

10.0

(0.3937)

4.5

(0.1771)

6.5

(0.2559)

6.0

(0.2362)

21.2

(0.8346)

 Maximum distance for connecting communication and power cable: 100 m(328.08 ft)

• Screws on the PCB terminal must be tightened with less than 6N-cm tightening torque. If the

tightening torque is greater, it may damage the screw thread.

Caution

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 7 2016-12-23 오후 6:02:53

ENGLISH-8

Installing the ERV wired remote controller

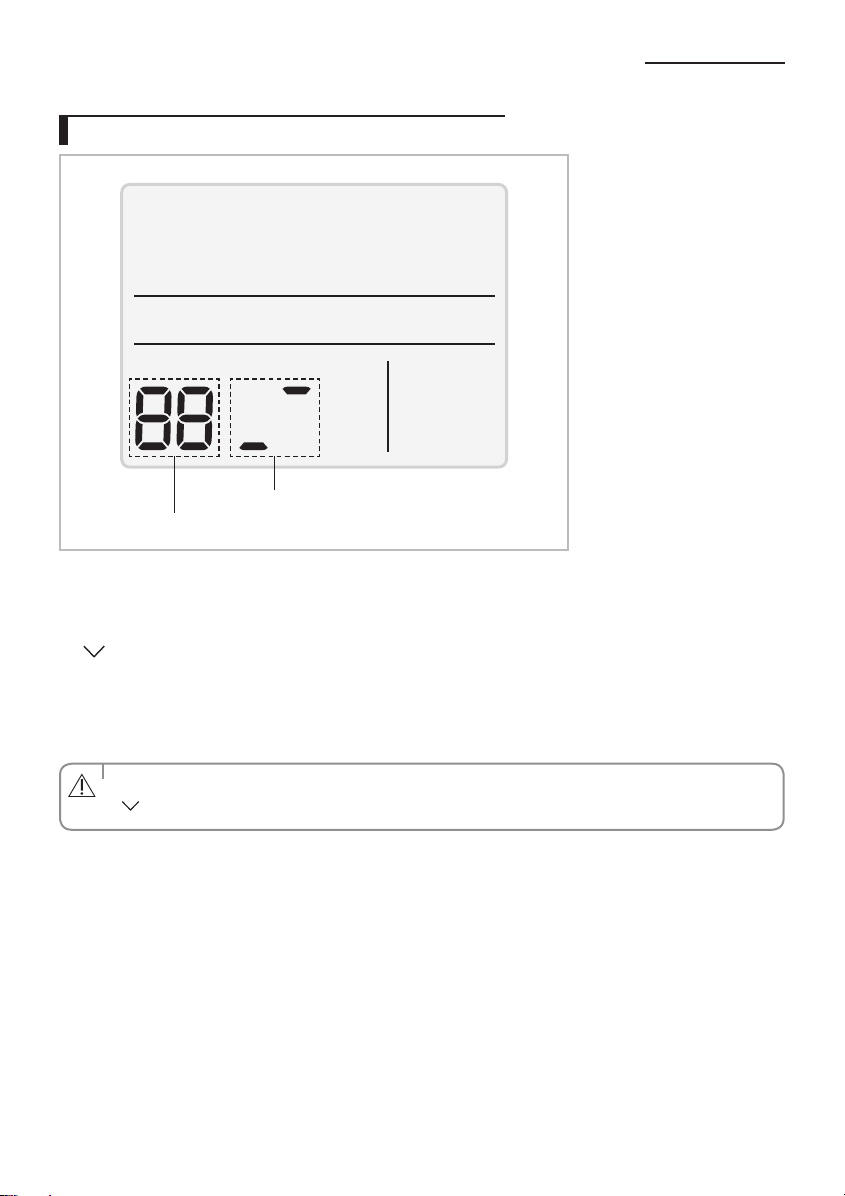

Tracking ERVs from the ERV wired remote controller

Displays the total number of units searched

Displays tracking function

1. Tracking of your ERV wired remote controller automatically starts when you turn on the

power after installation.

2. If you want to perform tracking again after installation, press the Fan speed and

buttons at the same time for more than ve seconds.

ū The system is reset, and tracking starts again.

3. During the tracking, the total number of currently searched products is displayed.

4. It may take about 5 minutes at initial installation or when you re-set the master setting.

• If you want to perform system reset of ERV wired remote controller, press the Fan speed and

buttons at the same time for more than ve seconds.

Caution

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 8 2016-12-23 오후 6:02:53

ENGLISH-9

02 INSTALLATION

Individual control with your ERV wired remote controller

When a upper controller is not connected

Individual control means that you are using one ERV wired remote controller to control one ERV.

ERV

COM2(F3, F4) COM2(F3, F4) COM2(F3, F4)

ERV wired remote

controller

ERV wired remote

controller

ERV wired remote

controller

ERV ERV

• Regardless of the setting of group address (RMC address), only the ERV connected to COM2

communication wire is individually controlled.

Caution

When a upper controller is connected

CN4

CN3

RED

CN2

BLK

ERV interface module (MIM-N10)

ERV

COM1(F1, F2)

COM2(F3, F4)

COM1(F1, F2)

COM2(F3, F4) COM2(F3, F4)

ERV wired remote

controller

ERV wired remote

controller

ERV wired remote

controller

ERV ERV

• Regardless of the setting of group address (RMC address), only the ERV connected to COM2

communication wire is individually controlled.

Caution

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 9 2016-12-23 오후 6:02:54

ENGLISH-10

Installing the ERV wired remote controller

Group control with your ERV wired remote controller

Group control means that you are using one ERV wired remote controller to control two or more ERVs at the

same time.

1. Using one ERV wired remote controller to control three ERVs.

ERV wired remote

controller

COM2(F3, F4) COM2(F3, F4)

ERV ERV ERV

2. Using one ERV wired remote controller to control ERVs connected to other ERV repeaters in

a group.

CN4

CN3

RED

CN2

BLK

CN4

CN3

RED

CN2

BLK

ERV interface module (MIM-N10)

ERV

ERV ERV wired

remote

controller

ERV interface module

(MIM-N10)

COM1(F1, F2)

COM2(F3, F4)

COM1(F1, F2)

COM2(F3, F4)

• Regardless of the setting of group address (RMC address), only the ERVs connected to COM2

communication wire are controlled in a group.

• You can control the maximum of 16 ERVs as a group.

• When ERVs of other ERV repeaters are controlled in a group, address of each ERV must be set

dierently.

Caution

ERV Wired remote controller_MWR_VH12N_IM_EN_05309A-00.indd 10 2016-12-23 오후 6:02:54

Autres manuels pour ERV

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Télécommande

Samsung

Samsung EAF2E2C6 Manuel utilisateur

Samsung

Samsung MWR-WW10N Manuel utilisateur

Samsung

Samsung RMCSPB1EP1 Manuel utilisateur

Samsung

Samsung SolarCell Remote Manuel utilisateur

Samsung

Samsung CS-21A11MH Manuel utilisateur

Samsung

Samsung Smart Remote BN68 Series Manuel utilisateur

Samsung

Samsung SolarCell Remote Manuel utilisateur

Samsung

Samsung MWR-SH10N Manuel utilisateur

Samsung

Samsung MWR-SH00 Manuel utilisateur

Samsung

Samsung SolarCell Remote Manuel utilisateur

Samsung

Samsung HW-S40T Manuel utilisateur

Samsung

Samsung SolarCell Remote Manuel utilisateur

Samsung

Samsung MWR-BS00 Manuel utilisateur

Samsung

Samsung MWR-WE10 Manuel utilisateur

Samsung

Samsung MWR-SH00 Manuel utilisateur

Samsung

Samsung TM2180E/F Manuel utilisateur

Samsung

Samsung RMC30C2 Manuel utilisateur

Samsung

Samsung MWR-WE13N Manuel utilisateur

Samsung

Samsung NS052LHXEA Manuel utilisateur

Samsung

Samsung MWR-SH11N Manuel utilisateur

Samsung

Samsung MWR-SH00 Manuel utilisateur

Samsung

Samsung MWR-SH11UN Manuel utilisateur

Samsung

Samsung MWR-WE10 Manuel utilisateur

Samsung

Samsung SolarCell Remote Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
