Samsung MWR-SH00 Manuel utilisateur

Air conditioner

Installation manual

Wired Remote Control MWR-SH00

•Thank you for purchasing this Samsung Product.

•Before operating this unit, please read this installation manual carefully and retain it for future

reference.

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 1 2020-09-28 오후 1:42:32

E-2

Safety Precautions

 Read carefully this installation manual before

installation and check if the wired remote control is

installed correctly after installation.

 Do not attempt to install or repair this wired remote control

by yourself.

 This wired remote control contains no user-serviceable

parts. Always consult authorized service personnel for

repairs.

 When moving, consult authorized service personnel for

disconnection and installation of the wired remote control.

 Ensure that the wall is strong enough to support the weight

of the wired remote control.

 Must install the wired remote control with rated power

supply.

 The wired remote control must be installed according to

the national electrical rules by an installation specialist.

 If you wish to uninstall the wired remote control, consult an

authorized installation center.

WARNING

CAUTION

 Do not use inflammable gases near the wired remote

control.

 Do not install the wired remote control in a location where

it will come into contact with combustible gases, machine

oil, sulphide gas, etc.

 Avoid locations where acid/alkali solution or special spray

is used.

 Choose a location that is dry and sunny, but not exposed to

direct sunlight. Suitable temperature is between

0°C and 39°C.

 Do not spill water into the wired remote control.

 Do not apply tensile strength to the cable to avoid cable

damage.

 Do not press the buttons with a sharp object.

 Do not connect the power cable to the control terminal.

 If the wired remote control is installed in a hospital or other

special places, it should not affect other electronic devices.

This installation manual describes how to install the wired remote control.

For installation of other optional accessories, refer to the appropriate installation manual.

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 2 2020-09-28 오후 1:42:32

E-3

Contents



Wired remote Control and aCCessories

.........................................4

 Accessories ................................................................................................4



installing the Wired remote Control

..............................................5

 Installation .................................................................................................5

 Setting the Wired Remote Control Options ..............................6

 Wired Remote Control Error Codes ...............................................6

 Connecting the Wired Remote Control ......................................7

Note The illustrations will help you to understand the

symbols displayed in the pictures.

The illustrations in the step-by-step procedures use

3 different symbols:

PRESS PUSH HOLD DOWN

The lowest set temperature is limited to 20 degree in the UAE according to UAE.S 5010-5:2016.

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 3 2020-09-28 오후 1:42:33

E-4

Wired Remote Control and Accessories



The wired remote control should be installed by a

trained installer.



Make sure the main power is off before installing the

wired remote control.



The cables must be installed according to the national

wiring regulations and inside the wall for safety

reasons.



Always separate the communication cable and the

power cable to avoid malfunction of the unit.

(Connecting the power cable to the communication

terminal of the wired remote control will cause

serious damage to the wired remote control.

Make sure the wires are connected to the appropriate

terminals.)

Caution

Accessories

The following accessories are supplied with the air conditioner.



The number of each accessory is indicated in parentheses.

Cable Tie (2) Cable Clamp(2) M4X16 Screw(2)

User's manual

(1) Installation manual(1)

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 4 2020-09-28 오후 1:42:33

E-5

Installing the Wired Remote Control

Installation

Connect the power cables and communication cables of the

wired remote control to the terminal of indoor unit PCB.

1Open the wired remote control by using the groove on its top.

2Secure the rear cover of the wired remote control to the wall

with 2 screws.

3Connect the V1, V2 terminal of the wired remote control to the

V1, V2 terminal of the indoor unit.

Connect the F3, F4 terminal of the wired remote control to the F3,

F4 terminal of the indoor unit.

Reassemble the wired remote control.

Wired

remote

control

PCB

Electrical wires

(Not supplied)

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 5 2020-09-28 오후 1:42:33

E-6

Installing the Wired Remote Control (Continued)

Setting the Wired Remote Control Options

Switch

No. Switch OFF Switch ON

SW1 Cooling and Heating Cooling Only

SW2 Temp. display : °C Temp. display : °F

SW3 Allow wireless remote

control

Disable the wireless remote

control

SW4 Auto mode enable Auto mode disable

SW5 Mode lock enable Mode lock disable

SW6 --

SW7 - -

SW8 Main remote control Sub remote control

SW1 SW2

DIP 601

SW3 SW4 SW5 SW6 SW7 SW8

2 3 4 5 6 7 8

 Default setting

Wired Remote Control Error Codes

1The error codes of the indoor and outdoor units are displayed

on the wired remote control. Refer to the indoor and

outdoor unit technical manuals for the error codes reference.

The following error codes are related to the wired remote

control.

Display Explanation Remark

Wired remote control



Indoor unit

communication error -

Main



Sub wired remote control

communication error

When using 2 wired remote

controls to control one indoor unit.

Communication packet error -

Wired remote control tracking error

No indoor units found -

7 Day scheduler error -

COM1/COM2 installation error -

COM2 dual main error -

Excessive indoor unit installation error -

Temperature units (Celsius/Fahrenheit)

mixed setting error of installed indoor units -

Temperature units (Celsius/Fahrenheit)

setting error -

Main/Sub DIP option setting error -

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 6 2020-09-28 오후 1:42:34

E-7

Installing the Wired Remote Control (Continued)

Connecting the Wired Remote Control

Individual Control



Using one wired remote control for one indoor unit.

Note The wired remote control can be only installed on COM2.

Outdoor unit

Indoor unit

COM1

COM2

COM1

COM2 COM2

Wired remote control

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 7 2020-09-28 오후 1:42:34

E-8

Installing the Wired Remote Control (Continued)

Note Indoor units connected to different outdoor units can

be controlled as a group.

At most 16 indoor units may be controlled as a group.

Group Control



Using one wired remote control for a group of indoor units.

Outdoor unit

Indoor unit

COM1 COM1

Wired remote control

COM2 COM2

COM1

Outdoor unit

Indoor unit

Wired remote control

Outdoor unit

Indoor unit

Connecting the Wired Remote Control

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 8 2020-09-28 오후 1:42:34

E-9

Installing the Wired Remote Control (Continued)

Using 2 wired remote controls



2 wired remote controls can be used to control a single indoor

unit or a group of indoor units.

SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

2 3 4 5 6 7 8 1

SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

2 3 4 5 6 7 8

Outdoor unit

Indoor unit

COM1

Wired remote control

(Main)

COM2

Wired remote control

(Sub)

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 9 2020-09-28 오후 1:42:34

E-10

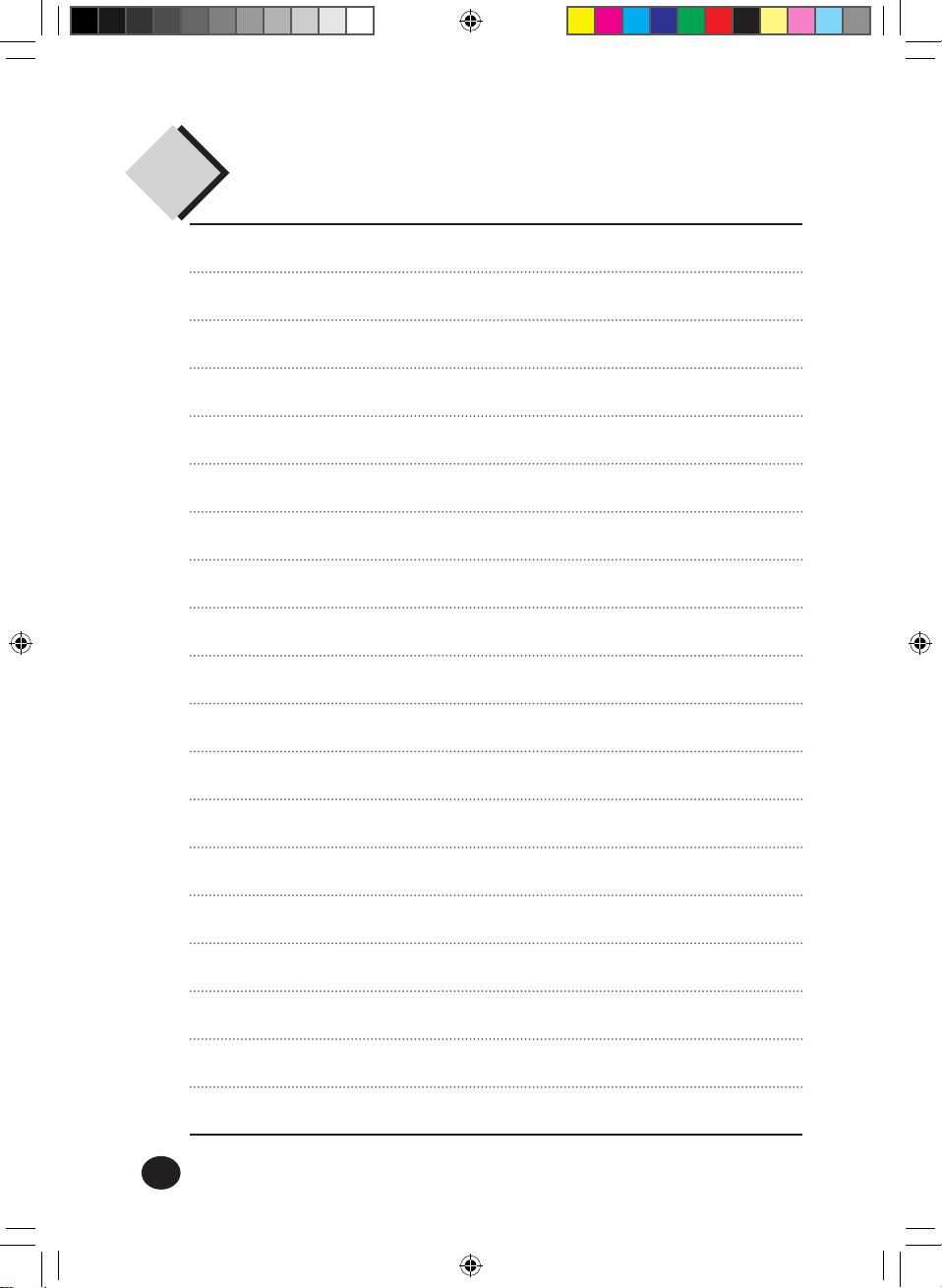

MEMO

DB98-28133A-05_IM_SIMPLE Wired Remote_EU_EN_.indd 10 2020-09-28 오후 1:42:34
