Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Touch Control
user manual
LED-C9000
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact
the SAMSUNG customer care center.
Comment contacter Samsung dans le monde
Si vous avez des suggestions ou des questions concernant les produits Samsung,
veuillez contacter le Service Consommateurs Samsung.
Comuníquese con SAMSUNG WORLDWIDE
Si desea formular alguna pregunta o comentario en relación con los productos de
Samsung, comuníquese con el centro de atención al cliente de SAMSUNG.
Country
Customer Care Center
Web Site Address
CANADA 1-800-SAMSUNG
(726-7864) www.
samsung.
com
Samsung Electronics Canada
Inc., Customer Service 55
Standish Court Mississauga,
Ontario L5R 4B2 Canada
MEXICO 01-800-SAMSUNG
(726-7864) www.
samsung.
com
C.P 11570 AV. Presidente
Masaryk No.111, Int. 701 Col.
Chapultepec Morales, Delegacion
Miguel Hidalgo Mexico D.F
U.S.A 1-800-SAMSUNG
(726-7864) www.
samsung.
com
Samsung Electronics America,
Inc. 85 Challenger Road
Ridgefield Park, NJ 07660-2112
A Warning that batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
“excessive sound pressure from earphones and headphones can cause hearing loss.”
BN68-03092A-02
0_[BN68-03092A]Touch control-Cover.indd 1 2010-09-03 오후 7:57:43
2
Touch Control
Contents
* Product design and specifications may be changed without notice.
* Avoid displaying still images (such as jpeg picture files) or still image elements (such
as TV Program logos, panorama or 4:3 format images, stock or news bars at the
screen bottom etc.) on the screen. The continuous display of a still picture can
cause ghosting of LCD screen, which can affect image quality. To reduce the risk
of this occurring, please follow these recommendations:
•Avoid displaying the same TV channel for long periods.
•Always try to display any image on a full screen. Use the TV set picture format menu for
best possible match.
•Reduce brightness and contrast values to the minimum required to achieve the desired
picture quality. Exceeding these values may speed up the burn-in process.
•Frequently use all the TV features designed to reduce image retention and screen burn-
in. Refer to the proper user manual section for details.
Use basic functions
........
03 Description
04 Inserting the battery
04 Charging the battery
First Time User Setup
........
05 First Time User Setup
Setting up the Network
........
06 Setting Up Your Remote
TV control menu
........
10 TV control menu
Services
........
13 HOT-KEY menu
13 Twin Display
Multimedia
........
14 Photo / Music / Video (from your PC)
CH Info
........
15 View the Channel List
15 Touch Control Channel List
16 Antenna Mode / Channel List Mode
16 Channel Edit (analog channels only)
Devices control
........
17 Add External device
19 Learning Remote
Settings menu
........
20 Add Macro
21 Channel macro
21 Remote Settings
Troubleshooting
........
24 Troubleshooting
Specifi cation
........
25 Specifi cation
20 Add Macro
21 Channel macro
21 Remote Settings
[BN68-03092A]Touch control-01L03.indb 2 2010-05-27 오후 3:50:06
3
Touch Control
Use basic functions

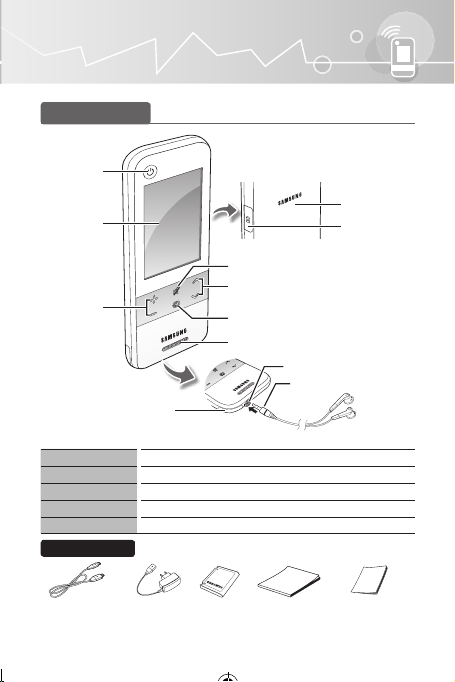

Description
Power
Turn the TV on and off.
MUTE
Mute or unmute.
Volume
Press to control the volume.
Channel
Press to change channels.
SOURCE
Display the source list (TV, PC, etc.) on the screen.
Accessories
User Manual
Charging Cable Power Adapter Battery User Manual
Quick Setup Guide /
Warranty Card
VOL CH
MUTE
SOURCE
VOL CH
MUTE
SOURCE
MUTE
SOURCE
CH
VOL
Charge port
SOURCE button
Speaker
Channel button
MUTE button
TV Power
button
Touch screen
Volume
button
Battery cover
Phone Jack
Earphones (Sold separately)
IR receiver for learning
external devices.
[BN68-03092A]Touch control-01L03.indb 3 2010-05-27 오후 3:50:07
4
Touch Control
Charging the battery
Charge the battery fully before using the remote control.
1Insert the charging cable into the charging slot, as shown above.
2Plug the power adapter into the outlet. The triangle lights up red.
3When the battery is fully charged, the triangle turns green. Unplug the
adapter from the wall outlet.
NOTE
•Be sure to use the supplied charging cable and power adapter for charging
the battery.
Inserting the battery
1Slide and open the battery cover in the direction of the arrow.
2Insert the battery with the Samsung logo facing up.
3Slide and close the battery cover in the direction of the arrow.
VOL
CH
MUTE
SOURCE
VOL
CH
MUTE
SOURCE
(A) (B)
Charge Port
[BN68-03092A]Touch control-01L03.indb 4 2010-05-27 오후 3:50:08
5
Touch Control

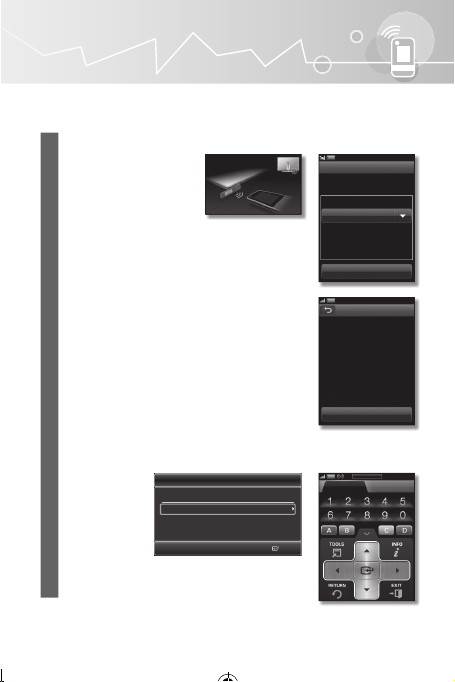

First Time User Setup
The default setup screen appears when your Touch Control is turned on for the first
time. To connect the Touch Control to the TV, you must complete the following steps.
1Select the desired language, and then tap <OK>.
2Select <OK> to connect the Touch Control. If you want
to connect to it later or if you have changed the Touch
Control to a new one, select <Skip>. If you selected
<Skip>, refer to “Setting up the Network” (p. 6) when you
want to connect the TV and Touch Control.
•The Samsung Wireless LAN Adapter must be connected
to the TV before you establish a connection.
•The Samsung Wireless LAN Adapter and Touch Control
must be parallel and no farther than 8 inches (20cm)
apart.
•If you are failed, reconnect the Samsung Wireless LAN
Adapter, and then try again.
•For initial TV settings, refer to the TV manual.
Select a Language.
Language
English
OK
Welcome
Select Language of the OSD.
Menu Language : English
Enter
Plug & Play
Succeed!
Complete the confi guration of
this remote control.
Do the TV confi guration
following the TV screen
information.
OK
Connect TV
Keyboard
TV Control Services
[BN68-03092A]Touch control-01L03.indb 5 2010-05-27 오후 3:50:08
6
Touch Control
Setting up the Network
Setting Up Your Remote
You can set up your Touch Control to control your TV in three ways:
•
As a standard, IR (InfraRed) remote
As an IR remote, your LCD Touch Control works the same way as a standard push
button remote, except you touch icons and symbols on the LCD screen to control
your TV instead of pushing buttons. Using your Touch Control as an IR remote
requires no more set up than a standard remote and gives you access to most of
the remote’s functions and features.
•
As an extended distance, Wi-Fi remote
As an extended distance, Wi-Fi remote, your Touch Control offers all the functions
and features of the IR mode and, because it uses Wi-Fi radio waves instead of
infra red waves to control your TV, it lets you control your TV from a much greater
distance and even from around corners. It also gives you access to the Twin Display
function which lets you watch the program or content that is on your TV screen
on the LCD screen of the Touch Control. The long distance, Wi-Fi mode requires a
few additional setup steps. It also requires you to attach Samsung’s Wireless LAN
Adaptor (WIS09ABGN, WIS09ABGN2, or WIS10ABGN) to one of your TV’s USB
ports.
•
As a networked, Wi-Fi remote
As a networked, Wi-Fi remote, your Touch Control gives you all the functions and
features of the IR and the extended distance modes and also gives you access to
the Multimedia function which lets you listen to or view music, movie, and picture
fi les from your PC on your TV screen. You can also download upgrades to your
Touch Control’s software directly from the Internet.
The networked, Wi-Fi mode requires the largest number of setup steps. In addition,
to use the networked, Wi-Fi mode, you need a working local area network and
a wireless router. You also need to attach Samsung’s Wireless LAN Adaptor
(WIS09ABGN, WIS09ABGN2, or WIS10ABGN) to one of your TV’s USB ports. To
use the Multimedia function, you need to install Samsung’s PC Share Manager on
your PC. You can download PC Share Manager from http://www.samsung.com.
[BN68-03092A]Touch control-01L03.indb 6 2010-05-27 오후 3:50:09
7
Touch Control
In the services main screen, tap g
<Remote Settings>
g
<Network>
.
•A connection cannot be established using Network Setup unless the TV and
Touch Control are connected in First Time User Setup.
•Configure the network settings for the TV before you connect the TV and Touch
Control. For details, refer to the TV manual.
•The Touch Control uses IR signals. Point the Touch Control at the IR sensor on
the TV when you press a button.
or
Stand Side Panel
Touch Control
Within 8 Inches
(20 cm)
If you want to use the SAMSUNG Wireless
LAN Adapter(WIS09ABGN, WIS09ABGN2
or WIS10ABGN), you should use a gender
featuring for the connection.
or
[BN68-03092A]Touch control-01L03.indb 7 2010-05-27 오후 3:50:09
8
Touch Control
How to connect using the Samsung Wireless LAN Adapter
1Connect the Samsung Wireless LAN Adapter to the TV.
•To connect using Samsung Auto Confi guration, turn off
any other devices nearby that support auto confi guration
fi rst.
2Keep within 8 inches (20cm) between Touch Control and
Samsung Wireless LAN Adapter.
3On the <Network> Screen, tap <Auto Confi guration>.
•It may take about one minute to establish a wireless
connection between the TV and Touch Control using the
Samsung Wireless LAN Adapter.
4If the network is connected, tap . The <Connect TV>
screen appears.
•If the connection fails, choose one of the other connection
methods: PBC(WPS), auto confi guration, or manual
confi guration.
5On the <Connect TV> screen, select the TV you want to
connect.
•If the TV you want to connect cannot be found on the list,
tap to retry.
6When done, tap .
Network
Select a network.
PBC(WPS)
Auto Confi guration
Unsecured
Unsecured
Secured
Secured
Connect TV
Allow
New remote
Touch Control(00-12-FB-D2-F2-39) has
been detected. Choose whether to use
the remote control.
Deny
[BN68-03092A]Touch control-01L03.indb 8 2010-05-27 오후 3:50:09
9
Touch Control
How to connect using the wireless router
1On the <Network> screen, select the APs (Access Point)
connected to the TV.
•To connect the network, you can select one of the other
methods: PBC(WPS), PIN or Security Key.
2If the network is connected, tap . The <Connect TV>
screen appears.
•If the connection fails, choose one of the other connection
methods: PBC(WPS), auto confi guration, or manual
confi guration.
3On the <Connect TV> screen, select the TV you want to
connect.
•If the TV you want to connect cannot be found on the list,
tap to retry.
4When done, tap .
or
Stand Side Panel
Wireless
Router
PC
Touch Control
If you want to use the SAMSUNG Wireless
LAN Adapter (WIS09ABGN, WIS09ABGN2
or WIS10ABGN ), you should use a gender
featuring for the connection.
or
Connect TV
Select a TV.
Network
Select a network.
PBC(WPS)
Auto Confi guration
Unsecured
Unsecured
Secured
Secured
[BN68-03092A]Touch control-01L03.indb 9 2010-05-27 오후 3:50:11
10
Touch Control

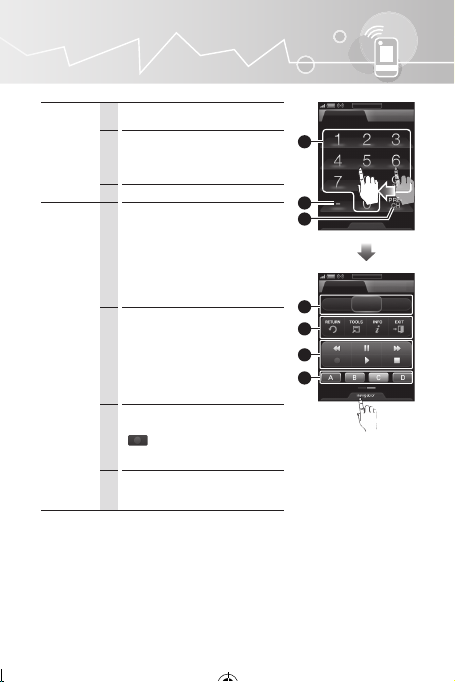

TV control menu
Number
keys
1Press numbers to directly access
channels.
2
Press the dash (-) to access
additional digital channels broadcast
on the same channel.
For example, 22-1, 22-2, etc.
3Returns to the previous channel.
Menu keys
4
CONTENT: Displays the Content
View, which includes Channel List,
Internet@TV, Media Play, AllShare,
and
3D
.
MENU: Brings up the OSD (On
Screen Display).
INTERNET@TV: Link to various
internet services.
5
RETURN: Returns to the previous
menu.
TOOLS: Quickly select frequently
used functions.
INFO: Displays information on the
TV screen.
EXIT: Exits the menu.
6
Use these buttons in Media Play
and Anynet+ modes.
( : Controls recording for
Samsung recorders that have the
Anynet+ feature)
7
Buttons used in the Channel List,
Internet@TV, Media Play menu,
etc.
Keyboard
Navigation
TV Control Services
INTERNET
@TV
CONTENT MENU
Keyboard
TV Control Services
4
6
5
7
1
3
2
[BN68-03092A]Touch control-01L03.indb 10 2010-05-27 오후 3:50:11
Ce manuel convient aux modèles suivants
4
Table des matières
Langues :
Autres manuels Samsung Télécommande
Samsung
Samsung MWR-WH00 Manuel utilisateur
Samsung
Samsung RMC30C2 Manuel utilisateur
Samsung
Samsung MWR-WE13 Manuel utilisateur
Samsung
Samsung MWR-SH11UN Manuel utilisateur
Samsung
Samsung MIM-E03*N Manuel utilisateur
Samsung
Samsung MWR-WW10N Manuel utilisateur
Samsung
Samsung RMCSPB1EP1 Manuel utilisateur
Samsung
Samsung VG-TM2360E Manuel utilisateur
Samsung
Samsung TM2180E Manuel utilisateur
Samsung
Samsung MWR-WE10 Manuel utilisateur
Samsung
Samsung MWR-SH00 Manuel utilisateur
Samsung
Samsung MWR-WE10 Manuel utilisateur
Samsung
Samsung MWR-WG00UN Manuel utilisateur
Samsung
Samsung MWR-WE13N Manuel utilisateur
Samsung
Samsung MWR-WG00RN Manuel utilisateur
Samsung
Samsung SolarCell QN85C Manuel utilisateur
Samsung
Samsung MWR-BS00 Manuel utilisateur
Samsung
Samsung bn59-01178w Manuel utilisateur
Samsung
Samsung NS052LHXEA Manuel utilisateur
Samsung
Samsung TM2180E/F Manuel utilisateur
Manuels Télécommande populaires d'autres marques
Panasonic
Panasonic EUR7622KB0 Manuel utilisateur
Bang & Olufsen
Bang & Olufsen Beo4 Manuel utilisateur
Sunwave Tech.
Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur
Multiplex
Multiplex PROFI TX 9 Manuel utilisateur
One Remote
One Remote RMB4 Manuel utilisateur
FUTABA
FUTABA 9ZAP - PART2 Manuel utilisateur
