Outdoor AP630 (IDA&IODA) Training

Background

Market demand

To address the expanding market of outdoor deployment projects, Ruijie

Networks develops the RG-AP630 (IDA&IODA), which is a next-generation

high-speed wireless access product with enhanced signal coverage, bridge

networking, performance, product form and cost efficiency compared with

its predecessor AP620.

Ruijie RG-AP630 Outdoor AP Series is a family of top-class 802.11ac

wireless access points for next-gen outdoor network applications, offering

access rates of up to 1.75Gbps.

The series consists of two models –RG-AP630(IDA) and RG-

AP630(IODA) –and takes full care of security, RF control, mobile access,

QoS, seamless roaming and other Wi-Fi aspects. Teaming up with Ruijie

RG-WS Wireless Controller Series/Cloud AC, the APs offer Wi-Fi user data

forwarding,

advanced security and access control with ease.

Outdoor AP630 (IDA&IODA) Training

Preface

Chapter 1 Overview

Chapter 2 Outdoor Deployment Topology and Network Structure

Chapter 3 Application Scenarios and Design Principles

Chapter 4 Software Configuration

Chapter 5 Important Notes of Engineering

Chapter 6 Troubleshooting

Preface

Revision Record

Page 4

Audience

Ruijie business partners and customers who are responsible for configuring

and maintaining Ruijie wireless devices.

Note :

For more detail configuration , see configuration guide for each product . you can download

configuration guide at http://www.ruijienetworks.com

For more technical enquiry , you can visit Ruijie Service portal at

http://case.ruijienetworks.com . You need to sign up before submit a case.

Release Date

Change Contents

Reviser

2016.06

Initial

publication V1.0

TAC

Oversea

Outdoor AP630 (IDA&IODA) Training

Preface

Chapter 1 Overview

Chapter 2 Outdoor Deployment Topology and Network Structure

Chapter 3 Application Scenarios and Design Principles

Chapter 4 Software Configuration

Chapter 5 Important Notes of Engineering

Chapter 6 Troubleshooting

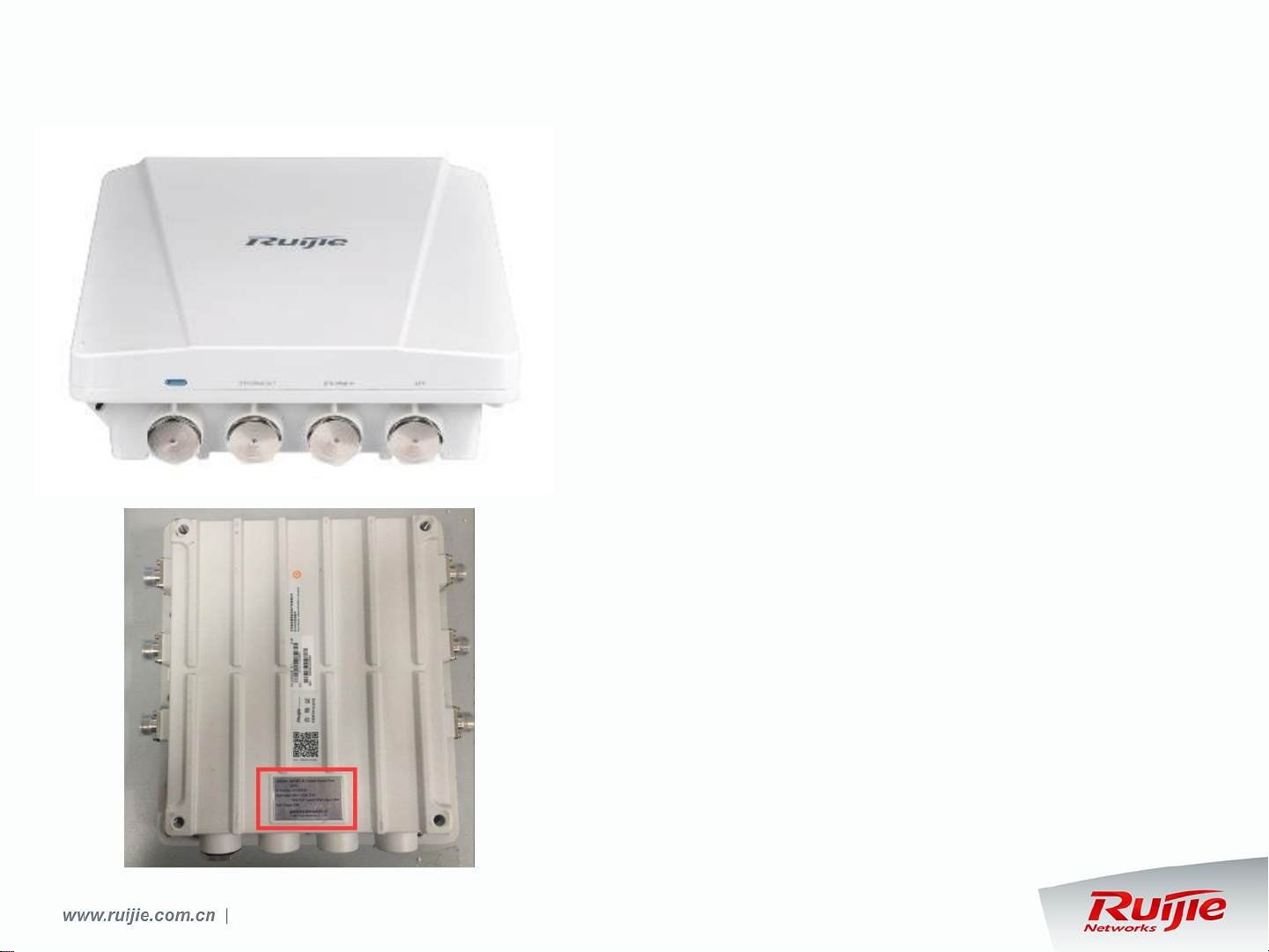

RG-AP630 (IDA&IODA)

The RG-AP630(IDA) is built-in with a directional antenna

while the RG-AP630(IODA) is built-in with an

omnidirectional antenna. The two product forms have the

same appearance and are identified as RG-AP630(IDA) and

RG-AP630(IODA), which are indicated on product labels and

nameplates. Starting from the B8 version,

AP630(IDA)(802.11a/n/ac and 802.11b/g/n, Integrated

Directional-Antenna) and AP630(IODA)(802.11a/n/ac and

802.11b/g/n, Integrated OmniDirectional-Antenna) are named

in software.

The AP630 (IDA&IODA) is built-in with an antenna used to

provide wireless network coverage in many outdoor

scenarios. The product supports switching between built-in

and external antennas when it needs to provide coverage as

a bridge AP or when it is connected to another bridge AP over

a long distance.

The product has a built-in surge protection module offering

protection to network ports and feeder interfaces, Thereby

removing the need to install an external surge protector.

The AP630 does not have a DC power supply module and

requires Power over Ethernet (PoE) as a power supply. Even

if customers deploy optical fibers, they need to configure the

PoE+ module as a power source or install an optical-to-

electrical converter.

The AP630 supports the use of power sourcing equipment

(PSE) and has the PoE OUT interface receiving power from

an external PoE+ device (in this case, a 60 W PoE adapter

module is required).

Overview

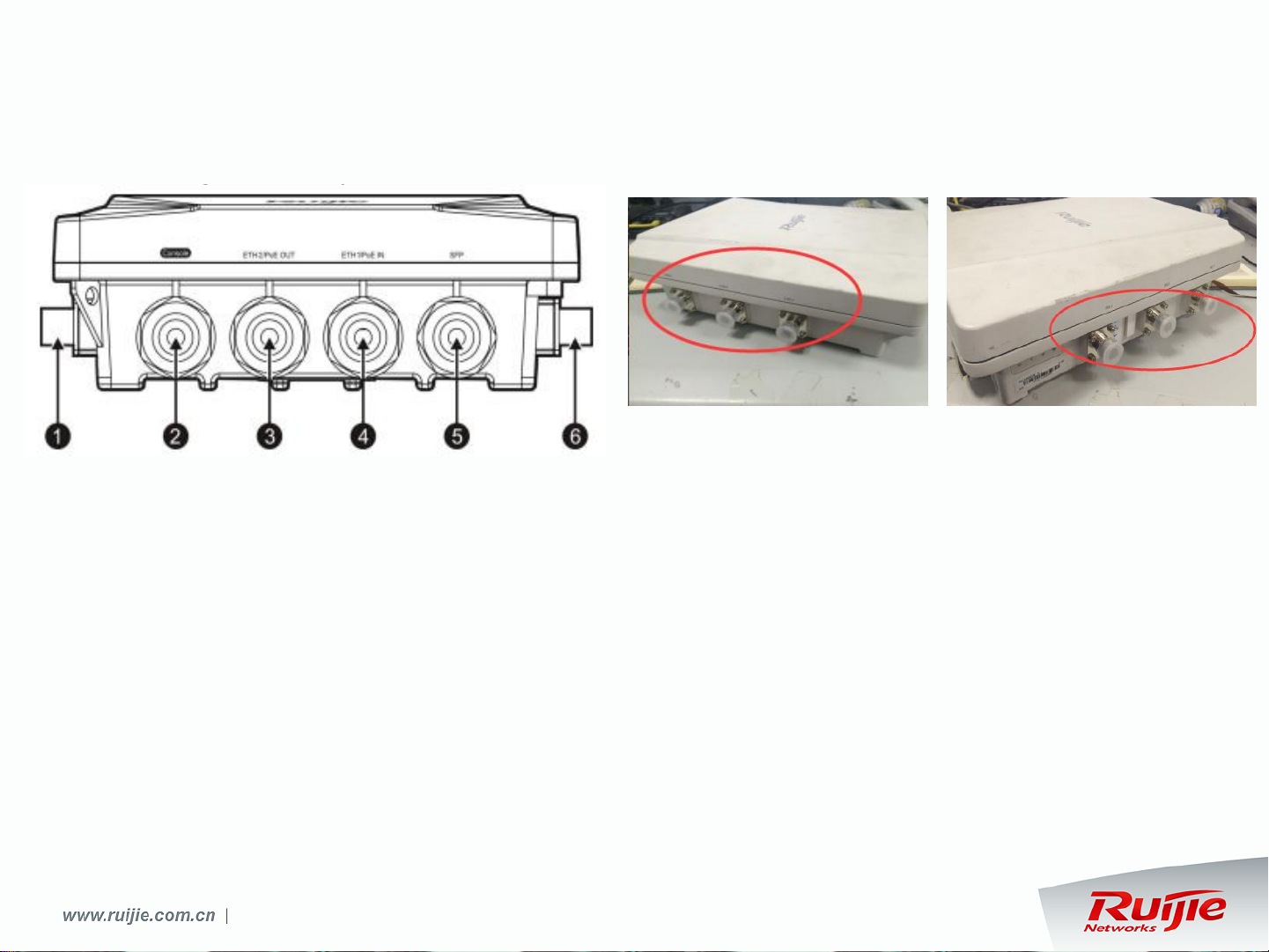

Interfaces

(1) 2.4 GHz feeder interface

(2) Console interface (RJ-45 interface)

(3) 10/100/1000Base-T adaptive Ethernet interface

(ETH2)/PoE OUT interface (RJ-45 interface)

(4) 10/100/1000Base-T adaptive Ethernet interface

(ETH1)/PoE IN interface (RJ-45 interface)

(5) SFP optical interface multiplexed with the ETH1

interface

(6) 5 GHz feeder interface

Interfaces on the

front panel 2.4 GHz port 5 GHz port

The AP630 has three 2.4 GHz feeder interfaces on one

side and three 5 GHz feeder interfaces on the other side,

which can be used to connect to an external antenna.

A 2.4 GHz or 5 GHz external antenna that supports triple

spatial streams can be directly connected to the

corresponding interfaces in a random sequence.

A 2.4 GHz or 5 GHz external antenna that supports dual

spatial streams must be connected to Interface 1 and

Interface 2 of 2.4 GHz or 5 GHz (set the receive/transmit

value to 3 and adjust the modulation and coding scheme

[MCS] to dual spatial streams mode, 11n 15 and 11ac 19).

A 2.4 GHz or 5 GHz external antenna that supports a

single spatial stream must be connected to Interface 1

of 2.4 GHz or 5 GHz (set the receive/transmit value to 1

and adjust the MCS to single spatial stream mode, 11n 7

and 11ac 9).

Specifications

Product model RG-AP630 (IDA) RG-AP630 (IODA)

Dimensions (L x W x H) 276 mm x 246 mm x 90 mm

Maximum transmission rate 1.75 Gbps

Operating band 802.11b/g/n: 2.4–2.483 GHz; 802.11ac/a/n: 5.15–5.85 GHz

Maximum transmit power 27 dBm

Antenna type Built-in directional antenna (support

internal/external antenna switching) Built-in omnidirectional antenna

Antenna gain 2.4 GHz: 10 dBi; 5 GHz: 10 dBi 2.4 GHz: 4 dBi; 5 GHz: 4 dBi

Antenna lobe bandwidth 2.4 GHz: E:45?H:60?5G: E:25?H:60? 2.4 GHz: E:30?H:360?5G: E:30?H:360?

Service interface One 10/100/1000 Base-T uplink Ethernet interface

One uplink SFP optical interface multiplexed with the Ethernet interface

One 10/100/1000Base-T downlink external PoE port

Status indicator Power indicator and WDS received signal strength indicators (RSSIs)

PoE power supply 802.3af/802.3at power supply and PSE

Overall power consumption < 25 W

Operating temperature –40℃to +65℃

Operating humidity 0–100% (non-condensing)

IP rating IP67

Weight (not including

various supports) < 2.5 kg

Security regulation

compliance GB4943, EN60601-1-2 (medical), UL/CSA 60950-1, EN/IEC 60950-1, and EN/IEC

60950-22

Electromagnetic

compatibility (EMC) GB9254-2008, EN301 489, EN55022, FCC Part15, and RSS-210

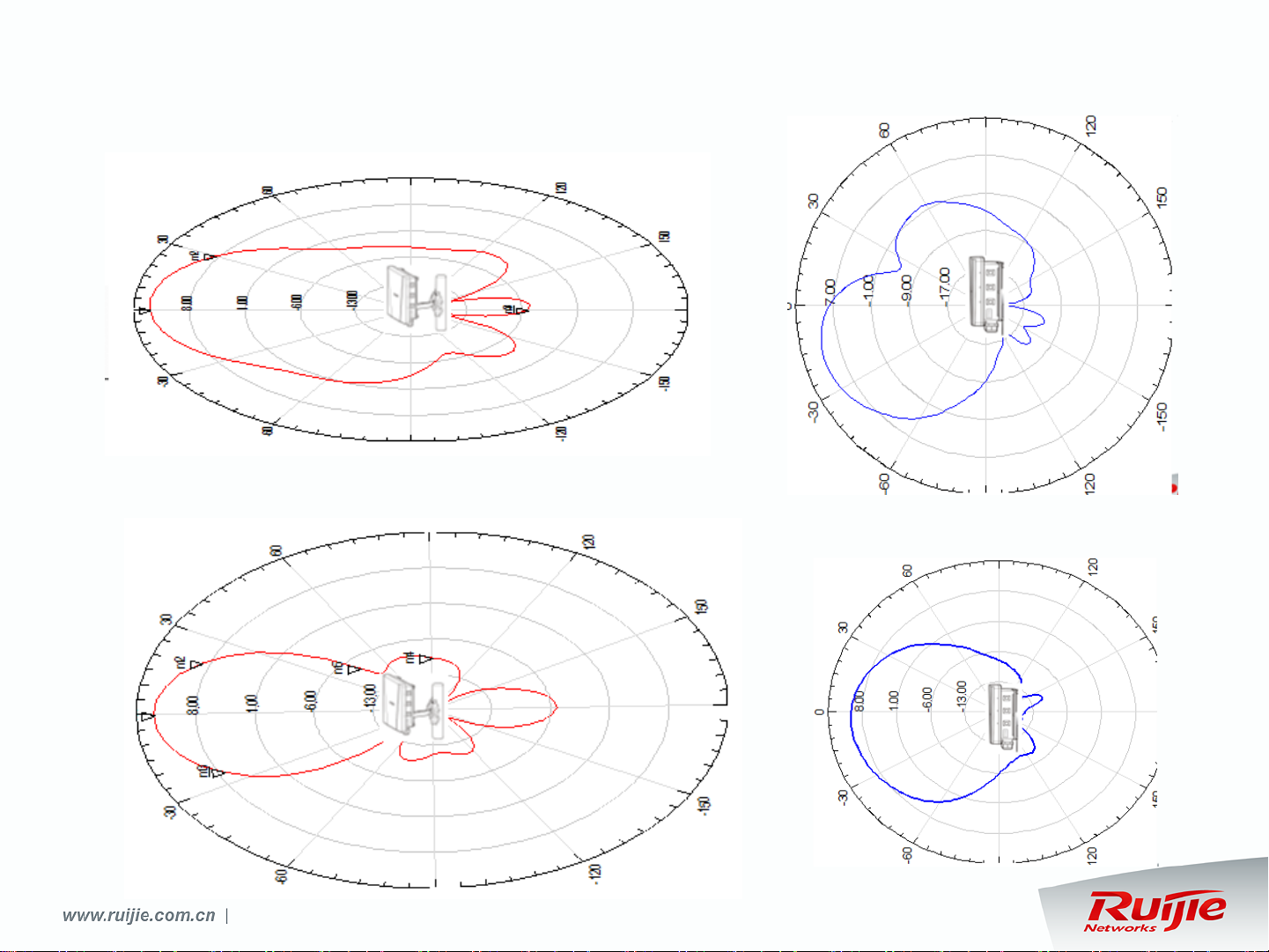

Radiation Pattern of the Built-in Directional Antenna

Horizontal

radiation pattern

Vertical radiation

pattern

2.4 GHz:

5 GHz:

Horizontal radiation

pattern Vertical radiation

pattern

-20.00

-10.00

0.00

-30

-60

-90

-120

-150

-180

150

120

HFSSDesign1

Radiation Pattern 2

Curve Info

dB(GainTotal)

Setup1 : LastAdaptive

Freq='5.5GHz' Theta='134deg'

-20.00

-10.00

0.00

-30

-60

-90

-120

-150

-180

150

120

HFSSDesign1

Radiation Pattern 2

Curve Info

dB(GainTotal)

Setup1 : LastAdaptive

Freq='2.4GHz' Theta='134deg'

Horizontal radiation pattern Vertical radiation pattern

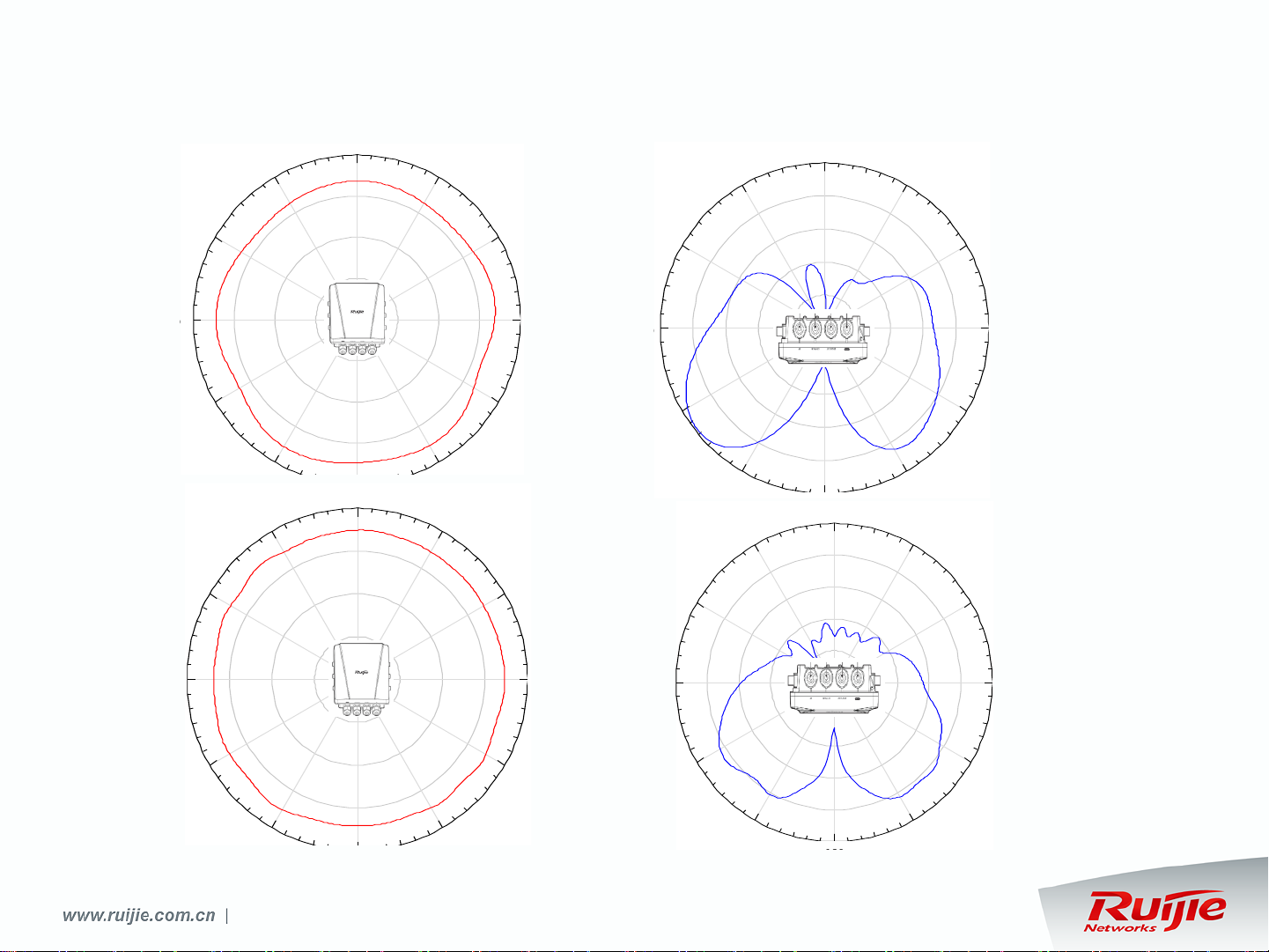

Radiation Pattern of the Built-in OmniDirectional Antenna

-9.00

-5.50

-2.00

1.50

-30

-60

-90

-120

-150

-180

150

120

HFSSDesign1

Radiation Pattern 1

Curve Info

dB(GainTotal)

Setup1 : LastAdaptive

Freq='2.4GHz' Phi='45deg'

-14.00

-8.00

-2.00

4.00

-30

-60

-90

-120

-150

-180

150

120

HFSSDesign1

Radiation Pattern 1

Curve Info

dB(GainTotal)

Setup1 : LastAdaptive

Freq='5.5GHz' Phi='0deg'

2.4 GHz:

5 GHz:
