Ruijie RG-AP180-I Manuel d'installation et d'exploitation

Ruijie RG-AP180-I Access Point

Hardware Installation and Reference Guide

Document Version: V1.0

Date: October 28, 2022

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this

document or any portion of this document, in any form or by any means, without the prior written consent of

Ruijie Networks is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective

owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Live Chat: https://www.ruijienetworks.com/rita

Conventions

1. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

2. Note

The manual offers configuration information (including model, port type and command line interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

Contents

Preface...................................................................................................................................................I

1 Product Introduction...........................................................................................................................1

1.1 Overview....................................................................................................................................1

1.2 Product Appearance..................................................................................................................2

1.3 Package Contents......................................................................................................................5

1.4 Technical Specifications............................................................................................................5

1.4.1 Dimensions and Weight.................................................................................................5

1.4.2 Radio Specifications ......................................................................................................6

1.4.3 Port Specifications.........................................................................................................7

1.4.4 Power Supply and Consumption...................................................................................8

1.4.5 Environment and Reliability...........................................................................................8

1.5 LED and Button..........................................................................................................................9

2 Preparing for Installation..................................................................................................................10

2.1 Safety Precautions...................................................................................................................10

2.1.1 General Safety Precautions.........................................................................................10

2.1.2 Handling Safety............................................................................................................10

2.1.3 Electric Safety..............................................................................................................10

2.1.4 Storage Security ..........................................................................................................11

2.2 Installation Environment Requirements...................................................................................11

2.2.1 Bearing Requirements.................................................................................................11

2.2.2 Ventilation Requirements.............................................................................................11

2.2.3 Space Requirements...................................................................................................11

2.2.4 Temperature/Humidity Requirements..........................................................................11

2.2.5 Cleanliness Requirements...........................................................................................12

2.2.6 Anti-Interference Requirements...................................................................................13

2.2.7 Lightning Protection Requirements .............................................................................13

2.2.8 Other Requirements.....................................................................................................13

2.3 Tools ........................................................................................................................................13

3 Installing theAccess Point ...............................................................................................................14

3.1 Installation Flowchart...............................................................................................................14

3.2 Before You Begin.....................................................................................................................14

3.3 Precautions..............................................................................................................................15

3.4 Installing the Device.................................................................................................................16

3.4.1 Embedding in an 86-type Panel...................................................................................16

3.4.2 Removing the AP.........................................................................................................20

3.5 Connecting Cables...................................................................................................................21

3.6 Bundling Cables.......................................................................................................................21

3.6.1 Precautions..................................................................................................................21

3.6.2 Bundling Steps.............................................................................................................21

3.7 Installation Verification.............................................................................................................22

3.7.1 Checking the AP ..........................................................................................................22

3.7.2 Checking Cable Connections ......................................................................................22

3.7.3 Checking the Power Supply.........................................................................................22

4 Verifying Operating Status ...............................................................................................................23

4.1 Establishing the Configuration Environment ...........................................................................23

4.2 Powering on the AP.................................................................................................................23

iii

4.2.1 Checklist Before Power-on..........................................................................................23

4.2.2 ChecklistAfter Power-on .............................................................................................23

5 Monitoring and Maintenance............................................................................................................24

5.1 Monitoring................................................................................................................................24

5.1.1 LED..............................................................................................................................24

5.1.2 CLI Commands............................................................................................................24

5.2 Remote Maintenance...............................................................................................................24

5.3 Hardware Maintenance............................................................................................................24

6 Troubleshooting................................................................................................................................25

6.1 General Troubleshooting Flowchart ........................................................................................25

6.2 Common Troubleshooting Procedures....................................................................................25

6.2.1 Ethernet Port Is Not Working After the Ethernet Cable Is Plugged In.........................25

6.2.2 LED Is Off for a Long Time..........................................................................................25

6.2.3 LED Is Steady Red ......................................................................................................25

6.2.4 LED Is Steady Green...................................................................................................26

6.2.5 LED Blinks Green at an Interval of 0.2s for a Long Time............................................26

6.2.6 LED Blinks Red at an Interval of 1s for a Long Time...................................................26

6.2.7 No Wireless Signal Searched......................................................................................26

7 Appendix...........................................................................................................................................27

7.1 Connectors and Media.............................................................................................................27

7.2 Cabling Recommendations......................................................................................................29

7.3 Power Adapter Specifications..................................................................................................32

Hardware Installation and Reference Guide Product Introduction

1 Product Introduction

1.1 Overview

RG-AP180-I is a common 802.11ax-compliant panel-type wireless access point (AP) provided by Ruijie

Networks for indoor scenarios of small- and medium-sized networks, such as delicately decorated

apartments/houses, stores, KTVs, hotels, enterprises' VIP offices, and real estates.

RG-AP180-I supports the 802.11ax, 802.11ac Wave2, 802.11ac Wave1, and 802.11n protocols. With

hardware-independent dual-radio design, the AP can provide up to 2.975 Gbps access rate. The ultra-fast

wireless negotiation rate makes wireless performance no longer a bottleneck.

The AP can be installed in an 86-type panel and has the following two features:

The personalized appearance and structural design makes the product simple and beautiful.

The product is cost-effective and can carry IP phones when working, helping save network deployment

costs.

RG-AP180-I integrates Ethernet ports and gives sufficient consideration to wireless network security, radio

control, mobile access, Quality of Service (QoS), seamless roaming, and other important factors. Working with

Ruijie access controllers (ACs) and RG-WIS, this product implements user data forwarding, security, and

access control. It is an optimal choice for wireless network construction in dormitories, VIP offices, hotels,

stores, KTVs, and real estates.

Hardware Installation and Reference Guide Product Introduction

1.2 Product Appearance

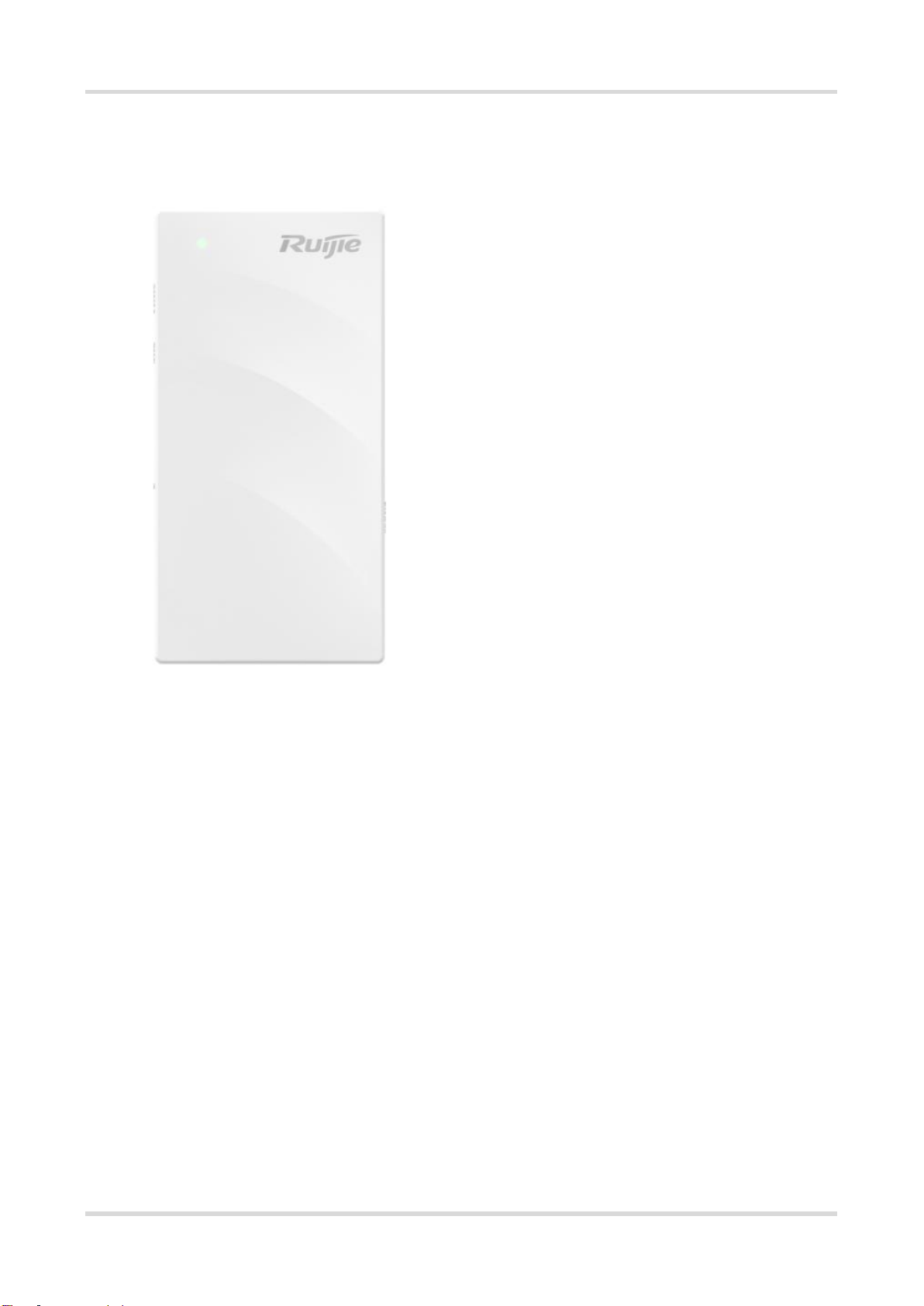

Figure 1-1 Front View

Hardware Installation and Reference Guide Product Introduction

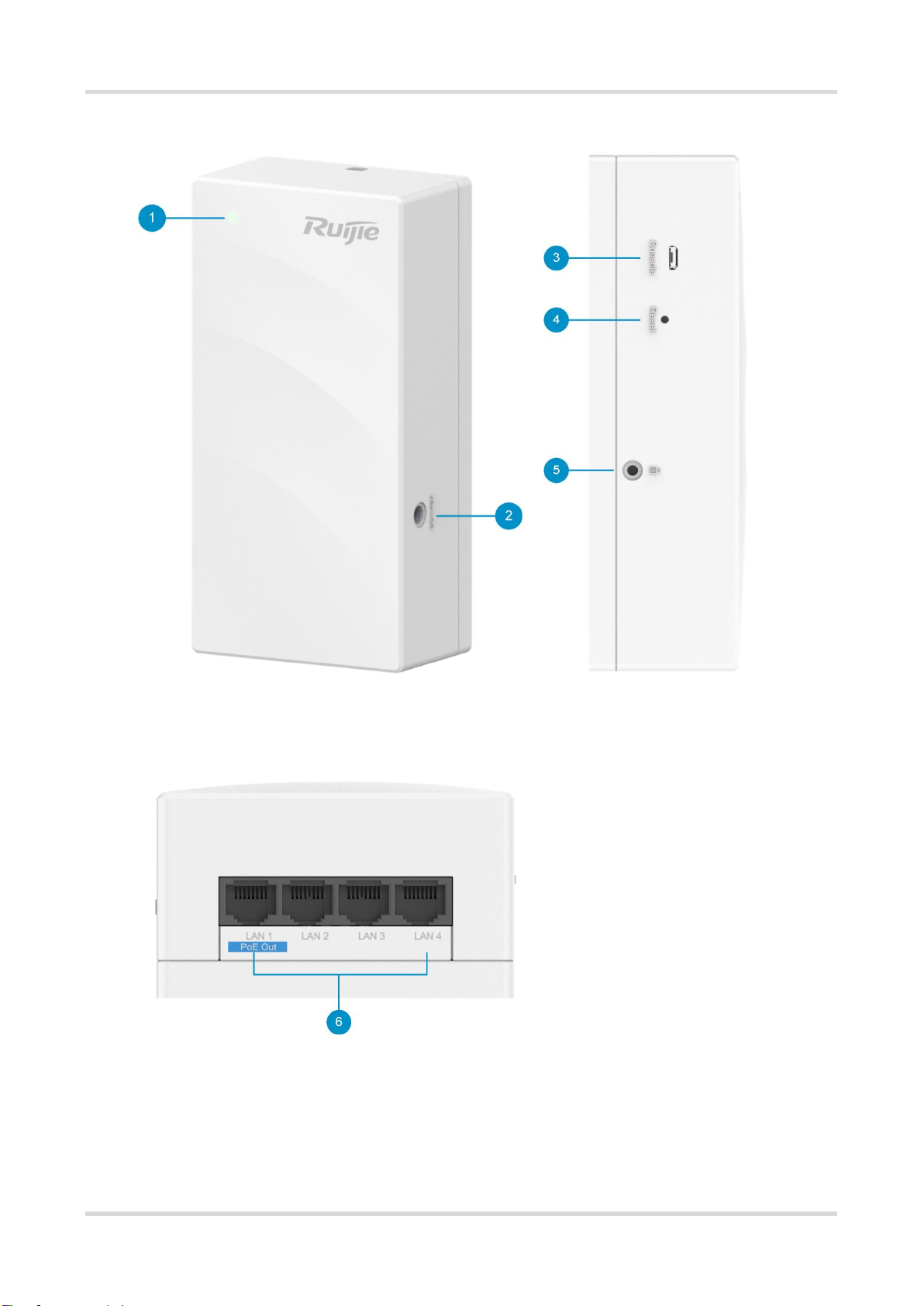

Figure 1-2 Side View

Figure 1-3 Bottom View

Hardware Installation and Reference Guide Product Introduction

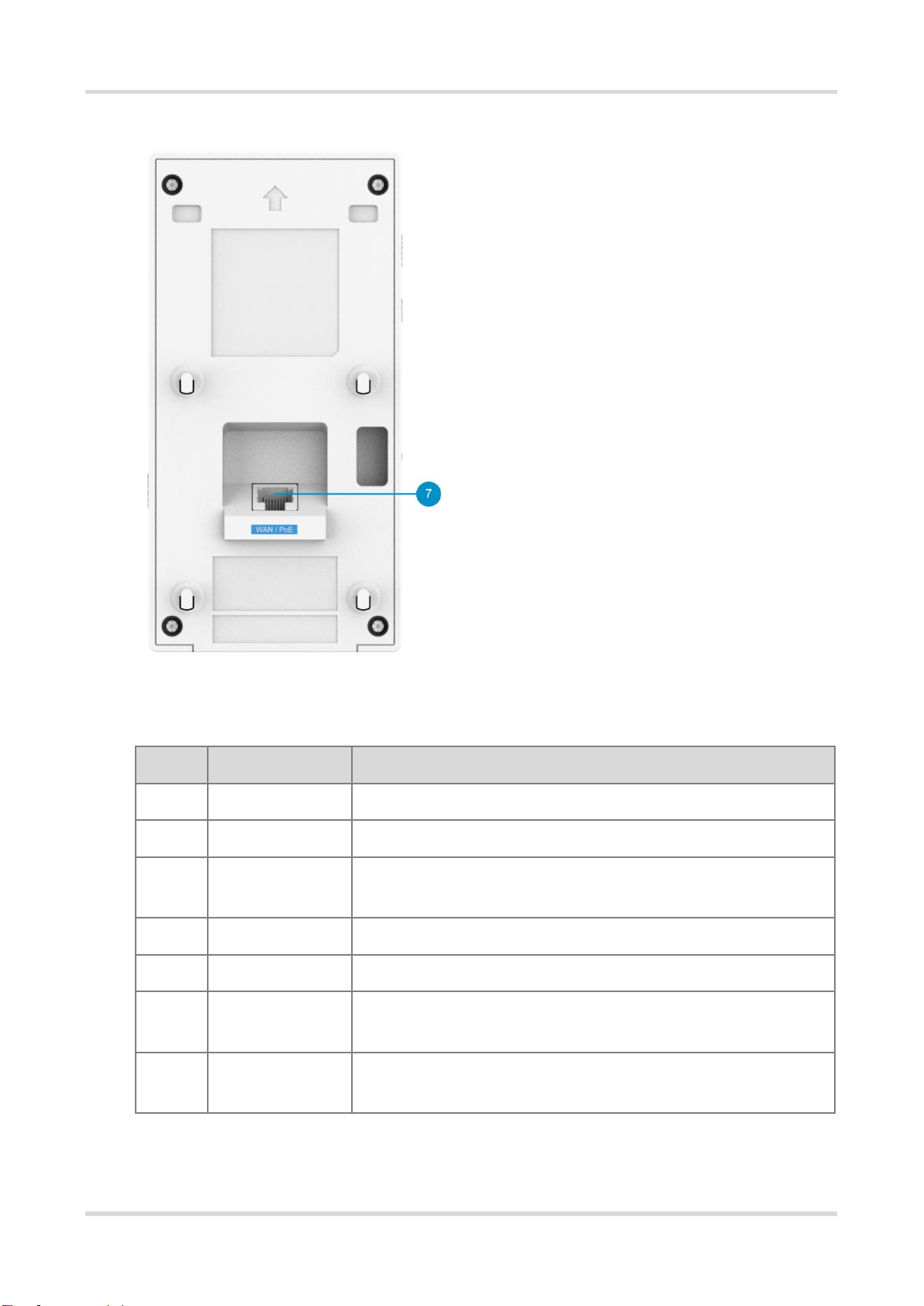

Figure 1-4 Rear View

Table 1-1 Right View

No.

Item

Description

LED

Used to show the running status of the system

DC power plug

Connected to a 48 V DC power adapter to supply power to anAP

Console port

Micro USB-type management port, used to connect to a USB cable to

manage the AP

Reset button

Used to reboot the device or restore the device to factory settings

Anti-theft lock

Used to install the anti-theft screw

LAN port

Connected to the downlink service ports for data transmission. The LAN1

port can provide 48 V/10 W PoE power to external devices.

WAN port

Connected to the uplink service ports for wired Ethernet connection and

service data transmission, supporting IEEE 802.3af/at-compliant PoE
