Rose electronics CRK-T1DFXDM-DLT Manuel utilisateur

CrystalView DVI Micro LT

Multi

-mode or Single-mode DVI Fiber Extender

Installation

and

Operation Manual

10707 Stancliff Road

Houston, Texas 77099

Phone: (281) 933-7673

[email protected]

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and

recording, without the prior written permission of Rose Electronics.

manual-crystalview-dvi-micro-lt-2018-03-02

Rose Electronics®warrants the CrystalView DVI Micro LT Extender to be in good working order for one year

from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good

working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or

replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. All

replaced parts become the property of Rose Electronics. This limited warranty does not include service to

repair damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit,

including static discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose

Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,

you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the

warranty service location, and to use the original shipping container or its equivalent. You must call for a return

authorization number first. Under no circumstances will a unit be accepted without a return authorization

number. Contact an authorized repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A

PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS

OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE

REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE

ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST

SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR

THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER

PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

TABLE OF CONTENTS

Contents

Disclaimer 1

System Introduction 1

Features 1

Package Contents 2

Compatibility 2

Application Examples 2

CrystalView DVI Micro LT Models 3

Installation Procedure 4

System Connection 4

LC Fiber 4

Status Indicators 4

Manual Self-EDID Programming 4

Programming Procedure 5

Device Power 5

AC/DC Power Adaptor 5

DVI Panel Layout – Connectors and LED’s 6

DVI Connector - Pin Designations 7

Safety 8

Maintenance and Repair 9

Technical Support 9

Appendix A — Specifications 10

Figures

Figure 1. CrystalView DVI Micro, front and back composite 3

Figure 2. Connecting the CrystalView DVI Micro LT 4

Figure 3. Active Power LED 5

Figure 4. DVI panel layout (transmitter and receiver) 6

Figure 5. DVI-D (male) connector pinout 7

Tables

Table 1. DVI connectors and LED’s ................................................................................................... 6

Table 2. DVI Pin designations ........................................................................................................... 7

Appendices

Appendix A —Specifications 10

INTRODUCTION

CrystalView DVI Micro LT Manual 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product (See limited warranty).

System Introduction

Thank you for choosing the Rose Electronics CrystalView DVI Micro LT fiber extender.

Utilizing both single-mode and multi-mode optical fiber, the product transmits DVI signals up to 1640ft (500m)

on multi-mode fiber, and 4920ft (1500m) on single-mode fiber. The built-in EDID technology provides ease of

installation and flexible compatibility with any display, regardless of resolution. In addition, the front-panel

placement of the EDID button, power supply input, and status indicators allows for the convenient operation

and monitoring of the module.

The instructions in this manual assume a general knowledge of computer installation procedures, familiarity

with cabling requirements, and some understanding of DVI and EDID device operation. An external power is

required to operate this device.

Features

■Compact Size (H x W x D : 0.58” x 1.54” x 2.12” / 14.6mm x 39.0mm x 53.9mm )

■Duplex LC fiber optic connectors

■Single-mode or Multi-mode Fiber

■Long distance transmission of high resolution DVI video signals up to 1920 x 1200@60Hz)

■Transmitter can be programmed with the EDID of any display

■Indicators for transmitter and receiver signal status

■Single +5V power supply for receiver, optional +5V power supply for transmitter

■Metal enclosure

■Low power consumption

■RoHS compliant

CrystalView DVI Micro LT Manual 2

Package Contents

CrystalView Micro LT unit

■1x 5V 0.85A power supply

■User Manual

Additional power supply and cables can be ordered separately. If the package contents are not correct, contact

Rose Electronics or your reseller so the problem can be quickly resolved.

Compatibility

Hardware: Any device with DVI video input or output

Operating Systems: All operating systems

Application Examples

The CrystalView DVI Micro LT is ideal for use in mechanical or industrial environments, hazardous

operational areas and between buildings.

■Industrial control

■Operational campus

■Transportation systems, ports and railways

■Mobile cranes

MODELS

CrystalView DVI Micro LT Manual 3

CrystalView DVI Micro LT Models

The CrystalView DVI Micro LT comes in a single model. The following figures show the buttons and connectors

on the unit.

Figure 1. CrystalView DVI Micro, front and back composite

INSTALLATION

CrystalView DVI Micro LT Manual 4

Installation Procedure

Before beginning an installation, ensure you have all products and components ready for the installation

System Connection

Connect the transmitter to the DVI source, and the receiver to the DVI display.

Figure 2. Connecting the CrystalView DVI Micro LT

LC Fiber

Plug the duplex LC fiber into the LC connectors on the CrystalView DVI Micro LT transmitter and receiver

units. When the fiber is connected properly, the “Fiber LOS” LED will be blinking. Depending on the

requirement of the host devices, the optical extender will utilize either single-mode or multi-mode fiber.

Status Indicators

The correct installation of the device results in a steady green signal on the transmitter’s Laser Active Indicator

and a blinking orange signal on the LOS Receiver LED.

Manual Self-EDID Programming

The EDID (Extended Display Identification Data) contains information on a monitor’s capabilities. A default

EDID is programmed into the transmitter unit. If this table works with a DVI source, it is not necessary to

reprogram the extender. CrystalView DVI Micro LT can also be programmed with any display’s EDID table, to

provide full compatibility with the display.

CrystalView DVI Micro LT Manual 5

Programming Procedure

Insert a small pin or paper clip into the EDID button hole, and press and hold down the button. Release the

button once the EDID indicator begins to blink rapidly. Connect the transmitter unit to the DVI cable of the

display. When the contents of the display EDID are recorded, the EDID indicator will stop flashing and remain

steadily illuminated.

To restore the factory default EDID information, insert the pin into the EDID button hole and press the button

continuously. The EDID indicator will light up. Release the button when the indicator is again illuminated,

indicating that the default EDID has been restored.

Device Power

Power on the display and plug the AC/DC power adaptor into the transmitter. Check that the Power indicator

and EDID indicator are illuminated

AC/DC Power Adaptor

Transmitter Unit:There are two power input options for the CrystalView DVI Micro LT Transmitter unit. Power

is normally supplied from the graphic card through PIN14 (+5V) of the DVI connector. However, if the power

output of the graphic card is insufficient for the operation of the transmitter unit, an AC/DC power adaptor may

be used to power the unit. Built-in protection circuits are used to accommodate dual power inputs. The power

indicator LED will be illuminated when sufficient power is applied.

Figure 3. Active Power LED

Receiver Unit:The CrystalView DVI Micro LT receiver module requires the included external AC/DC power

adaptor to operate.

CrystalView DVI Micro LT Manual 6

DVI Panel Layout – Connectors and LED’s

Figure 4. DVI panel layout (transmitter and receiver)

DVI Panel - Connectors and LED’s

Number Description

1 Power adaptor: DC jack

Power Indicator: Illuminated when 5V power is supplied from either the transmitter DVI connector

or the 5V external power supply

3 LC fiber optic connector

Data Indicator: displays signal transmission status:

Transmitter status - Green light indicates that a valid video signal has been received by the

transmitter and the transmission laser is active.

Receiver status - Orange light indicates that receiver is not detecting a transmitted signal

This may be caused by loss of power at the transmitter, or by an unplugged fiber cable

EDID Programming Status Indicator on transmitter unit, Display Connect LED on receiver unit

Transmitter EDID Status - LED will flash orange when a display’s EDID is being programmed into

the Transmitter

Receiver Display LED - green light indicates the receiver is connected to a display

EDID button (Transmitter) - Allows the user to manually program a display’s EDID data into the

transmitter’s EEPROM. The button must be pressed and held down using a pin or paper clip

Table 1. DVI connectors and LED’s

CrystalView DVI Micro LT Manual 7

DVI Connector - Pin Designations

Transmitter Unit Receiver Unit

Pin Designation Pin Designation

1 T.M.D.S Data 2- 1 T.M.D.S Data 2-

2 T.M.D.S Data 2+ 2 T.M.D.S Data 2+

3 T.M.D.S Data 2 Shield 3 T.M.D.S Data 2 Shield

6 DDC Clock 6 DDC Clock

7 DDC Data 7 DDC Data

8 No Connect 8 No Connect

9 T.M.D.S Data 1- 9 T.M.D.S Data 1-

10 T.M.D.S Data 1+ 10 T.M.D.S Data 1+

11 T.M.D.S Data 1 Shield 11 T.M.D.S Data 1 Shield

14 +5V 14 +5V

15 Ground 15 Ground

16 Hot Plug Detect 16 Hot Plug Detect

17 T.M.D.S Data 0- 17 T.M.D.S Data 0-

18 T.M.D.S Data 0+ 18 T.M.D.S Data 0+

19 T.M.D.S Data 0 Shield 19 T.M.D.S Data 0 Shield

22 T.M.D.S Clock Shield 22 T.M.D.S Clock Shield

23 T.M.D.S Data Clock+ 23 T.M.D.S Data Clock+

24 T.M.D.S Data Clock- 24 T.M.D.S Data Clock-

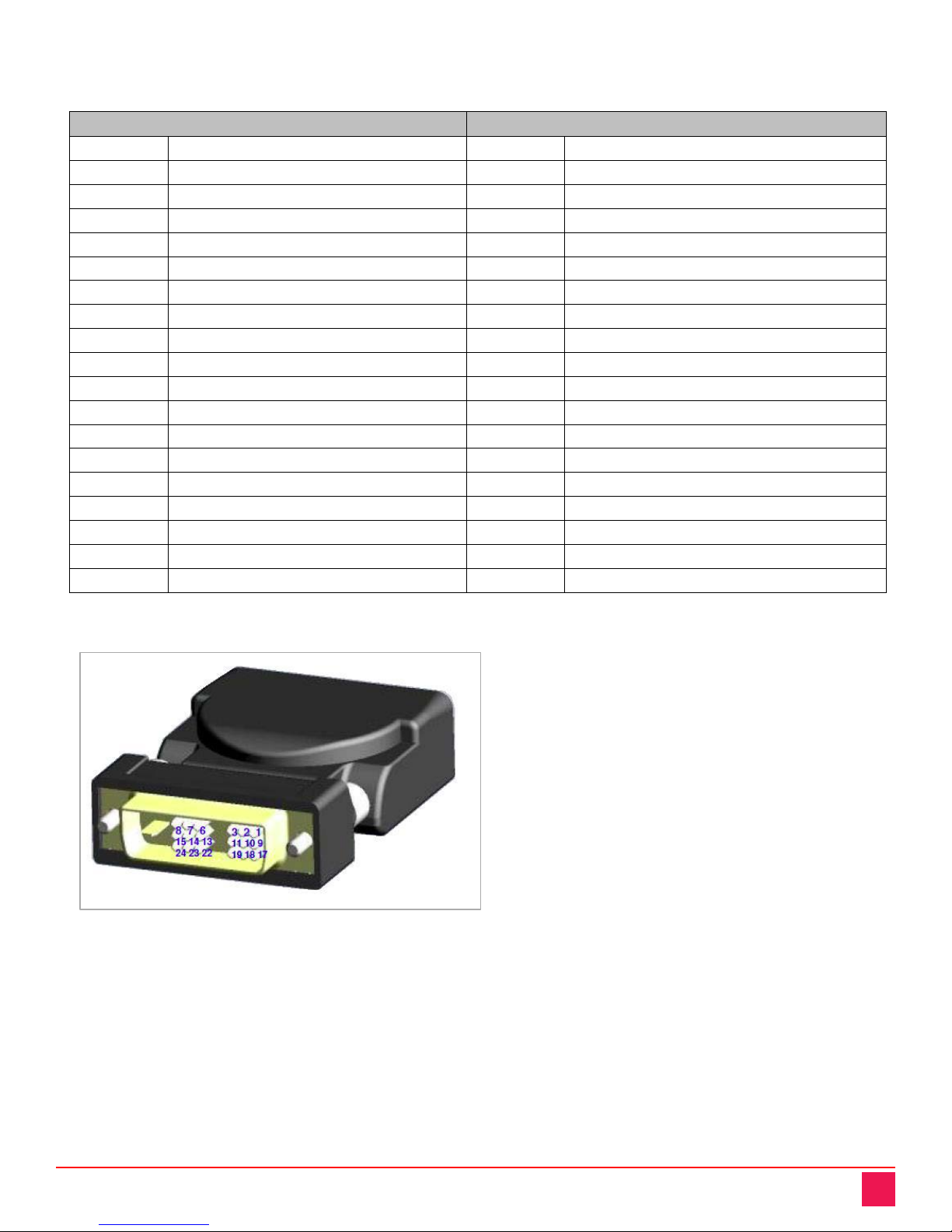

Table 2. DVI Pin designations

Figure 5. DVI-D (male) connector pinout

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rose electronics Extenseur

Rose electronics

Rose electronics CrystalView HDMI 4K60 Manuel utilisateur

Rose electronics

Rose electronics CrystalLink CLK-1U1TP-40M Manuel utilisateur

Rose electronics

Rose electronics CLK-4U2FM-500M Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB Fiber Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI Fiber CRK-2DFMPD1D Manuel utilisateur

Rose electronics

Rose electronics CrystalView Mini Manuel utilisateur

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel du propriétaire

Rose electronics

Rose electronics CrystalView DVI Mini Manuel utilisateur

Rose electronics

Rose electronics CrystalView EX HDMI Multi CRV-SRDTXT2D-2T-HD6... Manuel utilisateur

Rose electronics

Rose electronics CRK-1P1V Manuel utilisateur

Rose electronics

Rose electronics CrystalView CRK-1DTXT-HD5 Manuel utilisateur

Rose electronics

Rose electronics CrystalView HDT Manuel utilisateur

Rose electronics

Rose electronics CrystalView USB2 Manuel utilisateur

Rose electronics

Rose electronics RJ45 Manuel utilisateur

Rose electronics

Rose electronics ViewLink Coax Manuel utilisateur

Rose electronics

Rose electronics CLK-4U2TP-100M Manuel utilisateur

Rose electronics

Rose electronics CrystalLink CAT5 Serial Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI EX Manuel utilisateur

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel utilisateur

Rose electronics

Rose electronics CrystalView EX DVI Multi CRK-1DTXT2DM-2T-EX6 Manuel utilisateur

Rose electronics

Rose electronics CrystalView EX HDMI Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI EX Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI Mini Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI Plus Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
