Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel utilisateur

CrystalView fiber

DIGITAL FIBER KVM EXTENDER

10707 Stancliff Road Houston, Texas 77099

Phone: (281) 933-7673 Internet: WWW.ROSE.COM

INSTALLATION AND OPERATIONS

MANUAL

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form

or any means, electronic or mechanical, including photocopying and recording, without the prior

written permission of Rose Electronics.

Rose Electronics Part # MAN-CRVF1.0

Printed In the United States of America – Revision 1.1

Rose Electronics warrants the CrystalView Fiber to be in good working order for one year

from the date of purchase from Rose Electronics or an authorized dealer. Should this

product fail to be in good working order at any time during this one-year warranty period,

Rose Electronics will, at its option, repair or replace the Unit as set forth below. Repair

parts and replacement units will be either reconditioned or new. All replaced parts become

the property of Rose Electronics. This limited warranty does not include service to repair

damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification

of the Unit, including static discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year

warranty period to Rose Electronics or an authorized repair center providing a proof of

purchase date. If this Unit is delivered by mail, you agree to insure the Unit or assume the

risk of loss or damage in transit, to prepay shipping charges to the warranty service

location, and to use the original shipping container or its equivalent. You must call for a

return authorization number first. Under no circumstances will a unit be accepted without a

return authorization number. Contact an authorized repair center or Rose Electronics for

further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

ARE LIMITED IN DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF

PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY

AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG

AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO

YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE,

YOUR SOLE REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE.

IN NO EVENT WILL ROSE ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES

INCLUDING ANY LOST PROFITS, LOST SAVINGS OR OTHER INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR THE INABILITY TO

USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM

BY ANY OTHER PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE

MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS

AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO

STATE.

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

IBM, AT, and PS/2 are trademarks of International Business Machines Corp. Microsoft and

Microsoft Windows are registered trademarks of Microsoft Corp. Any other trademarks

mentioned in this manual are acknowledged to be the property of the trademark owner.

FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY

FEDERAL COMMUNICATIONS COMMISSION

AND INDUSTRY CANADA

RADIO-FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses and can radiate radio frequency

energy and if not installed and used properly, that is in strict

accordance with the manufacturer’s instructions may cause

interference to radio communication. It has been tested and found

to comply with the limits for a Class B digital device in accordance

with the specifications of Part 15 of FCC rules, which are designed

to provide reasonable protection against such interference when the

equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in

which case the user at his own expense will be required to take

whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

the equipment.

This digital apparatus does not exceed the Class B limits for radio

noise emission from digital apparatus set out in the Radio

Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de la

classe A prescrites dans le Règlement sur le brouillage

radioélectrique publié par Industrie Canada.

CE DECLARATION OF CONFORMITY

This equipment is in conformity with the

Council Directives 89/336/EEC

The Declaration of Conformity is based upon

compliance of the product with the following

standards:

EN55022: 1998 Class B

EN55024: 1998

IEC61000-4-2: 1998

IEC61000-4-3: 1998

IEC61000-4.4: 1998

TABLE OF CONTENTS

Contents

Disclaimer..........................................................................................1

System introduction...........................................................................1

Features.......................................................................................2

Compatibility.................................................................................2

Package contents.........................................................................2

PC model...........................................................................................3

Sun model.........................................................................................4

Optical elements ...............................................................................5

CrystalView Fiber cables...................................................................5

Installation.........................................................................................6

Transmitter to receiver cabling.....................................................7

Applying power.............................................................................8

Selection, automatic DPA, Color Depth.......................................8

Operating instructions- All units ......................................................10

Operating instructions – Local KVM access ...................................10

Troubleshooting ..............................................................................11

Service Information.........................................................................13

Safety..............................................................................................14

Figures

Figure 1. PC model...........................................................................3

Figure 2. SUN model.........................................................................4

Figure 4. Cabling...............................................................................6

Figure 5. DPA / Color depth settings ................................................9

Figure 6. DPA alignment.................................................................10

Tables

Table 1.Local to Remote cabling ......................................................7

Appendices

Appendix A. General Specifications................................................16

Appendix B. Parts and cables.........................................................17

Appendix C. Firmware updates.......................................................17

Appendix D. Rack mount instructions.............................................18

Appendix E. Rack mount illustration...............................................18

INTRODUCTION

CrystalView Fiber Installation and Operations Manual 1

Disclaimer

While every precaution has been taken in the preparation of this

manual, the manufacturer assumes no responsibility for errors or

omissions. Neither does the manufacturer assume any liability for

damages resulting from the use of the information contained herein.

The manufacturer reserves the right to change the specifications,

functions, or circuitry of the product without notice.

The manufacturer cannot accept liability for damages due to misuse

of the product or other circumstances outside the manufacturer’s

control. The manufacturer will not be responsible for any loss,

damage, or injury arising directly or indirectly from the use of this

product.

System introduction

Thank you for choosing the Rose ElectronicsCrystalViewFiber

KVM station extender. The CrystalView Fiber is the result of Rose

Electronics commitment to providing state-of-the-art solutions for

today’s demanding workplace. The CrystalView Fiber has proven to

be a valuable investment for any business, big or small, that has a

need to access CPUs from extended remote locations.

The CrystalView Fiber system consists of two Units, a transmitter

and a receiver. The transmitter connects to your CPU or a Rose

switch and the receiver connects to a keyboard, video monitor and

mouse or KVM station. The transmitter and receiver are connected

together with industry standard fiber optic cable terminated with SC-

type connectors.

The CrystalView Fiber is available in two models, the PC model and

the Sun model. The PC model is available with local and remote

KVM access. The local KVM version allows an additional KVM

station to be connected to the transmitter.

Using the CrystalView Fiber to remotely access your computer has

several advantages over conventional CAT-5 cable. Using fiber

cable, you have the advantage of extending the distance between

the transmitter and receiver up to 30,000 feet. In addition, fiber

cable is unaffected by electromagnetic interference, keeping your

data safe from interference by lightning and over voltage transients.

You can locate your computers in a secure remote area and access

them safely and securely from other unsecured areas. Computers

used in hazardous industrial environments can be accessed

remotely, keeping the users safe and unexposed to any hazards.

2 CrystalView Fiber Installation and Operations Manual

Features

Extend a KVM station from a CPU using duplex fiber cable:

62.5-micron cable for distances up to 600 feet. (MultiMode)

50-micron cable for distances up to 1,200 feet. (MultiMode)

9-micron cable for distances up to 30,000 feet. (SingleMode)

Supports PC and Sun Systems.

Supports PS/2 and Sun keyboards and mouse.

The CrystalView uses a microprocessor to emulate the

keyboard and mouse. The keyboard and mouse on the Remote

Unit do not have to be connected for the PC to boot; only the

Local Unit must be connected to the PC.

Video resolutions up to 1280 x 1024.

Color Depth settings.

Compatible with Rose Electronics family of KVM switches such

as ServeView, UltraView and UltraMatrix.

Compatible with Windows, Windows NT, OS/2, UNIX, Linux and

other operating systems.

Fully automatic KVM sharing on a first-come first-serve basis

using the local access model.

On the local access model, the computers video is displayed on

both KVM stations monitors.

Rack mount kits available in 19”, 23” and 24” sizes.

Compatibility

Computers PCs with standard keyboards and PS/2 mice,

286, 386, 486, Pentium, etc.

Monitors VGA, SVGA, XGA, RGB (Sync-on-green)

13Bit/24Bit Color Depth (selectable)

Keyboards PS/2 type keyboards, Sun

Mouse PS/2, Sun

Package contents

The package contents consists of the following:

The Local and Remote Units

Power adapter for Local and Remote units.

HD15FF gender changer (Included: installed on the Local Unit)

Installation and operations manual.

CPU and fiber optic cables are usually ordered separately. If the

package contents are not correct, contact Rose Electronics or your

reseller, so the problem can be quickly resolved.

MODELS

CrystalView Fiber Installation and Operations Manual 3

PC model

Receiver

Transmitter

(Local KVM

access)

Receiver

Transmitter

(No local KVM

access)

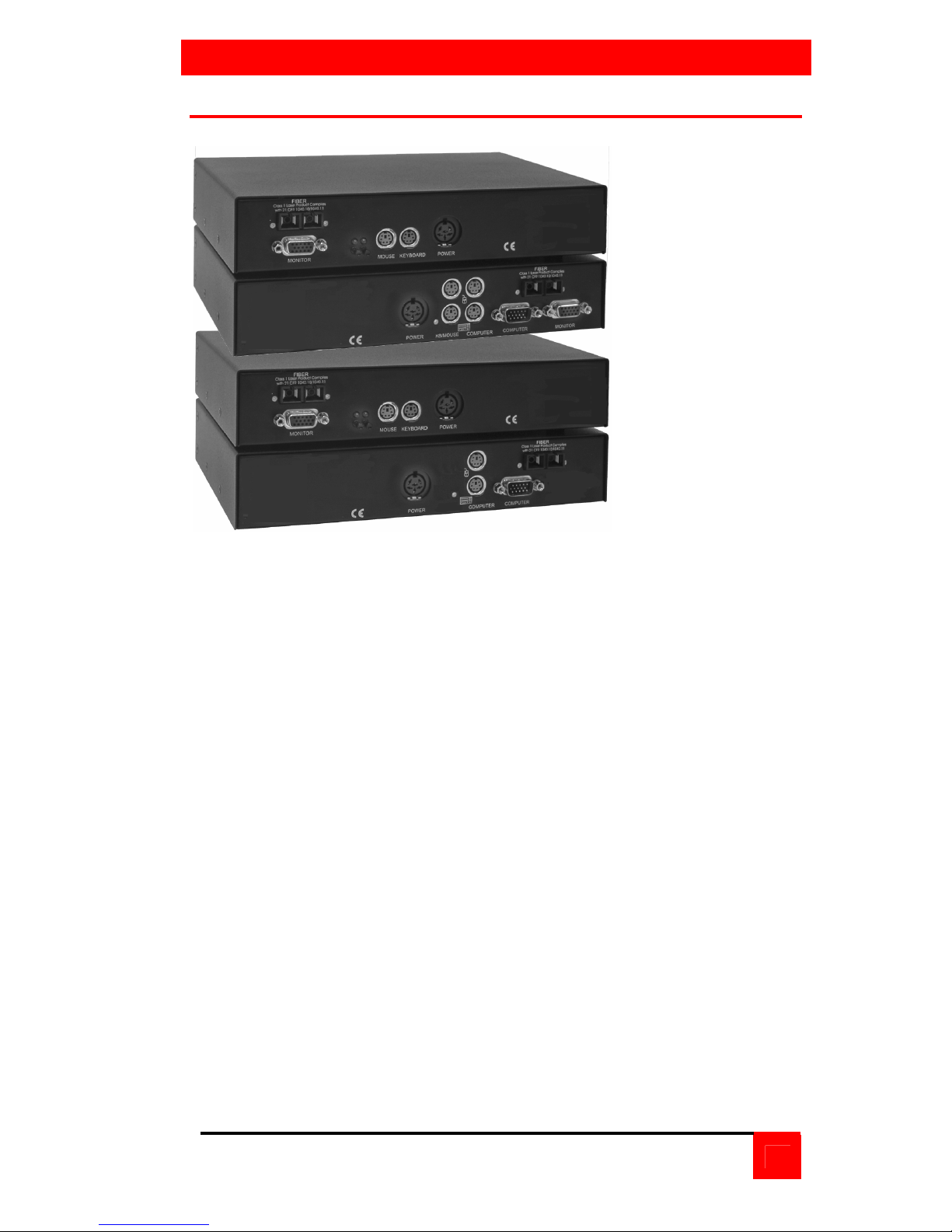

Figure 1. PC model

Connectors:

Receiver

HD15F – KVM stations video monitor connection.

(2) MiniDin-6 – KVM stations keyboard and mouse connection.

Fiber – SC-type

Transmitter (Local KVM access)

HD15F – CPU video connection.

HD15M – KVM stations video monitor connection.

(4) MiniDin-6 - CPU keyboard and mouse connections /

KVM keyboard and mouse connections.

Fiber – SC-type

Transmitter (No Local KVM access)

HD15F – CPU video connection.

(2) MiniDIN-6 - CPU keyboard and mouse connections

SC-type – Fiber cable connector

4 CrystalView Fiber Installation and Operations Manual

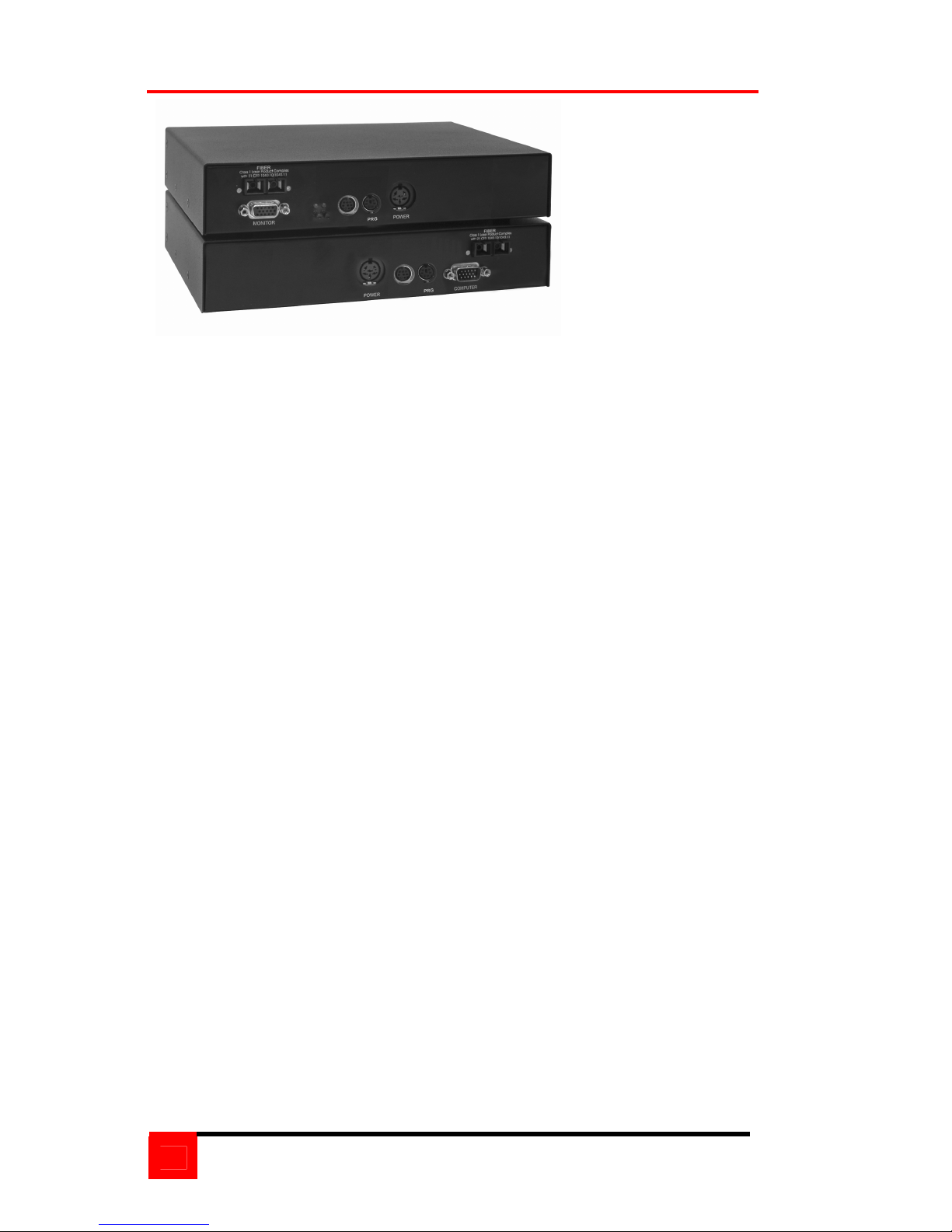

Sun model

Receiver

Transmitter

Figure 2. SUN model

Connectors:

Receiver

HD15F – KVM stations video monitor connection.

MiniDin-8 – KVM stations keyboard and mouse connection.

Fiber – SC-type

Transmitter

HD15M – CPU video connection.

MiniDin-8 – CPU keyboard and mouse connections.

SC-type – Fiber cable connector

OPTICAL ELEMENTS

CrystalView Fiber Installation and Operations Manual 5

Optical elements

The MultiMode transceivers are Class 1 laser products and comply

with IEC 825-1 and FDA 21 CFR 1040 and 1040.1.1.

The SingleMode transceivers are Class 1 laser products and comply

with IEC 60825-1 and FDA 21 CFR 1040.1 and 1040.1.1.

The optical ports of the modules must be terminated with an optical

connector or with a dust plug.

CrystalView Fiber cables

Transmitter to CPU cable

CPU cables connect from the transmitter to a CPUs keyboard, video

monitor and mouse ports. The type of CPU cable needed depends

on the model, PC or Sun.

Receiver to KVM station

The keyboard, video monitor, and mouse cables on a KVM station

can connect directly to the receiver or a transmitter with local KVM

access.

CrystalView Fiber to Rose switch cable

To connect a transmitter to a Rose switch such as a ServeView,

UltraMatrix or UltraView, use a CPU adapter cable, Rose cable part

number CAB-CX0606Cnnn.

Transmitter to receiver cable

The transmitter is connected to the receiver with up to 30,000 feet of

standard fiber optic cable (SingleMode) terminated with SC type

connectors.

INSTALLATION

6 CrystalView Fiber Installation and Operations Manual

Installation

Please refer to the safety section first before proceeding with any

installation or configuration of the CrystalView Fiber.

Installation of the CrystalView Fiber consists of four easy steps.

1. Connecting the KVM station(s) and the CPU or Rose switch.

2. Connecting the transmitter to the receiver.

3. Applying power.

4. Adjusting the automatic DPA and color depth setting. (If needed)

When installing the CrystalView Fiber, locate the transmitter as

close as possible to the CPU or switch. Keep the CPU cables as

short as possible but still give some freedom of movement. Using

shorter cables keeps the video noise to a minimum and reduces

installation costs. You can mount the CrystalView Fiber in a CPU

rack with the optional rack mount kit. When mounting the units in a

rack, follow the instructions in Appendix F and Appendix G. Provide

adequate air circulation to assure that the maximum operating

temperature is not exceeded.

Wherever the transmitter and receiver are located, they should be

on a secure surface and free from obstructions and objects that may

cause damage to the units.

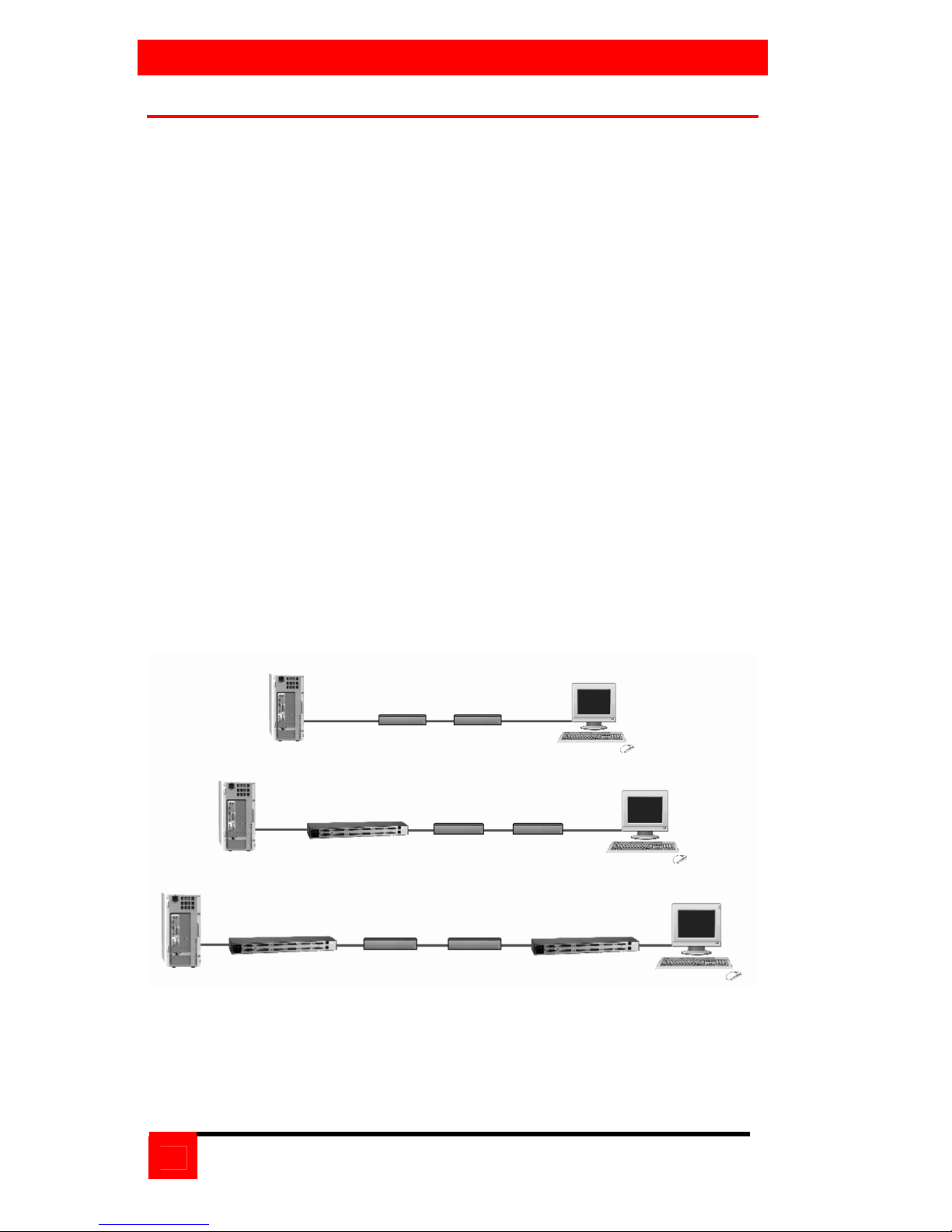

Figure 3. Cabling

(See Figure 1, 2, or 3 for the connector locations for your model)

NOTE: If the transmitter is a PC model with local access, a second

KVM station can be connected to the transmitter.

A 1 2 3

Transmitter Receiver

Switch Transmitter Receiver

Switch Transmitter Receiver Switch

B 1 2 3 4

C 1 2 3 4 5

Autres manuels pour CrystalView fiber CRK-1DFM/SUN

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rose electronics Extenseur

Rose electronics

Rose electronics CrystalView CAT5 Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI CAT Series Manuel utilisateur

Rose electronics

Rose electronics CrystalView Extreme Manuel utilisateur

Rose electronics

Rose electronics CrystalView EX DVI Multi CRK-1DTXT2DM-2T-EX6 Manuel utilisateur

Rose electronics

Rose electronics CrystalView Micro LT Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI EX Manuel utilisateur

Rose electronics

Rose electronics Orion XTender OT2-SLDTXUD1D Manuel utilisateur

Rose electronics

Rose electronics CrystalView CRK-1DTXT-HD5 Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB-3-2-1 Fiber Manuel utilisateur

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel du propriétaire

Rose electronics

Rose electronics CrystalLink CLK-1U1TP-40M Manuel utilisateur

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Manuel utilisateur

Rose electronics

Rose electronics CrystalView Manuel utilisateur

Rose electronics

Rose electronics CrystalView Plus Manuel utilisateur

Rose electronics

Rose electronics CRK-1P1V Manuel utilisateur

Rose electronics

Rose electronics CrystalView EX HDMI Manuel utilisateur

Rose electronics

Rose electronics CRK-1DFMPDVI/SF Manuel utilisateur

Rose electronics

Rose electronics Cybernetech CLK-2U2TP-100M Manuel utilisateur

Rose electronics

Rose electronics ORION Manuel utilisateur

Rose electronics

Rose electronics CrystalView Exact Manuel utilisateur

Rose electronics

Rose electronics ViewLink Coax Manuel utilisateur

Rose electronics

Rose electronics CrystalView CrystalView TWISTED PAIR KVM... Manuel utilisateur

Rose electronics

Rose electronics CrystalLink CLK-1U4TP-100M/PE Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
