INTRODUCTION

CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL 1

Disclaimer

While every precaution has been taken in the preparation of this manual,

the manufacturer assumes no responsibility for errors or omissions.

Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer

reserves the right to change the specifications, functions, or circuitry of the

product without notice.

The manufacturer cannot accept liability for damages due to misuse of the

product or other circumstances outside the manufacturer’s control. The

manufacturer will not be responsible for any loss, damage, or injury arising

directly or indirectly from the use of this product.

System introduction

Thank you for choosing the Rose ElectronicsCrystalViewUSB 1.1. The

CrystalView USB 1.1 is a very versatile CATx extender. Single, dual, and

quad video and up to four USB devices can be extended up to 330 feet

from the controlling computer. A standard USB hub can be connected to

increase the number of USB devices. All video signals are automatically

adjusted for equalization, gain, and skew (optional). The CATx cable

length is calculated and the video automatically adjusted for a crystal clear

display regardless of the CATx cable type or cable length.

The system consists of two Units, a transmitter and a receiver. The

transmitter connects to your CPU’s video port(s) and USB port. The

receiver connects directly to the remote video monitor(s) and to the USB

devices. The transmitter and receiver are connected together with up to

330 feet of industry standard CATx cable.

When power is applied to the system, the CrystalView USB 1.1 will

calculate the video CATx cable length and automatically adjust the

equalization and gain. The auto-skew model will automatically adjust the

RGB video components to produce a perfect display. Special keyboard

commands can be issued to fine tune the video gain and equalization but

are rarely needed. Manual video adjustments may be required depending

on the cable routing and if patch panels are used.

The CrystalView USB 1.1 is available in single, dual, and quad video

models. All models support USB 1.1 and video resolutions up to

1920 x 1200.

An AUX/KB USB or PS/2 connector is located on the receiver unit, one

USB or PS/2 port for each video. This AUX/KB port is for video

adjustments only.

2 CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL

Features

JSupports USB 1.1

JExtend single, dual, or quad video and USB 1.1 peripherals up to

330 ft (100m) from a CPU using CATx cable (CAT5, 5e, 6, or 7)

JCable length compensation adjustments (Equalization and gain) are

automatically performed

JVideo equalization and gain can be fine tuned with simple keyboard

commands

JAutomatic video skew adjustments (optional)

JVESA enhanced DDC enables plug-and-play capability

JFlash upgradeable firmware prevents obsolescence

JSupports:

JSVGA, VGA, XGA, RGB video modes

JSingle, Dual, or Quad head VGA video models

JUSB or PS/2 keyboards and mice

JUSB 1.1 equipment

JVideo resolutions up to 1920 x 1200 @ 60Hz

JUp to 500 ma of power is available at each USB port for powering

high-power USB devices

JOperating system independent

JMade in USA

Cable Requirements

Video source to Transmitter HD15M to HD15M

USB source to Transmitter USB Type A M to USB Type B F

Transmitter to Receiver CATx cable terminated with RJ45M

Compatibility

Computer – EHCI (USB 1.1) host controller

Devices – Most USB devices that comply with USB standards

Monitors – SVGA, VGA, XGA, RGB

Package Contents

Transmitter / Receiver Units

Power adapters (3) – Optional transmitter adapter

Installation and Operations manual

Rose Electronics Web Site

Visit our web site at www.rose.com for additional information on the

CrystalView USB 1.1 and other products designed for data center

applications, classroom environments, and many other applications.

www.rose.com/htm//pc-online-registration.htm

MODELS

CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL 3

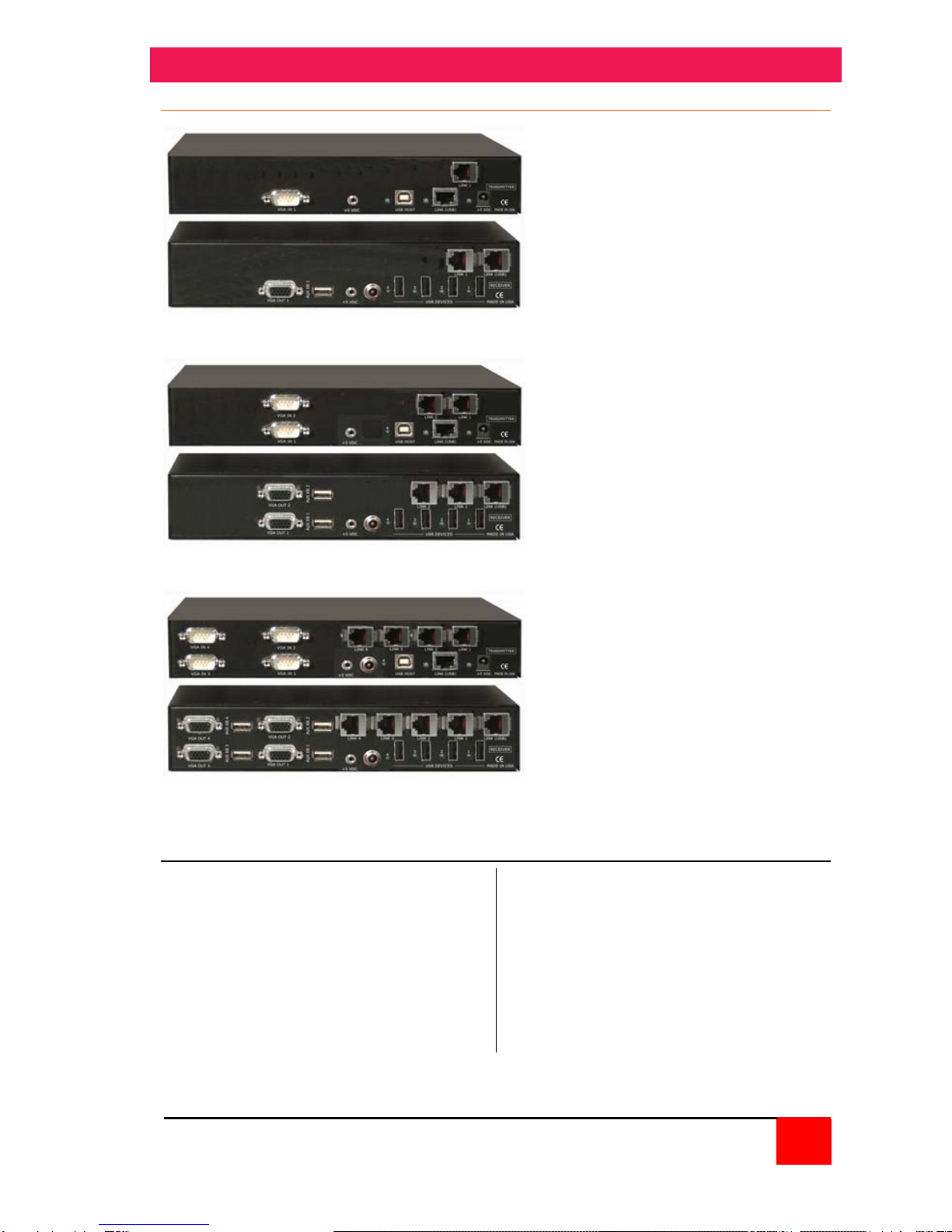

CrystalView USB 1.1 Models

Single Video Model

Transmitter

Receiver

Dual Video Model

Transmitter

Receiver

Quad Video Model

Transmitter

Receiver

Connectors

Transmitter

VGA IN HD15M

LINK x RJ45F

LINK USB RJ45F

LINK HOST USB TYPE B

POWER +5VDC

Receiver

VGA OUT HD15F

LINK x RJ45F

LINK USB RJ45F

USB DEVICES USB TYPE A

AUX / KB USB TYPE A

POWER +5VDC (Video)

+12VDC (USB)

INSTALLATION

4 CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL

Installation

Please refer to the safety section first before proceeding with any

installation or configuration or the CrystalView USB 1.1. It is

recommended that the following installation procedure be followed to

assure proper cable connections, power up sequencing, and accurate

monitor DDC table information is obtained from the connected video

monitors. Also all equipment should be powered off until all cabling is

connected.

Figure 1 shows a typical configuration using the single video model. The

dual and quad video models are installed and configured in the same

manor with 2 or 4 PC video ports connected to the transmitter unit and 2 or

4 video monitors connected to the receiver unit.

Host PC Monitor < < < USB Devices > > >

Figure 1 - Typical Configuration

Power Up to 330 feet of CAT5 cable Power

Adapters Adapters

Transmitter Receiver

+12V optional

Up to 330’ CAT5 cable

Video Cable

USB Cable

CAUTION: Observe the voltage rating on the power adapters and

connect the correct adapter to the correct power ports.

The +12V adapter connector will fit:

the +12V power port on the receiver

AND

the +5V power port on the transmitter.

Damage to the unit will occur if improperly connected

CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL 5

Transmitter installation

Refer to Figure 1 for transmitter installation

1. Locate the transmitter near the host computer

2. Connect the +5VDC power adapter to the transmitter (Do not

apply power) (Use only the provided power adapter / +12VDC

optional power adapter if additional USB power is required)

3. Connect a video extender cable from the transmitters HD15M

connector to the host computers HD15F video output port.

4. Connect a USB cable from the Type B USB port on the transmitter

to the Type A USB port on the host computer

NOTE: Video and USB cable lengths should not exceed 6.6’

Receiver Installation

Refer to Figure 1 for receiver installation

1. Locate the receiver near the USB devices and video monitor

2. Connect the +5VDC and +12VDC power adapters to the receiver

(Do not apply power) (Use only the provided power adapter)

3. Connect a video monitor to the receivers HD15F connector

4. Connect the USB devices to the USB ports on the receiver

Transmitter to Receiver installation

Refer to Figure 1 for transmitter to Receiver cable installation

1. Connect up to 330 feet of CAT5 cable from the transmitters LINK 1

and LINK USB RJ45 connectors to the receivers LINK 1 and LINK

USB Rj45 connectors

Connecting monitor(s) and USB Devices

1. Connect a video monitor to the receivers HD15F connector

2. Connect the USB devices to the USB ports on the receiver

Installing the dual and quad video models follows the same procedure.

For the dual model, connect two video sources to the transmitter and two

video monitors to the receiver. For the quad model connect four video

sources to the transmitter and four video monitors to the receiver.

First time power up sequence

The first time the system is powered up or a monitor is changed, the below

power up sequence should be followed

1. Turn on all video monitors

2. Apply power to the CrystalView USB 1.1 Receiver

3. Apply power to the CrystalView USB 1.1 Transmitter

4. Boot the PCs

5. Turn on all USB devices

OPERATIONS

6 CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL

Operating procedure

Operation of your system is no different than having your keyboard,

monitor, mouse and USB devices connected directly to a PC. The only

difference is they can be up to 330 feet away. You can operate your

system normally, programs can be executed, maintenance can be

performed, and any operation normally performed can be done with no

derogation in video quality and performance.

The video signal on all models can be fine tuned using simple keyboard

commands. This is normally not needed but sometimes cable routing and

patch panels can degrade the video signal. Next to each video in port

(HD15M) on the transmitter there is a USB Type A port labeled AUX/KBD.

To execute the keyboard commands, connect a USB keyboard to the

appropriate AUX/KBD port. The AUX/KBD port is for video adjustments

only. Once the video has been adjusted perform the keyboard command

Left Ctrl, Left Shift, k to save the information. (PS/2 port optional)

Keyboard Commands

Command Description

Left Ctrl, Left Shift, e: Perform a cable length measurement

Left Ctrl, Left Shift, keyboard +: Increase the video gain by 1

Left Ctrl, Left Shift, keyboard -: Decrease the video gain by 1.

Left Ctrl, Left Shift, keypad +: increase the video equalization by 1

Left Ctrl, Left Shift, keypad -: Decrease the video equalization by 1

Left Ctrl, Left Shift, k Saves any changes made

Table 1 - Keyboard Commands

LED Indicator Descriptions

LED “ON”

Transmitter “Host” LED USB connection to computer OK

Transmitter “Link” LED CAT5 link from receiver to transmitter OK

Transmitter “Power” LED Power applied to transmitter OK

Receiver “Link” LED CAT5 link from transmitter to receiver OK

Receiver “Device” LED USB Device connections OK

Receiver “Power” LED Power applied to receiver OK

Table 2 - LED Indicators

Table des matières

Autres manuels Rose electronics Extenseur

Rose electronics

Rose electronics CRK-1P1V Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Manuel utilisateur

Rose electronics

Rose electronics CrystalView Mini Manuel utilisateur

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel utilisateur

Rose electronics

Rose electronics PS/2 Manuel utilisateur

Rose electronics

Rose electronics CrystalView EX DVI Multi CRK-1DTXT2DM-2T-EX6 Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB-3-2-1 Fiber Manuel utilisateur

Rose electronics

Rose electronics CrystalView EX HDMI Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Manuel utilisateur

Rose electronics

Rose electronics CLK-4U2FM-500M Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI CAT Series Manuel utilisateur

Rose electronics

Rose electronics ORION Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI Quad Guide de configuration

Rose electronics

Rose electronics Cybernetech CLK-2U2TP-100M Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI Fiber CRK-2DFMPD1D Manuel utilisateur

Rose electronics

Rose electronics ViewLink CATx Manuel utilisateur

Rose electronics

Rose electronics CrystalView USB2 Manuel utilisateur

Rose electronics

Rose electronics CrystalView USB2 Manuel utilisateur

Rose electronics

Rose electronics CrystalView Exact Manuel utilisateur

Rose electronics

Rose electronics CATx Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB3.1 Fiber Dual Port Manuel utilisateur

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB3.1 Fiber Dual Port Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
