Roland SJ-745EX Guide de démarrage rapide

Important Notes for Users

Please be sure to read this before you begin setup for the machine. Be sure to

carry out installation of ECO-SOL MAX ink cartridges according to procedure

described in this document.

This machine is compatible with .

Featuring

Important Notes to ECO-SOL MAX Users

Filling with Ink for the First Time

When filling with ink for the first time after purchase, select ECO-SOL MAX as the ink type.

For other operations, follow the instructions in the User's Manual.

Use cleaning cartridges intended for ECO-SOL INK.

Important!

➢Selection of an incorrect ink type may reduce printing quality. Select it with care.

➀Use to select the ink type.

➁Press to enable the selection.

Ink

ECO-SOL MAX

Colors

4-color

(cyan, magenta, yellow, and black)

6-color

(cyan, magenta, yellow, black, light cyan, and light

magenta)

SELECT INK TYPE setting

SELECT INK TYPE

E-SOL Max CMYKMC

SELECT INK TYPE

E-SOL Max LcLm

Usage and Handling of ECO-SOL MAX Ink

Other operations and methods of usage and handling are identical to those for ECO-SOL INK. Follow the

instructions in the User's Manual.

SELECT INK TYPE

E-SOL Max LcLm

Be sure to select [E-SOL Max].

Added Menu Items

The new setting items described in the User's Manual have been added to the machine.

SELECT INK TYPE Item

In addition to the existing "ECO-SOL INK" item, selection of "ECO-SOL MAX" is also possible.

SELECT INK TYPE

E-SOL Max LcLm

E-SOL Max CMYKMC

This is the ECO-SOL MAX 4-color mode (cyan, magenta, yellow, and black).

E-SOL Max LcLm

This is the ECO-SOL MAX 6-color mode (cyan, magenta, yellow, black, light cyan, and light magenta).

ECO-SOL CMYKMC

This is the ECO-SOL INK 4-color mode (cyan, magenta, yellow, and black).

ECO-SOL LcLm

This is the ECO-SOL INK 6-color mode (cyan, magenta, yellow, black, light cyan, and light magenta).

R1-050802

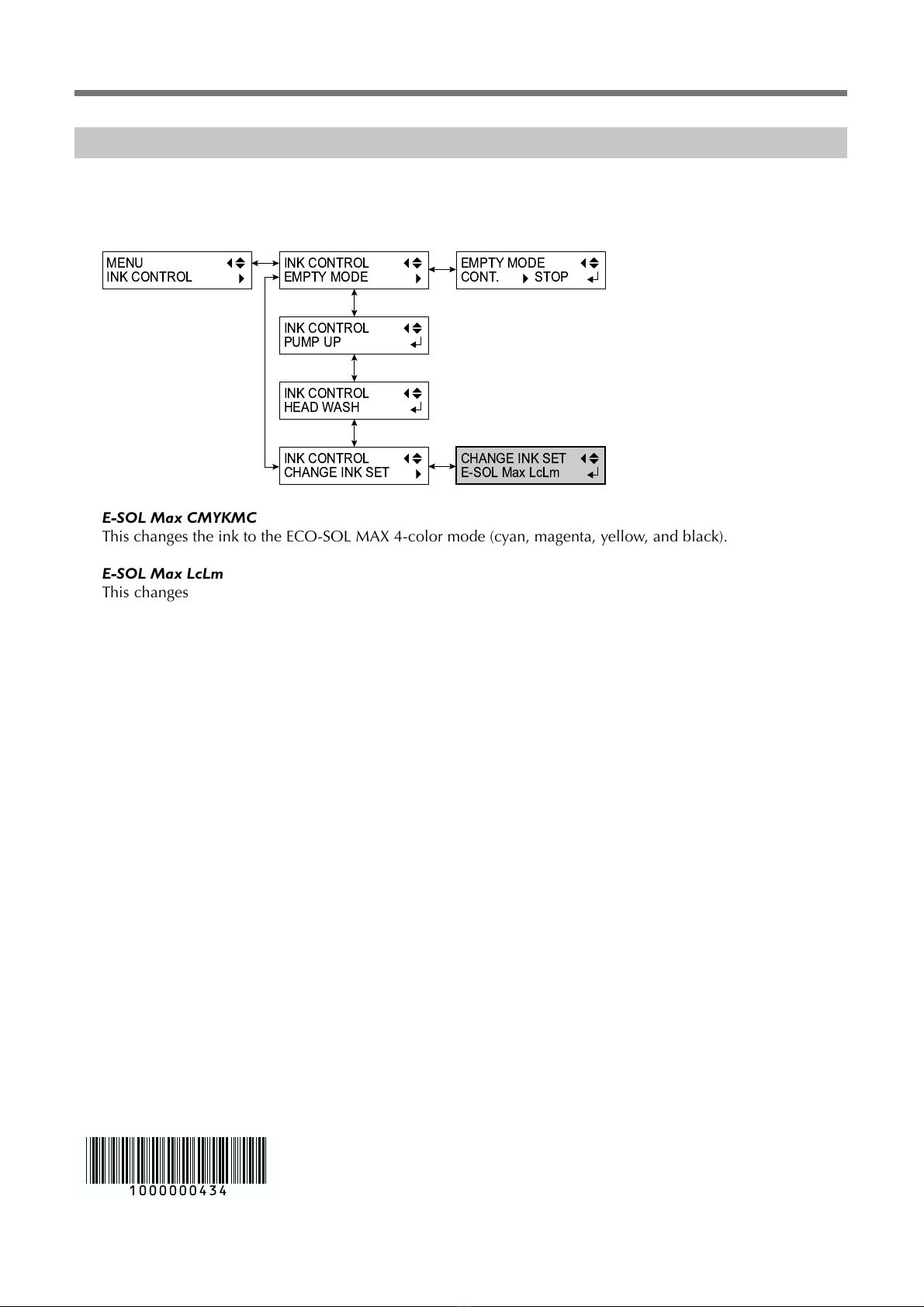

INK CONTROL Menu Item

The [CHANGE INK SET] item has been expanded, enabling changing from "ECO-SOL INK" to "ECO-SOL MAX"

ink.

INK CONTROL

CHANGE INK SET

INK CONTROL

EMPTY MODE

CHANGE INK SET

E-SOL Max LcLm

EMPTY MODE

CONT. STOP

INK CONTROL

PUMP UP

INK CONTROL

HEAD WASH

E-SOL Max CMYKMC

This changes the ink to the ECO-SOL MAX 4-color mode (cyan, magenta, yellow, and black).

E-SOL Max LcLm

This changes the ink to the ECO-SOL MAX 6-color mode (cyan, magenta, yellow, black, light cyan, and light

magenta).

ECO-SOL CMYKMC

This changes the ink to the ECO-SOL INK 4-color mode (cyan, magenta, yellow, and black).

ECO-SOL LcLm

This changes the ink to the ECO-SOL INK 6-color mode (cyan, magenta, yellow, black, light cyan, and light

magenta).

Important!

➢When changing the ink from ECO-SOL INK to ECO-SOL MAX, all ink must be replaced. ECO-SOL INK and ECO-

SOL MAX ink cannot coexist.

➢When changing the ink from ECO-SOL INK to ECO-SOL MAX of the same color mode, no SOL INK cleaning

cartridges are required.

Added Menu Items
