Roland Texart XT-640 Manuel utilisateur

Setup Guide

Thank you very much for purchasing this product.

To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read

through this manual completely and store it in a safe location.

Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.

The specications of this product and the contents of this manual are subject to change without notice.

This manual and the product have been prepared and tested as much as possible. If you nd any misprints or

errors, please inform Roland DG Corp.

Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage that may occur through use

of this product, regardless of any failure to perform on the part of this product.

Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage that may occur with respect

to any article made using this product.

Company names and product names are trademarks or registered trademarks of their respective holders.

http://www.rolanddg.com/

Contents

Contents ...............................................................................................................................................................1

1. Installation Environment .............................................................................................................................3

Deciding On an Installation Site .....................................................................................................................3

Temperature and Humidity ..............................................................................................................................4

Installation Space .................................................................................................................................................4

2. Included Items ................................................................................................................................................5

Printer Unit ..............................................................................................................................................................5

Roland Ink System ................................................................................................................................................6

3. About the Symbols ........................................................................................................................................7

4. Assembly and Ink Filling...............................................................................................................................8

Checks before Operations .................................................................................................................................8

Step 1: Assembling the Stand .........................................................................................................................9

Step 2: Attaching the Machine .....................................................................................................................14

Step 3: Installing the Media Holders ..........................................................................................................15

Step 4: Installing the Feed Adjusters ......................................................................................................... 20

Step 5: Installing the Drain Bottle ............................................................................................................... 22

Step 6: Removing the Retainers ...................................................................................................................24

Step 7: Installing the Ink System ..................................................................................................................25

Step 8: Connecting the Cables and Making Initial Settings .............................................................25

Step 9: Ink Filling ................................................................................................................................................29

5. Network Settings .........................................................................................................................................35

Step 1: Make the Network Settings for the Computer ....................................................................... 35

Step 2: Make the Network Settings on the Printer ...............................................................................37

Step 3: Make the Port Settings for the Software RIP ............................................................................39

1. Installation Environment

Deciding On an Installation Site

Install the machine in a quiet, stable location oering good operating conditions. An unsuitable location can

cause accidents, re, faulty operation, or breakdown.

WARNING Install the machine in a location that is level, stable, and able to bear the

weight of the machine.

The total weight of the machine may reach 290 kg (639 lb.) or more. Installation

in an unsuitable location may cause a major accident, including a tip over, fall,

or collapse.

WARNING Never install this machine outside or in any location where exposure to

water or high humidity may occur.

Current leakage may cause electrical shock, electrocution, or combustion and

re.

WARNING Never install the machine close to any ammable object or in a gas-lled

location.

Combustion or explosion may occur.

WARNING Install the machine in a clean, brightly lit location.

Working in a location that is dark or cluttered may lead to an accident, such

as becoming caught in the machine as the result of an inadvertent stumble.

WARNING Position the machine so that the power plug is within immediate reach

at all times.

This is to enable quick disconnection of the power plug in the event of an emer-

gency. Install the machine next to an electrical outlet. Also, provide enough

empty space to allow immediate access to the electrical outlet.

CAUTION Ensure adequate ventilation for the work area.

Failing to perform ventilation may result in a health hazard due to ink fumes.

Unsuitable Installation Sites

Locations subject to large uctuations in temperature or humidity

Locations subject to shaking or vibration

Locations where the oor is tilted, not level, or unstable

Dusty locations

Locations exposed to direct sunlight

Locations near air-conditioning or heating equipment

Locations exposed to water or moving air

Locations exposed to considerable electrical or magnetic noise, or other forms of electromagnetic

energy

1. Installation Environment

Temperature and Humidity

Maintain the specied temperature and humidity even when the machine is not in use. Failure to do so may

result in malfunction.

Installation Space

The space shown in the gure is required in order to use this machine.

During operation: Temperature 18 to 25°C (64 to 77°F), humidity: 35 to 65%RH (no condensation)

During non-operation: Temperature 15 to 30°C (59 to 86°F), humidity: 20 to 80%RH (no condensation)

4,000 mm (157.5 in.)

1,000 mm (39.4 in.)

3,000 mm (118.1 in.)

Machine space

Work space

2,000 mm (78.7 in.)

2. Included Items

The following items are included with the machine. Make sure they are all present before proceeding.

Printer Unit

Power cord (1)

Arms

(1 each for right and left) Casters (2) Stand legs

(1 each for right and left)

Stand stay (1) Shafts (2)

Paper tube (1) Feed adjuster (1)

Feed adjuster stays (2) Shaft clamps (2)

Media holders / Retaining screws

(1 each for right and left)

Media holder adjuster

(1)

Bottle stand (1) Drain bottles (2) Adjustment papers (2) Media clamps

(1 each for right and left)

Adjustment

bolt (1) Bolts (52) Washers

(black: 8)

Washers

(silver: 8) Replacement wipers (2) Replacement felt wipers

(2)

Stand leg xing plates

(2) Cable clamp (1) Tube caps

(for 8 colors)* Ink color labels (2)

2. Included Items

Cleaning sticks Tweezers (1) Pipe (1) Replacement blade for

separating knife (1)

Setup Guide (this docu-

ment; 1)

Read this rst (1)

User's Manual (1)

Inkjet printer

maintenance guide (1)

Hexagonal

wrench (1)

Spanner

(1) Software RIP (1)

* Not required when using four colors (cyan, magenta, yellow, and black).

Roland Ink System

Ink pouch holder (1) Subtank guard (1) Subtank cartridges (8)

Ink tube cover (top; 1) Ink tube covers (bottom)

(1 each for left and right) Square bushes (4)

Y-shaped tubes (8) Screws (11) Ink color labels

(1 large, 1 small)

3. About the Symbols

The meanings of the symbols used in this document are as follows.

This symbol indicates instructions that must be followed in relation to op-

eration. Always follow these instructions to prevent accidents and damage

due to misoperation.

This symbol indicates things that must be checked visually in relation to

operation. Always perform a visual check to prevent accidents and damage

due to failure to check.

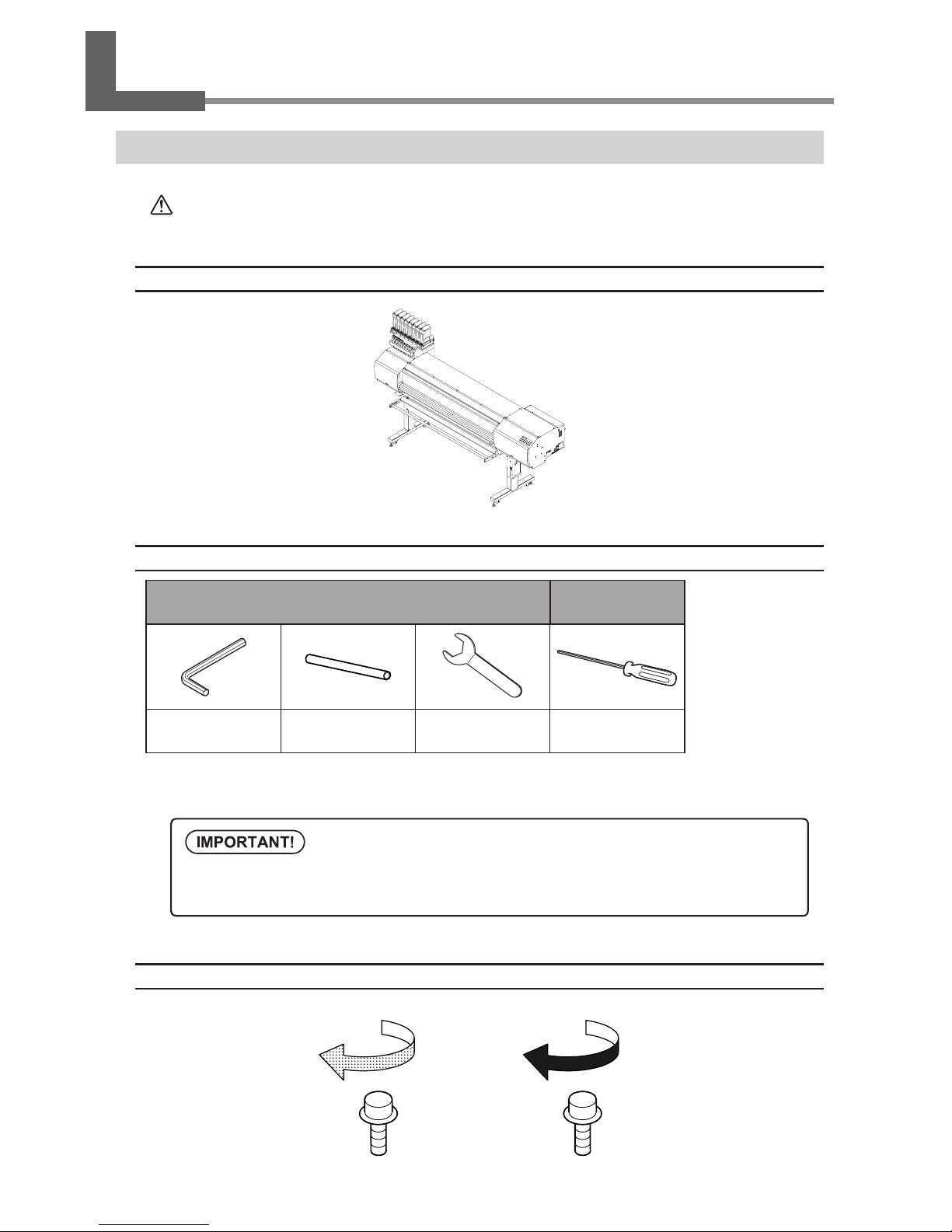

4. Assembly and Ink Filling

Checks before Operations

CAUTION Unpacking and installation must be carried out by six or more people.

Failure to observe this instruction may cause the machine to fall over, resulting

in injury.

Completed Drawing

Necessary Tools

Included items Commercially

available item

Hexagonal wrench

(large) Pipe*Spanner Phillips screwdriver

* If the hexagonal wrenches are too small and it is dicult to tighten the bolts, you may need to use the

pipe to increase the length of the wrench.

How to view pictures

When tightening the bolts fully, tighten them securely. Loose bolts may cause the stand to

wobble.

Tighten temporarily Tighten fully
