Reliable F156 Series Manuel

The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

Model F156

Model F1FR56

Intermediate Level

Sprinklers

Features

1. Upright and pendent installations.

2. Available as either a standard response Model

F156 or quick response Model F1FR56.

3. 1/2” (15 mm) oriﬁce with a 1/2” NPT (R

1/2).

Approval Organizations

1. Listed by Underwriters Laboratories, Inc. and Certiﬁed

for Canada (cULus)

2. Certiﬁed by FM Approvals

UL Listing Category

Sprinklers, Automatic and Open (VNIV)

Product Description

The Reliable Models F156 and F1FR56 Intermediate Level

Sprinklers include shields which protect the glass bulb from

water spray impingement caused by sprinklers located at a

higher elevation.

Typical applications are for storage racks which require

multi–level sprinklers and beneath open grid catwalks.

Application

Model F156 and F1FR56 Intermediate Level sprinklers

are used in ﬁxed ﬁre protection systems: Wet, Dry, Deluge

or Preaction. Care must be exercised that the oriﬁce size,

temperature rating, deﬂector style and sprinkler type are

in accordance with the latest published standards of the

National Fire Protection Association or the Authority Having

Jurisdiction.

Installation

Model F156 sprinklers are standard response sprinklers

and Model F1FR56 are quick response sprinklers. Both types

are intended for installation as speciﬁed in NFPA 13. Upright

sprinklers must be installed with the Model D Sprinkler

Wrench speciﬁcally designed by Reliable for use with these

sprinklers and pendent sprinklers must be installed with

the Model GFR2 Sprinkler Wrench speciﬁcally designed by

Reliable for use with these sprinklers.

Glass bulb sprinklers have orange covers to protect

the bulb during the installation process. REMOVE THIS

PROTECTION ONLY AFTER THE SYSTEM HAS BEEN

HYDROSTATICALLY TESTED. Model D and GFR2 wrenches

are designed to install sprinklers when covers are in place.

Model F156

Upright Intermediate

Model F1FR56

Pendent Intermediate

Model F1FR56

Upright Intermediate

Model F156

Pendent Intermediate

Maintenance

The Models F156 and F1FR56 Sprinklers should be

inspected and the sprinkler system maintained in accordance

with NFPA 25. Do not clean sprinklers with soap and water,

ammonia or any other cleaning ﬂuid. Remove dust by using a

soft brush or gentle vacuuming. Remove any sprinkler which

has been painted (other than factory applied) or damaged in

any way. A stock of spare sprinklers should be maintained to

allow quick replacement of damaged or operated sprinklers.

Prior to installation, sprinklers should be maintained in the

original cartons and packaging until used to minimize the

potential for damage to sprinklers that would cause improper

or non-operation.

Multilingual document:

Select your language below

Bulletin 031 Rev. C_Multilingual

013FG01 013FG02

Model F1FR56 Quick Response Upright and Pendent Intermediate Level Sprinklers

Installation Data:

Sprinkler

Type

Nominal

Oriﬁce Thread Size “K” Factor Sprinkler

Identiﬁcation

Number (SIN)

Shield Part

Number

Sprinkler

Height Approvals

US Metric

Pendent 1/2” (15 mm) 1/2” NPT (R

1/2) 5.6 80 RA1414 88701411 2.25” 1, 2

Upright 1/2” (15 mm) 1/2” NPT (R

1/2) 5.6 80 RA3195 88701413 2.25” 1, 2

Model F156 Standard Response Upright and Pendent Intermediate Level Sprinklers

Installation Data:

Sprinkler

Type

Nominal

Oriﬁce Thread Size “K” Factor Sprinkler

Identiﬁcation

Number (SIN)

Shield Part

Number

Sprinkler

Height Approvals

US Metric

Pendent 1/2” (15 mm) 1/2” NPT (R

1/2) 5.6 80 RA1314 88701411 2.25” 1, 2

Upright 1/2” (15 mm) 1/2” NPT (R

1/2) 5.6 80 RA3125 88701413 2.25” 1, 2

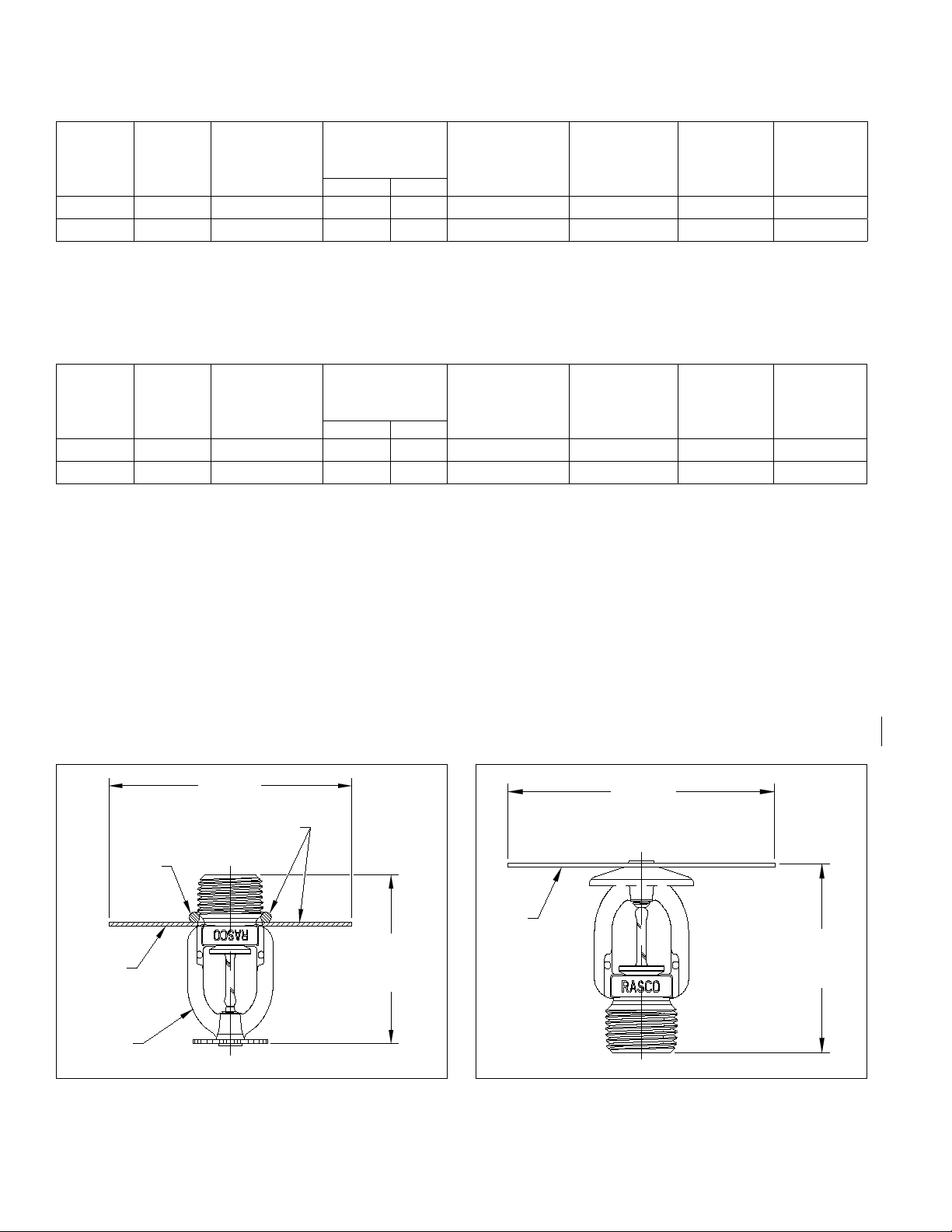

Model F156 and F1FR56 Pendent

Intermediate Level Sprinkler

Model F156 and F1FR56 Upright

Intermediate Level Sprinkler

Fig. 1 Fig. 2

3 1/4” DIA. 3 1/4” DIA.

TO BE ASSEMBLED

AT INSTALLATION

“O” RING

SHIELD

SPRINKLER

ASSEMBLY

SEE TABLE FOR

SPRINKLER

HEIGHT

SEE TABLE FOR

SPRINKLER

HEIGHT

Temperature Ratings For F1FR56:

Classiﬁcation Sprinkler Temperature Bulb Color

°F °C

Ordinary 135 57 Orange

Ordinary 155 68 Red

Intermediate 175 79 Yellow

Intermediate 200 93 Green

High 286 141 Blue

Temperature Ratings For F156:

Classiﬁcation Sprinkler Temperature Bulb Color

°F °C

Ordinary 135 57 Orange

Ordinary 155 68 Red

Intermediate 175 79 Yellow

Intermediate 200 93 Green

High 286 141 Blue

Extra High 360 182 Mauve

Ordering Information

Specify:

1. Sprinkler Model

2. Sprinkler Type

3. Oriﬁce Size

4. Temperature Rating

5. Sprinkler Finish

Installation Wrenches

Upright — Model D Sprinkler Wrench

Pendent — Model GFR2 Sprinkler Wrench

Finishes(1)

Standard Finishes

Bronze

Special Application Finishes

Electroless Nickel PTFE(Teﬂon®)*(4)(5)

Bright Chrome

Chrome Dull

Lead Plated(2)(4)

Wax Coated(2)(3)(4)

Wax Over Lead(2)(3)(4)

(1) Other colors and ﬁnishes are available. Consult factory for details.

(2) Model F156 Standard Response only.

(3) 55 °F (68 °C), 175 °F (79 °C), 200 °F (93 °C) and 286 °F (141 °C)

temperature ratings only.

(4) Only the sprinkler is wax coated, lead or Electroless Nickel PTFE (Teﬂon®)*

plated. The shield ﬁnish remains galvanized zinc.

(5) cULus listed Corrosion Resistant.

Note: Paint or any other coating applied over the factory

ﬁnish will void approvals and warranties.

Shields

Galvanized Zinc

*DuPont Registered Trademark

The Reliable Automatic Sprinkler Co., Inc.

(800) 431-1588 Sales Ofﬁces

(800) 848-6051 Sales Fax

(914) 829-2042 Corporate Ofﬁces

www.reliablesprinkler.com Internet Address

Manufactured by Recycled

Paper

Revision lines indicate updated or new data.

The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory

Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products

manufactured and distributed by Reliable have been protecting life and property for over 90 years, and are installed and serviced by the most highly qualiﬁed

and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.

Reliable offers a wide selection of sprinkler components. Following are some of the many

precision-made Reliable products that guard life and property from ﬁre around the clock.

Reliable... For Complete Protection

• Automatic sprinklers

• Flush automatic sprinklers

• Recessed automatic sprinklers

• Concealed automatic sprinklers

• Adjustable automatic sprinklers

• Dry automatic sprinklers

• Intermediate level sprinklers

• Open sprinklers

• Spray nozzles

• Alarm valves

• Retarding chambers

• Dry pipe valves

• Accelerators for dry pipe valves

• Mechanical sprinkler alarms

• Electrical sprinkler alarm switches

• Water ﬂow detectors

• Deluge valves

• Detector check valves

• Check valves

• Electrical system

• Sprinkler emergency cabinets

• Sprinkler wrenches

• Sprinkler escutcheons and guards

• Inspectors test connections

• Sight drains

• Ball drips and drum drips

• Control valve seals

• Air maintenance devices

• Air compressors

• Pressure gauges

• Identiﬁcation signs

• Fire department connection

EG. Printed in U.S.A. 01/14 P/N 9999970391
