The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model F1S5 Series
Special Response
Standard Spray
Model F1S5-56 Sprinkler
Standard Upright (SU)
Standard Pendent (SP)
Conventional (C u/p)
Model F1S5 LO Large Orifice Sprinkler
with 1/2” Connection Threads
Standard Upright (SU)
Standard Pendent (SP)
Model F1S5-56 Recessed Sprinkler
Standard Pendent
w/F1, F2 and FP Recessed Escutcheon
Model F1S5 LO Large Orifice Recessed
Sprinkler with 1/2” Connection Threads
Standard Pendent
w/F1, F2 and FP Recessed Escutcheon
Approvals
VdS Schadenverhütung GmbH
• SP K80 - Certificate G4080043, EC Certificate
0786-CPD-40238
• SU K80 - Certificate G4990035, EC Certificate
0786-CPD-40143
• C u/p K80 - Certificate G4050047, EC Certificate
0786-CPD-40147
• Recessed SP - Certificate G4080045, EC Certificate
0786-CPD-40240
• SP K115 - Certificate G411005
• SU K115 - Certificate G411006
Product Description
The F1S5 Series Glass Bulb Sprinkler combines the
durability of a standard sprinkler with the attractive low profile
of a decorative sprinkler. Whether installed on exposed piping
or in an office ceiling, it is functional and attractive.
Beautifully versatile is the description for the Reliable Model
F1S5 Series Recessed glass bulb sprinkler. Recessing the
F1S5 Series enhances its already low profile decorative
appearance and facilitates a rapid and perfect installation.
Model F1S5 Series Recessed escutcheon is highly
adjustable. The two piece construction makes field
installation a very easy and rapid task. This also allows ceiling
panels to later be removed without shutting down the fire
protection system, thus facilitating maintenance of above
ceiling services.
F1S5 Pendent
F1S5 Conventional Recessed Pendent/F1/F2
F1S5 Upright
Recessed Pendent/FP
F1S5 LO Pendent
F1S5 LO Upright
Multilingual document:
Select your language below
Bulletin 024 Rev. A_Multilingual
Bulletin 024 Rev. A_Multilingual
2

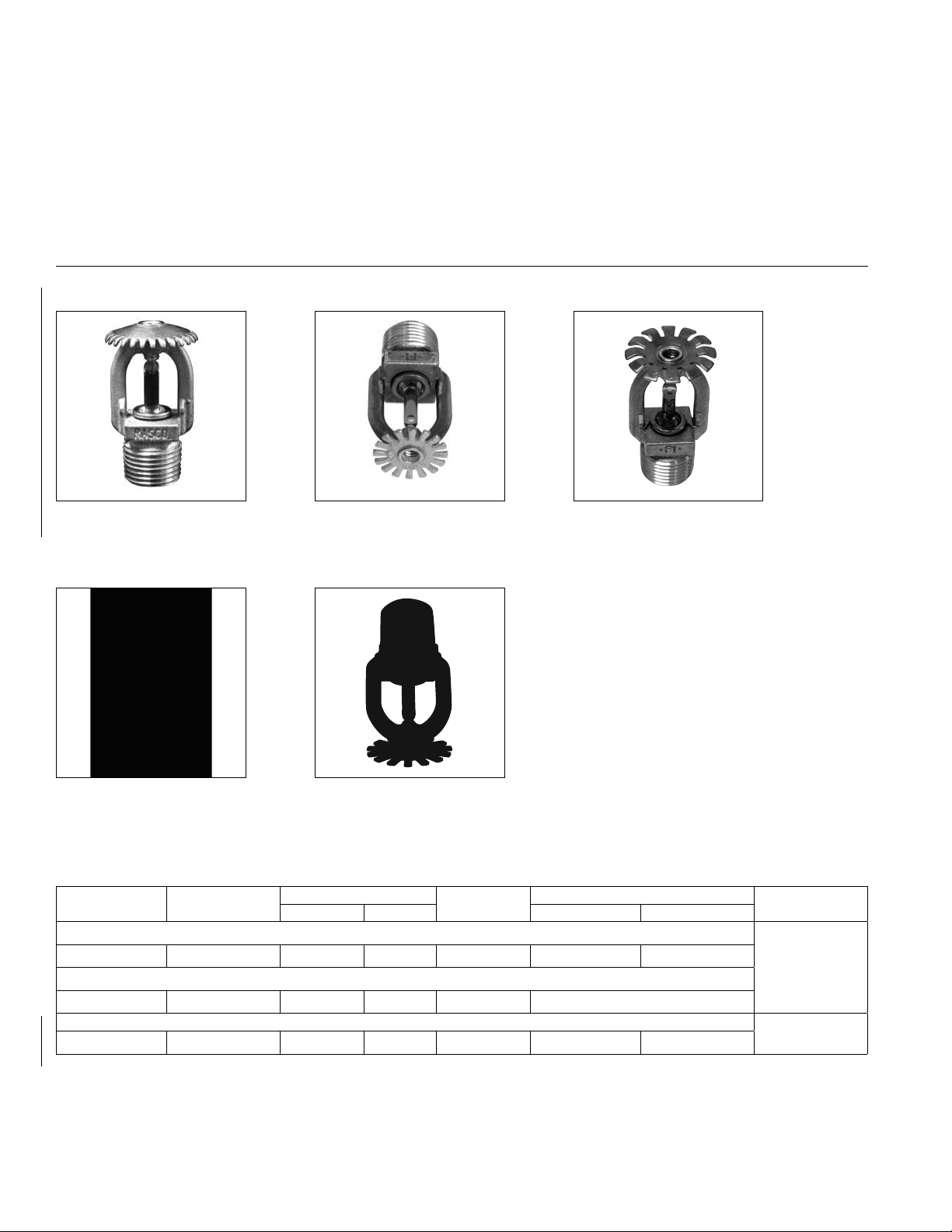

The F1S5 Series Automatic Sprinkler utilizes a special
response 5.0 mm frangible glass bulb. The glass bulb
consists of an accurately controlled amount of special fluid
hermetically sealed inside of a precisely manufactured glass
capsule. This glass bulb is specially constructed to provide
fast thermal response.
At normal temperatures, the glass bulb contains the fluid
in both the liquid phase and in the vapor phase. The vapor
phase can be seen as a small bubble. As heat is applied, the
Pendent ConventionalUpright
liquid expands forcing the bubble smaller and smaller as the
liquid pressure increases. Continued heating forces the liquid
to push out against the bulb, causing the glass to shatter,
opening the waterway and allowing the deflector to distribute
the discharging water.
The F1S5 Series Sprinkler temperature rating is identified
by the color of the glass bulb capsule as well as frame color
where applicable.
F1S5 LO PendentF1S5 LO Upright
Model F1S5-56 Upright, Pendent and Conventional Sprinklers
Model F1S5 LO Upright and Pendent Sprinklers
Installation Wrench: Model D Sprinkler Wrench
Installation Data:
Nominal Orifice Thread Size Nominal K Factor Sprinkler
Height
Sprinkler Identification RTI (fts1/2) [ms1/2]
US Metric Upright Pendent
Standard-Upright (SU) and pendent Deflectors Marked to Indicate Position
(90-130)
[50-70]
1/2” (15 mm)(1) 1/2” NPT (R
1/2) 5.6 80 2.25” (57 mm) SU SP
Conventional-Install in Upright or Pendent Position
15 mm(1) 1/2” NPT (R
1/2) 5.6 80 57 mm C u/p
Model F1S5 Large Orifice Upright and Pendent Sprinklers (90-150)
[50-80]
20 mm R
1/28.0 115 58 mm SU SP
3
013FG01A 013FG02 A
Model F1S5-56, F1S5 LO and F1S5-56,
F1S5 LO Recessed Sprinklers
Application
Model F1S5-56, F1S5 LO and F1S5-56, F1S5 LO
Recessed sprinklers are used in fixed fire protection systems:
Wet, Dry, Deluge or Preaction. Care must exercised that the
orifice size, temperature rating, deflector style and sprinkler
type are in accordance with the latest published standards
of the National Fire Protection Association or the approving
Authority Having Jurisdiction Installation.
Installation
Model F1S5 Series sprinklers are special response
sprinklers intended for installation as specified in NFPA 13.
They must also be installed with the Model D Sprinkler
Wrench specifically designed by Reliable for use with these
sprinklers.
The Model F1S5-56 and F1S5 LO Recessed Sprinklers
are to be installed with a maximum recess of 3/4inch
(19 mm). The Model F1, F2 and FP Escutcheons illustrated
are the only recessed escutcheon to be used with the Model
F1S5-56 and F1S5 LO Pendent Sprinklers. The use of any

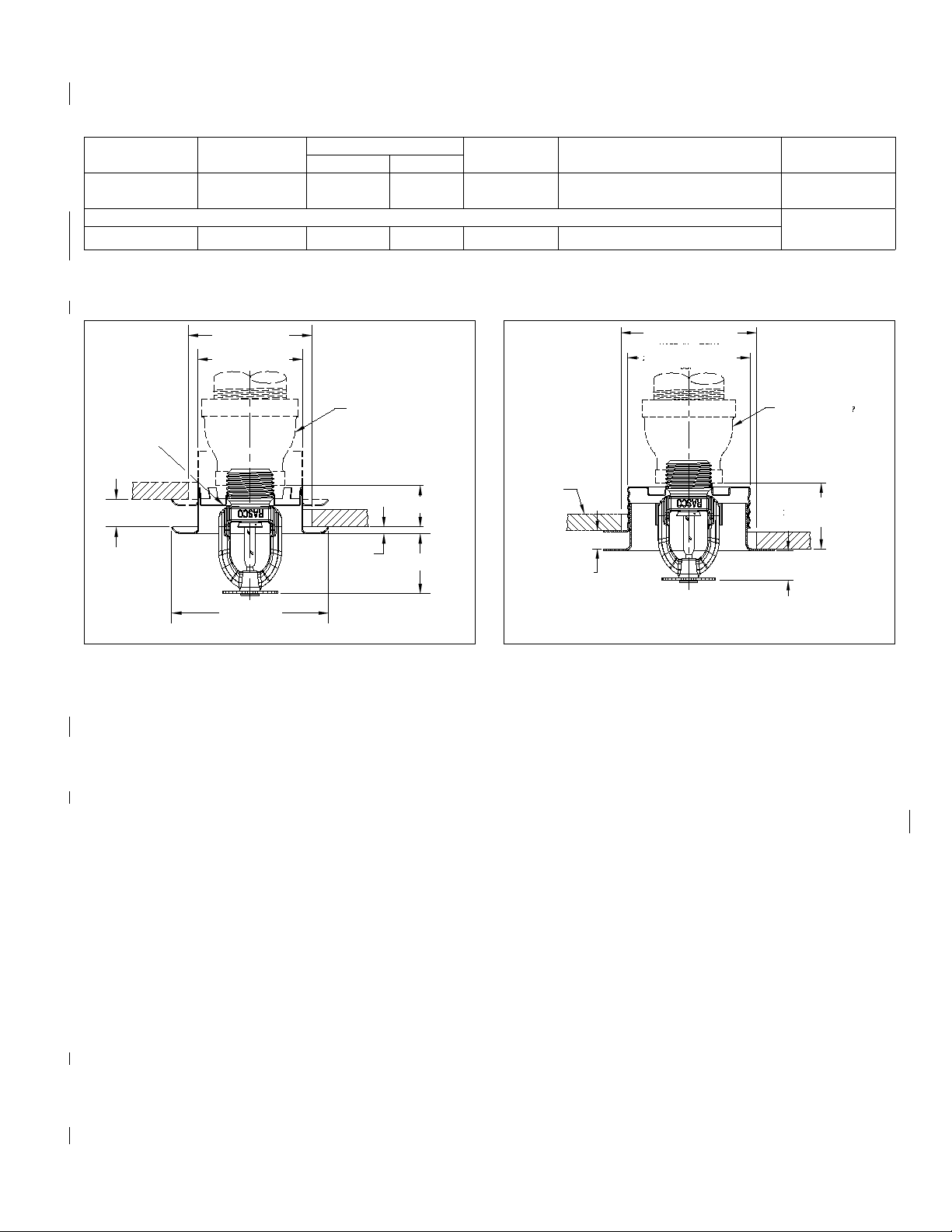

Fig. 1 Fig. 2
Model F1S5-56 F1/F2 Model F1S5-56 FP
Model F1S5-56 Recessed Pendent Sprinkler
Model F1S5 Large Orifice Recessed Pendent Sprinkler
Installation Wrench: Model GFR2 Sprinkler Wrench
Installation Data:
Nominal Orifice Thread Size K Factor Sprinkler
Height Sprinkler Identification
(1)RTIc(fts1/2)
[ms1/2]
US Metric
1/2” (15 mm) 1/2” NPT(R
1/2) 5.6 80 2.25” (57 mm) SP(2) (110-150)
[60-80]
Model F1S5 Large Orifice Recessed Pendent Sprinklers(3) (90-150)
[50-80]
20 mm R
1/28.0 115 58 mm SP
(1) c= 1.09 (ft/s)1/2[0.60 (m/s)1/2]
(2) VdS Approval for 155 °F (68 °C), 175 °F (79 °C) and 200 °F (93 °C) only.
(3) Currently not VdS Approved.
other recessed escutcheon will void all approvals and negate
all warranties. When installing Model F1S5-56 and F1S5 LO
Recessed Pendent use the Model GFR2 Sprinkler Wrench.
Any other type of wrench may damage these sprinklers.
Note: A leak tight sprinkler joint can be obtained with a torque
of 8-18 ft-lb (10.8 - 24.4 N-m). Do not tighten sprinklers over
maximum recommended torque. It may cause leakage or
impairment of the sprinklers.
Glass bulb sprinklers have orange covers to protect
the bulb during the installation process. REMOVE THIS
PROTECTION ONLY AFTER THE SYSTEM HAS BEEN
HYDROSTATICALLY TESTED AND, WHEN APPLICABLE,
THE ESCUTCHEONS HAVE BEEN INSTALLED. RASCO
wrenches are designed to install sprinklers when covers are
in place.
2 1/4” HOLE DIA.
(57.2 mm)
1 15/16” DIA. (49.2 mm)
1” x 1/2” REDUCER
TURN COLLAR
UNTIL TIGHT
AGAINST SPRINKLER
WRENCH BOSS
ADJUSTMENT(1)(2)
2 27/32” DIA.
(72.2 mm)
FACE OF FITTINGTO
CEILING DIMENSION
(1)
1/8”
(3.2 mm)“A”(1)
1” x 1/2” REDUCER
FACE OF FITTINGTO
CEILING DIMENSION
(1)
“A”(1)
ADJUSTMENT(1)
CELING
(1) REFER TO FP ESCUTCHEON DATA TABLE FOR DIMENSIONS
2 5/8” DIA. (66.7 mm)
HOLE IN CEILING
2 5/16” DIA. (58.7 mm) CUP
The Reliable Automatic Sprinkler Co., Inc.
(800) 431-1588 Sales Offices
(800) 848-6051 Sales Fax
(914) 829-2042 Corporate Offices
www.reliablesprinkler.com Internet Address
Manufactured by Recycled
Paper
Revision lines indicate updated or new data.
The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory
Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products
manufactured and distributed by Reliable have been protecting life and property for over 90 years, and are installed and serviced by the most highly qualified
and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
EG. Printed in U.S.A. 07/11 P/N 9999970400
Ordering Information
Specify:
1. Sprinkler Model
2. Sprinkler Type
3. Orifice Size
4. Deflector Type
5. Temperature Rating:
– Specify when ordering
– Model of Sprinkler
6. Sprinkler Finish
7. Escutcheon Finish (where applicable)
Note: When Recessed Sprinklers are ordered, the sprinklers
and escutcheons are packaged separately.
Escutcheon Data
Escutcheon
Model Adjustment “A”
Dimension
Face of Fitting
to Ceiling or
Wall Dimension
F1 Max Recessed
Min Recessed
1
1/2”
(38.1 mm)
3/4” (19.1 mm)
3/16” - 15/16”
(5 m - 24 mm)
F2 Max Recessed
Min Recessed
1
1/2”
(38.1 mm)
1” (25 mm)
3/16” - 11/16”
(5 m - 17 mm)
FP Push-on/
Thread-off Max Recessed
Min Recessed
7/16” (11 mm)
15/16” (24 mm) 1
1/2” (38.1 mm)
1” (25 mm)
Maintenance
The Models F1S5-56, F1S5 LO, F1S5-56 Recessed and
F1S5 LO Recessed Sprinklers should be inspected quarterly
and the sprinkler system maintained in accordance with
NFPA 25. Do not clean sprinklers with soap and water,
ammonia or any other cleaning fluid. Remove any sprinkler
which has been painted (other than factory applied) or
damaged in any way. A stock of spare sprinklers should
be maintained to allow quick replacement of damaged or
operated sprinklers. Prior to installation, sprinklers should be
maintained in the original cartons and packaging until used
to minimize the potential for damage to sprinklers that would
cause improper operation or non-operation.
Temperature Ratings(1)
Classification
Sprinkler
Temperature Max. Ambient
Temp.
Bulb
Color
°C °F
Ordinary
Ordinary
Intermediate
Intermediate
High
57
68
79
93
141
135
155
175
200
286
100 °F (38 °C)
100 °F (38 °C)
150 °F (66 °C)
150 °F (66 °C)
225 °F (107 °C)
Orange
Red
Yellow
Green
Blue
(1) VdS Approval for Recessed Pendent Sprinkler 155 °F (68 °C), 175 °F
(79 °C) and 200 °F (93 °C) only.
Finish(1)
Standard Finishes
Sprinkler Escutcheon
Bronze
Chrome Brass
Chrome
White Painted
Special Application Finishes
Sprinkler Escutcheon
Bright Brass(2)
Black Plated
Black Paint(4)
Satin Chrome
Lead Plated(5)
Wax Coated(3)(4)
Wax Over Lead(3)(4)
Bright Brass
Black Plated
Black Paint
Off White
Satin Chrome
(1) Other colors and finishes are available on special order. Consult factory
for details.
(2) 200 °F (93 °C) maximum.
(3) 155 °F to 200 °F (68 °C to 93 °C) ratings only.
(4) 286 °F (141 °C) sprinklers may be coated for ambient conditions not
exceeding 150 °F (66 °C).
Ce manuel convient aux modèles suivants
2
Autres manuels Reliable Système d'irrigation
Reliable
Reliable GXLO Series Manuel
Reliable
Reliable F3QR Manuel utilisateur
Reliable
Reliable N252 EC Manuel utilisateur
Reliable
Reliable F1S5 Series Manuel utilisateur
Reliable
Reliable G VELO Pendent Manuel
Reliable
Reliable F3-56 Series Manuel utilisateur
Reliable
Reliable JL-14 Manuel utilisateur
Reliable
Reliable F1FR Manuel utilisateur
Reliable
Reliable F1FR-FS56 Manuel
Reliable
Reliable DH56 HSW-PL Manuel utilisateur
Reliable
Reliable F1-300 Manuel utilisateur
Reliable
Reliable G4 Manuel utilisateur
Reliable
Reliable JL-17 Guide de l'utilisateur
Reliable
Reliable F3QR80 Dry Pendent Manuel de l'opérateur
Reliable
Reliable DDX PrePaK Manuel d'entretien
Reliable
Reliable F1FR80VdS Series Manuel
Reliable
Reliable N252 EC Manuel utilisateur
Reliable
Reliable F1FR-FS LO Manuel
Reliable
Reliable MBEC-14 Manuel
Reliable
Reliable G5-56 Manuel
Manuels Système d'irrigation populaires d'autres marques
Hunter
Hunter Institutional Series Manuel utilisateur
Cellfast
Cellfast 52-305 Manuel utilisateur
Tyco Fire Product
Tyco Fire Product Star Galaxy SGQR Manuel utilisateur
Tyco Fire Product
Tyco Fire Product CENTRAL A Manuel utilisateur
Oral Care Technologies
Oral Care Technologies Hydro Floss Manuel utilisateur
Tyco Fire Product
Tyco Fire Product Gem F892 Manuel utilisateur
Toro
Toro 730 Series Guide rapide
Eden
Eden 97063-EDAMZ Manuel utilisateur
Tyco
Tyco TY-L Series Manuel utilisateur
Tyco Fire Product
Tyco Fire Product CENTRAL ELO-231 Manuel utilisateur
Johnson Controls
Johnson Controls tyco ESFR-17 Manuel utilisateur
Victaulic
Victaulic VicFlex I-VICFLEX.AQC-U Manuel utilisateur
