Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

Model F1S5 Series

Special Response

Standard Spray

Bulletin 024 Rev. B

Model F1S5-56 Sprinkler

Standard Upright (SU)

Standard Pendent (SP)

Conventional (C u/p)

Model F1S5-40 Sprinkler

Standard Pendent (SP)

Model F1S5 LO Large Orice Sprinkler

Standard Upright (SU)

Standard Pendent (SP)

Conventional (C u/p)

Model F1S5 LO Large Orice Sprinkler

with 1

2” Connection Threads

Standard Upright (SU)

Standard Pendent (SP)

Model F1S5-56 Recessed Sprinkler

Standard Pendent

w/F1, F2 and FP Recessed Escutcheon

Model F1S5-40 Recessed Sprinkler

Standard Pendent

w/F1, F2 and FP Recessed Escutcheon

Model F1S5 LO Large Orice Recessed Sprinkler

with 1

2” Connection Threads

Standard Pendent

w/F1, F2 and FP Recessed Escutcheon

Approvals

VdS Schadenverhütung GmbH

• SP K57 - Certicate Gxxxx, EC Certicate 0786-CPR-xxxx

• SP K80 - Certicate G4080043, EC Certicate 0786-CPD-

40238

• SU K80 - Certicate G4990035, EC Certicate 0786-CPD-

40143

• C u/p K80 - Certicate G4050047, EC Certicate 0786-

CPD-40147

• Recessed SP - Certicate G4080045, EC Certicate 0786-

CPD-40240

• SP K115 - Certicate G411005, EC Certicate 0786-CPD-

F1S5 Pendent

F1S5 Conventional Recessed

Pendent/F1/F2

F1S5 Upright

Recessed

Pendent/FP

F1S5 LO Pendent

F1S5 LO Upright

40280

• SU K115 - Certicate G411006, EC Certicate 0786-CPD-40281

• SP K115 - Certicate G4990038, EC Certicate 0786-CPD-40146

• SU K115 - Certicate G4990037, EC Certicate 0786-CPD-40145

• C u/p K115 - Certicate G4050048, EC Certicate 0786-CPD-40148

Product Description

The F1S5 Series Glass Bulb Sprinkler combines the durability of a standard sprinkler with the attrac-

tive low prole of a decorative sprinkler. Whether installed on exposed piping or in an ofce ceiling, it is

functional and attractive.

Beautifully versatile is the description for the Reliable Model F1S5 Series Recessed glass bulb sprinkler.

Recessing the F1S5 Series enhances its already low prole decorative appearance, and facilitates a

rapid and perfect installation.

Model F1S5 Series Recessed escutcheon is highly adjustable.

The two piece construction makes eld installation a very easy and

rapid task. This also allows ceiling panels to later be removed with-

out shutting down the re protection system, thus facilitating main-

tenance of above ceiling services.

The F1S5 Series Automatic Sprinkler utilizes a special response

5.0 mm frangible glass bulb. The glass bulb consists of an accu-

rately controlled amount of special fluid hermetically sealed inside of

a precisely manufactured glass capsule. This glass bulb is specially

constructed to provide fast thermal response.

At normal temperatures, the glass bulb contains the fluid in

Pendent Conventional

Upright

both the liquid phase and in the vapor phase. The vapor phase

can be seen as a small bubble. As heat is applied, the liquid

expands forcing the bubble smaller and smaller as the liquid

pressure increases. Continued heating forces the liquid to push

out against the bulb, causing the glass to shatter, opening the

waterway and allowing the deflector to distribute the discharg-

ing water.

The F1S5 Series Sprinkler temperature rating is identied by

the color of the glass bulb capsule as well as frame color where

applicable.

F1S5 LO Pendent

F1S5 LO Upright

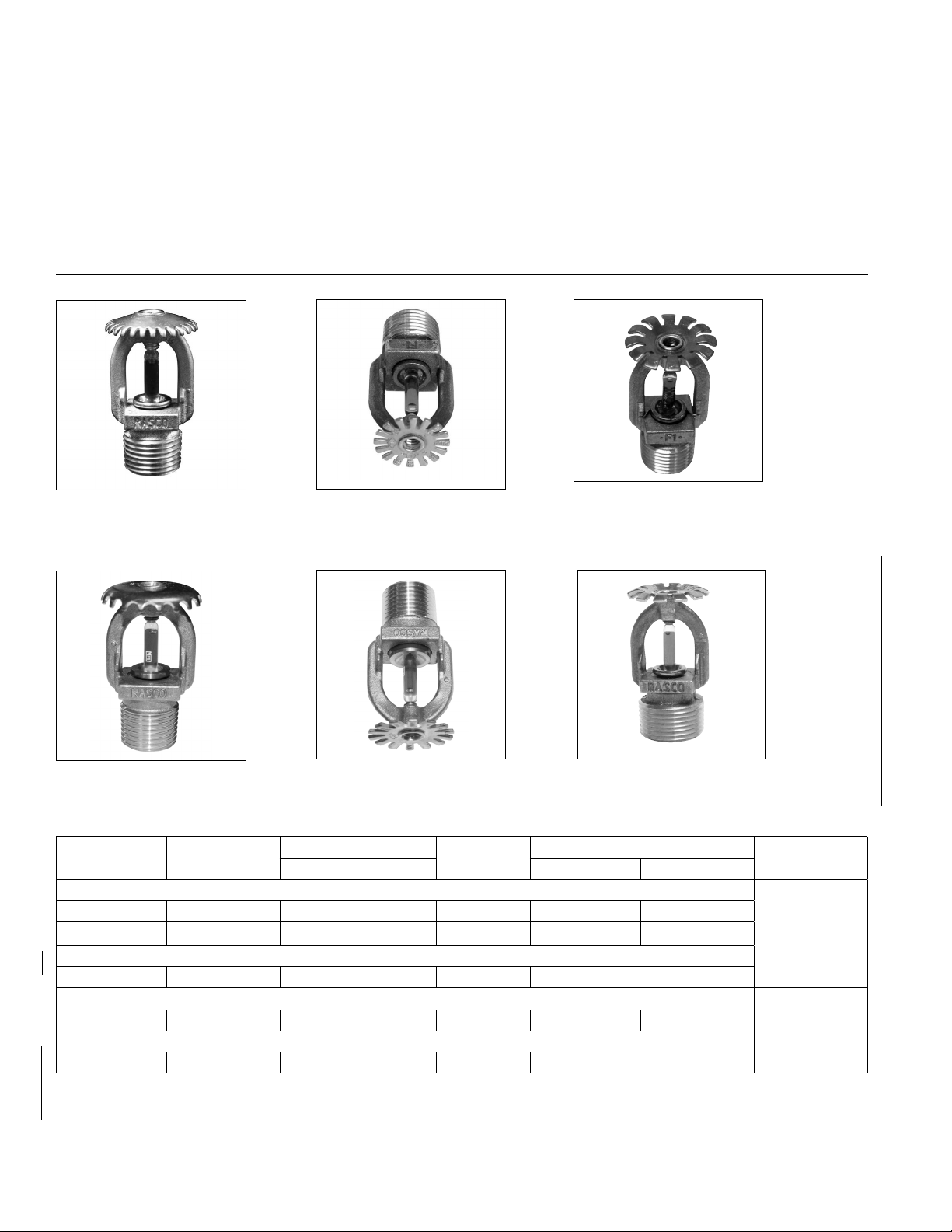

Model F1S5-56 Upright, Pendent & Conventional Sprinklers

Model F1S5 LO Upright, Pendent & Conventional Sprinklers

Installation Wrench: Model D Sprinkler Wrench

Installation Data:

Nominal

Orice

Thread

Size

Nominal K Factor Sprinkler

Height

Sprinkler Identication RTI (fts1/2) [ms1/2]

US Metric Upright Pendent

Standard-Upright (SU) and pendent Deflectors Marked to Indicate Position

(90-130)

[50-70]

½” (15mm)(1) ½” NPT(R½) 5.6 80 2.25” (57mm) SU SP

½” (15mm) R½” BSPT 4.0 57 2.25” (57mm) -- SP

Conventional-Install in Upright or Pendent Position

15mm(1) ½” NPT(R½) 5.6 80 57mm C u/p

Model F1S5 Large Orice Upright & Pendent Sprinklers

(90-150)

[50-80]

20mm R½ & R¾ 8.0 115 58mm SU SP

Conventional-Install in Upright or Pendent Position

20mm R¾ 8.0 115 58mm C u/p

Model F1S5-40 Recessed Pendent Sprinkler

Model F1S5-56 Recessed Pendent Sprinkler

F1S5 LO Conventional

tems: Wet, Dry, Deluge or Preaction. Care must exercised

that the orice size, temperature rating, deflector style and

sprinkler type are in accordance with the latest published

standards of the National Fire Protection Association or the

approving Authority Having Jurisdiction Installation.

Installation

Model F1S5 Series sprinklers are special response sprin-

klers intended for installation as specied in NFPA 13. They

must also be installed with the Model D Sprinkler Wrench

specically designed by Reliable for use with these sprin-

klers.

The Model F1S5-40, F1S5-56 and F1S5 LO Recessed

Sprinklers are to be installed with a maximum recess of ¾

inch (19mm). The Model F1, F2 & FP Escutcheons illus-

trated are the only recessed escutcheon to be used with

the Model F1S5-56 and F1S5 LO Pendent Sprinklers. The

use of any other recessed escutcheon will void all approvals

Fig. 1 Fig. 2

Model F1S5-56 F1/F2 Model F1S5-56 FP

Model F1S5 Large Orice Recessed Pendent Sprinkler

Installation Wrench: Model GFR2 Sprinkler Wrench

Installation Data:

Nominal

Orice

Thread

Size

K Factor Sprinkler

Height Sprinkler Identication

(1)RTIc(fts1/2)

[ms1/2]

US Metric

½” (15mm) ½” NPT(R½) 5.6 80 2.25” (57mm) SP(2) (110-150)

[60-80]

Model F1S5 Large Orice Recessed Pendent Sprinklers(3) (90-150)

[50-80]

20mm R½ & R¾ 8.0 115 58mm SP

(1) c= 1.09 (ft/s)1/2 [0.60 (m/s)1/2]

(2) VdS Approval for 155°F (68°C), 175°F (79°C), and 200°F (93°C) only.

(3) Currently not VdS Approved.

Model F1S5-40, F1S5-56, F1S5 LO & F1S5-56, F1S5 LO Recessed Sprinklers

Application

Model F1S5-40, F1S5-56, F1S5 LO and F1S5-56, F1S5 LO Recessed sprinklers are used in xed re protection sys-

and negate all warranties. When installing Model F1S5-40,

F1S5-56 and F1S5 LO Recessed Pendent use the Model

GFR2 Sprinkler Wrench. Any other type of wrench may

damage these sprinklers.

Note: A leak tight sprinkler joint can be obtained with a torque of 8-18

ft-lbs (10,8 - 24,4 N-m). Do not tighten sprinklers over maximum

recommended torque. It may cause leakage or impairment of the

sprinklers.

Glass bulb sprinklers have orange covers to protect the

bulb during the installation process. REMOVE THIS PRO-

TECTION ONLY AFTER THE SYSTEM HAS BEEN HYDRO-

STATICALLY TESTED AND, WHEN APPLICABLE, THE ES-

CUTCHEONS HAVE BEEN INSTALLED. RASCO wrenches

are designed to install sprinklers when covers are in place.

Reliable Automatic Sprinkler Co., Inc.

(800) 431-1588 Sales Ofces

(800) 848-6051 Sales Fax

(914) 829-2042 Corporate Ofces

www.reliablesprinkler.com Internet Address

Manufactured by

Recycled

Paper

Revision lines indicate updated or new data.

EG. Printed in U.S.A. 05/15 P/N 9999970400

The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory Mutual

Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable.

Products manufactured and distributed by Reliable have been protecting life and property for over 90 years, and are installed and serviced by the most highly qualied

and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.

Ordering Information

Specify:

1. Sprinkler Model

2. Sprinkler Type

3. Orice Size

4. Deflector Type

5. Temperature Rating:

- Specify when ordering

- Model of Sprinkler

6. Sprinkler Finish

7. Escutcheon Finish (where applicable)

Note: When Recessed Sprinklers are ordered, the sprinklers and escutch-

eons are packaged separately.

Escutcheon Data

Escutcheon

Model Adjustment “A”

Dimension

Face of Fitting to

Ceiling or Wall

Dimension

F1 Max Recessed

Min Recessed

11/2” (38.1mm)

3/4” (19.1mm)

3/16” - 15/16”

(5m - 24mm)

F2 Max Recessed

Min Recessed

11/2” (38.1mm)

1” (25mm)

3/16” - 11/16”

(5m - 17mm)

FP Push-on/

Thread-off

Max Recessed

Min Recessed

7/16” (11mm)

15/16” (24mm)

11/2” (38.1mm)

1” (25mm)

Maintenance

The Models F1S5-40, F1S5-56, F1S5 LO, F1S5-56 Re-

cessed & F1S5 LO Recessed Sprinklers should be inspect-

ed quarterly and the sprinkler system maintained in accor-

dance with NFPA 25. Do not clean sprinklers with soap

and water, ammonia or any other cleaning fluid. Remove

any sprinkler which has been painted (other than factory

applied) or damaged in any way. A stock of spare sprinklers

should be maintained to allow quick replacement of dam-

aged or operated sprinklers. Prior to installation, sprinklers

should be maintained in the original cartons and packaging

until used to minimize the potential for damage to sprinklers

that would cause improper operation or non-operation.

Temperature Ratings(1)

Classication

Sprinkler

Temperature Max. Ambient

Temp.

Bulb

Color

°C °F

Ordinary

Intermediate

High

141

135

155

175

200

286

100°F (38°C)

150°F (66°C)

225°F (107°C)

Orange

Red

Yellow

Green

Blue

(1) VdS Approval for Recessed Pendent Sprinkler 155°F (68°C), 175°F (79°C),

and 200°F (93°C) only.

Finish(1)

Standard Finishes

Sprinkler Escutcheon

Bronze

Chrome

Brass

Chrome

White Painted

Special Application Finishes

Sprinkler Escutcheon

Bright Brass (2)

Black Plated

Black Paint (4)

Satin Chrome

Lead Plated (5)

Wax Coated (3)(4)

Wax Over Lead (3)(4)

Bright Brass

Black Plated

Black Paint

Off White

Satin Chrome

(1) Other colors and nishes are available on special order. Consult factory for

details.

(2) 200°F (93°C) maximum.

(3) 155°F to 200°F (68°C to 93°C) ratings only.

(4) 286°F (141°C) sprinklers may be coated for ambient conditions not ex-

ceeding 150°F (66°C).

Ce manuel convient aux modèles suivants

Autres manuels Reliable Système d'irrigation

Reliable

Reliable N25 Manuel utilisateur

Reliable

Reliable F1-300 Manuel utilisateur

Reliable

Reliable DH56 HSW Manuel utilisateur

Reliable

Reliable F1FR 300 QREC Manuel

Reliable

Reliable F1FR42 Series Manuel utilisateur

Reliable

Reliable G6-80 Manuel utilisateur

Reliable

Reliable XL Manuel utilisateur

Reliable

Reliable GFR VELO–ECOH Manuel

Reliable

Reliable DH56 HSW-PL Manuel utilisateur

Reliable

Reliable JL-14 Manuel utilisateur

Reliable

Reliable F1XLH Series Manuel utilisateur

Reliable

Reliable F1FR LO Series Manuel

Reliable

Reliable KFR-CCS Manuel utilisateur

Reliable

Reliable F1FR56 Manuel utilisateur

Reliable

Reliable F1FR-FS56 Manuel utilisateur

Reliable

Reliable F3QR80 Dry Pendent Manuel de l'opérateur

Reliable

Reliable F1FR80 Series Manuel utilisateur

Reliable

Reliable XL Manuel

Reliable

Reliable F1FR QREC Manuel

Reliable

Reliable JL-17 Manuel utilisateur

Reliable

Reliable F3-80 Series Manuel utilisateur

Reliable

Reliable G Series Manuel utilisateur

Reliable

Reliable SWC Manuel

Reliable

Reliable G Manuel utilisateur

Manuels Système d'irrigation populaires d'autres marques

Hunter

Hunter Institutional Series Manuel utilisateur

Cellfast

Cellfast 52-305 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL A Manuel utilisateur

Oral Care Technologies

Oral Care Technologies Hydro Floss Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F892 Manuel utilisateur

Netafim

Netafim NETBEAT Manuel utilisateur

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manuel utilisateur

Tyco

Tyco CC3 Manuel utilisateur

OpenSprinkler

OpenSprinkler OSPi Manuel utilisateur

EINHELL

EINHELL GE-WW 5537 E Manuel utilisateur

Valley

Valley Bender160 Manuel utilisateur

Toro

Toro 730 Series Guide rapide

Eden

Eden 97063-EDAMZ Manuel utilisateur

Tyco

Tyco TY-L Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Manuel utilisateur

Johnson Controls

Johnson Controls tyco ESFR-17 Manuel utilisateur

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manuel utilisateur
