Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

Bulletin 171 Rev. A

Model G4 XLO-QR ECLH/ECOH

Quick-Response Extended Coverage

K11.2 (160 metric)

Concealed Pendent (SIN R7146)

Quick-Response for Light Hazard and

Ordinary Hazard occupancies

Spacing up to 20ft x 20ft (6.1m x 6.1m)

Features

1. Extended Coverage protection to 400 ft2

(37.2 m2) per sprinkler.

2. Nominal K-factor of 11.2 (160 metric).

3. Ordinary temperature rated - 165°F (74°C).

4. Flat cover plate with ½ inch (13 mm) assem-

bly adjustment.

5. Smooth aesthetic ceiling profile.

6. Solid or perforated cover plate available in a

wide variety of colors and finishes.

7. Threaded cover plate does not require clips

or springs.

Approvals

1. Listed by Underwriters Laboratories, Inc.

and certified by UL for Canada (cULus).

UL Listing Category

Sprinklers, Automatic and Open Extended Coverage Sprin-

klers-Light Hazard and Ordinary Hazard Occupancy UL

Guide Number – VNIV.

Product Description

The Reliable Model G4 XLO-QR ECLH/ECOH Concealed

sprinkler is an Extended Coverage Sprinkler for use in Light

Hazard and Ordinary Hazard occupancies with a coverage

area of up to 400 square feet (37.2 m2) per sprinkler.

The use of extended coverage sprinklers can provide lower

installation costs by requiring fewer sprinklers, less piping and

reduced labor. The larger K-factor 11.2 (160 metric) provides

for reduced pressures to achieve the required flow compared

with smaller K-factor sprinklers.

The G4 XLO-QR ECLH/ECOH can eliminate the need for

precise cutting of drop nipples. The Thread-on/Thread-off cov-

er plate assembly provides up to 1/2” (13 mm) of adjustment

to allow the cover to fit accurately against the ceiling. The fire

protection system need not be shut down when adjusting or

removing the Thread-on/Thread-off cover plate assembly.

G4 XLO-QR ECLH/ECOH Concealed

Design Criteria

G4XLO-QR ECLH/ECOH sprinklers are to be installed ac-

cording to the design criteria shown in this Bulletin, NFPA 13,

and all other local codes and ordinances. Flows and pres-

sures, as shown in the Flow Requirements chart on page 2

of this Bulletin, must be selected based on the spacing and

hazard classifications.

The following criteria also apply:

• Minimum sprinkler spacing is 9 ft (2.75 m).

• Sprinklers have a minimum flow requirement for each

spacing as shown in the Flow Requirements chart on

page 2.

• Sprinklers are only to be used in systems hydraulically

designed per NFPA 13.

• Deflector to commodity clearance shall be a minimum

of 18 inches (457 mm).

• Sprinklers shall be installed in unobstructed construc-

tion as defined in NFPA 13.

• Sprinklers can be installed under a sloping ceiling not

exceeding 2 inches (50.8 mm) of rise in 12 inches

(304.5 mm).

• Maximum working pressure is 175 psi (12.1 bar) at the

sprinkler.

G4 XLO-QR ECLH/ECOH Concealed Pendent

Technical Data

Sprinkler

Model Type

Nominal

K-factor

Temperature

Rating

Max.

Ceiling

Temp.

Maximum

Sprinkler

Spacing

ft (m)

Maximum

Coverage

Area

ft2(m2)

Thread

Size Approvals

gpm/psi1/2

(lpm/bar1/2)°F °C °F °C

G4 XLO-QR

ECOH

Concealed

Pendent 11.2 (160) 165 74 100 38 20 (6.1) 400 (37.2)

¾”NPT

or ISO 7-1

R3/4

cULus

Flow Requirements - Quick Response

Spacing

ft (m)

Coverage

Area

ft2(m2)

Light Hazard Ordinary Hazard Group 1 Ordinary Hazard Group 2

Flow

gpm (lpm)

Pressure

psi (bar)

Flow

gpm (Lpm)

Pressure

psi (bar)

Flow

gpm (lpm)

Pressure

psi (bar)

14 x 14 (4.3 x 4.3) 196 (18.2) 30 (113.5) 7.2 (0.49) 30 (113.6) 7.2 (0.5) 39 (147.6) 12.1 (0.8)

16 x 16 (4.9 x 4.9) 256 (23.8) 30 (113.5) 7.2 (0.49) 39 (147.6) 12.1 (0.8) 51 (193.0) 20.7 (1.4)

18 x 18 (5.5 x 5.5) 324 (30.1) 33 (125.0) 8.7 (0.60) 49 (185.5) 19.1 (1.3) 65 (246.0) 33.7 (2.3)

20 x 20 (6.1 x 6.1) 400 (37.2) 40 (151.0) 12.8 (0.88) 60 (227.1) 28.7 (2.0) 80 (302.8) 51.0 (3.5)

Installation

Do not install the MODEL G4

XLO-QR ECLH/ECOH in ceilings

which have positive pressure in

the space above. After installa-

tion, inspect all sprinklers to en-

sure that both the gap between

the cover plate and ceiling and

the 4 drive slots in the cup are

open and free from any air flow

impediment.

After a 25

8” (67 mm) diam-

eter hole is cut in the ceiling,

Maintenance

Model G4XLO-QR ECLH/ECOH sprinklers should be in-

spected and maintained in accordance with NFPA 25. Do

not clean sprinklers with soap and water, ammonia or any

other cleaning fluids. Remove dust by using a soft brush

or gentle vacuuming. Replace any sprinkler or cover plate

assembly, which has been painted (other than factory ap-

plied) or damaged in any way. A stock of spare sprinklers

should be maintained to allow quick replacement of dam-

aged or operated sprinklers. Prior to installation, sprin-

klers should be maintained in their original cartons and

packaging until used to minimize the potential for damage

to sprinklers that would cause improper operation or non-

operation. Once operated automatic sprinklers and cover

plates cannot be reassembled and reused. New sprin-

klers of the same size, type and temperature rating must

be installed. A cabinet of replacement sprinklers should

be provided for this purpose.

XLO EC Wrench

the sprinkler is to be installed with the Model XLO EC

Wrench. When installing a sprinkler, the wrench is first

positioned into the sprinkler/cup assembly until two

wrench tangs fully engage drive slots in the top of the

cup. The sprinkler is then tightened into the pipe fitting.

When inserting or removing the wrench from the sprin-

kler/cup assembly care should be taken to prevent dam-

age to the sprinkler. DO NOT WRENCH ON ANY OTHER

PART OF THE SPRINKLER/CUP ASSEMBLY.

A protective cap is provided to protect the drop down

deflector from damage which could occur during con-

struction before the cover plate is installed. The cap is

factory installed inside the sprinkler cup. Remove the

cap to install the sprinkler, then replace the cap until the

cover plate is installed.

THE MODEL G4 XLO-QR ECLH/ECOH SPRINKLER

MUST BE INSTALLED ONLY WITH A 135°F RATED

COVER PLATE WHICH HAS BEEN LISTED WITH THE

SPRINKLER.

DRIVE SLOT

(TYP. of 4)

Model Model G4XLO-QR ECLH/ECOH Con-

cealed Pendent Sprinkler Speciﬁcation

Sprinklers shall be a cULus listed as Quick-Response

Extended Coverage sprinklers for Light Hazard, Ordinary

Hazard Group 1, and Ordinary Hazard Group 2 occupan-

cies. Sprinklers to be of bronze frame construction with brass

cover plate and copper alloy retainer flange assembly. Water

seal assembly shall consist of a PTFE coated Belleville spring

washer and machined brass cup containing no plastic parts.

Method of attaching the cover plate to the sprinkler cup shall

be a Thread-on and Thread-off design allowing a 1/2” (13

mm) cover plate adjustment. Sprinklers shall have a nominal

K-factor of 11.2 (160 metric), and 3/4” NPT threads. Sprin-

kler temperature rating shall be 165°F (74°C) with a cover

plate temperature rating of 135°F (57°C). Sprinklers shall be

capable of a maximum coverage area of 20 ft. x 20 ft. (6.1

m x 6.1 m), with a minimum horizontal spacing of 9 ft. (2.75

m). Rated working pressure shall be 175 psi (12.0 bar). A

plastic protective cap shall be provided and factory installed

onto the sprinkler cup to protect the sprinkler prior to installa-

tion of the cover plate. Cover plate type: [Solid] [Perforated].

Cover plate finish: [White] [Chrome] [Custom Finish–specify].

Quick-Response Extended Coverage Concealed Pendent

Sprinklers for Light Hazard and Ordinary Hazard Occupan-

cies shall be Reliable Model G4XLO-QR ECLH/ECOH. SIN

R7146 (Bulletin 171).

Ordering Information

Specify:

1. Sprinkler Model: G4XLO-QR ECLH/ECOH (SIN

R7146)

2. Cover Plate Finish: [See Cover Plate Finishes chart]

3. Cover Plate Type: [Solid][Perforated]

4. Thread Size: 3/4” NPT unless otherwise specified,

ISO 7-1 R3/4 available by special order

The installation wrench is Model XLO EC.

Sprinkler Identiﬁcation Number (SIN): R7146

Cover Plate Finishes(1)

Standard Finishes

Chrome

White Paint

Special Application

Finishes(2)

Bright Brass

Finished Bronze

Black Plating

Black Paint

Off White

Satin Chrome

(1) Other finishes and colors are available on special order. Consult factory

for details. Coverplate custom paint is semi-gloss, unless specified oth-

erwise.

(2) For the perforated style coverplate, consult factory for availability on these

and other custom finishes.

Note: Paint or any other coatings applied over the factory fin-

ish will void all approvals and warranties.

Fig. 1 - Sprinkler and Cover Plate Dimensions

Reliable Automatic Sprinkler Co., Inc.

(800) 431-1588 Sales Offices

(800) 848-6051 Sales Fax

(914) 829-2042 Corporate Offices

www.reliablesprinkler.com Internet Address

Manufactured by

Recycled

Paper

Revision lines indicate updated or new data.

EG. Printed in U.S.A. 12/15

The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory

Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable.

Products manufactured and distributed by Reliable have been protecting life and property for over 90 years, and are installed and serviced by the most highly

qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.

PN 9999970465

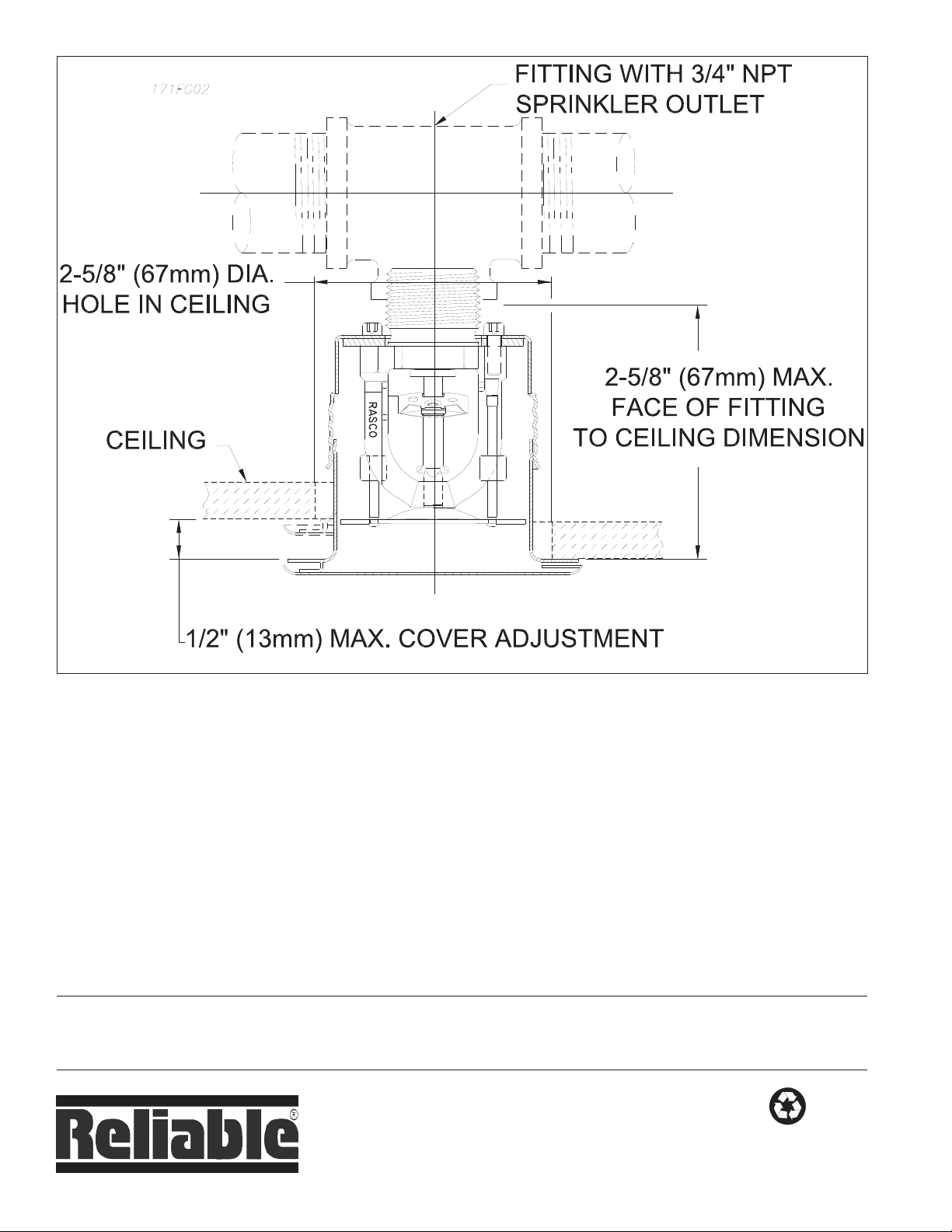

Fig. 2 - Installation Dimensions
