The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

Bulletin 032 Rev. B

Model RFC30 LL (SIN RA3211)

Model RFC43 LL (SIN RA3212)

Model RFC49 LL (SIN RA3216)

Residential Flat Concealed

Sprinklers

Speciﬁcally Listed for use in

Multipurpose Systems that

serve both domestic water

and ﬁre protection.

Sprinkler Type

Residential Flat Concealed Sprinkler listed for

a minimum design density of .05 gpm/ft2with

“potable water”.

• Model RFC30 LL

• Model RFC43 LL

• Model RFC49 LL

Features

1. National Sanitation Foundation (NSF) Cer-

tified to NSF/ANSI Standard 61 Annex G

(Less than 0.25% Lead content).

2. Very low water flow requirements.

3. Cover plate attachment (Plain or Perforated)

with 1/2” (13mm) total adjustment

4. Thread-on/off or Push-on/off cover attach-

ment option.

5. Smooth Aesthetic ceiling profile.

6. Available in white, brass, chrome and black

plated or custom painted finishes.

Patent Pending

Listing & Approvals

1. Listed by Underwriters Laboratories, and certified by

UL for Canada (cULus)

2. NSF Cerified to NSF/ANSI Standard 61 Annex G

Product Description

Model RFC30 LL, RFC43 LL and RFC49 LL Concealed

Residential Sprinklers are fast response residential fusible

solder link automatic sprinklers. Residential sprinklers dif-

fer from standard sprinklers primarily in their response time

and water distribution patterns. Model RFC30 LL, RFC43

LL and RFC49 LL sprinklers discharge water in a hemi-

spherical pattern below the sprinkler deflector. Residen-

tial distribution patterns are higher and generally contain

a finer droplet size than standard sprinkler patterns. The

combination of speed of operation and high discharge pat-

tern required for residential sprinklers has demonstrated,

in fire testing, an ability for controlling residential fires, and

thereby providing significant evacuation time for occu-

pants. The RFC30 LL, RFC43 LL and RFC49 LL Sprinklers

provide the best form of fire protection by combining an at-

tractive appearance and ½” (13mm) of cover adjustment

for ease of installation. The small diameter cover plate is

easily and positively attached and blends into the ceiling,

concealing the most dependable fire protection available,

an automatic sprinkler system. The RFC30 LL, RFC43 LL

and RFC49 LL are UL Listed and NSF Certified Residen-

tial Sprinklers to be installed in the residential “potable”

water applications of any occupancy in accordance with

NFPA 13, 13R, & 13D and meets all applicable low lead

standards, .25% or less. The cover plate adjustability of

the RFC30 LL, RFC43 LL and RFC49 LL can reduce the

need for precise cutting of drop nipples. The threaded

cover plate assembly can be adjusted without tools to fit

accurately against the ceiling. The fire protection system

need not be shut down to adjust or remove the cover plate

assembly.

PEX Pipe System

Application and Installation

For use in fire sprinkler systems that also supply potable water

to a plumbing fixture or fixtures.

The RFC30 LL, RFC43 LL and RFC49 LL, for residential instal-

lations, use a 165°F (74°C) fusible solder link in a tuning fork

style sprinkler frame with a drop-down deflector. This assembly

is recessed into the ceiling and concealed by a flat cover plate.

The cover plate is attached to the skirt, using 135°F (57°C) or-

dinary temperature classification solder. When the ceiling tem-

perature rises, the solder holding the cover plate releases the

cover allowing the deflector to drop into position and exposing

the sprinkler inside to ceiling temperature. The subsequent op-

eration of the solder link opens the waterway and causes the

deflector to drop into position to distribute the discharging water

in a hemispherical pattern below the sprinkler deflector. Any

adjustment of thread engagement between the cover plate and

cup will assure that the drop-down deflector is properly located

below the ceiling. The residential distribution pattern contains

a finer droplet size than a standard sprinkler, and the pattern

produces significantly higher wall wetting. After a 25/8” inch di-

ameter hole is cut in the ceiling, the sprinkler is to be installed

with the Model FC Wrench.

When installing a sprinkler, the wrench is first positioned into

the sprinkler/cup assembly and around the hexagonal body of

the sprinkler frame. The wrench must bottom out against the

cup in order to ensure proper, safe installation. The sprinkler

is then tightened into the pipe fitting. When inserting or remov-

ing the wrench from the sprinkler/cup assembly, care should be

taken to prevent damage to the sprinkler. DO NOT WRENCH

ON ANY OTHER PARTOF THE SPRINKLER / CUP ASSEMBLY.

MODEL RFC30 LL, RFC43 LL AND RFC49 LL CONCEALED

SPRINKLERS MUST BE INSTALLED ONLY WITH 135°F RATED

COVERS.

Note: A leak tight ½” NPT (R1/2) sprinkler joint can be ob-

tained with a torque of 8-18 ft-lbs (10,8 - 24,4 N-m). Do not

tighten sprinklers over maximum recommended torque. It may

cause leakage or impairment of the sprinklers.

Cover assemblies provide up to 1/2” (13mm) of adjustment.

Turn the cover clockwise until the flange is in contact with the

ceiling. For the push-on/thread-off option, the cover assembly

is pushed onto the cup and final adjustment is made by turning

the cover clockwise until the skirt flange makes full contact with

the ceiling. Cover removal requires turning in the counter-clock-

Temperature Rating

Sprinkler Cover Plate Max. Ambient Temp.

165°F/74°C 135°F/57°C 100°F/38°C

Installation Data: RFC30 LL (SIN RA3211)

Thread

Size

inch (mm)

K Factor

Sprinkler

Spacing

ft. (m)

Maximum

Distance to

Wall

ft. (m)

Minimum

Distance between

sprinklers

ft. (m)

Minimum Required

Sprinkler Discharge

Flow

gpm (Lpm)

Press.

psi (bar)

½” (15mm)

3.0

12 x 12 (3.6x3.6)

14 x 14 (4.3x4.3)

6 (1.83)

7 (2.13)

8 (2.43)

9 (34.1)

10 (37.8)

9.0 (0.62)

11 (0.76)

Note: 1 bar = 100 Kpa

Installation Data: RFC43 LL (SIN RA3212)

Thread

Size

inch (mm)

K Factor

Sprinkler

Spacing

ft. (m)

Maximum

Distance to

Wall

ft. (m)

Minimum

Distance between

sprinklers

ft. (m)

Minimum Required

Sprinkler Discharge

Flow

gpm (Lpm)

Press.

psi (bar)

½” (15mm)

4.3

12 x 12 (3.6x3.6)

14 x 14 (4.3x4.3)

16 x 16 (4.9x4.9)

18 x 18 (5.5x5.5)

20 x 20 (6.0x6.0)

6 (1.83)

7 (2.13)

8 (2.43)

9 (2.74)

10 (3.05)

8 (2.43)

12 (45)

13 (49)

18 (68)

21 (79)

7.8 (0.54)

9.1 (0.63)

17.5 (1.21)

23.8 (1.64)

Note: 1 bar = 100 Kpa

Installation Data: RFC49 LL (RA3216)

Thread

Size

inch (mm)

K Factor

Sprinkler

Spacing

ft. (m)

Maximum

Distance to

Wall

ft. (m)

Minimum

Distance between

sprinklers

ft. (m)

Minimum Required

Sprinkler Discharge

Flow

gpm (Lpm)

Press.

psi (bar)

½” (15mm)

4.9

12 x 12 (3.6x3.6)

14 x 14 (4.3x4.3)

16 x 16 (4.9x4.9)

18 x 18 (5.5x5.5)

20 x 20 (6.0x6.0)

6 (1.83)

7 (2.13)

8 (2.43)

9 (2.74)

10 (3.05)

8 (2.43)

13 (49)

17 (64.3)

20 (75.7)

7.0 (0.48)

12.0 (0.83)

16.7 (1.14)

Note: 1 bar = 100 Kpa

FOR SLOPED CEILING APPLICATIONS SEE RASCO BULLETIN 035.

RFC43 LL AND RFC49 LL SLOPED FLOW RATES ARE IDENTICAL TO RFC43 AND RFC49.

wise direction. In ceilings that have a plenum space above the

sprinkler, the plenum space may have neutral or negative pres-

surization but must not be positively pressurized. Inspect all

sprinklers after installation to ensure that the gap between the

cover plate and ceiling and the 4 slots in the cup are all open

and free from any air flow impediment.

Maintenance

Model RFC30 LL, RFC43 LL and RFC49 LL Concealed

Sprinklers should be inspected and the sprinkler system

maintained in accordance with NFPA25. Do not clean sprin-

klers with soap and water, ammonia or any other cleaning

fluids. Remove dust by using a soft brush or gentle vacuum-

ing. Remove any sprinkler cover plate assembly which has

been painted (other than factory applied) or damaged in

any way. A stock of spare sprinklers should be maintained

to allow quick replacement of damaged or operated sprin-

klers. Prior to installation, sprinklers should be maintained

in the original cartons and packaging until used to minimize

the potential for damage to sprinklers that would cause im-

proper operation or non-operation.

Model RFC30 LL, RFC43 LL and RFC49 LL

Residential Concealed Sprinkler Speciﬁcation

Sprinklers shall be cULus Listed and NSF-61 Annex G

certified low flow residential concealed sprinklers with drop-

down deflector and adjustable flat cover plate engineered

for a minimum design density of 0.05gpm/ft2. Sprinkler

frame and deflector shall be of bronze frame construction

having a ½” NPT thread.

Thermal element shall consist of an approved black-

painted beryllium-nickel fusible solder link with symmetric

lever mechanism, maintaining a Teflon-coated Belleville

spring washer and machined brass cap water seal assem-

bly containing no plastic parts. Sprinkler K-factors shall be

a nominal 4.3 (62) and 4.9 (70), having a 3/8” and 7/16” orifice

respectively. Temperature rating shall be Ordinary 165°F

(74°C); cover plate temperature rating to be 135°F (57°C).

Cover plate assembly shall consist of a brass cover plate

and copper alloy retainer flange allowing a ½” cover plate

adjustment. Any secure engagement between the cover

plate and the cup will assure that the drop-down deflector is

properly located below the ceiling. A plastic protective cap

shall be provided and factory installed inside the sprinkler

cup to protect the drop-down sprinkler deflector from dam-

age, which could occur during construction before the cov-

er plate is installed. Standard cover finish: [Chrome] [White]

[Specialty – specify]. Residential concealed sprinklers shall

be Reliable Model RFC30 LL, SIN RA3211 (Bulletin 032),

RFC43 LL, SIN RA3212 (Bulletin 032) or Model RFC49 LL,

SIN RA3216 (Bulletin 032).

Ordering Information

Specify:

1. Sprinkler Model

2. Cover Plate Finish

3. Thread-On or

Push-On Feature

Cover Plate Finishes(1)

Standard Finishes

Chrome

White Paint

Special Application

Finishes(2)

Bright Brass

Finished Bronze

Black Plating

Black Paint

Off White

Satin Chrome

(1) Other finishes and colors are

available on special order.

Consult factory for details.

Coverplate custom paint is

semi-gloss, unless specified

otherwise.

(2) For the perforated style cover-

plate, consult factory for avail-

ability on these and other cus-

tom finishes.

The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

Bulletin 033

Model F1 RES LL

Residential Sprinklers for

Design Density of .05 gpm/ft2

Types:

1. F1 Res 30 LL Pendent

2. F1 Res 30 LL Recessed Pendent/F2

3. F1 Res 30 LL Recessed Pendent/FP

4. F1 Res 49 LL Pendent

5. F1 Res 49 LL Recessed Pendent/F1

6. F1 Res 49 LL Recessed Pendent/FP

7. F1 Res 58 LL Pendent

8. F1 Res 58 LL Recessed Pendent/F1

9. F1 Res 58 LL Recessed Pendent/FP

10. F1 Res 30 LL CCP Pendent

11. F1 Res 49 LL CCP Pendent

12. F1 Res 58 LL CCP Pendent

13. F1 Res 44 LL HSW

14. F1 Res 44 LL Recessed HSW/F2

15. F1 Res 58 LL HSW

16. F1 Res 58 LL HSW Recessed HSW/F2

17. F1 Res 44 LL SWC

Listings & Approvals

1. Listed by Underwriters Laboratories Inc. and

UL Certified for Canada (cULus)

2. NSF Certified to NSF/ANSI Standard 61 Annex G (Less

than 0.25% Lead Content.)

Additional Bulletins applicable to all

F1RES LL Sprinklers

• Wall Wetting - Bulletin 007

• Slope Ceiling - Bulletin 035

• Design and Installation - Bulletin 140

UL Listing Category

Residential Automatic Sprinkler

UL Guide Number

VKKW

Patents

US Patent No. 6,516,893 applies to the

Model F1 Res 49 LL & 58 LL Pendent Sprinklers

Other patents pending.

Product Description

Model F1 Res LL Pendent sprinklers (Figs. 1, 2, 3, & 4) are

fast response sprinklers combining excellent durability, high

F1 Res 49 LL & 58 LL

Recessed Pendent/F1

F1 Res 49 LL & 58 LL Recessed

Pendent / F1

F1 Res 30 LL

Recessed Pendent/F2

F1 Res 44 LL & 58 LL

Recessed HSW/F2

F1 Res 30 LL, 49 LL & 58 LL

CCP Pendent

F1 Res 44 LL

SWC

sensitivity glass-bulb and low profile decorative design. The

F1 Res LL Horizontal Sidewall sprinklers (Figs. 5, & 6) are

equally attractive when above ceiling piping cannot be used.

The 3mm glass-bulb pendent sprinklers permit the efficient

use of residential water supplies for sprinkler coverage in resi-

dential fire protection design.

The low flow F1 Res LL sprinklers are specially engineered

for fast thermal response to meet the sensitive fire protection

application needs of the latest residential market standards

(UL 1626 Standard). Upon fire conditions, rising heat causes

a sprinkler’s heat-sensitive glass-bulb to shatter, releasing the

waterway for water flow onto the deflector, evenly distributing

the discharged water to control a fire.

Technical Data:

• Thermal Sensor: Nominal 3mm glass-bulb

• Sprinkler Frame : Brass

• Sprinklers’ Pressure Rating : 175 psi

Factory Hydrostatically Tested to 500 psi

• Thread Size: ½” NPT (R½)

• K-Factor: 3.0 (Actual) - F1 Res 30 LL Pendent Sprinkler

4.9 (Actual) - F1 Res 49 LL Pendent Sprinkler

5.8 (Actual) - F1 Res 58 LL Pendent & HSW Sprinkler

4.4 (Actual) - F1 Res 44 LL HSW Sprinkler

• Density: Minimum 0.05 gpm/ft2

Speciﬁcally Listed for use in Multipurpose Systems that serve both

domestic water and ﬁre protection.

Model F1 Res LL Sprinklers Listed for the lowest ﬂows to meet the

minimum design density of .05 gpm/ft2with potable water

F1 Res 30 LL, 49 LL & 58 LL

Pendent

F1 Res 44 LL & 58 LL

HSW

Application

Model F1 Res LL Sprinklers are used for Residential Fire

Protection according to UL 1626 Standard*. Be sure that

orifice size, temperature rating, deflector style and sprinkler

type are in accordance with the latest published standards

of The National Fire Protection Association or the approving

authority having jurisdiction.

Installation

Models F1 Res LL sprinklers are to be installed as shown.

Model F1, F2 and FP Escutcheons, illustrated herewith, are

the only recessed escutcheons to be used with Model F1

Res LL sprinklers. Use of any other recessed escutcheon

will void all approvals and warranties. For installing Model

F1 Res LL Pendent sprinklers use only the Model D sprin-

kler Wrench; for installing Models F1 Res LL Recessed

Pendent, CCP & SWC sprinklers use only the Model GFR2

sprinkler wrench; for installing Model F1 LL Res Recessed

HSW sprinklers use only the Model GFR2 Sprinkler Wrench.

Use of wrenches other than those specified may damage

these sprinklers. Install F1 Res 44 LL with a ceiling to de-

flector distance of 4” - 12”. Flow arrow on deflector must

point away from near wall and “Top” marking must face

ceiling.

Escutcheon*, F1 or F2, Data:

Type Adjustment

Inch (mm)

“A”

Inch (mm)

Face of ﬁtting

to ceiling

Inch (mm)

F1 3/4 (19.0) Min.=3/4” (19.1)

Max.=11/2” (38.1)

3/16 - 15/16

(4.7 - 24.0)

F2 1/2 (12.7) Min.=15/16” (23.8)

Max.=11/2” (38.1)

3/16 - 11/16

(4.7 - 17.4)

* Note: Escutcheons F1 or F2 may be used with

Model F1 Res 49 LL & 58 LL Recessed Pendent Sprinkler

• Model F1 Res 30 LL, 49 LL & 58 LL Pendent

• Model F1 Res 30 LL Recessed Pendent / F2

• Model F1 Res 49 LL & 58 LL Recessed Pendent / F1

Fig. 1 Fig. 2

F1 escutcheon, 3/4” (19mm) adjustment

Technical Data: F1Res 30 LL Pendent and Recessed Pendent

Thread

Size

Nominal Oriﬁce

Inch (mm)

Sprinkler

Temp. Rating

Max.

Pressure

psi (bar)

Max.

Ambient Temp.

Actual

Factor

Sprinkler

Length

Inch (mm)

°F °C °F °C

½” NPT

(R½)

21/64” (8.2) 155

175

79 175 (12) 100 38 3.0 2.25 (57)

Deﬂector - to - ceiling

Maximum 1” (25mm) to 4” (100mm)

Max.

Sprinkler Spacing

ft (m)

Flow

gpm (Lpm)

Pressure

psi (bar)

Sprinkler Identiﬁcation

Number (SIN)

12 x 12 (3,6 x 3,6) 8 (30.3) 7.0 (0,48) RA3311

14 x 14 (4,3 x 4,3) 10 (37.8) 11 (0,76)

Technical Data: F1Res 49 LL Pendent and Recessed Pendent.

Thread

Size

Nominal Oriﬁce

Inch (mm)

Sprinkler

Temp. Rating

Max.

Pressure

psi (bar)

Max.

Ambient Temp.

Actual

Factor

Sprinkler

Length

Inch (mm)

°F °C °F °C

½” NPT

(R½)

7/16” (11) 155

175

79 175 (12) 100

150

66 4.9 2.25 (57)

Deﬂector - to - ceiling

Maximum 1” (25mm) to 4” (100mm)

Max.

Sprinkler

Spacing

ft (m)

Flow

gpm (Lpm)

Pressure

psi (bar)

Sprinkler

Identiﬁcation

Number (SIN)

12 x 12 (3,6 x 3,6) 13 (49) 7.0 (0,48)

RA3316

14 x 14 (4,3 x 4,3) 13 (49) 7.0 (0,48)

16 x 16 (4,9 x 4,9) 13 (49) 7.0 (0,48)

18 x 18 (5,5 x 5,5) 17 (64.3) 12.0 (0,83)

20 x 20 (6,1 x 6,1) 20 (75.7) 16.7 (1,14)

Deﬂector - to - ceiling

Maximum 4” (100mm) to 8” (203mm)

Max.

Sprinkler

Spacing

ft (m)

Flow

gpm (Lpm)

Pressure

psi (bar)

Sprinkler

Identiﬁcation

Number (SIN)

12 x 12 (3,6 x 3,6) 15 (57) 9.4 (0,65)

RA3316

14 x 14 (4,3 x 4,3) 16 (60.5) 10.6 (0,73)

16 x 16 (4,9 x 4,9) 17 (64.3) 12.0 (0,83)

18 x 18 (5,5 x 5,5) 19 (72) 15.0 (1,0)

20 x 20 (6,1 x 6,1) 22 (83.2) 20.2 (1,4)

*Note: The F1 Res 49 LL pendent and recessed pendent residential

sprinklers can be installed per NFPA 13 in beamed ceilings meet-

ing the following criteria:

1. Maximum beam depth = 7” (178mm)

2. Beam spacing at or greater than 7.5 ft. (2.3m) on center.

Technical Data: F1Res 58 LL Pendent and Recessed Pendent.

Thread

Size

Nominal Oriﬁce

Inch (mm)

Sprinkler

Temp. Rating

Max.

Pressure

psi (bar)

Max.

Ambient Temp. Actual

K Factor

Sprinkler

Length

Inch (mm)

°F °C °F °C

½” NPT

(R½) ½” (13) 155

175

79 175 (12) 100

150

66 5.8 2.25 (57)

Max.

Sprinkler

Spacing

ft (m)

Flow

gpm (Lpm)

Pressure

psi (bar)

Ceiling -to- Deﬂector

Inch (mm)

Sprinkler

Identiﬁcation

Number (SIN)

12 x 12 (3,6 x 3,6) 16 (61) 7.6 (0,53)

1- 4

(25 - 100) RA3313

14 x 14 (4,3 x 4,3) 16 (61) 7.6 (0,53)

16 x 16 (4,9 x 4,9) 16 (61) 7.6 (0,53)

18 x 18 (5,5 x 5,5) 19 (72) 10.8 (0,75)

20 x 20 (6,1 x 6,1) 22 (83.3) 14.4 (1,0)

FP push-on/thread-off escutcheon

• Model F1 Res 30 LL, 49 LL & 58

LL CCP Pendent

• Model F1 Res 30 LL, 49 LL & 58

LL Recessed Pendent / FP

Fig. 3 Fig. 4

Technical Data: F1Res 30 LL CCP Pendent and Recessed Pendent/FP

Thread

Size

Nominal

Oriﬁce

Inch (mm)

Sprinkler

Temp. Rating

CCP Assembly

Temp. Rating

Max.

Pressure

psi (bar)

Max.

Ambient Temp. K

Factor

Sprinkler

Length

Inch (mm)

°F °C °F °C °F °C

½” NPT

(R½)

21/64” (8.2) 155 68 135 57 175 (12) 100 38 3.0 2.25 (57)

Max.

Sprinkler Spacing

ft (m)

Flow

gpm (Lpm)

Pressure

psi (bar)

Sprinkler Identiﬁcation

Number

(SIN)

12 x 12 (3,6 x 3,6) 8 (30.3) 7.0 (0,48) RA3311

14 x 14 (4,3 x 4,3) 11 (41.6) 13.4 (0,92)

Technical Data: F1Res 49 LL CCP Pendent and Recessed Pendent/FP

Thread

Size

Nominal

Oriﬁce

Inch

(mm)

Sprinkler

Temp.

Rating

CCP

Assembly

Temp.

Rating

Max.

Pressure

psi (bar)

Max.

Ambient

Temp.

Factor

Sprinkler

Length

Inch

(mm)

°F °C °F °C °F °C

½” NPT

(R½)

7/16” (11) 155 68 135 57 175 (12) 100 38 4.9 2.25 (57)

Max.

Sprinkler Spacing

ft (m)

Flow

gpm (Lpm)

Pressure

psi (bar)

Sprinkler

Identiﬁcation

Number (SIN)

12 x 12 (3,6 x 3,6) 13 (49) 7.0 (0,48)

RA3316

14 x 14 (4,3 x 4,3) 13 (49) 7.0 (0,48)

16 x 16 (4,9 x 4,9) 14 (53) 8.2 (0,56)

18 x 18 (5,5 x 5,5) 18 (68.1) 13.5 (0,93)

20 x 20 (6,1 x 6,1) 20 (75.7) 16.7 (1,14)

CCP Options Data:

“A”

Cover Adjustment

Inch (mm)

“B”

CCP Height

Inch (mm)

1/2(12.7) 15/16 (24)

5/16 (7.9) 3/4(19)

FP Data “A”:

FP Position “A”

Inch (mm)

Max. Recessed 7/16 (11)

Min. Recessed 15/16 (24)

Note: Sprinklers shown in Fig. 3 and Fig. 4

are not suitable for installation in ceil-

ings which have positive pressure in

the space above.

Technical Data: F1Res 58 LL CCP Pendent and Recessed Pendent/FP

Thread

Size

Nominal

Oriﬁce

Inch (mm)

Sprinkler

Temp. Rating

CCP Assembly

Temp. Rating

Max.

Pressure

psi (bar)

Max.

Ambient Temp. K

Factor

Sprinkler

Length

Inch (mm)

°F °C °F °C °F °C

½” NPT

(R½)

1/2” (13) 155 68 135 57 175 (12) 100 38 5.8 2.25 (57)

Max.

Sprinkler Spacing

ft (m)

Flow

gpm (Lpm)

Pressure

psi (bar)

Sprinkler Identiﬁcation

Number

(SIN)

12 x 12 (3,6 x 3,6) 16 (61) 7.6 (0,53)

RA3313

14 x 14 (4,3 x 4,3) 16 (61) 7.6 (0,53)

16 x 16 (4,9 x 4,9) 16 (61) 7.6 (0,53)

18 x 18 (5,5 x 5,5) 19 (72) 10.8 (0,75)

20 x 20 (6,1 x 6,1) 22 (83.3) 14.4 (1,0)

• Model F1 Res 44 LL & 58 LL HSW

• Model F1 Res 44 LL & 58 LL Recessed

HSW/F2

F2 escutcheon,

1/2” (13mm) adjustment

Technical Data: F1Res 44 LL HSW & HSW/F2

Thread

Size

Nominal

Oriﬁce

Inch (mm)

Sprinkler

Temp. Rating

Max.

Pressure

psi (bar)

Max.

Ambient

Temp.

Factor

Sprinkler

Length

Inch (mm)

°F °C °F °C

½” NPT

(R½)

3/8” (10) 155

175

79 175 (12) 100

150

66 4.4 2.45 (62)

Escutcheon, F2, Data:

Type Adjustment

Inch (mm)

Face of Fitting

to wall

Inch (mm)

F2 1/2(13)

3/16 - 11/16

(4.7 - 17.4)

Max.

Sprinkler Spacing

ft (m)

“A”

Ceiling to

Deﬂector

Inch (mm)

Sprinkler Temp.

Rating

°F (°C)

Flow

gpm (Lpm)

Pressure

psi (bar)

Sprinkler

Identiﬁcation

Number (SIN)

12 x 12 (3,6 x 3,6)

4 - 6

(101 - 152)

155 (68) 175 (79) 12 (45,4) 7.5 (0,52)

RA3331

14 x 14 (4,3 x 4,3) 155 (68) 175 (79) 14 (53,0) 10.2 (0,71)

16 x 16 (4,9 x 4,9) 155 (68) 175 (79) 16 (60,6) 13.3 (0,92)

16 x 18 (4,9 x 5,5) 155 (68) 175 (79) 18 (68,1) 16.8 (1,16)

18 x 18 (5,5 x 5,5) 155 (68) 175 (79) 19 (72,0) 18.7 (1,29)

16 x 20 (4,9 x 6,1) 155 (68) 175 (79) 23 (87,1) 27.4 (1,89)

12 x 12 (3,6 x 3,6)

6 - 12

(152 - 305)

155 (68) 175 (79) 14 (53,0) 10.2 (0,71)

14 x 14 (4,3 x 4,3) 155 (68) 175 (79) 16 (60,6) 13.3 (0,92)

16 x 16 (4,9 x 4,9) 155 (68) 175 (79) 17 (64,4) 15.0 (1,04)

16 x 18 (4,9 x 5,5) 155 (68) 175 (79) 20 (75,7) 20.7 (1,43)

16 x 20 (4,9 x 6,1) 155 (68) 175 (79) 23 (87,1) 27.4 (1,89)

Fig. 5

Technical Data: F1Res 58 LL HSW & HSW/F2

Thread

Size

Nominal

Oriﬁce

Inch (mm)

Sprinkler

Temp. Rating

Max.

Pressure

psi (bar)

Max.

Ambient

Temp.

Factor

Sprinkler

Length

Inch (mm)

°F °C °F °C

½” NPT

(R½)

1/2” (13) 155

175

79 175 (12) 100

150

66 5.8 2.45 (62)

Escutcheon, F2, Data:

Type Adjustment

Inch (mm)

Face of Fitting

to wall

Inch (mm)

F2 1/2(13)

3/16 - 11/16

(4.7 - 17.4)

Technical Data: F1Res 44 LL SWC

Thread

Size

Nominal

Oriﬁce

Inch (mm)

Sprinkler

Temp. Rating

Cover

Temp.

Rating

Max.

Pressure

psi (bar)

Max.

Ambient

Temp.

Factor

Sprinkler

Length

Inch (mm)

°F °C °F °C °F °C

½” NPT

(R½)

3/8” (10) 155 68 135 57 175 (12) 100 38 4.4 2.45 (62)

Max.

Sprinkler Spacing

ft (m)

“A”

Ceiling to

Deﬂector

Inch (mm)

Flow

gpm (Lpm)

Pressure

psi (bar)

Sprinkler

Identiﬁcation

Number (SIN)

12 x 12 (3,6 x 3,6)

4 - 6

(101 - 152)

13 (49,2) 8.7 (0,60)

RA3331

14 x 14 (4,3 x 4,3) 14 (53,0) 10.2 (0,71)

16 x 16 (4,9 x 4,9) 17 (64,3) 15.0 (1,1)

16 x 18 (4,9 x 5,5) 19 (71,8) 18.7 (1,13)

16 x 20 (4,9 x 6,1) 23 (87,1) 27.4 (1,89)

12 x 12 (3,6 x 3,6)

6 - 12

(152 - 305)

14 (52,9) 10.2 (0,71)

14 x 14 (4,3 x 4,3) 15 (56,7) 11.7 (0,81)

16 x 16 (4,9 x 4,9) 18 (68,1) 16.8 (1,16)

16 x 18 (4,9 x 5,5) 20 (75,6) 20.7 (1,43)

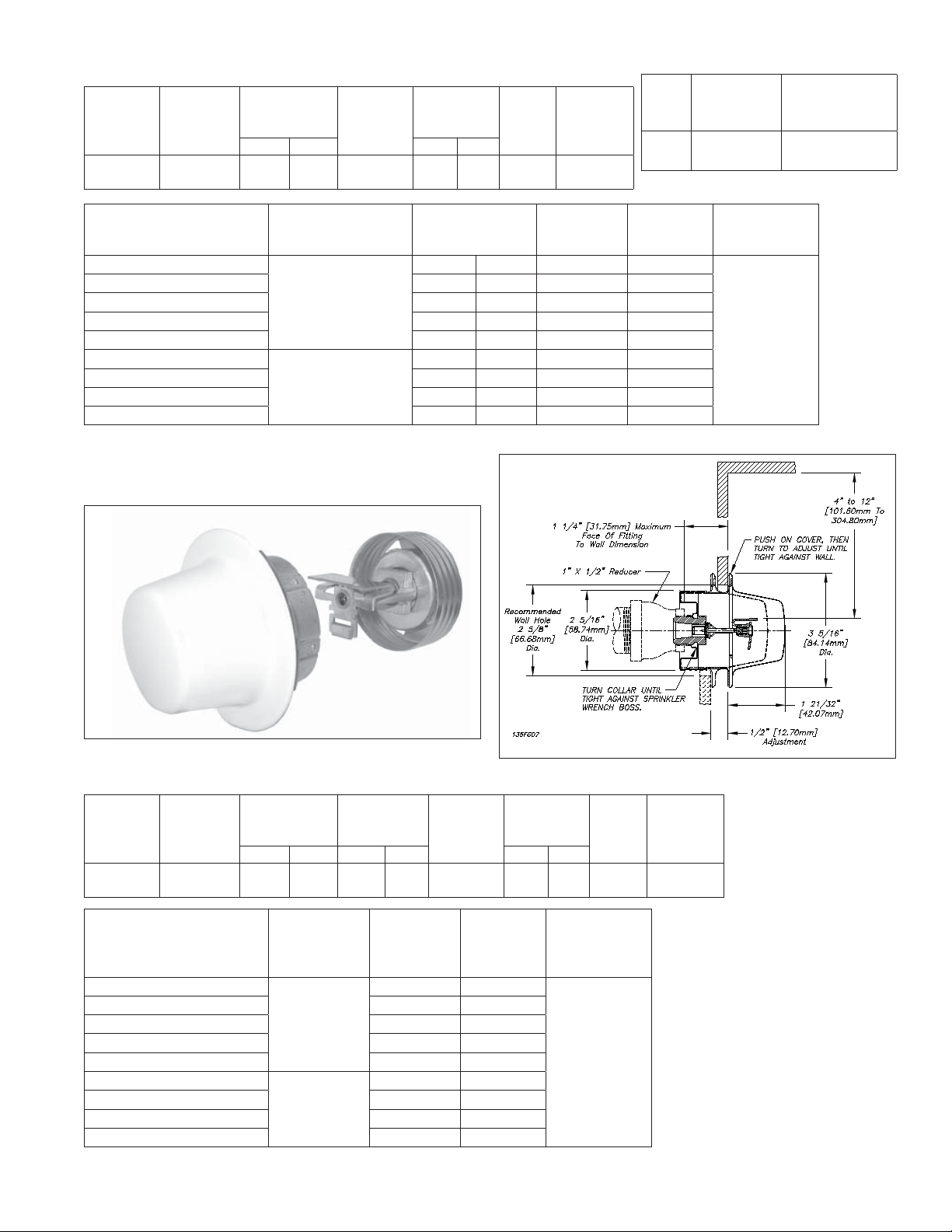

• Model F1 Res 44 LL SWC

Fig. 6

Max.

Sprinkler Spacing

ft (m)

“A”

Ceiling to Deﬂector

Inch (mm)

Sprinkler Temp.

Rating

°F (°C)

Flow

gpm (Lpm)

Pressure

psi (bar)

Sprinkler

Identiﬁcation

Number (SIN)

12 x 12 (3,6 x 3,6)

4 - 6

(101 - 152)

155 (68) 175 (79) 16 (60,6) 7.6 (0,53)

RA3333

14 x 14 (4,3 x 4,3) 155 (68) 175 (79) 18 (68,2) 9.7 (0,67)

16 x 16 (4,9 x 4,9) 155 (68) 175 (79) 21 (79,5) 13.2 (0,91)

16 x 18 (4,9 x 5,5) 155 (68) 175 (79) 25 (94,7) 18.6 (1,28)

16 x 20 (4,9 x 6,1) 155 (68) 175 (79) 29 (109,8) 25 (1,73)

12 x 12 (3,6 x 3,6)

6 - 12

(152 - 305)

155 (68) 175 (79) 22 (83,3) 14.4 (1,0)

14 x 14 (4,3 x 4,3) 155 (68) 175 (79) 22 (83,3) 14.4 (1,0)

16 x 16 (4,9 x 4,9) 155 (68) 175 (79) 26 (98,4) 20.1 (1,39)

16 x 18 (4,9 x 5,5) 155 (68) 175 (79) 31 (117,4) 28.6 (1,97)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Reliable Système d'irrigation

Reliable

Reliable G5-56 300 Manuel utilisateur

Reliable

Reliable F1FR80 Series Manuel utilisateur

Reliable

Reliable LT56 Series Manuel utilisateur

Reliable

Reliable F1FR Manuel utilisateur

Reliable

Reliable DDX Type D Manuel d'entretien

Reliable

Reliable F3QR80 Dry Pendent Manuel de l'opérateur

Reliable

Reliable HL22 Manuel utilisateur

Reliable

Reliable N252 EC Pendent Manuel utilisateur

Reliable

Reliable F1FR56-300 Series Manuel

Reliable

Reliable F156 Series Manuel utilisateur

Reliable

Reliable JL-14 Manuel utilisateur

Reliable

Reliable F1 LO Manuel utilisateur

Reliable

Reliable KFR56 Manuel utilisateur

Reliable

Reliable DH80 Dry Manuel utilisateur

Reliable

Reliable F1FR-FS LO Manuel

Reliable

Reliable Reliable Manuel utilisateur

Reliable

Reliable F3QR56 Dry Manuel

Reliable

Reliable F3QR80 Series Manuel utilisateur

Reliable

Reliable F3QR56 Manuel utilisateur

Reliable

Reliable F3QR80 Series Manuel utilisateur

Reliable

Reliable F1FR56 Manuel utilisateur

Reliable

Reliable F156 Series Manuel utilisateur

Reliable

Reliable Non-Ferrous Concealer Manuel utilisateur

Reliable

Reliable F1-300 Manuel utilisateur

Manuels Système d'irrigation populaires d'autres marques

Hunter

Hunter Institutional Series Manuel utilisateur

Cellfast

Cellfast 52-305 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL A Manuel utilisateur

Oral Care Technologies

Oral Care Technologies Hydro Floss Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F892 Manuel utilisateur

Netafim

Netafim NETBEAT Manuel utilisateur

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manuel utilisateur

Tyco

Tyco CC3 Manuel utilisateur

OpenSprinkler

OpenSprinkler OSPi Manuel utilisateur

EINHELL

EINHELL GE-WW 5537 E Manuel utilisateur

Valley

Valley Bender160 Manuel utilisateur

Toro

Toro 730 Series Guide rapide

Eden

Eden 97063-EDAMZ Manuel utilisateur

Tyco

Tyco TY-L Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Manuel utilisateur

Johnson Controls

Johnson Controls tyco ESFR-17 Manuel utilisateur

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manuel utilisateur
