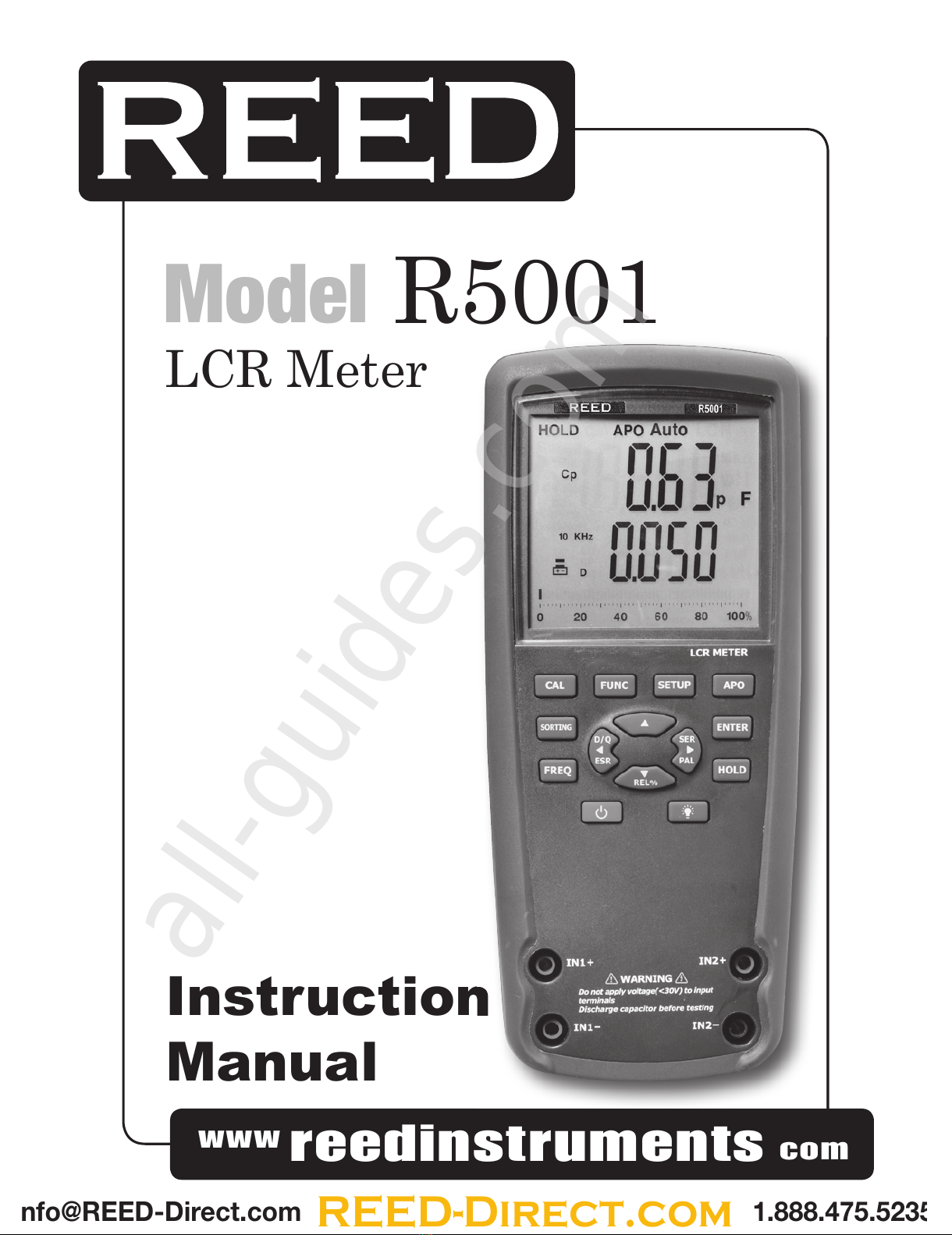

Model

Instruction

Manual

LCR Meter

R5001

Instruction

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

all-guides.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

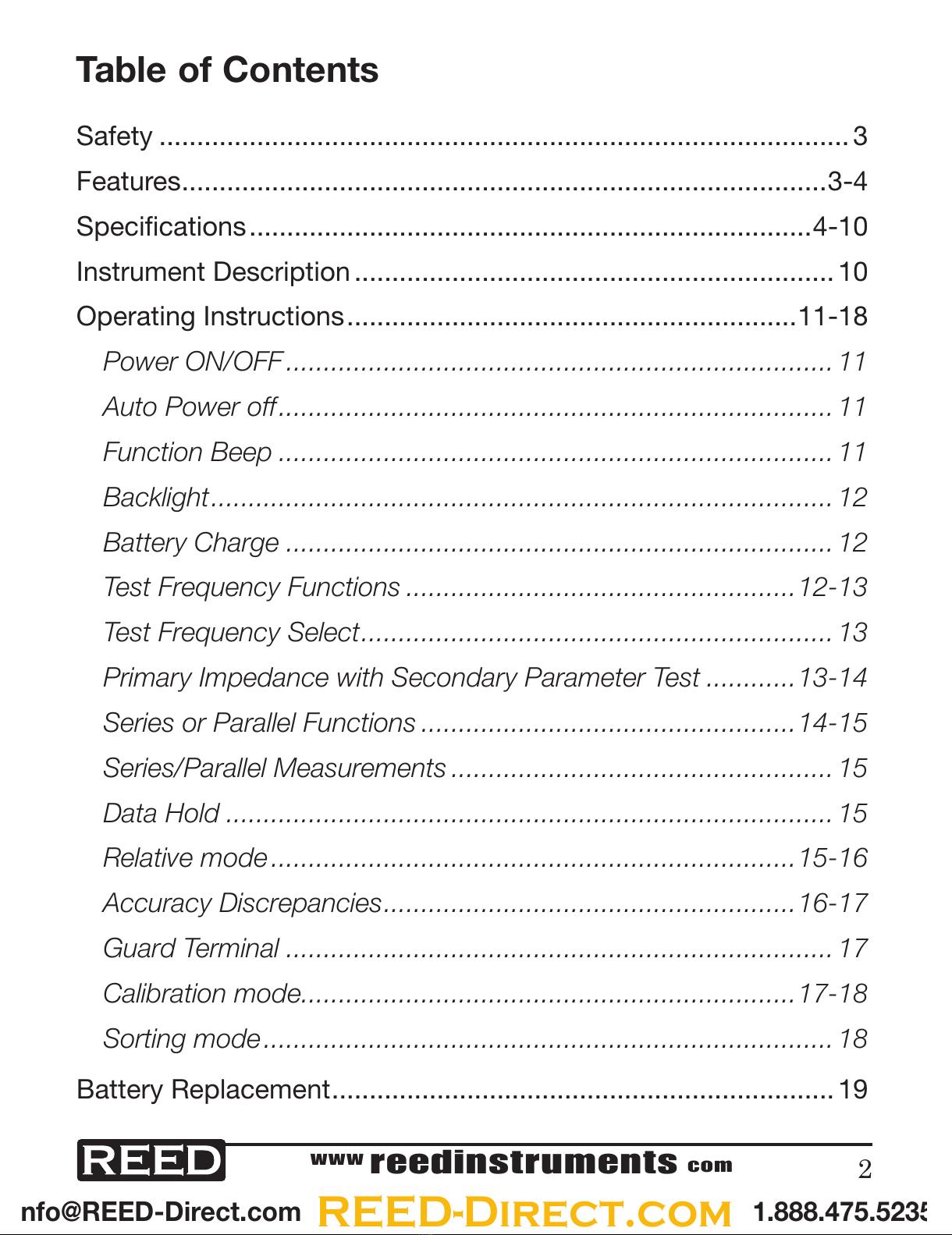

Table of Contents

Safety ............................................................................................ 3

Features......................................................................................3-4

Specications...........................................................................4-10

Instrument Description ................................................................ 10

Operating Instructions............................................................11-18

Power ON/OFF ......................................................................... 11

Auto Power off.......................................................................... 11

Function Beep .......................................................................... 11

Backlight................................................................................... 12

Battery Charge ......................................................................... 12

Test Frequency Functions ....................................................12-13

Test Frequency Select............................................................... 13

Primary Impedance with Secondary Parameter Test ............13-14

Series or Parallel Functions ..................................................14-15

Series/Parallel Measurements ................................................... 15

Data Hold ................................................................................. 15

Relative mode ......................................................................15-16

Accuracy Discrepancies.......................................................16-17

Guard Terminal ......................................................................... 17

Calibration mode..................................................................17-18

Sorting mode............................................................................ 18

Battery Replacement................................................................... 19

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

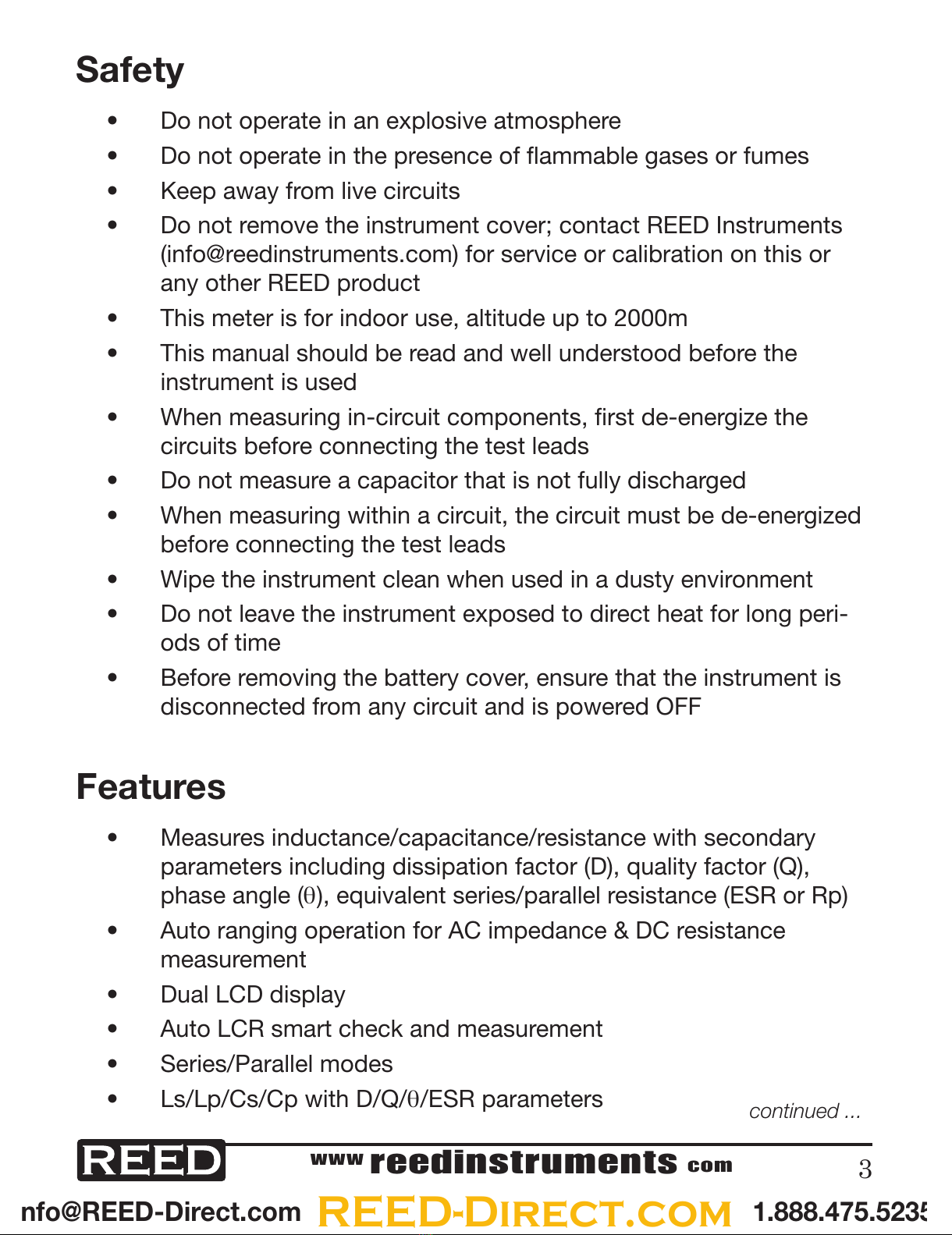

Safety

• Do not operate in an explosive atmosphere

• Do not operate in the presence of ammable gases or fumes

• Keep away from live circuits

• Do not remove the instrument cover; contact REED Instruments

(info@reedinstruments.com) for service or calibration on this or

any other REED product

• This meter is for indoor use, altitude up to 2000m

• This manual should be read and well understood before the

instrument is used

• When measuring in-circuit components, rst de-energize the

circuits before connecting the test leads

• Do not measure a capacitor that is not fully discharged

• When measuring within a circuit, the circuit must be de-energized

before connecting the test leads

• Wipe the instrument clean when used in a dusty environment

• Do not leave the instrument exposed to direct heat for long peri-

ods of time

• Before removing the battery cover, ensure that the instrument is

disconnected from any circuit and is powered OFF

Features

• Measures inductance/capacitance/resistance with secondary

parameters including dissipation factor (D), quality factor (Q),

phase angle (θ), equivalent series/parallel resistance (ESR or Rp)

• Auto ranging operation for AC impedance & DC resistance

measurement

• Dual LCD display

• Auto LCR smart check and measurement

• Series/Parallel modes

• Ls/Lp/Cs/Cp with D/Q/θ/ESR parameters continued ...

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

• Support DCR mode 200 to 200MΩ

• Multi-level battery voltage detector

• Backlight & function beep

• Auto power off

• Data hold function

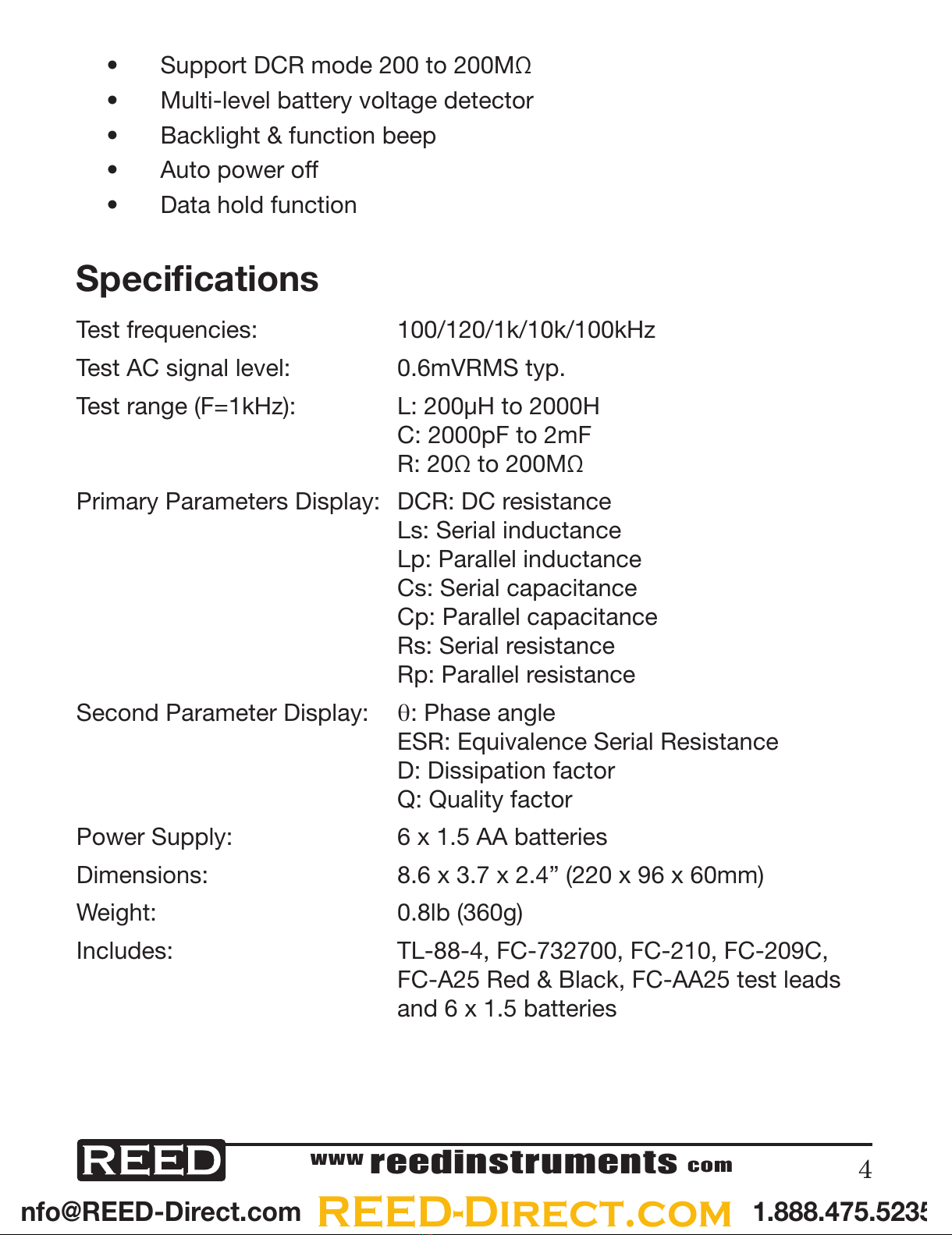

Specifications

Test frequencies: 100/120/1k/10k/100kHz

Test AC signal level: 0.6mVRMS typ.

Test range (F=1kHz): L: 200µH to 2000H

C: 2000pF to 2mF

R: 20Ω to 200MΩ

Primary Parameters Display: DCR: DC resistance

Ls: Serial inductance

Lp: Parallel inductance

Cs: Serial capacitance

Cp: Parallel capacitance

Rs: Serial resistance

Rp: Parallel resistance

Second Parameter Display: θ: Phase angle

ESR: Equivalence Serial Resistance

D: Dissipation factor

Q: Quality factor

Power Supply: 6 x 1.5 AA batteries

Dimensions: 8.6 x 3.7 x 2.4” (220 x 96 x 60mm)

Weight: 0.8lb (360g)

Includes: TL-88-4, FC-732700, FC-210, FC-209C,

FC-A25 Red & Black, FC-AA25 test leads

and 6 x 1.5 batteries

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

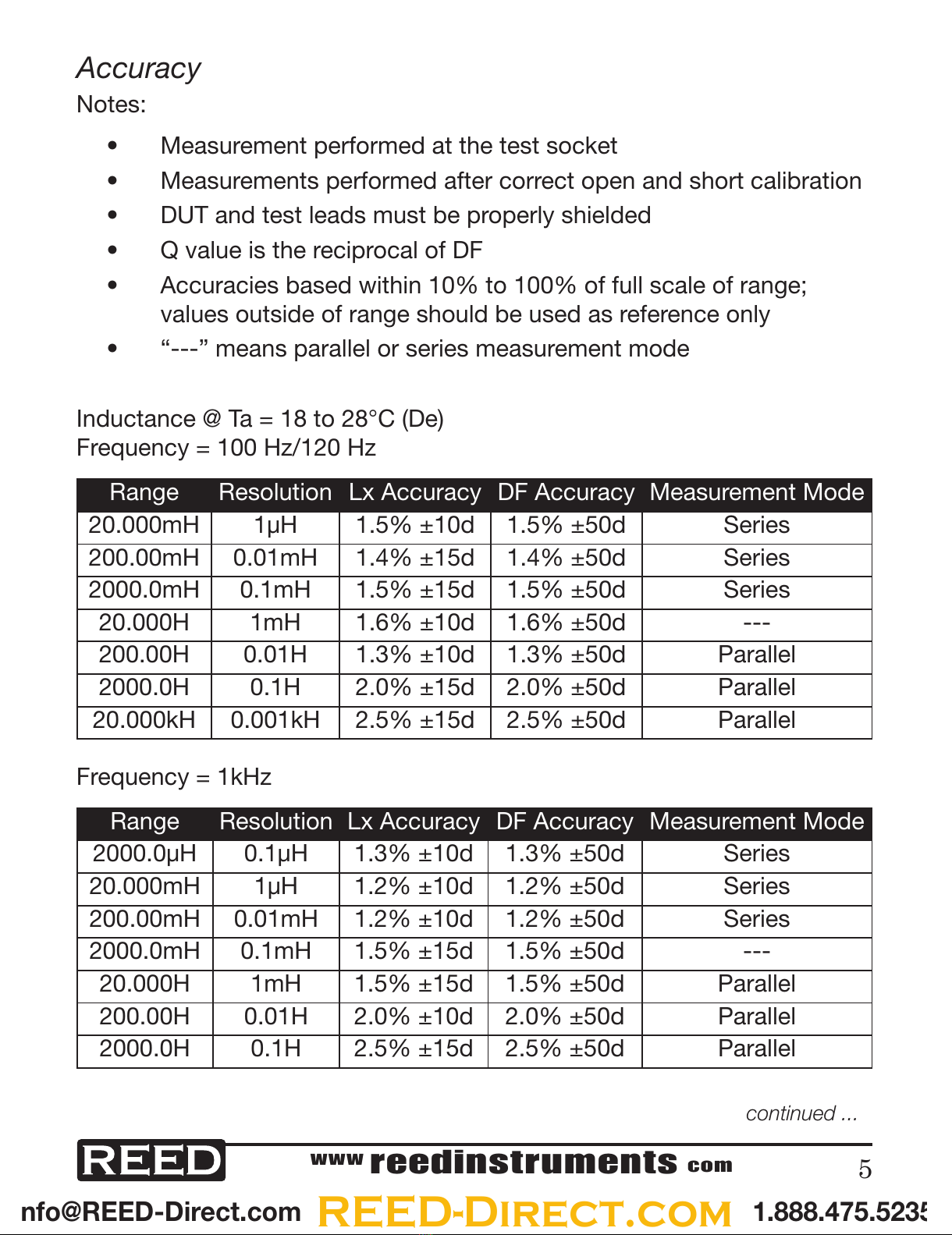

Accuracy

Notes:

• Measurement performed at the test socket

• Measurements performed after correct open and short calibration

• DUT and test leads must be properly shielded

• Q value is the reciprocal of DF

• Accuracies based within 10% to 100% of full scale of range;

values outside of range should be used as reference only

• “---” means parallel or series measurement mode

Inductance @ Ta = 18 to 28°C (De)

Frequency = 100 Hz/120 Hz

Frequency = 1kHz

Range Resolution Lx Accuracy DF Accuracy Measurement Mode

20.000mH 1µH 1.5% ±10d 1.5% ±50d Series

200.00mH 0.01mH 1.4% ±15d 1.4% ±50d Series

2000.0mH 0.1mH 1.5% ±15d 1.5% ±50d Series

20.000H 1mH 1.6% ±10d 1.6% ±50d ---

200.00H 0.01H 1.3% ±10d 1.3% ±50d Parallel

2000.0H 0.1H 2.0% ±15d 2.0% ±50d Parallel

20.000kH 0.001kH 2.5% ±15d 2.5% ±50d Parallel

Range Resolution Lx Accuracy DF Accuracy Measurement Mode

2000.0µH 0.1µH 1.3% ±10d 1.3% ±50d Series

20.000mH 1µH 1.2% ±10d 1.2% ±50d Series

200.00mH 0.01mH 1.2% ±10d 1.2% ±50d Series

2000.0mH 0.1mH 1.5% ±15d 1.5% ±50d ---

20.000H 1mH 1.5% ±15d 1.5% ±50d Parallel

200.00H 0.01H 2.0% ±10d 2.0% ±50d Parallel

2000.0H 0.1H 2.5% ±15d 2.5% ±50d Parallel

continued ...

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

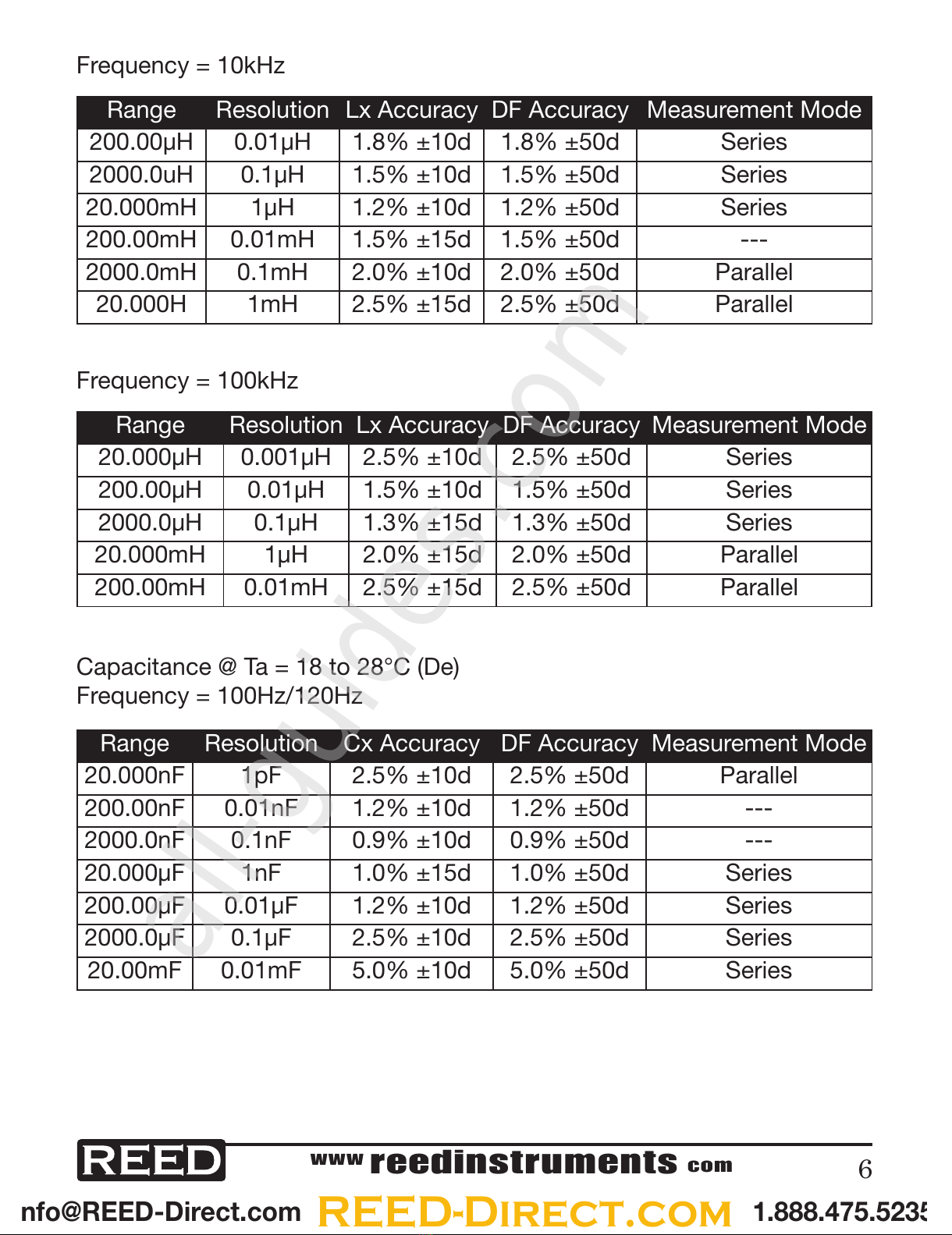

Frequency = 10kHz

Frequency = 100kHz

Capacitance @ Ta = 18 to 28°C (De)

Frequency = 100Hz/120Hz

Range Resolution Lx Accuracy DF Accuracy Measurement Mode

200.00µH 0.01µH 1.8% ±10d 1.8% ±50d Series

2000.0uH 0.1µH 1.5% ±10d 1.5% ±50d Series

20.000mH 1µH 1.2% ±10d 1.2% ±50d Series

200.00mH 0.01mH 1.5% ±15d 1.5% ±50d ---

2000.0mH 0.1mH 2.0% ±10d 2.0% ±50d Parallel

20.000H 1mH 2.5% ±15d 2.5% ±50d Parallel

Range Resolution Lx Accuracy DF Accuracy Measurement Mode

20.000µH 0.001µH 2.5% ±10d 2.5% ±50d Series

200.00µH 0.01µH 1.5% ±10d 1.5% ±50d Series

2000.0µH 0.1µH 1.3% ±15d 1.3% ±50d Series

20.000mH 1µH 2.0% ±15d 2.0% ±50d Parallel

200.00mH 0.01mH 2.5% ±15d 2.5% ±50d Parallel

Range Resolution Cx Accuracy DF Accuracy Measurement Mode

20.000nF 1pF 2.5% ±10d 2.5% ±50d Parallel

200.00nF 0.01nF 1.2% ±10d 1.2% ±50d ---

2000.0nF 0.1nF 0.9% ±10d 0.9% ±50d ---

20.000µF 1nF 1.0% ±15d 1.0% ±50d Series

200.00µF 0.01µF 1.2% ±10d 1.2% ±50d Series

2000.0µF 0.1µF 2.5% ±10d 2.5% ±50d Series

20.00mF 0.01mF 5.0% ±10d 5.0% ±50d Series

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

all-guides.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

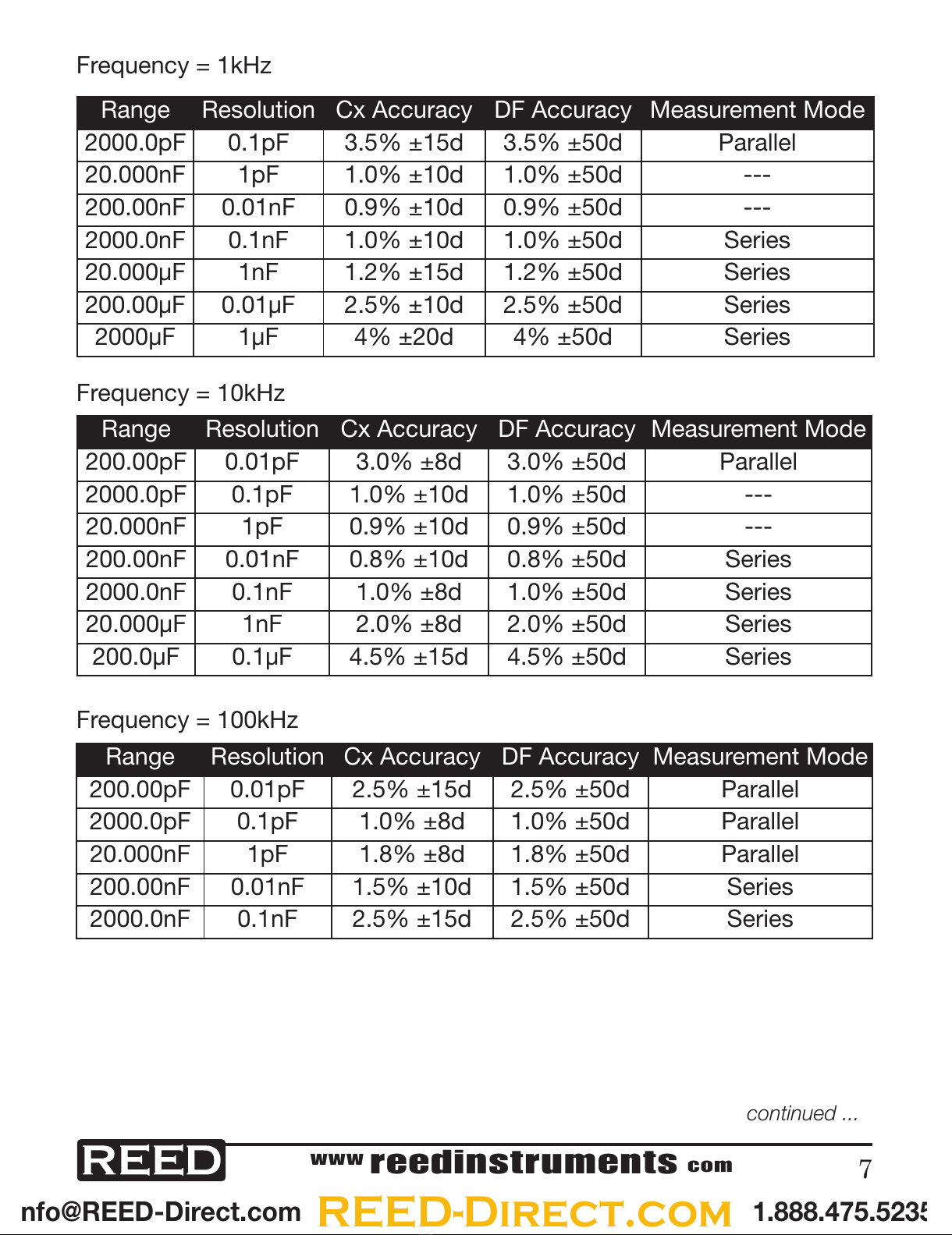

Frequency = 1kHz

Frequency = 10kHz

Frequency = 100kHz

Range Resolution Cx Accuracy DF Accuracy Measurement Mode

2000.0pF 0.1pF 3.5% ±15d 3.5% ±50d Parallel

20.000nF 1pF 1.0% ±10d 1.0% ±50d ---

200.00nF 0.01nF 0.9% ±10d 0.9% ±50d ---

2000.0nF 0.1nF 1.0% ±10d 1.0% ±50d Series

20.000µF 1nF 1.2% ±15d 1.2% ±50d Series

200.00µF 0.01µF 2.5% ±10d 2.5% ±50d Series

2000µF 1µF 4% ±20d 4% ±50d Series

Range Resolution Cx Accuracy DF Accuracy Measurement Mode

200.00pF 0.01pF 3.0% ±8d 3.0% ±50d Parallel

2000.0pF 0.1pF 1.0% ±10d 1.0% ±50d ---

20.000nF 1pF 0.9% ±10d 0.9% ±50d ---

200.00nF 0.01nF 0.8% ±10d 0.8% ±50d Series

2000.0nF 0.1nF 1.0% ±8d 1.0% ±50d Series

20.000µF 1nF 2.0% ±8d 2.0% ±50d Series

200.0µF 0.1µF 4.5% ±15d 4.5% ±50d Series

Range Resolution Cx Accuracy DF Accuracy Measurement Mode

200.00pF 0.01pF 2.5% ±15d 2.5% ±50d Parallel

2000.0pF 0.1pF 1.0% ±8d 1.0% ±50d Parallel

20.000nF 1pF 1.8% ±8d 1.8% ±50d Parallel

200.00nF 0.01nF 1.5% ±10d 1.5% ±50d Series

2000.0nF 0.1nF 2.5% ±15d 2.5% ±50d Series

continued ...

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

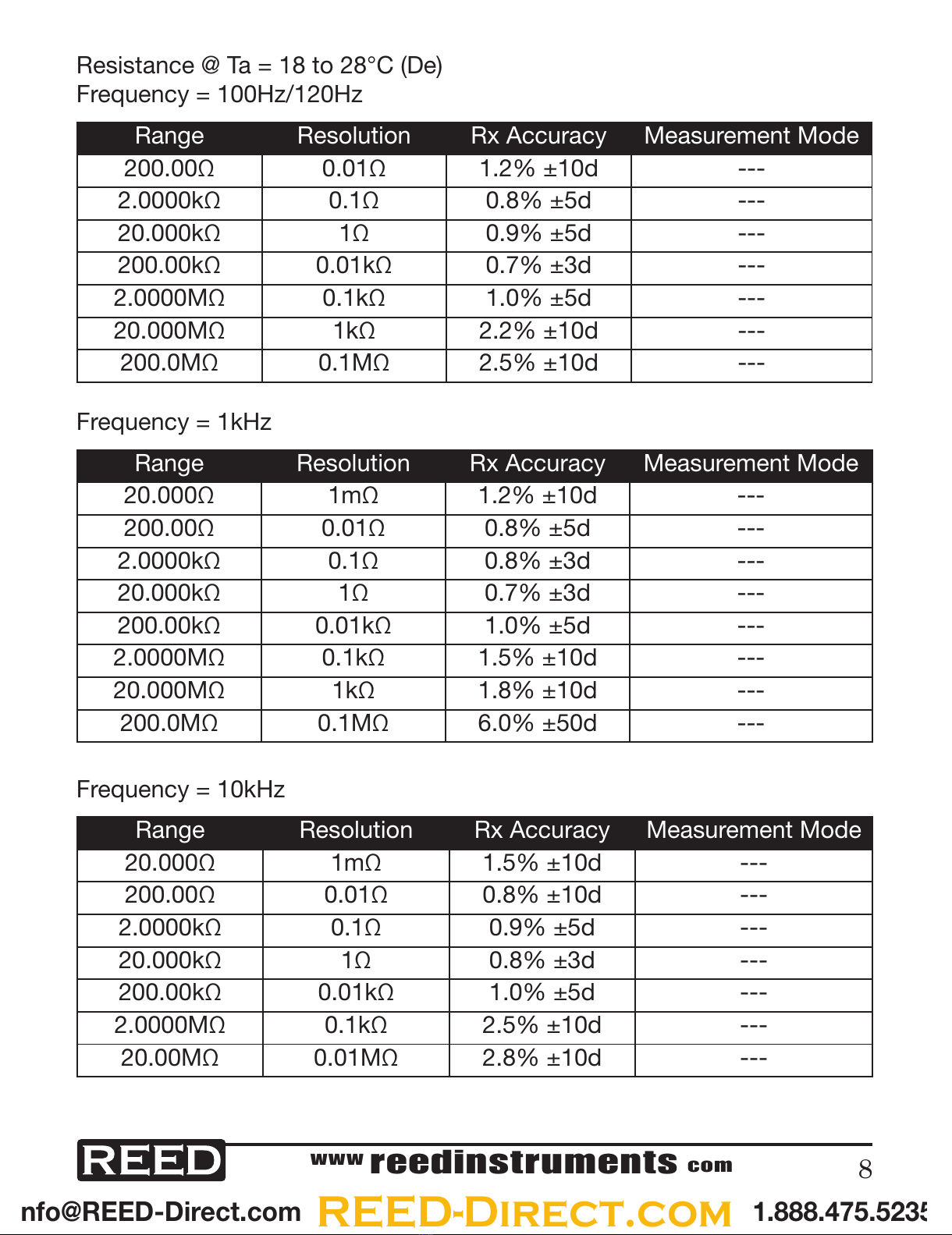

Resistance @ Ta = 18 to 28°C (De)

Frequency = 100Hz/120Hz

Frequency = 1kHz

Frequency = 10kHz

Range Resolution Rx Accuracy Measurement Mode

200.00Ω 0.01Ω 1.2% ±10d ---

2.0000kΩ 0.1Ω 0.8% ±5d ---

20.000kΩ 1Ω 0.9% ±5d ---

200.00kΩ 0.01kΩ 0.7% ±3d ---

2.0000MΩ 0.1kΩ 1.0% ±5d ---

20.000MΩ 1kΩ 2.2% ±10d ---

200.0MΩ 0.1MΩ 2.5% ±10d ---

Range Resolution Rx Accuracy Measurement Mode

20.000Ω 1mΩ 1.2% ±10d ---

200.00Ω 0.01Ω 0.8% ±5d ---

2.0000kΩ 0.1Ω 0.8% ±3d ---

20.000kΩ 1Ω 0.7% ±3d ---

200.00kΩ 0.01kΩ 1.0% ±5d ---

2.0000MΩ 0.1kΩ 1.5% ±10d ---

20.000MΩ 1kΩ 1.8% ±10d ---

200.0MΩ 0.1MΩ 6.0% ±50d ---

Range Resolution Rx Accuracy Measurement Mode

20.000Ω 1mΩ 1.5% ±10d ---

200.00Ω 0.01Ω 0.8% ±10d ---

2.0000kΩ 0.1Ω 0.9% ±5d ---

20.000kΩ 1Ω 0.8% ±3d ---

200.00kΩ 0.01kΩ 1.0% ±5d ---

2.0000MΩ 0.1kΩ 2.5% ±10d ---

20.00MΩ 0.01MΩ 2.8% ±10d ---

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Frequency = 100kHz

DC resistance @ Ta = 18 to 28°C (De)

Frequency = 100Hz/120Hz/1kHz/10kHz/100KHz

D value Accuracy @ Ta =18 to 28°C (De)

Range Resolution Rx Accuracy Measurement Mode

20.000Ω 1mΩ 2.3% ±10d ---

200.00Ω 0.01Ω 1.5% ±5d ---

2.0000kΩ 0.1Ω 0.8% ±20d ---

20.000kΩ 1Ω 0.8% ±20d ---

200.00kΩ 0.01kΩ 1.5% ±10d ---

2.000MΩ 1kΩ 2.5% ±30d ---

Range Resolution Rx Accuracy Measurement Mode

200.00Ω 0.01Ω 1.8% ±10d ---

2.0000kΩ 0.1Ω 0.6% ±20d ---

20.000kΩ 1Ω 0.6% ±10d ---

200.00kΩ 0.01kΩ 0.5% ±3d ---

2.0000MΩ 0.1kΩ 1.5% ±5d ---

20.000MΩ 1kΩ 2.0% ±5d ---

200.0MΩ 0.1MΩ 2.5% ±5d ---

Freq./Z 0.1- 1Ω 1–10Ω 10–100kΩ 100k–1MΩ 1–20MΩ 20−200MΩ

100/120Hz ±0.03 ±0.01 0.009 ±0.010 ±0.02 ±0.04

1kHz ±0.03 ±0.01 0.009 ±0.010 ±0.02 ±0.09

10kHz ±0.03 ±0.01 0.009 ±0.009 ±0.01 ±0.04

100kHz ±0.04 ±0.03 0.010 ±0.010 ±0.02 ±0.04

continued ...

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

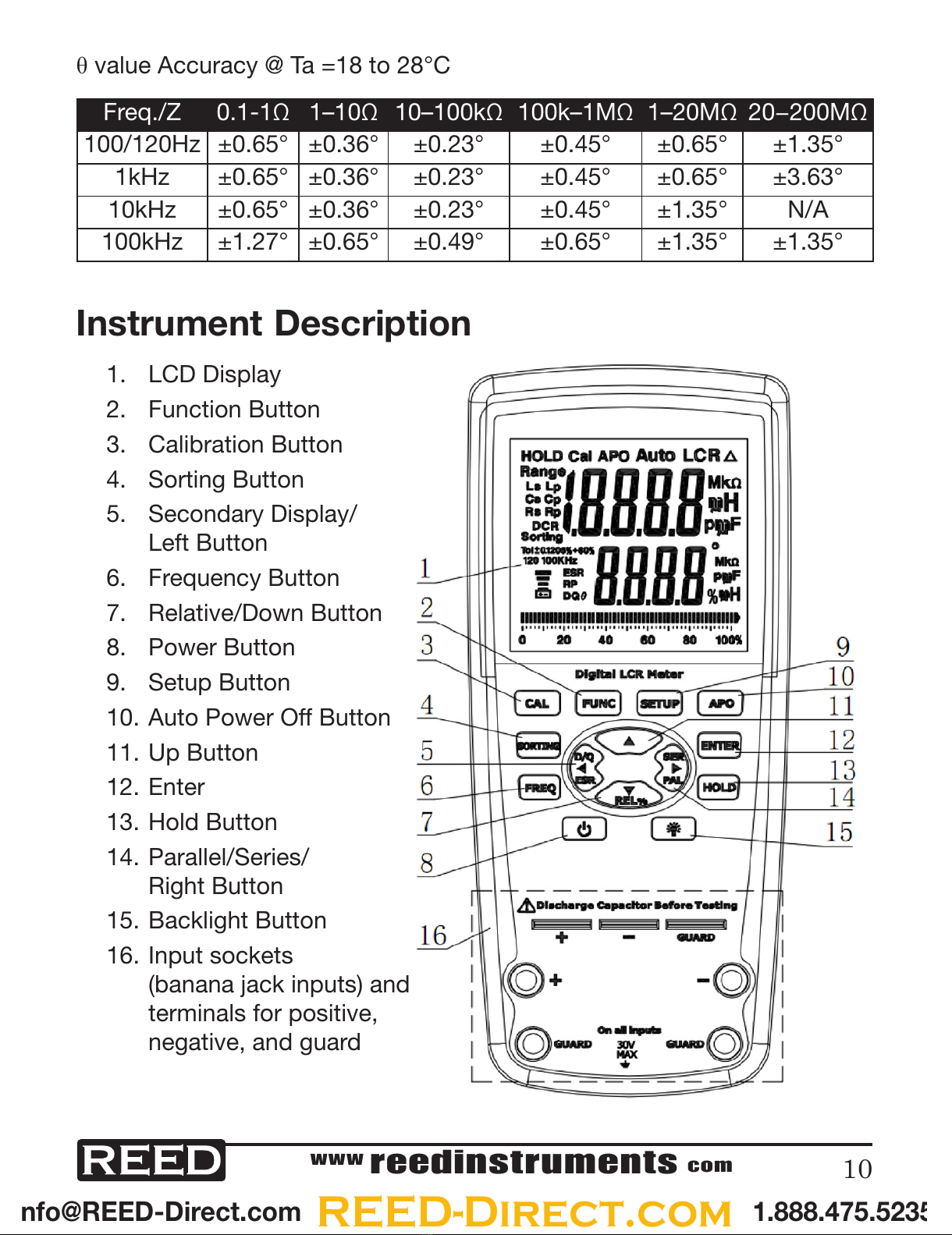

θvalue Accuracy @ Ta =18 to 28°C

Instrument Description

1. LCD Display

2. Function Button

3. Calibration Button

4. Sorting Button

5. Secondary Display/

Left Button

6. Frequency Button

7. Relative/Down Button

8. Power Button

9. Setup Button

10. Auto Power Off Button

11. Up Button

12. Enter

13. Hold Button

14. Parallel/Series/

Right Button

15. Backlight Button

16. Input sockets

(banana jack inputs) and

terminals for positive,

negative, and guard

Freq./Z 0.1-1Ω 1–10Ω 10–100kΩ 100k–1MΩ 1–20MΩ 20−200MΩ

100/120Hz ±0.65° ±0.36° ±0.23° ±0.45° ±0.65° ±1.35°

1kHz ±0.65° ±0.36° ±0.23° ±0.45° ±0.65° ±3.63°

10kHz ±0.65° ±0.36° ±0.23° ±0.45° ±1.35° N/A

100kHz ±1.27° ±0.65° ±0.49° ±0.65° ±1.35° ±1.35°

1.888.475.5235info@REED-Direct.com REED-Direct.com

All manuals and user guides at all-guides.com

Autres manuels pour R5001

Table des matières

Autres manuels REED Instrument de mesure

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
