REED R5003 Manuel utilisateur

Model R5003

Instruction

Manual

True RMS Current/Voltage

Datalogger

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

www.reedinstruments.com

1-877-849-2127 | [email protected]

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Table of Contents

Safety ............................................................................................ 3

Features......................................................................................... 4

Specications.............................................................................4-5

Instrument Description...............................................................5-6

Operating Instructions................................................................7-8

MAX/MIN.................................................................................... 7

Auto Power Off ........................................................................... 7

Recording ................................................................................... 8

Datalogging Software...............................................................8-12

Main Menu Description ............................................................... 9

Operation.................................................................................. 10

Download and Store Data....................................................11-12

Graph Features......................................................................... 12

www.reedinstruments.com

1-877-849-2127 | [email protected]

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Safety

• Do not operate around explosive gas, vapour, or dust

• Do not operate in a wet environment

• Do not operate with any of the parts removed

• Do not use this unit if it looks damaged

• Pay attention to avoid short circuits when testing a non-insulated

cable

• Never open the battery cover during measurements

• Do not install substitute parts or make modications on the meter

• Never replace the battery in moist areas

• Ensure the meter is disconnected and switch off before opening the

battery cover to replace the battery

• Do not attempt to place the instrument in high vibration areas

• Do not expose the meter to direct sunlight, high temperatures or high

moisture environments

• Switch off the meter after use

• Remove the AAA batteries when if the meter will be stored for a long

period of time

• When cleaning, do not use abrasives or solvents on the meter, use a

damp cloth and mild detergent only

For service on this or any other REED product or information on other

REED products, contact REED Instruments at [email protected]

www.reedinstruments.com

1-877-849-2127 | [email protected]

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Features

• 2 channel inputs for simultaneous recording of leakage current, load

current and voltage

• Monitor and log data (Voltage/Voltage, Current/Current or

Voltage/Current) over long periods of time

• Easily transfer data to a PC for viewing and evaluation

• True RMS measurement

• Max/Min & Peak modes

• Max/Min alarm mode

• Time and date display

• Auto power off

• USB interface

• Manual and automatic mode

Specifications

Operating temperature: -32 to 122°F (0 to 50°C)

Operating humidity: <70% RH

Storage temperature: -4 to 140°F (-20 to 60°C)

Storage humidity: < 80% relative humidity

Standards: CE, CAT III 600V, inside use, max height 2000M

Display: Multi-function LCD

Maximum data points: 256,000 values

Sample rate: 1s to 24h selectable

Data output: USB port

Analysis software: Windows 2000/XP/Vista

Channels: Dual channel, TRMS AC Voltage or Current

AC Adaptor: 9V, 0.5A

Clamp jaw opening: 0.5” (12.7mm)

Open input indication: “LO” appears on the LCD continued ...

www.reedinstruments.com

1-877-849-2127 | [email protected]

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Low battery indication: Empty battery symbol appears on the LCD

Power supply: 4 AAA Batteries and 1 CR 3V memory button

battery (CR2032 or equivalent)

Power consumption: 5 days (approximately)

Dimensions: 4.5 x 2.5 x 1.3” (114 x 63 x 34mm)

Weight: 8.7oz (248g)

Includes: AC current clamp sensor & voltage sensor, AC

Adapter, USB cable, software, and battery

Electrical Specifications

Voltage (40Hz to 1kHz) range: 6 to 600.0VAC

Voltage (40Hz to 1kHz) accuracy: ±2.0%±1V

Current (50/60Hz) range: 15 to 200.0A

Current (50/60Hz) accuracy: ±2.0%±1A

Instrument Description

LCD Description

1. Auto power off

2. Recording status

3. Record until full

is selected

4. Continuous

recording is selected

5. Memory full and

recording has stopped

6. Battery status

www.reedinstruments.com

1-877-849-2127 | [email protected]

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Meter Description

1. LCD screen

2. AC adaptor jack

3. ON/OFF button

4. MAX/MIN button

5. Channel input jacks

6. Channel display button

7. START/STOP button

8. USB port

9. AC current clamp jaw

10. Jaw opening trigger

11. CH plug

12. AC voltage probes/alligator clips

13. Voltage module

14. Channel plug

www.reedinstruments.com

1-877-849-2127 | [email protected]

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Operating Instructions

1. Set up the datalogger using the software provided.

See “Datalogging Software” section for more information.

2. Connect the voltage test leads or the current probes to the AC

source, or clamp the jaws around a single conductor for AC cur-

rent measurements up to 200A.

3. Press and Hold the START/STOP button for four seconds to start

recording. The REC icon will appear in the display indicating that

recording has begun.

4. Press and Hold the START/STOP button for four seconds to stop

recording. The REC icon will disappear from the display.

5. Remove the probe, connect the datalogger to a PC and use the

supplied software to download the data.

Note: If the clock is not set to the correct time, you may need to replace

the 3V button battery.

MAX/MIN

While taking a measurement, press the MAX/MIN button once to display

the MAX (maximum) reading. Press the button again to display the MIN

(minimum) reading. A third press will exit MAX/MIN mode. The meter will

automatically exit MAX/MIN mode in 10 seconds if no button is pressed.

Auto Power Off

This meter will automatically shut off after 5 mins of inactivity. Auto Power

Off does not apply when recording.

www.reedinstruments.com

1-877-849-2127 | [email protected]

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Recording

After Record Mode is set up by the software (see “Datalogging

Software” section for more information), press the START/STOP button

for more than 4 seconds to begin recording. The REC icon will display

and indicates the meter is recording data. Press the same button again

for more than 4 seconds to stop recording. Recording will stop when the

memory is full. When continuous recording is selected (in the software),

newer data will overwrite the oldest data when the memory is full.

Datalogging Software

Note: The datalogger is still running off its internal batteries when plugged

into the computer. Be sure there is sufcient battery power before

plugging the datalogger into a computer or data may be lost or corrupt.

1. Place the CD in the CD drive and follow the on-screen installation

instructions.

2. After the software is installed, keep the CD in the drive and

connect the datalogger to the PC by the USB cable.

3. A USB driver installation window will pop-up. Follow the directions

to install the driver.

System Requirements:

• Windows 2000 or Windows XP or Vista

• PC or NoteBook with Pentium 90MHz or higher 32 MB RAM

• At least 7 MB byte hard disk space available to install Datalogger

USB software

• Recommended display resolution 1024X768 with High Colour (16 bit)

www.reedinstruments.com

1-877-849-2127 | [email protected]

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

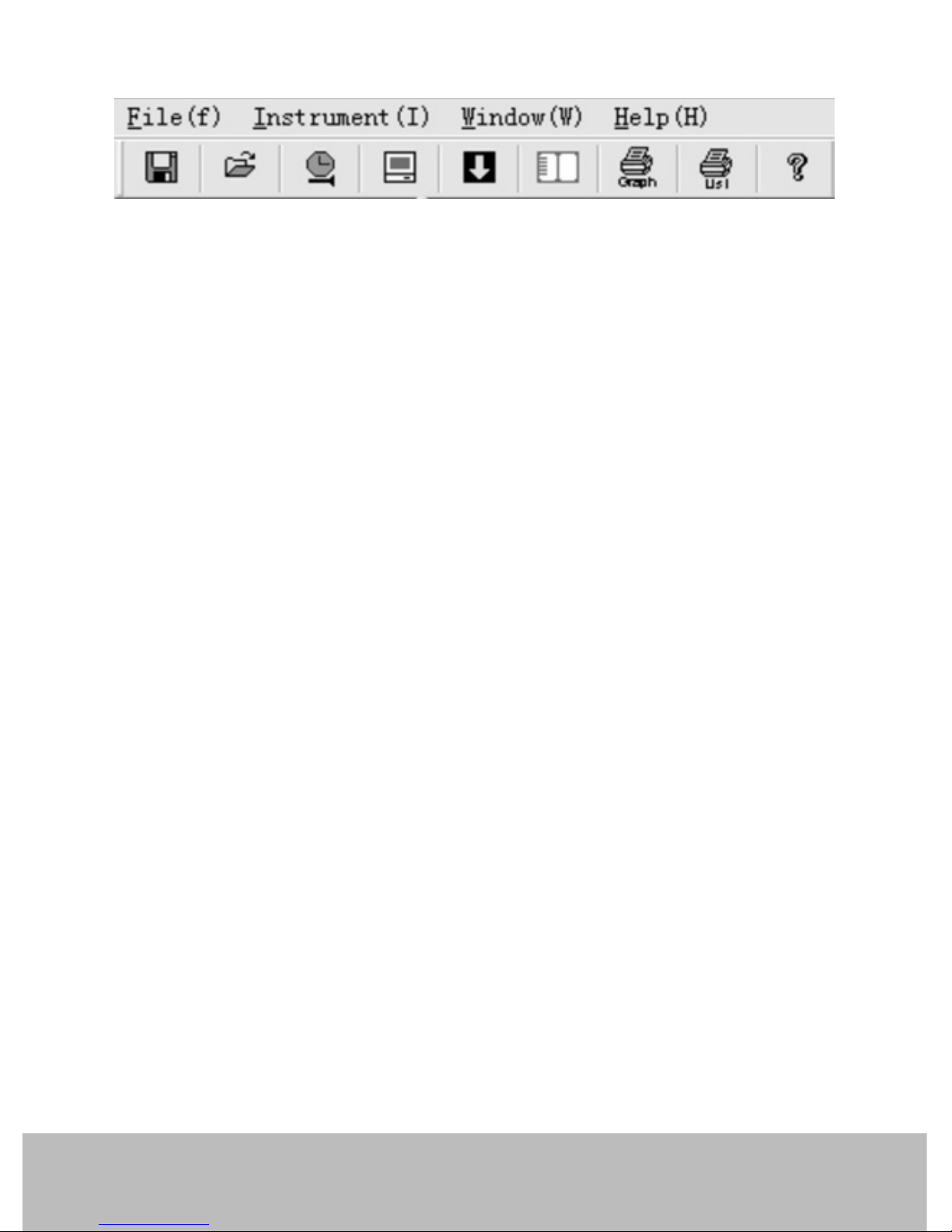

Main Menu Description

File

Save - Save the recorded data to the computer

Open - Open a saved le

Print Setup - Change the printer and printing options

Print Preview - Print preview the graph or the list

Print - Print the graph or the list

Instrument

Correct Time - Correct the datalogger TIME

Datalogger Setup - Setup the datalogger RMS sampling rate, auto

power off, and circulate logging

Download Store Data - Download the data which is stored

in the meter

Read Real Time Data - PC from meter

Stop Reading - PC stop reading data from the datalogger

Import Data To List - Show the data as a list

Previous Measurement - Check the data from last measurement

Note: After the data is downloaded to a PC, the software will

overwrite the old data with the new data, resulting in only one

previous result. With this in mind, saving every entry is ideal.

Window

Instrument - Show or hide the instrument window

Info Dialog - Show or hide the info dialog window

Help

About - Show the version information of the datalogger software

Help Topics - Show the software help document

www.reedinstruments.com

1-877-849-2127 | [email protected]

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Operation

Correct Time

If you nd the datalogger time is not correct, click the icon to open

the correct time dialog. Input the correct date time and click “OK”. If the

time continues to be incorrect you may need to replace the 3V button

battery.

Datalogger Setup

Note: Save your data before entering Datalogger Setup. All data will be

permanently erased from the datalogger if you save any changes in the

Datalogger Setup.

Click on the icon on the menu bar.

LOGGER RMS SAMPLING RATE SETUP - Set the datalogging

sampling rate.

LOGGER AUTO POWER OFF SETUP - Turn the Auto Power Off

function ON or OFF.

LOGGER CIRCULATE LOGGING SETUP - Turn continuous

recording on or off. If continuous recording function is on,

the datalogger will continue to record data when the memory is

full, overwriting earlier data. If continuous recording function is

turned off, the datalogger will stop recording when the memory

is full.

SETUP button - Saves any changes.

DEFAULT button - Set the datalogger to the factory default.

CANCEL button - Aborts the setup.

www.reedinstruments.com

1-877-849-2127 | [email protected]

Autres manuels pour R5003

Table des matières

Langues :

Autres manuels REED Instrument de mesure

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
