DXi4000 Installation and
Configuration Guide
This guide provides basic installation and configuration instructions for the
DXi4000 system (see Figure 1). Make sure to read the DXi4000 Site
Planning Guide before starting your installation. The Site Planning Guide is
included on the documentation CD provided with your DXi4000 system.
Note: Make sure to take the online training for the DXi4000 in order to
make the best use of your product. The online training is available
at www.quantum.com/ServiceandSupport/StorageCareLearning/
Index.aspx
Figure 1 DXi4000 System
Note: This Installation and Configuration Guide is intended for DXi4000
with DXi 2.1.1 Software.
2 DXi4000 Configurations
DXi4000 Installation and Configuration Guide
DXi4000 Configurations
The DXi4000 is available in the following configurations (see Table 1):
Table 1 DXi4000
Configurations
DXi4000 Configuration Raw Capacity Usable Capacity
Number of Hard
Drives
Hard Drive
Capacity
Model 4510
(4 x 1GbE Ethernet ports)
4 TB 2.2 TB 8 500 GB
Model 4520
(4 x 1GbE Ethernet ports)
8 TB 4.4 TB 8 1 TB
Model 4601
(4 x 1GbE Ethernet ports)
4 TB*
8 TB*
12 TB*
3.87 TB
7.74 TB
11.61 TB
8 2 TB
* For DXi4601, raw storage capacity can be upgraded at any time after purchase in increments of 4 TB, up to a total of 12 TB.
Storage capacity upgrades are enabled simply by adding a license key and rebooting the system.To purchase a storage capacity
upgrade license, contact your Quantum sales representative. After you obtain the storage capacity license, refer to the section
“Adding a License Key” in the DXi4000 User’s Guide (6-67092) for instructions on completing the capacity upgrade.
Choosing a Location
Quantum recommends installing the DXi4000 system in a controlled or restricted area
to prevent access by untrained personnel. In addition, Quantum recommends that
system installation be performed only by qualified IT personnel.
When choosing an installation site for the DXi4000 system, consider the following
requirements:
•Installation Requirements on page 2
•Rack Space Requirements on page 3
•Environmental Conditions on page 3
Installation
Requirements
Review the DXi4000 Site Planning Guide (6-67093) to ensure that your site meets the
installation requirements for the DXi4000.
Choosing a Location 3
DXi4000
Rack Space
Requirements
Table 2 contains the rack requirements for the DXi4000 components.
Table 2 Rack Requirements DXi4000
Height 2U, 3.40 in (8 6 cm)
Width (side to side) 17.19 in (43.6 cm)
Depth (front to back) 24.09 in (61 cm)
Weight (stand alone) 49.5 lbs (22.5 Kg)
Air Clearance Open 4 in (10.2 cm) behind unit for proper air flow
Environmental
Conditions
The installation site must have the following environmental conditions:
• Humidity: 20% to 80% (non-condensing)
• Temperature: 10 to 35 °C (50 to 95 °F) 35 °C Max, Altitude = 900 m or 2952.75 ft
(28 °C Max, Altitude = 3048 m or 10,000 ft)
These environmental conditions apply when the DXi4000 system is in operation.
Note: For additional specifications, refer to the Quantum DXi4000 User’s Guide (6-
67092) located on the documentation CD.
4 Preparing for the Installation
DXi4000 Installation and Configuration Guide
Preparing for the Installation
Before you begin the installation procedure in this section, make the following
preparations as described in this section:
•Necessary Tools on page 4
•Taking ESD Precautions on page 4
Necessary Tools Provide the following tools for unpacking and installing the DXi4000:
• #2 PHILLIPS screwdriver
• Notebook PC (for setting up initial system configuration)
Taking ESD Precautions Some components within the DXi4000 system contain static-sensitive parts. To avoid
damaging these parts while performing installation procedures, always observe the
following precautions:
• Keep the DXi4000 system turned off during all installation procedures.
• Keep static-sensitive parts in their original shipping containers until ready for
installation.
• Do not place static-sensitive parts on a metal surface. Place them inside their
protective shipping bag or on an antistatic mat.
• Avoid touching connectors and other components.
Note: Dry climates and cold-weather heating environments have lower relative
humidity and are more likely to produce static electricity.
Unpacking the DXi4000
By following these instructions, you help ensure that the system will continue to be
safeguarded after it arrives at the installation site.
Unpack and remove the following components from the packing materials (see
Figure 1):
• DXi4000 chassis
• Front bezel with key
• (4) power cords, (2) U.S. and (2) International
• (2) Ethernet cables
• Left and right slide assemblies
Unpacking the DXi4000 5
DXi4000
• Product Information Guide
• Document kit includes:
• DXi4000 Quick Reference and Documentation CD
• DXi4000 Installation and Configuration Instructions
• Advanced Reporting User Guide CD
• User essentials document
• Registration card
• Terms and conditions
Caution: Do NOT discard the packing materials after the system is unpacked. The
packaging materials must be used if the system is relocated.
WARNING: The DXi4000 weighs 49.5 lbs (22.5 Kg). Two people are required to lift the
chassis.
6 Unpacking the DXi4000
DXi4000 Installation and Configuration Guide
Figure 1 Unpacking the
DXi4000
DXi4000
Slide rails
Tie bands
Chassis rails Front bezel
Installing the DXi4000 System 7
DXi4000
Installing the DXi4000 System
Installing the DXi4000 in a rack consists of the following steps:
1Locating the Mounting Position on page 7
2Installing the DXi4000 on page 8
3Cabling the DXi4000 on page 11
Locating the Mounting
Position
The DXi4000 systems is designed to fit in a standard 19 inch wide rack. It is important
for the chassis installation to locate the hole pattern in the rack rails. You must allow 2U
(3.5 in (8.9 cm)) of vertical space for the DXi4000 system. Rack cabinets that meet EIA-
310 standards have an alternating pattern of three holes per rack unit with center-to-
center hole spacing (beginning at the top hole of a 1-U space) of 15.9 mm, 15.9 mm,
and 12.7 mm (0.625 inch, 0.625 inch, and 0.5 inch) for the front and back vertical rails
(see Figure 2). Rack cabinets may have round or square holes.

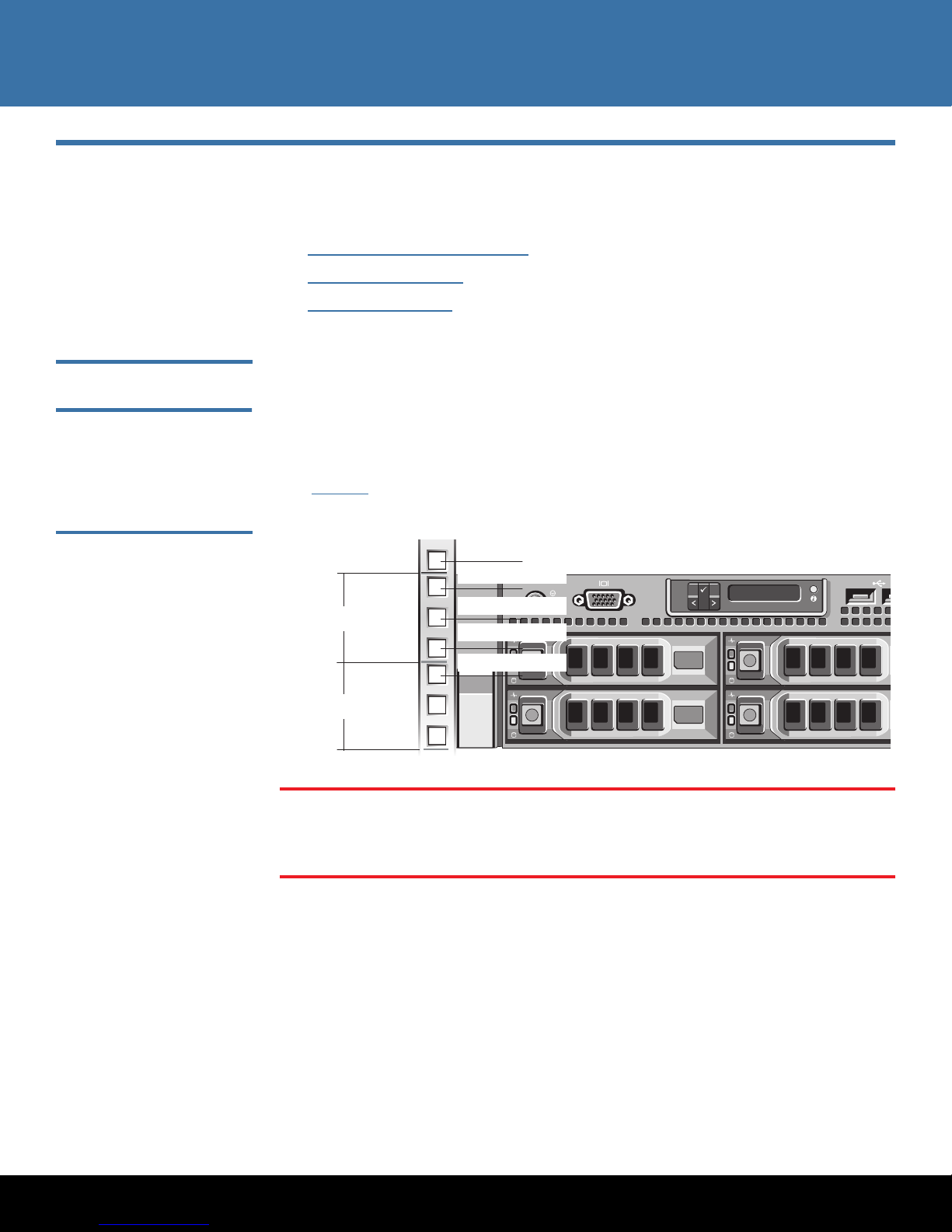

Figure 2 Rail Hole Pattern
1 U (44 mm [1.75 inches])
12.7 mm (0.5 inch)
15.9 mm (0.625 inch)
15.9 mm (0.625 inch)
12.7 mm (0.5 inch)
1 U (44 mm [1.75 inches])
WARNING: If the rack is empty at the time of installation, do NOT install the DXi4000
chassis too high in the rack. The weight of the chassis may cause the rack
to become “top heavy” and unstable if installed in the top of an empty
rack.
To mark the rack, perform the following step:
1Place a mark (or tape) on the rack's front vertical rails where you want to locate the
bottom of the system you are installing in the rack. The bottom of each 1-U space is
at the middle of the narrowest metal area between holes (marked with a horizontal
line on some rack cabinets).
8 Installing the DXi4000 System
DXi4000 Installation and Configuration Guide
Installing the DXi4000 Installing the DXi4000 consists of the following steps:
1Installing the DXi4000 Rack Mounting Rails on page 8
2Installing the DXi4000 Chassis on page 10
Installing the DXi4000 Rack Mounting Rails
1Install the rack mounting rails (see Figure 3 for square holes and Figure 4 for Round
holes):
aPosition the left and right rail end pieces of the rail module labeled FRONT
facing inward and orient each end piece to seat in the square holes on the front
side of the vertical rack flanges. Align each end piece to seat the pegs in the
bottom hole of the first U space and the top hole of the second U space.
bEngage the back end of the rail until it fully seats on the vertical rack flange and
the second tooth on the latch locks in place.
Note: To remove the rack mounting rails, pull the Release latch located on the
front of the rail.
Figure 3 Installing the Rack
Mounting Rails (Square Holes)
Front side of rack rails
Front of rack
Back of rack
Rail teeth
Rail pegs
Second tooth
engaged
Release
button
Releas
e
button
Installing the DXi4000 System 9
DXi4000
Figure 4 Installing the Rack
Mounting Rails (Round Holes)
2Place the DXi4000 on a level surface and align the four keyhole slots on the chassis
rails with the corresponding pins on the system. Slide the chassis rails towards the
back of the system until each one locks into place (see Figure 5).
WARNING: The DXi4000 weighs 49.5 lbs (22.5 Kg). Two people are required to lift the
chassis.
Note: To disengage the chassis rails, pull the latch and push the rails toward the front
of the chassis.
Front side of rack rails
Front of rack
Back of rack
Rail teeth
Rail pegs
Second tooth
engaged
Release
button
Releas
e
button
10 Installing the DXi4000 System
DXi4000 Installation and Configuration Guide
Figure 5 Installing the Chassis
Rails
Front
Back
Chassis rails
Latch
Installing the DXi4000 Chassis
WARNING: Ensure that the system is properly supported until the chassis rails are
locked into the slide rails on both sides.
1To install the DXi4000 chassis (see Figure 6):
WARNING: The DXi4000 weighs 49.5 lbs (22.5 Kg). Two people are required to lift the
chassis.
aPull the slide rails out of the rack until they lock into place.
bAlign and insert the ends of the chassis rails into the ends of the slide rails. Push
the system inward until the chassis rails lock into place.
cPush or pull the blue tab located near the front of the system and slide the
system into the rack.
Autres manuels pour DXi4510
3
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Quantum Stockage
Quantum
Quantum ValueLoader LTO-2 Manuel utilisateur
Quantum
Quantum DXi6700 series Manuel technique
Quantum
Quantum StorNext QD7000 Manuel utilisateur
Quantum
Quantum StorNext QD7000 Manuel utilisateur
Quantum
Quantum DLT 8000 Manuel
Quantum
Quantum P1000 Series Manuel utilisateur
Quantum
Quantum DLT 1 Manuel utilisateur
Quantum
Quantum Scalar i6 Manuel utilisateur
Quantum
Quantum QXS-448 Manuel utilisateur
Quantum
Quantum Scalar 50 Mode d’emploi
Quantum
Quantum PowerStor L200 Manuel utilisateur
Quantum
Quantum Superloader 3 Manuel
Quantum
Quantum PX500 Series Manuel utilisateur
Quantum
Quantum Scalar 50 Manuel utilisateur
Quantum
Quantum Scalar i40 Instructions d'utilisation et de sécurité
Quantum
Quantum Scalar i2000 Mode d’emploi
Quantum
Quantum SuperLoader 3A Series Manuel utilisateur
Quantum
Quantum ValueLoader DLT VS80 Manuel utilisateur
Quantum
Quantum PX720 Manuel utilisateur
Quantum
Quantum Quantum Bigfoot CY Manuel utilisateur
Manuels Stockage populaires d'autres marques
Spectra Logic
Spectra Logic T-Series Spectra T50e Manuel utilisateur
Panasonic
Panasonic LKM-F931-1 Manuel utilisateur
Tabernus
Tabernus Enterprise Erase E2400 Manuel utilisateur
Rocstor
Rocstor COMMANDER 3F series Manuel utilisateur
HP
HP P9000 Manuel utilisateur
Western Digital
Western Digital Ultrastar Data60 Manuel utilisateur
