Pyle PWMA230BT Manuel utilisateur

OPPERATING INSTRUCTIONS

PWMA230BT

www.pyleUSA.com

PARAMETER

Wireless Portable Bluetooth PA Speaker System,

Built-in Rechargeable Battery, Wireless Microphone, 400 Watt

System Features:

Bluetooth Connectivity:

Technical Specs:

Accessories Included:

Rugged & Compact Public Address PA Sound System

Bluetooth Wireless Music Streaming Ability

Built-in Rechargeable Battery for Portability

(2) 1/4'' Microphone Inputs + (2) 1/4'' Guitar/Instruments Inputs

Ability to Connect & Stream Audio From External Devices

Wireless Microphone Included

Connect up to (3) Mics Simultaneously for a Karaoke Party

Ported Enclosure for Increased Bass Response

Full Range Stereo Sound Reproduction

Independent Channel Volume Controls

Audio Configuration: Echo, Bass and Treble Controls

Telescoping Handle & Caster Wheels

35mm Speaker Stand Mount

8'' Full Range Speaker

LED Indicator Lights

Wireless Microphone Included

External 12V Power DC Input Connector

Perfect for Karaoke, Public Events, Crowd Control, etc.

Built-in Bluetooth for Wireless Music Streaming

Works with All of Your Favorite Devices

(iPhone, Android, Smartphone, iPad, Tablet, Computer, etc.)

Bluetooth Wireless Network Name: Pyle Speaker

Bluetooth Version: 3.0

Bluetooth Wireless Range: 100 Ft.

Wireless Dynamic Microphone

1/4'' to Aux (3.5mm) Audio Cable + Adapter

Battery Terminal Alligator Clamp Cables

RCA Connection Cable

Power Cable

Max Power Output: 400 Watt

RMS Power Output: 200 Watt

VHF Band Signal System Transmission

Wireless Mic Operation Range: 100 ft.

System Battery Life: Approx. 10 Hours

Average Charging Time: 8 - 10 Hours

Battery Type: Lead Acid, 12V (4.5A)

Operating Frequency: 254.6kH

Frequency Response: 35-20kHz

SPL: 94dB (1W/M)

T.H.D.: <1%

Battery Powered Wireless Mic: Requires 2 x 'AA' Batteries

Power: 110/220 Voltage Switchable

Dimensions (L x W x H): 14.7'' x 10.6'' x 11.2''

GENERAL DESCRIPTIONS

RE M AR K S

SYSTEM FUNCTION FIGURE

1.It is consist of one set of of wireless and two wired microphone

input circuits, both of them has separated volume control.

2.The standard accessories are VHF high band wireless transmitter

and receiver.

3.It is equipped with built-in 4.5AH/12V rechargeable battery

which can be charge 6 hours continuously, also DC power can be

used directly.

4.One guitar input function and one audio input unit both are

supplied.

5.Treble and bass control are supplied.

6.Echo control is supplied.

7.With voltage selector switch for selecting a suitable one

according to different countries.

8.8＂full range driver

1.Correct power must be used, don't use any other power except

the specified one.

2.Don't drag the power cable when pull out the plugs, just hold

the plug to pull it out from socket.

3.Don't open chassis: it is very dangerous either open the chassis

or put your hand inside the chassis, don't do it. If the device is

not under normal working, pull out the plug at once and contact

your retailer or nearest distributor.

4.Don't take volatile solvent such as toluene, alcohol, gasoline to

clean the surface.

5.Please don't put it in a unventilated environment or at direct

sunlight in summer.

6.Avoid moisture or rain

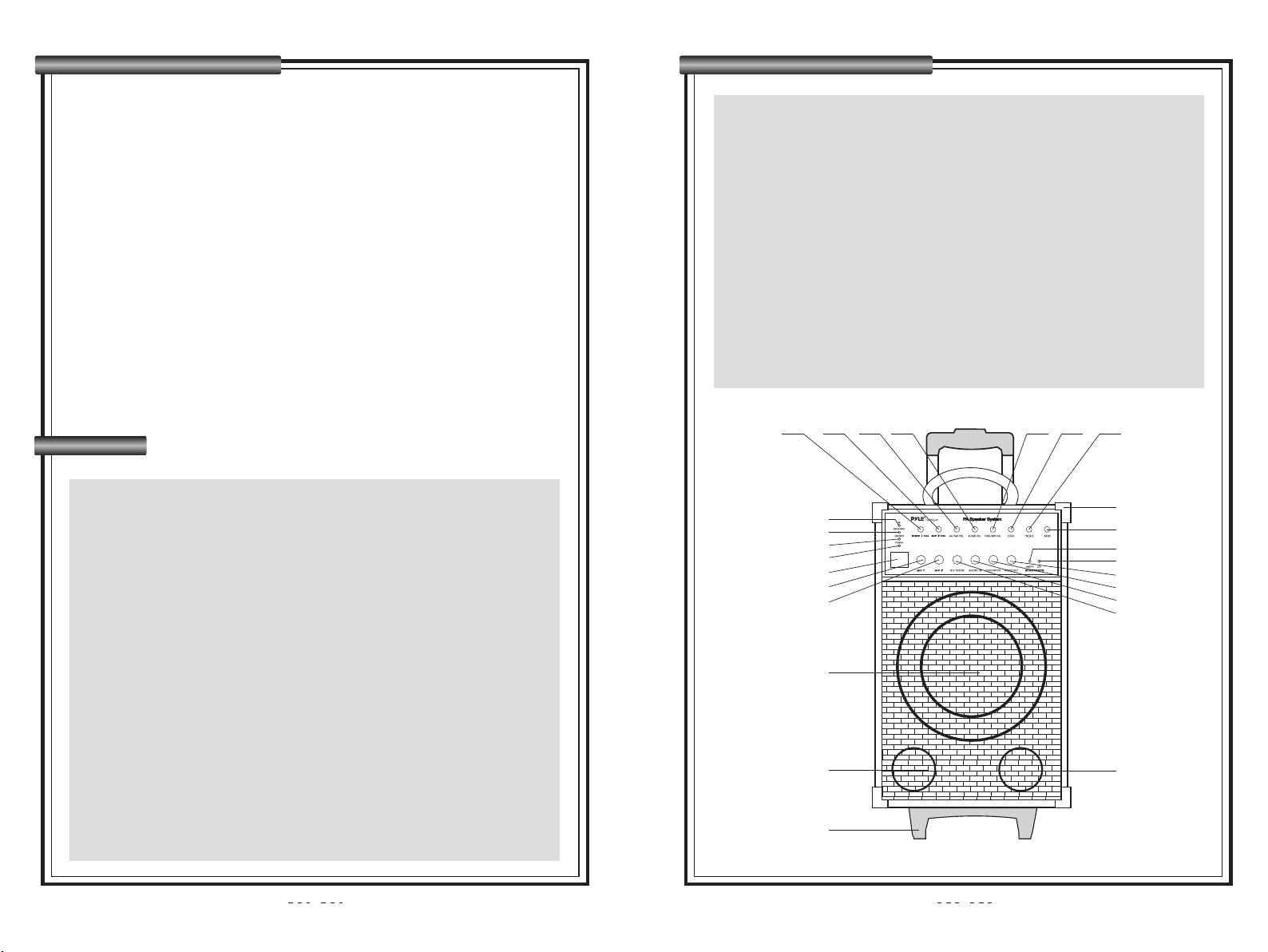

1.Wireless Mic/MIC1 Volume Control

2.MIC2 Volume Control

3.Guitar Volume Control

4.Audio Volume Control

5.Ipod/MP3 Volume Control

6.Echo Control

7.Treble Control

8.Bass Control

9. Metal Corner

10. bluetooth on/off switch

11. bluetooth indicator light

12. Audio Output Jack

13. Ipod/MP3 Input Jack

14.Audio Input Jack

15.Guitar Input Jack

16. Vent Hole

17. Fixed Stand For The Unit

18. Vent Hole

19. Woofer Speaker

20.MIC2 Input Jack

21.MIC1 Input Jack

22. Power Switch

23. Power Indicator

24. Low Voltage Indicator

25. Charge Indicator

26. RF Indicator For Wireless Mic

1 2 3 5 6 7

PW MA2 30 BT

INSTRUCTIONS

SYSTEM FUNCTION FIGURE

1. Confirm the power

AC Power: Before operation, please confirm the voltage is

same as the specified one marked on the label. If not, the unit

will be damaged.

Built-in Rechargeable Battery: You needn't plug-in the AC

power when the voltage for rechargeable battery is enough

but use the battery directly.

When the Low Voltage Indicator comes yellow, it indicates

the battery voltage is not enough, please charge it in time.

When the Low Voltage Indicator comes out, it indicates the

voltage is standard now.

If the unit is not used for a long time, please charge the rec-

hargeable battery every 2 months, 8-10 hours for each time.

①

②

③

④

⑤

2. Operation Instructions:

①

②

③

④

⑤

3 4

Plug the power cable into the socket and connect it with this

amplifier system.

Switch on the amplifier, the Power Indicator comes red.

During charging, RECHARGE indicator comes red, when the

indicator flashing, that means battery is amost full while it is

ready all indicators will off.

During charging, you can play music at the same time, then

RECHARGE indicator will flashing with the current

comsuption indicating the speed of charge. Charge time is in

direct proportion to the volume of music. When the battery is

full, RECHARGE indicator will stop flashing and then off.

Put two AA 1.5V battery into handheld microphone (bodypack

transmitter), push the Power Switch to middle, the Power

Indicator will flash once, RF Indicator comes on green,

the speakers are quiet.

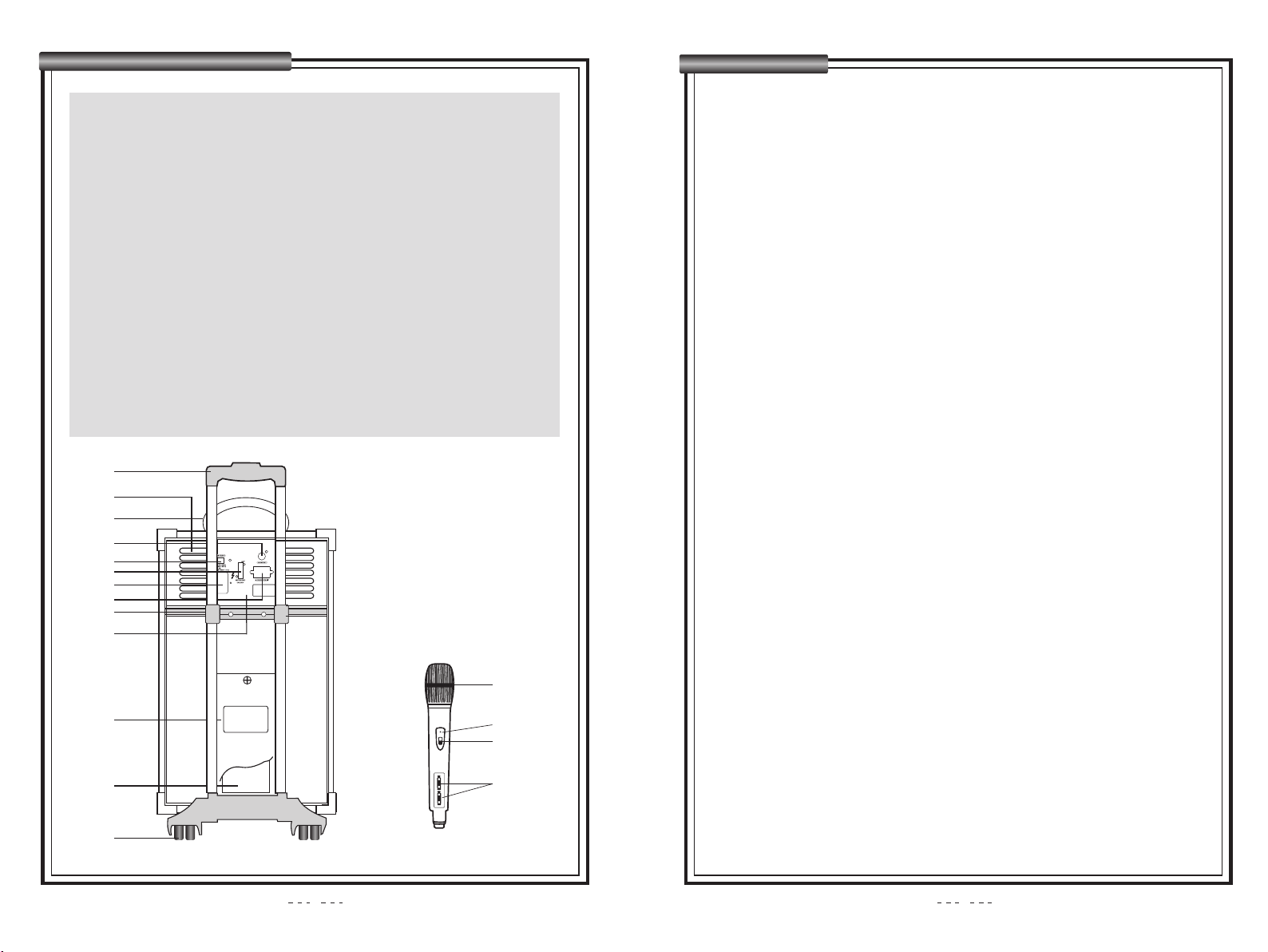

27.Trailer Handle

28.Heating Pane

29.Handle

30.Audio Out

31.Voltage Selector Switch

32.AC Fuse/Battery Fuse

33.Power line(~115V /230V)

34.External DC Input Jack

35.2PIN Power Socket

36.Rechargeable Battery Cover

37.Warning

38.4.5AH/12V Rechargeable Battery

39.Truckle Of Trailer

40.Mic Head

41.RF Indicator Of Handheld Mic

42.Power Switch Of Handheld Mic

43.Battery Housing Of Handheld Mic

To p rotect rec harge able batte ry l ife,

this u nit is sh ipped w ithou t insta lling

batt ery fuse. Be fore usin g th is unit,

plea se i nstal l fus e(inc luded in t he

acce ssrie s pa ck). Charg e the bat tery

full y befo re fir st use . Aviod to tal

d is c h ar g i ng o f t h e b a t te r y.

IMPO RTANT！

5 6

INSTRUCTIONS

3. Wired Microphone:

Two way wired microphone input jacks are supplied for two

people us simultaneously.

Plug Wired microphones into the jacks separately.

Adjust Echo Control to get better sound.

Adjust the volume of each microphone to make sure the

sound is satisfactory.

①

②

③

④

⑥

⑦

⑧

Push the Power Switch of handheld microphone(bodypack

transmitter) to ON position, your sound can be heard from

amplifier when speaking. Adjust the Volume Control/Echo

Control/Treble Control/Bass Control to proper position to

avoid feedback.

If the Power Indicator of microphone (bodypack transmitter)

comes on at all times, it indicates the battery lack of power,

please replace the battery.

Connect relative cable of guitar with Guitar Input Jack on this

system, you can play wonderful music.

⑤　

When you turn on the unit, be sure ECHO control set to

minimality, or there will cause sound distortion

INSTRUCTIONS

You can connect your Bluetooth phone or other device to the PA

speaker.

1. Turn on the unit.

2.Press the ON/OFF switch on front panel, bluetooth will on.

3.When the indicator light is on it means the bluetooth in ON.

4. Use your Bluetooth phone or other device to search for the PA speaker.

It will displayed as .

7.Play music on your phone or device, sound will come from the

speaker through the BLUETOOTH wireless connection.

8.You can use the VOLUME/BASS/TREBLE to adjust the sound level for

BLUETOOTH, also you can adjust the Bluetooth music sound through

your own phone or other device.

NOTES: If there is no sound through the PA speaker during Bluetooth,

Check the volume controller both on the unit and on your phone or

other device.

PYLE SPEAKER

5.Connnect your devices with PYLE SPEAKER,it will pair with unit

automatically.

6.You do not need code and get connected with unit.

4. BLUETOOTH playback

718.535.1800 718.236.2400(fax)

1600 63rd Street, Brooklyn NY 11204
