Pyle PPHP1249KT Manuel utilisateur

Active+PassivePASpeakerSystemKit

Dual Loudspeaker Sound Package, 12'' Subwoofers,

Wireless BT Streaming, Includes (2) Speaker Stands,

Wired Microphone, Remote Control, 1800 Watt

PPHP1249KT

REMOTE CONTROL

1. MODE : USB/SD/BT/FM CONVERTER

2. : In USB/SD : Previous Song,

Press and hold for fast rewind

In FM : swich to backward

3. VOL + : Increase volume

4. VOL - : Decresse volume

5. : In USB/SD : next Song,

Press and hold for fast forward

In FM : swich to next channel

6. : Stop Switch the MP3 player o.

7. /SCAN : Play / Pause

In FM : Auto search

8. EQ : NORMAL, ROCK, POP, CLASS, JAZZ.

9. REP : Shot press : Random/Single/Order

10. 0-9 : choosing music by numbers

11. MUTE : Mute the sound of the MP3 player

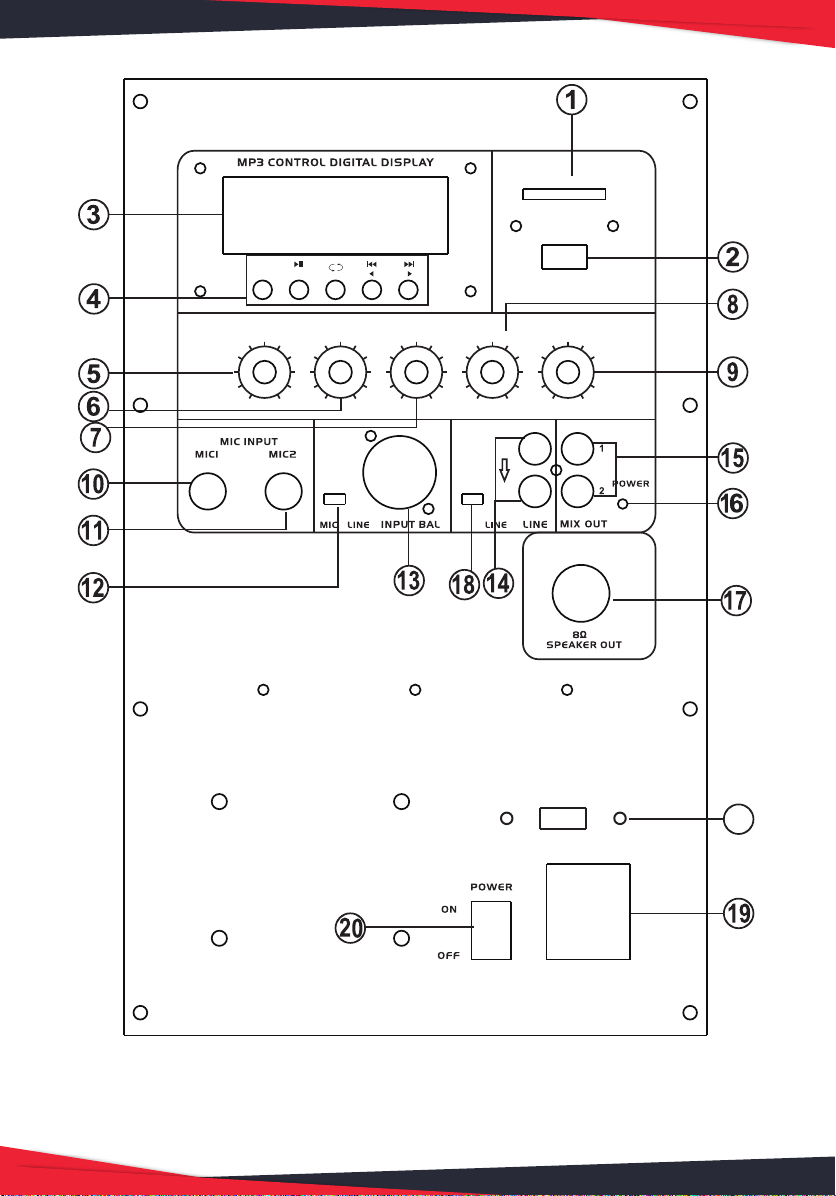

PPHP1249KT

1. SD card input

2. USB input

3. LCD screen

4. MP3 control

MODE : USB/SD/FM/BT convertor

: Previous songs

: PRE/NEXT under FM mode

: Next songs

: Repeat all / Random / Repeat one

: Play/Pause

SCAN : Auto search under FM radio

5. Volume control

6. Bass control for low frequencies

7. Treble control for high frequencies

www.PyleUSA.com

8. Echo control

9. Mic input level control

10. 6.35 microphone 1 input

11. 6.35 microphone 2 input

12. Mic/Line switch

13. XLR line input

14. RCA Phone(R+L) line input

15. 6.35mm line output

16. Power LED indicator

17. Speaker out 8 ohm

18. MP3/Line switch

19. Fused IEC mains inlet

20. Main power switch

21. 120V/240V switch

www.PyleUSA.com

MIC VOLUME

MINMAX

ECHO

MINMAX

TREBLE

-12+12

BAS S

-12+12

VOLUME

MINMAX

MODE

SCAN

MP3

SD card

USB

AC 120/240V 60/50Hz

120V 240V

www.PyleUSA.com

PPHP1249KT

Active + Passive PA Speaker System Kit

Dual Loudspeaker Sound Package, 12'' Subwoofers,

Bluetooth Wireless Streaming, Includes (2) Speaker Stands,

Wired Microphone, Remote Control, 1800 Watt

System Features:

• Dual 12-inch High-Powered Loudspeaker PA Systems

• Includes (1) Active Speaker, (1) Passive Speaker + (2) Stands

• Rugged, Durable & Reliable Sound

• Bluetooth Wireless Music Streaming Ability

• High-Frequency 1.0'' Tweeters

• Compression Driver with Titanium Diaphragm

• 2-Way Full Range Audio Projection

• Built-in Digital Audio Amplier

• XLR Microphone Input

• 1/4’’ SpeakOn (8 Ohm) Input

• 1/4’’ SpeakOn (8 Ohm) Speaker Output

• Aux (3.5mm) Input Jack

• Connect & Stream Audio from External Devices

• USB Flash Drive & SD Memory Card Readers

• Digital LCD Display

• Rear Panel Rotary Dial & Button Control Center

• Master Volume, Mic Volume, Treble, Bass Adjustable

• Integrated Carry Handles

• 35mm Speaker Stand Mount Compatible

• Heavy Duty Engineered ABS Housing

What's in the Box:

• (1) 12'' Active PA Speaker

• (1) 12'' Passive PA Speaker

• (2) Speaker Stands

• Wired Microphone

• Remote Control

• Power Cable

www.PyleUSA.com

Bluetooth Wireless Streaming:

• Instantly Stream Music from Your Bluetooth Devices

• Works with All Your Favorite Bluetooth Devices

(iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)

• Bluetooth Version: 4.0

• Bluetooth Wireless Range: 100'+ Feet

• Bluetooth Network Name: 'Pyle’

Speaker Stands:

• Eectively Elevates Speakers for Optimum Sound Performance

• Universal Speaker Compatibility (35mm Insert)

• Easy Setup and Quick Adjustment Control

• Reinforced Steel Support Construction

• Speaker Support Arm Extension

• Rugged and Reliable

• Safety Lock-in Pin

• Foldable for Quick Storage and Transport

• Rubber Capped Tripod Feet Base

• Perfect for On-Stage or Studio Use

• For Professional or Beginner Applications

• Speaker Height Adjustable: 59.1'' to 82.7''

• MAX. Load Capacity: 100 lbs. (50 kgs.) -Each

Technical Specs:

• MAX Power Output: 1800 Watt

• Amplier: Class D

• Impedance: 8 Ohm

• T.H.D.: <1%

• Magnet: 40 oz.

• Sensitivity: 96dB (+/-2dB)

• Mic Input Level: <15mV

• Line Input/Output Level: >250mV

• Frequency Response: 50-18kHz

• Digital Audio File Compatibility: MP3, WMA

• Maximum SD/USB Flash Memory Support: 32GB

• Power: 120/240V

• Single Speaker Weight: 33.5 lbs.
