Pyle PWMA1090UI Manuel utilisateur

Wireless&PortablePASpeakerSystemKit

PWMA1090UI

Questions? Issues?

We are here to help!

Phone: (1) 718-535-1800

Email: suppor[email protected]om

with Built-in Rechargeable Battery, FM Radio

(Wireless Handheld Mic, Headset Lavalier Mic,

Remote Control) 800 Watt

We recommend that you read this manual carefully so that you can fully take

advantage of the advanced and convenient functions of the Portable PA Speaker

and Microphone System. We also recommend that you keep this manual in a

safe and handy place for future reference.

CAUTION

WARNING! DON'T OPEN THE MACHINE TO AVOID ELECTRIC SHOCK, PLEASE ASK

HELP FROM PROFESSIONAL TECHNICIANS.

SAFETY INSTRUCTION

1. Read this manual carefully before using. Retain for future reference.

2. All warnings on the speaker and in the operating instructions should be adhered to.

3. Do not use this apparatus near water.

4. Do not block any of the ventilation openings. Install in accordance with the

manufacturers instructions. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including ampliers) that produce heat.

Do not install the speaker in an airtight location.

5. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

6. Switch OFF and unplug then use a soft cloth to clean the exterior of the unit if it

becomes dirty. If necessary, use a damp cloth that has been wrung out well to

wipe it.

7. Unplug this apparatus during lightning storms or when unused for long periods of

time.

8. Keep foreign objects and liquid from entering the unit to avoid a short circuit, re

and electrical accidents.

9. Place the speaker in a dry location.

10. Refer all servicing to qualied service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture , does not operate normally, or

has been dropped.

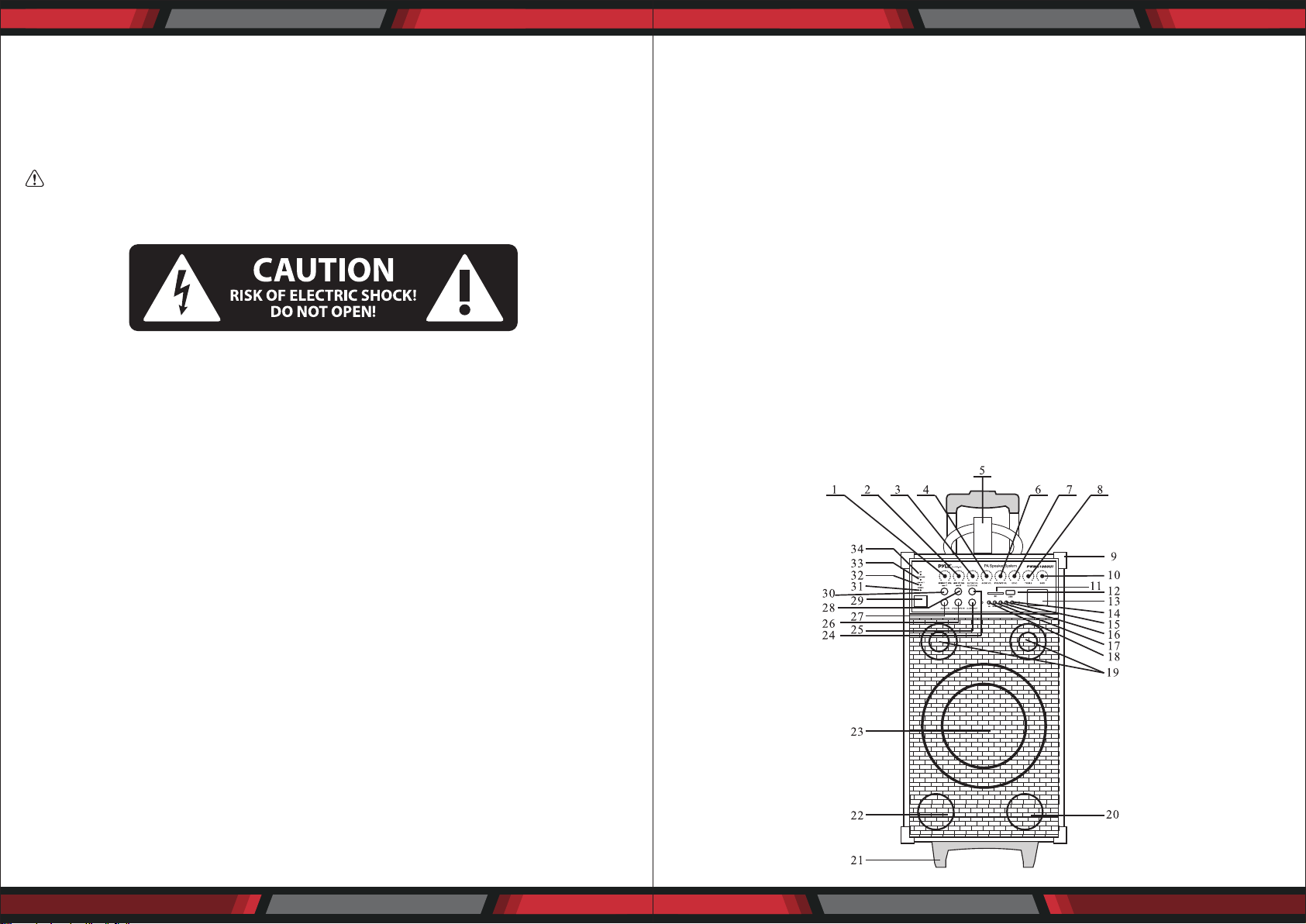

SYSTEM FUNCTION FIGURE

1. Wireless Mic/MIC 1 Volume Control

2. MIC 2 Volume Control

3. Guitar Volume Control

4. Audio Volume Control

5. Ipod Dock

6. Ipod/MP3 Volume Control

7. Echo Control

8. Treble Control

9. Metal Corner

10. Bass Control

11. SD/MMC Card Jack

12. USB Jack

13. Screen

14. Play/Pause Control

15. Next Control

16. Prev Control

17. Mode Control

www.PyleUSA.com2www.PyleUSA.com 3

18. Remote Signal Control

19. Tweeter

20. Vent Hole

21. Unit Fixed Stand

22. Vent Hole

23. Woofer Speaker

24. Guitar Input Jack

25. Audio Output Jack

26. Ipod/MP3 Input Jack

27. Audio Input Jack

28. MIC 2 Input Jack

29. Power Switch

30. MIC 1 Input Jack

31. Power Indicator

32. Low Voltage Indicator

33. Charge Indicator

34. Wireless Mic RF Indicator

www.PyleUSA.com4www.PyleUSA.com 5

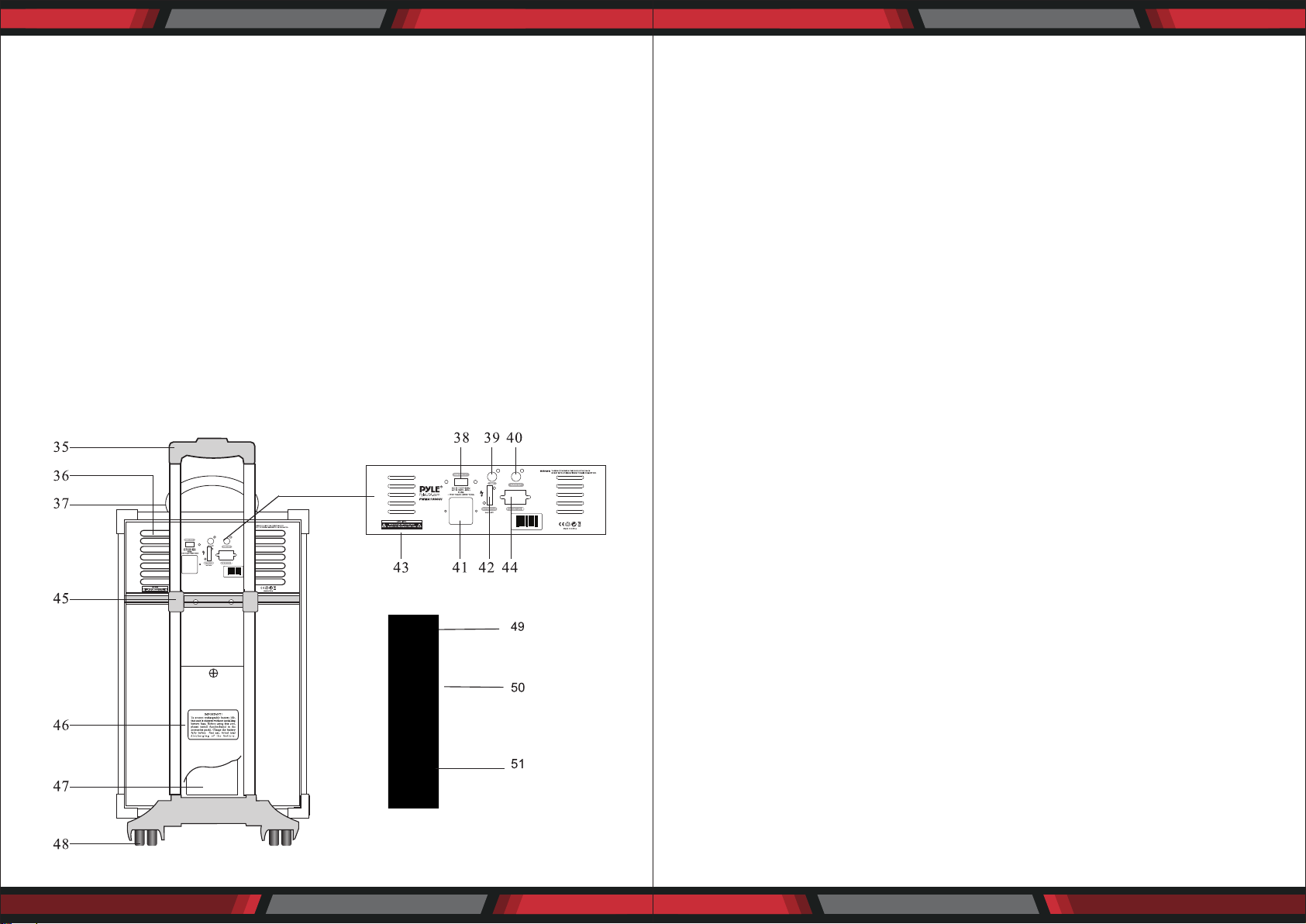

SYSTEM FUNCTION FIGURE

35. Trailer Handle

36. Heating Pane

37. Handle

38. Voltage Selector Switch

39. Radio Antenna

40. Audio Output

41. Power Socket

42. AC Fuse/Battery Fuse

43. Warning label

INSTRUCTIONS

1. Conrm the power

AC Power: Before operation, please conrm the voltage is same as the specied

marked on the label. If not, the unit will be damaged.

Built-in Rechargeable Battery: Plug-in the AC power when the rechargeable

battery voltage is enough but use the battery directly. When the Low Voltage

indicator turns yellow, it indicates the low battery, please charge it in time. When

the Low Voltage indicator turns OFF, it indicates the voltage is standard now.

If the unit will not be used for a long time, please charge the rechargeable battery

every 2 months, 8-10 hours for each time.

2. Operation Instructions

• Plug the power cable into the socket and connect it with this amplier system.

• Switch ON the amplier. the Power Indicator comes red.

• During charging, RECHARGE indicator turns red, when the indicator is ashing,

that means battery is almost full and turns OFF when fully charged.

• During charging, you can play music at the same time, the RECHARGE indicator

will ash with the current comsuption indicating the speed of charge. Charge time

is in direct proportion to the volume of music. When the battery is full, RECHARGE

indicator will stop ashing and turns o.

• Put two AA 1.5V battery into handheld microphone (bodypack transmitter), push

the Power Switch to the middle, the Power Indicator will ash once, RF Indicator

turns green.

• Push the handheld microphone Power Switch (bodypack transmitter) to ON position,

your sound can be heard from amplier when speaking.

Adjust the Volume Control/Echo Control/Treble Control/Bass Control to proper

position to avoid feedback.

• If the microphone Power Indicator (bodypack transmitter) turns on at all times,

it indicates the low battery, please replace the battery.

• Connect relative guitar cable with Guitar Input Jack on this system to play music.

44. DC12V Input Jack

45. Trailer Fixed Stand

46. Battery Cover

47. 7AH/12V Rechargeable Battery

48. Trailer Truckle

49. Lavalier Mic

50. Headset Mic

51. Handheld Mic

www.PyleUSA.com6www.PyleUSA.com 7

• IPOD Dock: equipped with an iPod dock connector that charges your iPod or

iPhone and lets you play your favorite music over the powerful 800W speaker.

Press "Play", "Pause", "Pre' and "Next" keys to control and play music. The unit will

charge ipod automatically once connected to the dock until battery is full.

No need to press "Charge" key to get charged. During charging, you can play ipod

at the same time.

3. Wired Microphone

• Two way wired microphone input jacks are supplied for two people to use

simultaneously.

• Plug Wired microphones into the jacks separately. Adjust Echo Control to get

better sound.

• Adjust the volume of each microphone to make sure the sound is satisfactory.

When you turn on the unit, be sure ECHO control is set to low or there will cause

sound distortion

What's in the Box:

• PA Loudspeaker

• Wireless Handheld Microphone

• Beltpack Transmitter

• Lavalier Headset Microphone

• Audio Connection Cables

• Power Cable

• Remote Control

System Features:

• High-Powered 10'' 3-Way PA Loudspeaker System

• Full Range Stereo Sound: Built-in Subwoofer, Mid-Range, Tweeter

• 30-Pin iPod/iPhone Dock: Charge Your Device and Play Music

• USB Flash & SD Memory Card Readers

• FM Radio with LCD Digital Display

• Retractable AUX (3.5mm) Input Cable

• Connect & Stream Audio from External Devices

• Built-in Rechargeable Battery for Hours of Wireless Use

• Front-Facing Control Center

• Easy-to-Use Rotary Knobs and Push Button Controls

• Connect up to (2) Microphones and (1) Guitar

• Inputs: (1/4'') Mic1, Mic2, Guitar, Audio, iPod/MP3, Balanced Connector Jacks

• Outputs: (RCA) Audio Out, (1/4'') Audio Out

• Independent Volume Controls for Mic1, Mic2, Guitar, iPod/MP3, Input

• Portable Enclosure with Telescoping Handle and Caster Wheels

• Echo, Bass and Treble Adjustments

• RF, Charge, Low Battery, and Power LED Indicators

• 35mm Speaker Stand Mount Insert

Technical Specs:

• Power Output: 800 Watt MAX - 400 Watt RMS

• All Inputs/Outputs 1/4" TS/unbalanced

• SPL: 94dB (1W/M)

• T.H.D.: <1%

• Input Wired Mic: -58dB V600

• Dimensions (L x W x H): 12.4'' x 13.0'' x 26.0''

• 110/220V Switchable
