PureLink HOF2 Manuel utilisateur

HOF2 Owner’s Manual

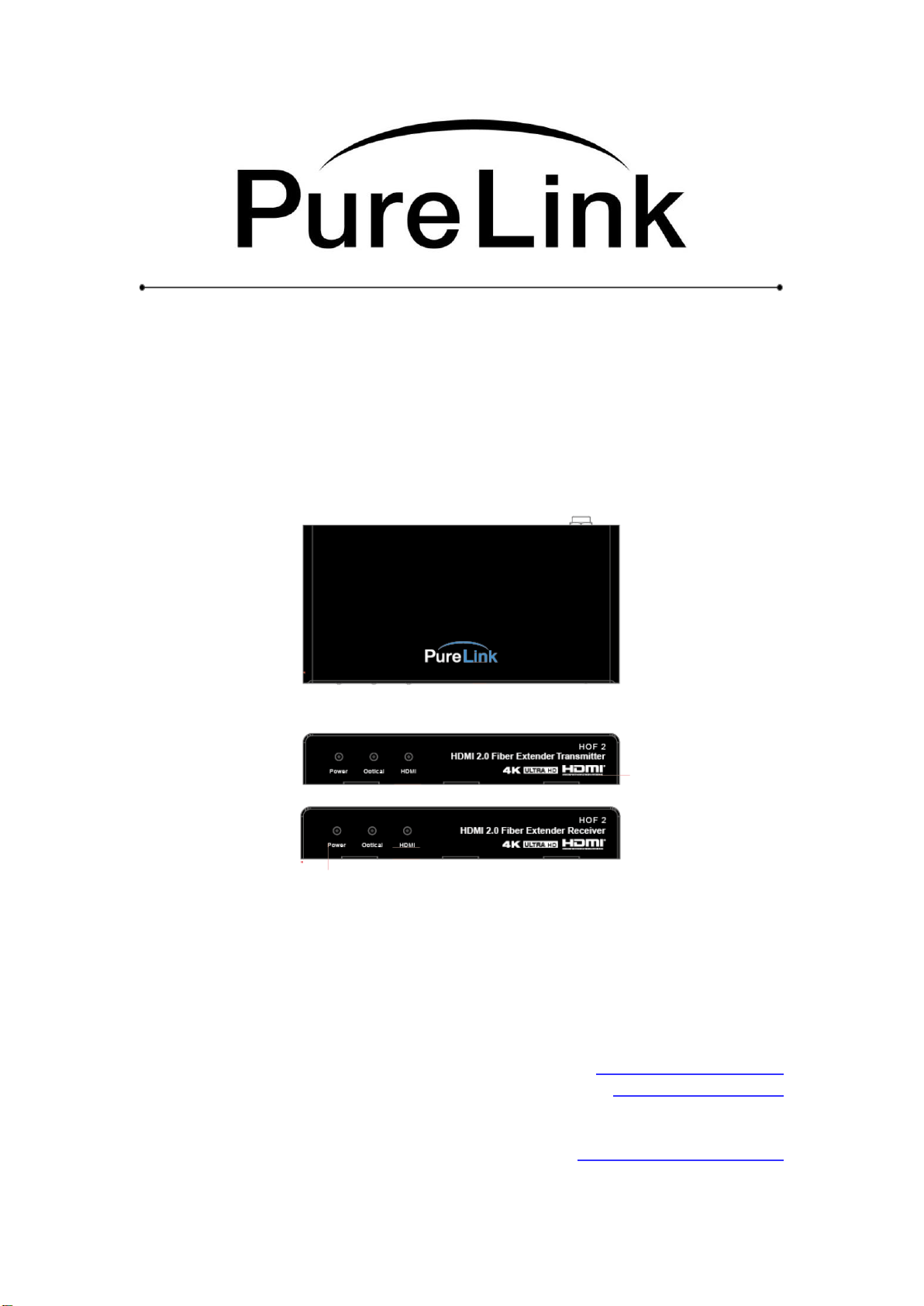

Modular Fiber Optic 4K HDMI Extender

PureLinkTM

535 East Crescent Avenue

Ramsey, NJ 07446

USA

Tel: +1.201.488.3232

Fax: +1.201.621.6118

E-mail: [email protected]

www.purelinkav.com

For order support, please contact your local dealer.

For technical support, please contact us at [email protected]

Package Contents

Please make sure all of the following items are included in the package:

1) 1 x HOF2 Fiber Optic Transmitter Module

2) 1 x HOF2 Fiber Optic Receiver Module

3) 2 x IR Cables (Tx and Rx)

4) 2 x DC 5V Power Supply Unit

5) 2 x Phoenix connectors (for RS232)

PureLink by Dtrovision

General Specification

The HDMI over Optical Fiber Extender can extend HDMI signal up to 4K Ultra HD over

3300 feet/1000 meters (Single-mode cable) or 1000 feet/300 meters (Multi-mode cable)

to an HDMI compatible display. It also supports bi-directional infrared control and RS-

232 signals transmission. It can allow you to easily control your DVD player at TV side or

control your TV at the DVD player side when using this extender.

PureLink by Dtrovision

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18 Gbps

Video Resolutions

Up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and

1080P 3D@60Hz

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color Depth

8-bit, 10-bit, 12-bit

HDMI Audio Formats

LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD,

DTS-HD Master Audio, Dolby Atmos, DTS:X

Operation Range

Up to 3300 feet/1000 meters over single-mode fiber cable

Up to 1000 feet/300 meters over multi-mode fiber cable

IR Frequency

20KHz - 60KHz

RS-232 Baud Rate

4800-115200bps

ESD Protection

Human body model —±8kV (air-gap discharge) & ±4kV (contact

discharge)

Connections

Transmitter

Inputs: 1x HDMI Type A [19-pin female]

1x IR In [3.5mm Stereo Mini-jack]

1x RS-232 [3.81mm Phoenix connector]

Outputs: 1x Optical Fiber Out [LC female]

1x IR Out [3.5mm Stereo Mini-jack]

Receiver

Inputs: 1x Optical Fiber In [LC female]

1x IR In [3.5mm Stereo Mini-jack]

Outputs: 1x HDMI Type A [19-pin female]

1x IR Out [3.5mm Stereo Mini-jack]

1x RS-232 [3.81mm Phoenix connector]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

100mm [W] x 65mm [D] x 25.6mm [H]

Weight

TX: 256g RX: 260g

Power Supply

Input: AC100 - 240V 50/60Hz

Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption

3W (Max)

Operation

Temperature

32 - 104°F / 0 - 40°C

Storage temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

PureLink by Dtrovision

Main Features

- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

- Video resolutions up to 4K2K@50/60Hz (YUV444)

- Audio supports LPCM2/5.1/7.1 CH, Dolby Digital, DTS, Dolby True HD, DTS-HD

Master Audio

- Long distance transmission up to 3300 feet/1000 meters over single-mode fiber

cable and up to 1000 feet/300 meters over multi-mode fiber cable

( 50/125µm/OM3)

- Bi-directional wideband infrared control and RS-232 transmission

- Locking power supply

PureLink by Dtrovision

Installation and Connection Instructions

1. Turn off both the video source and the display before connecting any cables.

2. Connect HDMI cable between the source and HOF1 transmitter AND between th

e HOF2 receiver and the display.

3. Connect LC terminated fiber optic cables according to the picture below;

4. Connect the power supply unit to both HOF2 transmitter and receiver units.

5. Turn on Display

6. Turn on Video Source

PureLink by Dtrovision

HOF2 Transmitter and Receiver Specification

Transmitter Module

Connection Ports;

HDMI In: HDMI Input

DC 5V: power connector

Power: power LED indicator

RS232: 3 pins phoenix connector

Optical : Fiber status LED indicator

HDMI : HDMI status LED indicator

Optical Out: Optical output receptacle

IR Tx : IR Transmitter port

IR Rx IR Receiver port

PureLink by Dtrovision

Receiver Module

Connection Ports;

HDMI Out: HDMI Output

DC 5V: power connector

Power: power LED indicator

RS232: 3 pins phoenix connector

Optical : Fiber status LED indicator

HDMI : HDMI status LED indicator

Optical In: Optical input receptacle

IR Tx : IR Transmitter port

IR Rx IR Receiver port

PureLink by Dtrovision

IR cable pint out

PureLink by Dtrovision

Warranty

Manufacturer’s Warranty (3-Years)

PureLink warrants this HOF1 fiber optic extender to be free from defects in workmanship and

materials, under normal use and service, for a period of three (3) year from the date of

purchase from PureLink or its authorized resellers.

If the product does not operate as warranted during the applicable warranty period, PureLink

shall, at its option and expense, execute one of the following as necessary:

1. Repair the defective product or part

2. Deliver to customer and equivalent product or part to replace the defective item

3. Refund to customer the purchase price paid for the defective product

All products that are replaced become the property of PureLink. Replacement products may

be new or reconditioned. Repaired or replacement products or parts come with a 90-day

warranty or the remainder of the warranty period. Dtrovision shall not be responsible for any

software, firmware, information, or memory data loss of contained in, stored on, or integrated

with any products returned to Dtrovision for repair under warranty.

3.1 Customer Service

Any customer service inquiries can be submitted electronically through the Q&A form on our

website ( www.purelinkav.com ).

For immediate assistance please contact us at (201) 488-3232 to reach our customer care or

tech support team.
