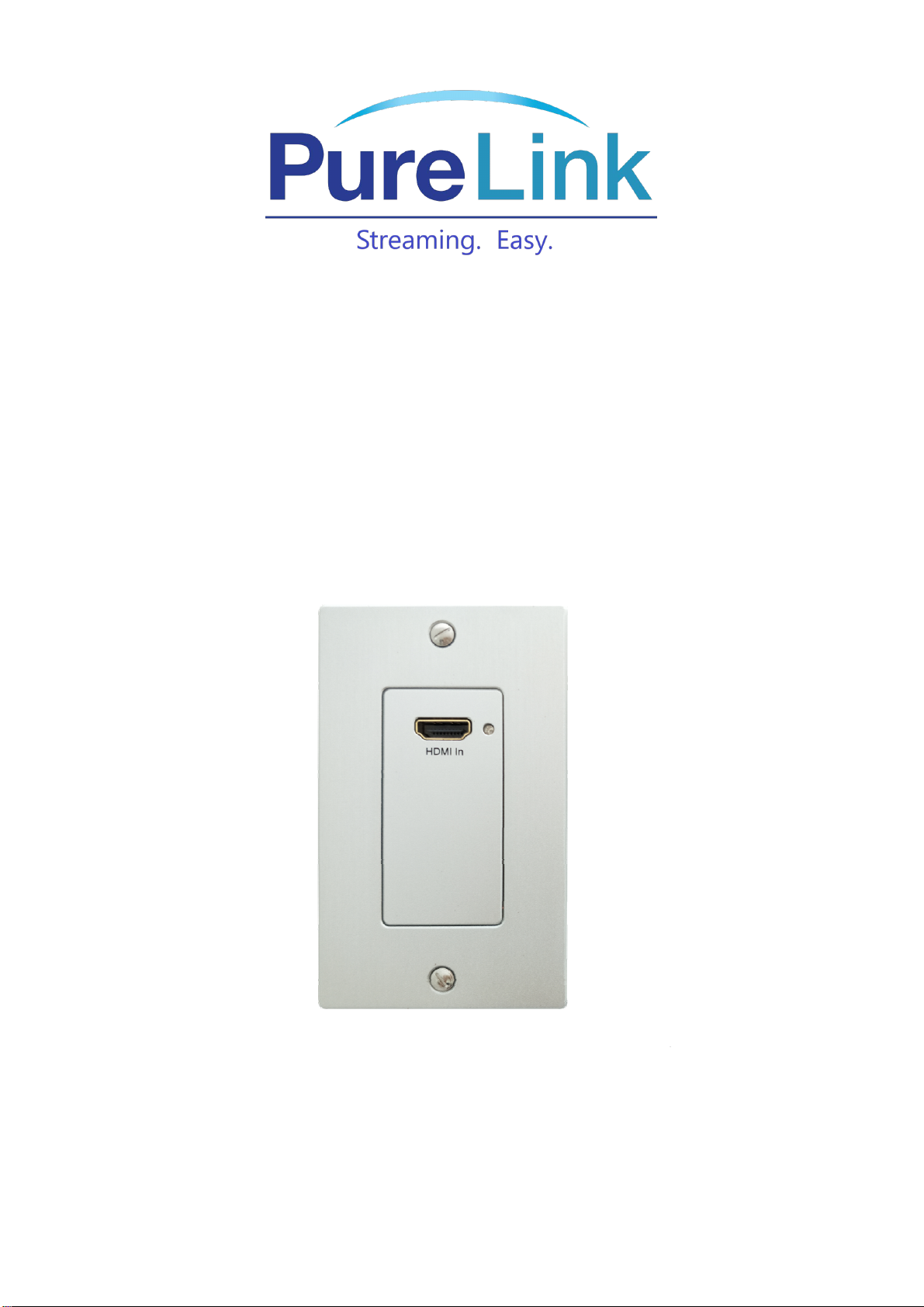

PureLink VIP-101-E-WP Manuel utilisateur
1
H.264 120m HDMI Wallplate Extender over IP
User Manual
2
VIP-101-E-WP H.264 Encoder User Manual
Introduction
The VIP-101-E-WP incorporates the advanced H.264 codec as the
compression type, which makes it occupy lower bandwidth and transmit over
the LAN more smoothly. It supports 120m over single cat5e/6 cable at point
to point, as well as point to many and many to many over Ethernet switch.
The VIP-101-E-WP works with the VIP-100 II encoders and decoders.
1. Features
1) Support Dynamic Host Configuration Protocol (DHCP)
2) Support one to one, one to many, many to one, many to many modes, with
large cascade
3) Following North American Wall plate standard
4) Transmit up to 120m over single Cat5e/6 cable
5) Using H.264 compression encoding, support resolution up to 1080p@60hz
6) Comply with TCP/IP protocol, streaming bit rate is 15Mbps
7) Support Analog 2.0 Audio Extraction at Receiver
8) Support LPCM audio format
9) Support PC tool control
10) Compatible with Video Player such as VLC etc
11) 802.3 of compliant POE (No need power supply when connecting with
POE Switch)
12) HDCP Compliant
13) DC 5V 1A power supply
3
2. 1 Specifications
Performance
Protocol H.264 encoder over TCP/IP
Support Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ
Support Audio format LPCM, Audio sampling rate 48KHZ
Streaming Bit Rate 15Mbps/1080P
HDCP Compliant
IP setting &Group ID setting
Default IP TX: 192.168.1.11 ; RX: 192.168.1.12
Request for Switch/Router Support IGMP, support DHCP
Connectors on Transmitter
Input 1xHDMI Female port input
Output 1x RJ45 output
Connectors on Receiver
Input 1xRJ45 input
Output 1x HDMI Female port output, 1x Audio output
Environmental & Power Requirements
Operating temperature -10 to +40 ℃（+14 to +104℉）
Operating Humidity Range 20 to 90%RH (No Condensation)
Power supply DC 5V 1A
Power consumption TX: 4W RX: 3W
Physical
Dimension TX: 70x115x40mm ; RX: 70x115x40mm
Net Weight TX: 0.12KG ; RX:0.13KG
VIP-101-E-WP H.264 Encoder User Manual
4
2. 1 Supported input resolution
Frequency Resolution
50Hz
576i
576P
720P
1080P
1080i
60Hz/59.94Hz
480i
480P
720P
1080P
30Hz/29.97Hz 1080P
24Hz 1080P
25Hz 1080P
VESA Resolution
Frequency Resolution
50Hz
576i
576P
720P
1080P
1080i
60Hz/59.94Hz
480i
480P
720P
1080P
30Hz/29.97Hz 1080P
24Hz 1080P
25Hz 1080P
VIP-101-E-WP H.264 Encoder User Manual
5
3. Packing content
1). 1x Transmitter 2). 1x Receiver
3). 1x Manual 4). 2x 6#-32x7/32" screws
5). 4x 4#-32x5/8" screws 6). 2x Phoenix plugs fo
r
powe
r
supply
7). 2x Powe
r
supply
4. Panel description Transmitter
1
)
HDMI in
p
ut 2
)
Blue indicato
r
o
f
HDMI in
p
ut
3
)
Reset
p
ort 4
)
DC 5V
5
)
CAT5e/6 out
p
ut
VIP-101-E-WP H.264 Encoder User Manual
6
5. Installation and Configuration
5.1 Setup
When connecting point to point, no configuration is needed.
When connecting point to many, many to point and many to many, please
make sure every TX and RX has unique IP and MAC address, every TX has
unique group ID.
Our this over IP Extender has been assigned unique default MAC address for
every TX and RX, so you don’t have to set the MAC for the units.
You just need to set the IP address and Group ID following bellowing steps.
5.1.1 Setting the IP address
A). DHCP (Dynamic host configuration protocol)
If you are using a Switch that supports DHCP, please enable DHCP so that
the Switch will assign an unique IP for TX and RX, and you don’t need to
change the IP for the units manually.
B). Set the IP via web browser
If you are using a Switch that doesn’t support DHCP, please change the
default IP for TX (192.168.1.11) and RX (192.168.1.12) manually.
A
HTTP server is embedded in each TX and RX. You can set up IP address
for HDMI Extende
r
via web browse
r
The default IP address of the TX is 192.168.1.11, use
r
name: admin,
password: admin
The default IP address of the RX is 192.168.1.12
VIP-101-E-WP H.264 Encoder User Manual
7
Step 1: Make sure the Transmitter and PC are in the same domain.
A
ccess the Network Setting Control Panel in Windows and locate your
Lan connection. Under Windows 7, this can be done by clicking Start >
Control Panel >Network Sharing center>Change adapter settings >
Properties >Internet Protocol Version4 (TCP/IPv4). Change the IP address fi
eld to 192.168.1.1
(0-255).
A
fter that press "OK" to save the configuration.
※The PC and TX/RX should be in the same domain.
※The IP address of PC should be different from the IP address of
TX and RX.
Step 2: Use an Ethernet Cable to connect the PC (or laptop) and the
extender. the power LED for the extender is red and the green status is
blinking.
Step 3: Login in IE: 192.168.1.11 (default IP fo
r
TX) o
r
192.168.1.12(default
IP fo
r
RX), You can setup IP address fo
r
the TX and RX. TX requires user
name: admin and password: admin
Please set IP address for each TX and each RX, IP: 192.168.1.XX (XX:1-255.
all IP address for TX and RX must be different and can’t be same as the PC’s
address.)
Step 4: After selecting “Use DHCP” or reset the IP Address, click “Submit”
(transmitter) or “update DHCP” (Receiver).
Step 5: Click “Reboot”.
Step 6: Restart the extender after resting the IPAddress.
VIP-101-E-WP H.264 Encoder User Manual
8
5.1.2 Set the group ID for TX and RX via web browser
Step 1: Make sure the Transmitter and PC are in the same domain.
(Refer to 5.1.1)
Step 2: Use an Ethernet Cable to connect the PC (or laptop) and the
Extender. the power LED for the extender is red and the green status
LED is blinking.
Step 3: Power on the TX or RX with 5V 1A power supply.
Step 4: Login in IE: 192.168.1.11 (default IP for TX) or 192.168.1.12(default
IP for RX), TX requires user name: admin and pass word: admin.
Step5: Change the group ID at “Stream setting”.
Step 6: Click “Submit” (transmitter) or update (receiver).
※Make sure the Group ID is different for each Transmitter under one
to many and many to many mode.
5.2 Preparing the switch
When doing point to many and many to many, it requires a switch to distribute
the sources. We suggest you use the Switch that supports IGMP and DHCP.
IGMP feature help to manage the group ID which is related to switch the
sources; DHCP allow the switch to assign an IP for TX and RX automatically,
please enable DHCP of the switch.
5.3 Connection
※Please don’t insert into or pull out HDMI cable when power on.
Please connect cable only when power is off.
VIP-101-E-WP H.264 Encoder User Manual
9
5.3.1 Point to point
1. Connect the source device and the Transmitter unit with HDMI Cable.
2. Connect HDMI display and the HDMI Receiver unit with HDMI Cable.
3. Connect the Transmitter and Receiver with Cat5e/6 cable
4. Power on Transmitter and Receiver with adapter 5V 1A.
NOTE: Insert/Extract cables gently.
5.3.3 Point to many
1. Setting the IP address for Transmitter & Receiver and preparing the switch
following the steps as instructed above (5.1.1&5.2)
2. Connect the source device and the Transmitter unit with HDMI Cable.
4. Connect the transmitter and the switch/router with cat5e or cat6 cable.
5. Connect all the Receivers and the switch/ router with Cat5e/6 cable.
6. Connect the HDMI displays and the HDMI Receiver units with HDMI
Cable.
7. Power on Transmitter and Receiver with adapter 5V1A, power on the
switch with its adapter.
※Daisy chain the switch if its RJ45 port is not enough.
※The quantity o
f
Receive
r
is up to 255pcs.
※Make sure the Group ID is different fo
r
each Transmitter under
one to many and many to many mode.
VIP-101-E-WP H.264 Encoder User Manual
10
5.3.4 Many to many
1. Setting the IP address for Transmitter & Receiver and preparing the switch
following the steps as instructed above (5.1.1&5.2)
2. Connect the source device and the Transmitter unit with HDMI Cable.
3. Connect the transmitters and the switch/router with cat5e or cat6 cable
4. Connect the Receivers and the switch/ router with Cat5e/6 cable
5. Connect the HDMI displays and the HDMI Receiver units with HDMI
Cable.
6. Power on Transmitter and Receiver with adapter 5V1A, power on the
switch with its adapter.
7. Choose the source Web browser as instructed above (5.1.2)
※Daisy chain the switch if its RJ45 port is not enough.
※The total quantity of Transmitter and Receiver is less than
256 pcs.
※Make sure the Group ID is different for each Transmitter under
one to many and many to many mode.
VIP-101-E-WP H.264 Encoder User Manual
