PureLink HEXA PRO Manuel utilisateur

HEXA PRO

HDMI 2.0 Audio Extractor with Down-mixing

Owner's Manual

PureLinkTM

22-10 State Route 208

Fair Lawn, NJ 07410USA

Tel: +1.201.488.3232

Fax: +1.201.621.6118

E-mail: sales@purelinkav.com

www.purelinkav.com

For order support, please contact your local dealer.

For technical support, please contact us at support@purelinkav.com

PureLink by Dtrovision

Chapter 1. Introduction

1.1Safety Precautions

•All safety instructions should be read and understood before the unit is operated.

•The owner’s manual and safety instructions should be retained for future reference.

•Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth

only.

•Keep away from wet, magnetic, and flammable surfaces or substances.

•Always use the correct external power supply (indicated on the product label) when operating this unit.

•This unit may be equipped with a 3 wire grounding-type plug - a plug having a third (grounding) pin. This pin will

only fit in to a grounding type power outlet. If you are unable to insert the plug in to the outlet, contact your

electrician to replace your obsolete outlet.

•Air vents should be kept clean and unobstructed at all times.

•Please refrain from using frayed power cords and damaged wall outlets.

•Do not place any heavy objects or equipment on top of the unit.

•To prevent electrical damage, TURN OFF the power to this unit before inserting or removing INPUT/OUTPUT

slot cards.

If your product is malfunctioning or for assistance operating your product, please contact our technical

support team.

PureLinkTM

Tel: 201.488.3232

Email: support@purelinkav.com

PureLink by Dtrovision

1.2 Declaration of Conformity

According to Council Directive 73/23/EEC (February 19, 1973) on the Harmonization of the Laws of Member States

relating to Electrical Equipment; Council Directive 89/336/EEC (May 3, 1989) on Electromagnetic Compatibility;

Council Directive 93/68/EEC (July 22, 1993)-Amending Directives 89/336/EEC (MC) and 73/23/EEC (Low Voltage

Equipment Safety), and/or CPU Boards and Power Supplies used Council Directive 93/68/EEC with Matrix, Dtrovision

LLC, 535 E Crescent Ave Ramsey, NJ 07446 201-488-3232, declares under sole responsibility, that the product

identifies with 93/66/EEC of the Council Directive Low Voltage Equipment Safety. Each product marketed is identical

to the representative unit tested and found to be compliant with the standards.

1.3 What’s in the Box

•1× HDMI 18Gbps Audio Extractor

•1× 5V/1A Power Adapter

•1× User Manual

PureLink by Dtrovision

1.4 Product Introduction

The HEXA Pro extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio

outputs.For maximum flexibility, HEXA Pro audio extractor also supports bitstream audio down-mix to analog stereo

output and keeps optical and HDMI out audio pass-through. Both input and output of HDMI supports video resolutions

up to 4K2K@50/60Hz 4:4:4, 10bits HDR (High Dynamic Range) pass through, HDMI high resolution digital audio formats

bypass,LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmosand DTS-HD Master Audio, audio sampling rate up to

192 kHz. HDCP 2.2 and CEC bypass are supported.

The following installation settings are recommended for optimal performance.

•Operational temperature should be 30° C or below

•Operational humidity should be 60% or below

•Operational environment should be dust-free and well ventilated

•Stabilized AC input power (AVR-based power supply) is highly advised

PureLink by Dtrovision

Chapter 2. Product Features

2.1 Features

•HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

•Video resolutions up to 4K2K@50/60Hz (YUV444)

•Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio

•HDMI Pass-through audio input to HDMI and optical audio output

•Supports bitstream audio down-mix to L/R analog output

•Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH

•Supports HDMI High Bit Rate(HBR) audio pass through

•Audio sample rates up to 96kHz

•10bits HDR (High Dynamic Range) pass through

•Supports CEC pass-through

PureLink by Dtrovision

Chapter 3. Operational guidelines

3.1 Main Menu User Guide

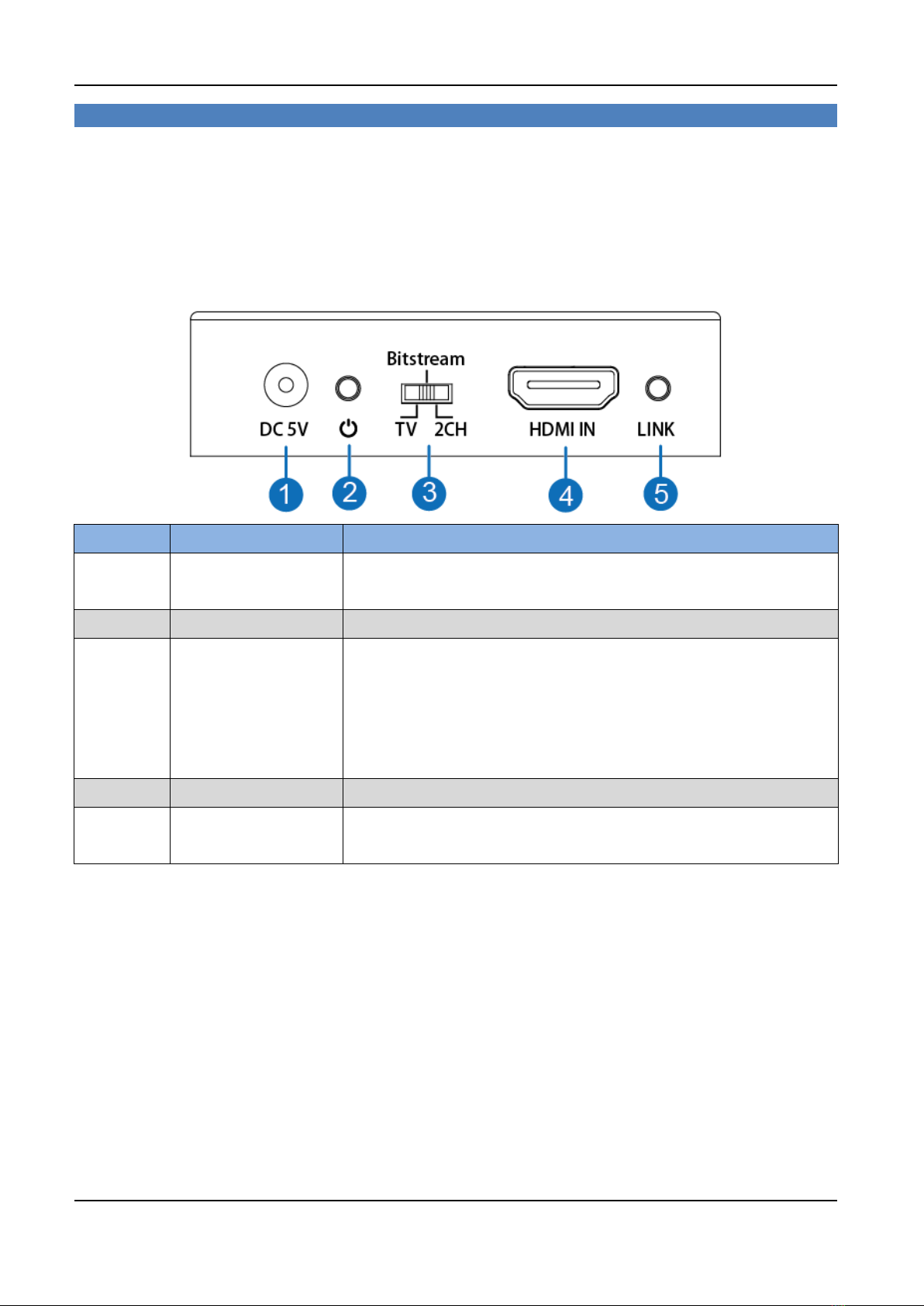

Front Panel

Number

Name

Function description

DC 5V

Connect 5V/1A adapter to AC wall outlet for power

supply.

Power LED

System power indicator.

TV/Bitstream

/2CH

The user allows to select audio format according to

Copy TV, Bitstream or 2CH.

TV: Copy EDID from TV.

Bitstream: Multi channel audio up to six channels.

2CH: 2 channel Stereo PCM.

HDMI IN

HDMI video input.

Link LED

The LED will illuminate when the HDMI IN port

detects inputsignal.

Rear Panel

PureLink by Dtrovision

Number

Name

Function description

HDMI OUT

HDMI output for display connectivity.

OPTICAL Out

Toslink digital audio output(mirrors HDMI).

L/R OUT

Stereo RCA analog audio output.

PureLink by Dtrovision

Sample Application Diagram

PureLink by Dtrovision

Specification:

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18 Gbps

Video Resolutions

up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P

3D@60Hz

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color Depth

10-bit, 12-bit

HDMI Audio Formats

(Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD,

DTS-HD Master Audio, Dolby Atmos, DTS:X

Optical AudioFormats

LPCM 2CH,LPCM 5.1,Dolby Digital 2/5.1CH, DTS2/5.1CH

L/R Audio Formats

Analog Stereo 2CH

ESD Protection

Human body model —±8kV (air-gap discharge) & ±4kV (contact

discharge)

Connections

Inputs

1x HDMI Type A [19-pin female]

Outputs

1x HDMI Type A [19-pin female]

1x L/R AudioOut [RCA]

1x Optical Out [S/PDIF]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

73.5mm [W] x 60.7mm [D] x 20mm [H]

Weight

135g

Power Supply

Input: AC100 - 240V 50/60Hz

Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption

1.25W(Max)

Operation Temperature

32 - 104°F / 0 - 40°C

Storage temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

PureLink by Dtrovision

Chapter 4. Additional Information

4.1 Manufacturer’s Warranty (3-Year)

PureLink warrants this UX Series HDMI Integrated Matrix Switcher to be free from defects in workmanship and

materials, under normal use and service, for a period of three (3) year from the date of purchase from PureLink or

its authorized resellers.

If the product does not operate as warranted during the applicable warranty period, PureLink shall, at its option and

expense, execute one of the following as necessary:

1. Repair the defective product or part

2. Deliver to customer and equivalent product or part to replace the defective item

3. Refund to customer the purchase price paid for the defective product

All products that are replaced become the property of PureLink. Replacement products may be new or

reconditioned.Repaired or replacement products or parts come with a 90-day warranty or the remainder of the

warranty period. PureLink shall not be responsible for any software, firmware, information, or memory data loss of

contained in, stored on, or integrated with any products returned to PureLink for repair under warranty.

4.2 Customer Service

Any customer service inquiries can be submitted electronically through the Q&A form on our website

(www.purelinkav.com).

For immediate assistance please contact us at (201) 488-3232 to reach our customer care or tech support team.
