PureLink DTS-1000RV Manuel utilisateur
DTS/DRS-1000RV
Owner’s Manual
DTS-1000RV: DVI/HDMI or VGA, Audio, RS-232C
Transmitter Extender
DRS-1000RV: DVI/VGA or VGA, Audio, RS-232C
Receiver Extender
Dtrovision LLC
9A Bergen Turnpike
Little Ferry, NJ 07643
Tel: 201.488.3232
Fax: 201.621.6118
www.purelinkav.com
E-mail: sal[email protected]
For technical support, contact: support@dtrovision.com
Package Contents
Please make sure all of the following items are included in the package:
1) DTS-1000RV Transmitter Module or DRS-1000RV Receiver Module x 1
*The transmitter module and the receiver module are sold separately*
2) DC 12V power supply unit x 1
3) AC cord x 1
4) Owner’s Manual x 1
General Specification
DTS1000RV/DRS1000RV is a floor box-type fiber-optic extension system which is
capable of transmitting DVI/HDMI/VGA video, 3.5 stereo audio, and RS232-C
signals to remote locations (max distance up to 1000m or 0.62 miles).
DTS1000RV/DRS1000RV is equipped with readily available multimode fiber-optic
and CAT5 cables, making this system a convenient and affordable solution for
transmitting high-quality digital and analog video, as well as audio signals in
various applications.
Item
Description
Model
DTS-1000RV/DRS-1000RV
Input Signal
DVI/HDMI
VGA( D-Sub)
Stereo Audio (3.5mm mini jack) x 2
RS-232
Output Signal
DVI/HDMI
VGA( D-Sub)
Stereo Audio (3.5mm mini jack) x 2
RS-232
Supporting video graphic
resolution
PC Mode : VGA ~ WUXGA
DTV Mode: 480 ~ 1920*1080P
Max. Distance
1920 x 1200 @60Hz or 1080p up to 3,300 ft
1280x1024 @ 60Hz or 1080i up to 5,000ft
Connector Configuration
DC Power Jack
DVI 29 Pin Female / D-SUB 15Pin Female
LC Fiber Connector 4 CORE / RJ-45
3.5mm STEREO Jack
RS-232C : 3 Port Phoenix connector
Conformation
DDWG DVI1.0
HDMI V1.3 HDCP
Power Consumption
DC 12V, 4.1A, 8 Watts(Max 13W)
Dimension
4.3’(W) x 5.1’(D) x 1.6’ (H) (Inch)
Weight
TX,RX 1.4 lbs per unit
Operation and Reliability Specification
1. Operating Environment
Temperature : 50F ~ 104F (10℃~ 40℃)
Humidity : 10% ~ 80%
Altitude : 3,000m Max.
2. Transit Environment
Temperature : -13F ~ 140F (-25℃~ 60℃)
Humidity : 5% ~ 95%
Altitude : 15,000m Max.
3. Storage Environment
Temperature : -4F ~ -49F (-20℃~ 45℃)
Humidity : 5% ~ 95%
Altitude : 3,000m Max.
4. Reliability
MTBF: 90% at over 50,000 hours aging test
In compliance with LCD Monitor reliability test standard
Main Features
1. High Quality Picture - No Signal Loss and Digital Noise Free
DTS-1000RV/DRS-1000RV is designed to deliver the highest quality picture
preserving the native resolutions of the digital/analog video sources, or analog
stereo audio, or RS-232 communication without any signal loss. At the same time,
the digital noises that may affect the picture quality will be eliminated. Due to
the nature of the digital signals and passing through multiple stages of
connection when using fiber optic extender, it is important to eliminate the digital
noises and boost the signal strength to preserve/enhance the video signal quality.
DTS-1000RV/DRS-1000RV equipped with Noise cancellation and error correction
logic that enhances HDMI video and audio signals over long distance.
2. Signal Amplification for signal reliability and long distance signal
transmission
12V power adapter supplies adequate power to amplify the video signal from the
video source and it also has a built-in signal repeater to support long distance.
3. Compact and durable design
DTS-1000RV/DRS-1000RV is comes in compact and robust 1RU size design.
4. Fiber optic cable for long distance signal transmission
Long Distance (Up to 5000ft at 1080i or lower signal) over cost effective multimode
fiber optic cables. (* RS-232 signal will be delivered over CAT5)
5. AUTO EDID management
The definition of AUTO EDID management is a way of saving EDID of a monitor into
EEPROM in the transmitter module before connecting to any video source. DTS-
1000RV transmitter has 14 different pre-programmed EDID data that can be
conveniently selected by end-user, if an external EDID doesn’t need to be saved.
Saving/Emulating display’s EDID in the transmitter module enhances reliability and
compatibility with various displays.
.
.6. HDCP (High-bandwidth Digital Content Protection) Compliant
Our DVI DTS-1000RV/DRS-1000RV is fully HDCP compliant. Many video sources
such as DVD players and Satellite/Cable Receivers are HDCP encrypted. For these
video sources to be displayed correctly, HDCP compliant devices (e.g., TV, DVI
Switch, distribution amplifier) are required.
Installation and Connection Instructions
Installation Instruction
1. Turn off the video source and monitor before connecting any cable.
2. Connect DVI-D, VGA, Fiber, CAT5, and RS-232 cable.
3. Connect 12V DC power adapter to both transmitter and receiver module.
4. Turn on the monitor
5. Turn on the video source

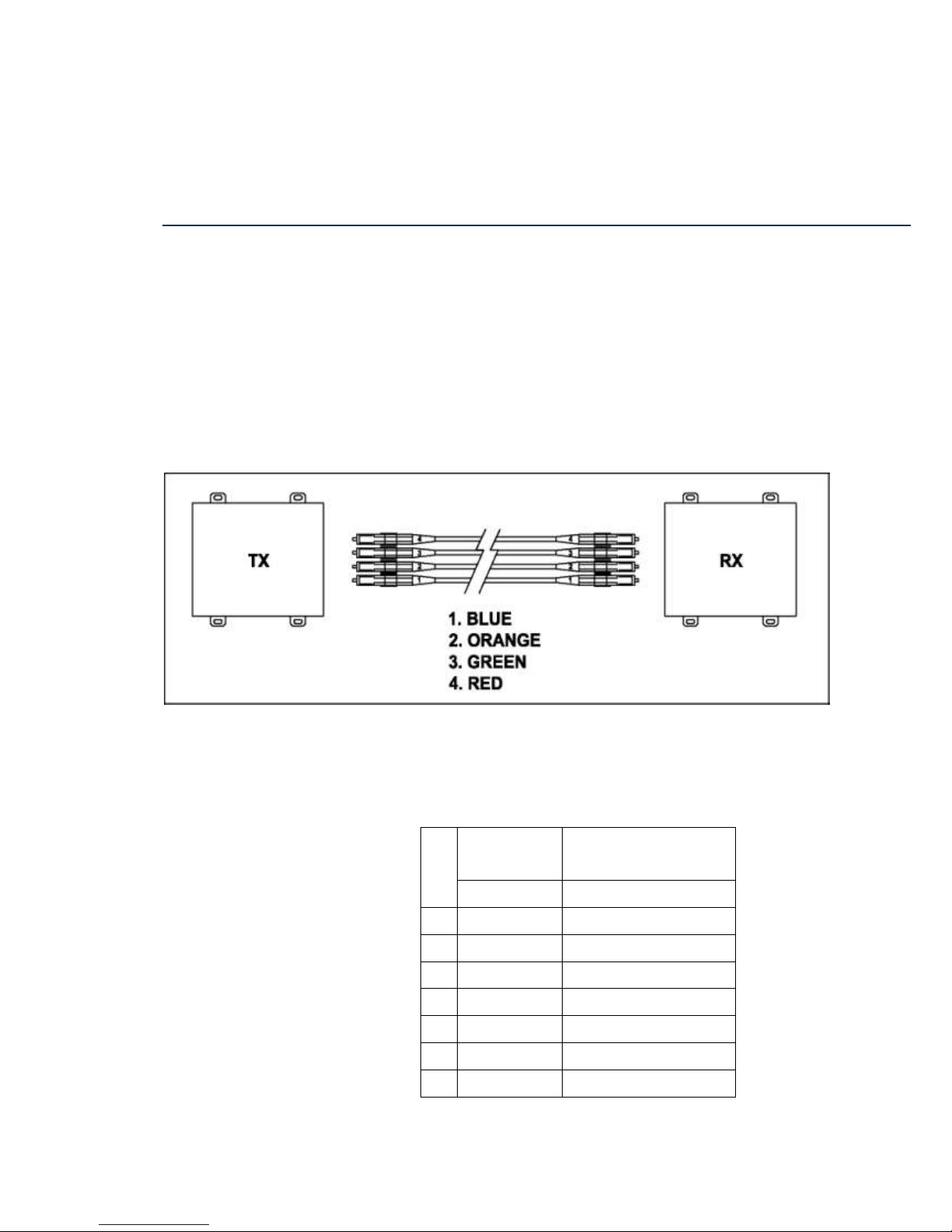

How to connect LC fiber cable between TX and RX
TX : 1 -> RX : 1 , TX : 2 -> RX : 2
TX : 3 -> RX : 3 , TX : 4 -> RX : 4
CAT5 cable
DTS-1000RV/DRS-1000RV is designed to conform to TIA/EIA-568-B standards.
Check whether the PIN MAP is properly connected to the TIA/EIA-568-B (as
illustrated below) before use. (Note: CAT-5E or CAT-6 cables will deliver signal for
longer distances).
Pin
TIA/EIA-
568B
Signal
Wire color
Signal
1
Orange/ White
RS-422_TXD+
2
Orange
RS-422_TXD-
3
Green/ White
RS-422_RXD+
4
Blue
NC
5
Blue/ White
GND
6
Green
RS-422_RXD-
7
Brown/ White
NC
RS-232 Connection
Set up connection in the order illustrated below before use.
8
Brown
GND
PRODUCT DIMENSION
Exterior Dimension (W*D*H): 4.3’x5.1’x1.6 mm, 1.4 lbs per unit
DTS-1000RV : DVI/HDMI or VGA, Audio, RS-232C Transmitter Module
DRS-1000RV : DVI/HDMI or VGA, Audio, RS-232C Receiver Module
DTS-1000RV
DVI/HDMI Fiber Optic Extension Module
Transmitter
Front Panel:
PWR: Power LED
ST: Signal LED
MODE: EDID Setting
EDID S/W: EDID Save button
Rear Panel:
DVI Input (Tx), DVI Output (Rx)
VGA Input (Tx), VGA Output (Rx)
DVI or VGA Dip switch (Only on Tx side)
Optical In /Out ports: Fiber optic connection
Audio In (Tx), Audio Out(Rx) :3.5mm Stereo Audio Jack
CONTROL (For RS-232): CAT5
RS232C: Phoenix Connector
DC 12V: Power Input
DRS-1000RV
DVI/HDMI Fiber Optic Extension Module
Receiver
