Provision ISR PI Series Manuel utilisateur

www.provision-isr.com

MINI PTZ CAMERAS

www.provision-isr.com

ZOOM

PTZ

MANUAL

English / Spanish

1 2

Note:

In order to avoid electrical

shock or re, please use

proper power according to

the manual.

WARNING

Note: Only professional technicians is

allowed to open the front or back cover

of this camera.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

English Manual

Manual en Español

Nota:

Para prevención de choques

electricos o fuego, por favor

use la corriente apropiada,

acorde con el manual.

ADVERTENCIA

NotA: Solo técnicos profesionales

pueden abrir las cubiertas frontal o

posterior de esta cámara.

PELIGRO DE CHOQUES

NO ABRIR

Content General

Thank you for using our products. Before use, please read this manual

carefully to ensure correct use of this series of products. Please keep the

manual properly for future use.

This series of cameras take high-sensitivity CCD as the image sensor, all

circuits have long work life and high reliability. Excellent image will be top

choice for your camera.

Main Features

1. Easy to install and assemble.

2. High resolution, high sensitivity and high s/n ratio.

3. Low illumination, high quality image.

4. CCD sensor can prolong the work life of camera.

5. With SONY DSP and CCD chip, image is clear and stable.

Precautions

1. Do not install the camera in places where the temperature is

above 50°C or under -10°C.

2. Do not touch the CCD surface with your finger. If cleaning is

needed, please wipe it using a soft cloth with a little bit of

alcohol.

3. Do not install in places with high humidity, it can seriously

damage the quality of the picture.

4. Do not drop the camera and avoid physical shock.

5. Do not face your camera to a strong light, it can damage the

CCD.

6. Do not expose the camera to rain or dusty surroundings.

7. Its highly important to use the correct and suitable power

supply(DC12V) for the camera.

8. Only professional and qualified technician can install and test

9. During use, if any errors occur, cut off the power immediately

and contact your local distributor.

3 4

Installation

1. PI Models

2. PA Models

EN EN

Step 3.

Rotate camera

clockwise until hear

a click sound

Step 2.

Install camera to

bracket

Step 1.

Install bracket on

ceiling

Step 2.

Install camera to

bracket

Step 1.

Install bracket on

ceiling

5 6

EN EN

Cable Connection

Cable includes

power, RS-485, video

out.

RS-485 interface is two cable

Purple color is 485 A/+

Grey color is 485 B/-

Video out interface

Power interface,

Need to connect +12V DC

Inside is (+),

Outside is (-).

3. PZ Models

Step 1.

Install cable to bracket

Step 2.

Connect cable

to camera

7 8

EN EN

For conguration address, protocol and baudrate with DIP

Switch use values in the given below tables:

DIP Switch 1-6 are for adress setting (DEFAULT 001)

Pelco D adress setting

SW-1 SW-2 SW-3 SW-4 SW-5 SW-6

1 ON OFF OFF OFF OFF OFF

2 OFF ON OFF OFF OFF OFF

3 ON ON OFF OFF OFF OFF

4 OFF OFF ON OFF OFF OFF

5 ON OFF ON OFF OFF OFF

6 OFF ON ON OFF OFF OFF

7 ON ON ON OFF OFF OFF

8 OFF OFF OFF ON OFF OFF

9 ON OFF OFF ON OFF OFF

10 OFF ON OFF ON OFF OFF

11 ON ON OFF ON OFF OFF

12 OFF OFF ON ON OFF OFF

13 ON OFF ON ON OFF OFF

14 OFF ON ON ON OFF OFF

15 ON ON ON ON OFF OFF

16 OFF OFF OFF OFF ON OFF

Switch setting

Address

Pelco P adress setting

SW-1 SW-2 SW-3 SW-4 SW-5 SW-6

1 OFF OFF OFF OFF OFF OFF

2 ON OFF OFF OFF OFF OFF

3 OFF ON OFF OFF OFF OFF

4 ON ON OFF OFF OFF OFF

5 OFF OFF ON OFF OFF OFF

6 ON OFF ON OFF OFF OFF

7 OFF ON ON OFF OFF OFF

8 ON ON ON OFF OFF OFF

9 OFF OFF OFF ON OFF OFF

10 ON OFF OFF ON OFF OFF

11 OFF ON OFF ON OFF OFF

12 ON ON OFF ON OFF OFF

13 OFF OFF ON ON OFF OFF

14 ON OFF ON ON OFF OFF

15 OFF ON ON ON OFF OFF

16 ON ON ON ON OFF OFF

Address

Switch setting

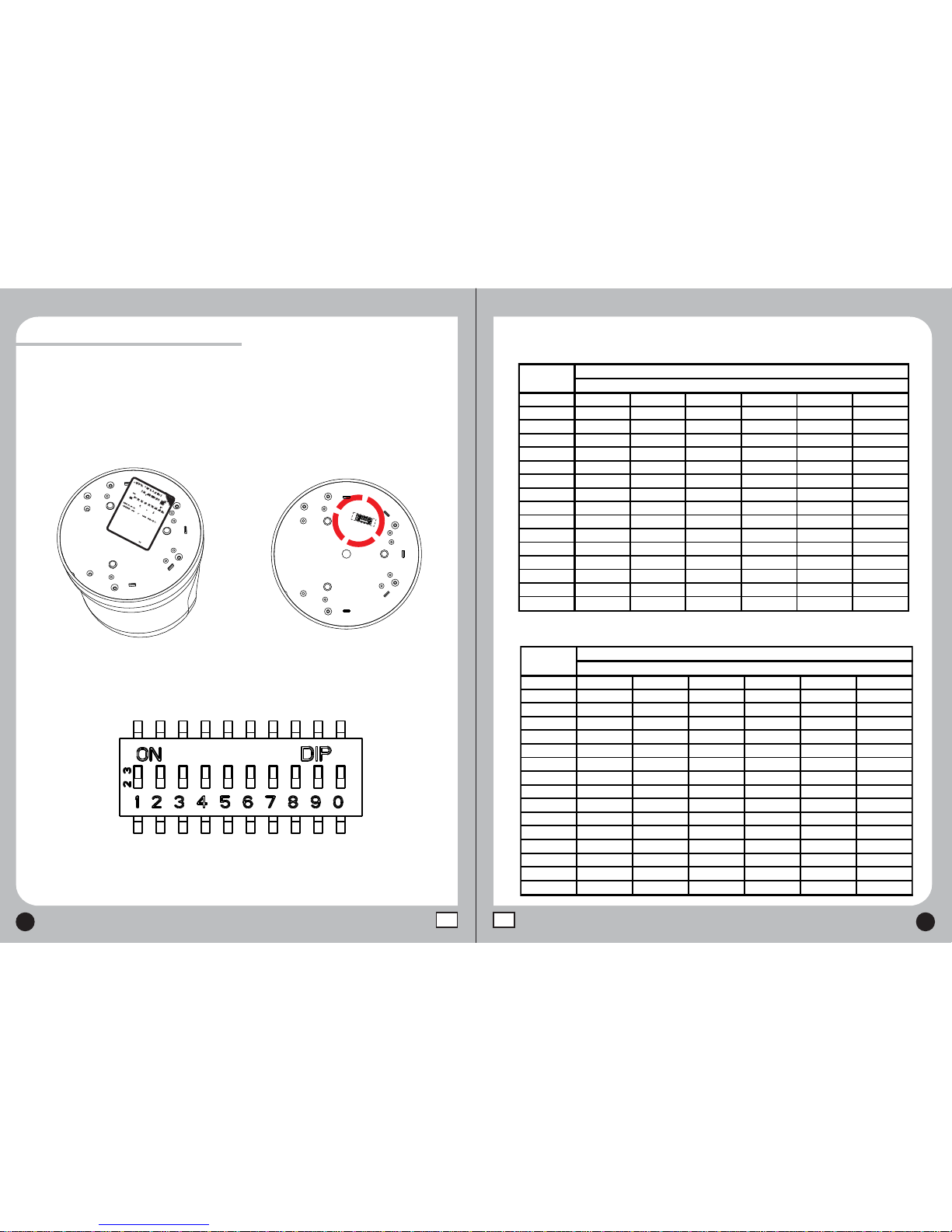

DIP Switch Setup

DIP switch unit to be located under a stick label on the

ceiling mount.

DIP switch unit to be located on the board of the camera

under plastic cover.

2-PZ/PA Models

1-PI Models

With DIP Switch you can congure address, protocol and

baudrate on the camera.

910

EN EN

Mechanical Specifications

Dome Type:

Effective Pixels:

Protocol:

Baudrate:

Address:

Pan Rotation:

Tilt Rotation:

Max Pan Speed:

Max Tilt Speed:

Preset speed:

Preset accuracy:

Preset points:

Pattern Tours:

Auto Scan:

Power-off memory:

Home position:

Zoom:

Protection:

Operating:

Power:

PAL:500x582

Pelco-P/D

1200/2400/4800/9600 bps

0-255

360° Continues rotation

0°~90°

60°/Sec

30°/Sec

60°/Sec

±3°

32 Points

Programable 16 preset point

Programable preset number and dwell time / speed

Yes (Programable speed and left right limited point)

Currentsetting and state

(Include Pattern, Not include auto scan)

Yes (Programable auto come back home position)

Optical 3X

Indoor use

12VDC 500mA

0°C ~ 60°C

PI-Models PZ-ModelsPA-Models

100°/Sec

Communication: RS485 (+/-)

IP66 for outdoor use

(Wall Mount)

-5°C ~ 60°C

Indoor IR

Indoor/Outdoor Plastic Case

(M For Metal case)

Indoor Anti-Vandal

DIP Switch 7,8 are for Baud Rate (DEFAULT 2400)

DIP Switch 9 is for Protocol (DEFAULT Pelcod)

9600 OFF ON

4800 ON ON

2400 OFF OFF

1200 ON OFF

Pelco P ON

Pleco D OFF

Setup Address, Protocol and Baud rate

for Remote Controller

Via remote controller you can control several cameras with

different address , protocol and baudrate (like address 1 is

Pelco P baudrate 9600 ,address 2 can be Pelco D baudrate 2400)

To setup remote controller protocol and baudrate for each

address you please use the following steps:

-connect cameras to the remote controller plug RS-485

-chose channel number by pressing the desire number on the

remote control

-press setup key for 3-5 seconds –screen will display number

and letter, for example D=24 ,this is display protocol and

baudrate of this address.

Letter refers to protocol:

D- Pelco D , P- Pelco P ,

Number means baudrate:

12 means baud rate 1200

24 means baud rate 2400

48 means baud rate 4800

96 means baud rate 9600

- to modify use Left & Right key for baudrate and Up & Down key

for protocol on the remote control

-press ENTER key to save it

For clean all setup and default setup remote controller press

C key.

Default setup- all address Pelco –D baudrate 2400

11 12

EN EN

Image sensor

Horizontal Resolution

Effective Pixels

Power supply voltage

TV system

White Balance

Synchronous System

Minimum Illumination

S/N Ratio

Electronic Shutter

Video signal

Lens configuration

12V DC, 80mA

PAL/NTSC

Auto

Internal

0.02Lux /F1.2 0.05Lux /F1.2

≥48db

1/50(1/60)-1/100000 Sec

1.0vp-p750hms.

06/4~9/8~20mm

PA-325CSVF

PA-355CSVF

1/3” SONY DSP Chipset

1/3” SONY HQ1

420TVL540TVL

PAL:537(H)×597(V)

NTSC:537(H)×505(V)

PAL:795(H)x596(V)

NTSC:811(H)x508(V)

Camera Specifications

Image sensor

Horizontal Resolution

Effective Pixels

Power supply voltage

TV system

White Balance

Synchronous System

Minimum Illumination

S/N Ratio

Electronic Shutter

Video signal

Lens configuration

LED number

12V DC, 80mA

PAL/NTSC

Auto

Internal

0.5Lux /F1.2 (0 Lux IR On)

≥48db

1/50(1/60)-1/100000 Sec

1.0vp-p750hms.

06/4~9/8~20mm

24 pcs (PTD-208)

PI-325CSVF

PI-355CSVF

1/3” SONY DSP Chipset

1/3” SONY HQ1

420TVL540TVL

PAL:537(H)×597(V)

NTSC:537(H)×505(V)

PAL:795(H)x596(V)

NTSC:811(H)x508(V)

Image sensor

Horizontal Resolution

Effective Pixels

Power supply voltage

TV system

White Balance

Synchronous System

Minimum Illumination

S/N Ratio

Electronic Shutter

Video signal

Lens configuration

12V DC, 80mA

PAL/NTSC

Auto

Internal

0.02Lux /F1.2 0.05Lux /F1.2

≥48db

1/50(1/60)-1/100000 Sec

1.0vp-p750hms.

06/4~9/8~20mm

PZ-325CSVF

PZ-355CSVF

1/3” SONY DSP Chipset

1/3” SONY HQ1

420TVL540TVL

PAL:537(H)×597(V)

NTSC:537(H)×505(V)

PAL:795(H)x596(V)

NTSC:811(H)x508(V)

Camera Specifications

13 14

ES ES

Instalación

1. MODELOS PI

Paso 3.

Rotar la cámara en sentido

de las agujas del reloj hasta

escuchar un sonido de clic

Paso 2.

Instale la cámara

en el soporte

Paso 1.

Instalar el soporte

de techo

General

Gracias por utilizar nuestros productos. Antes de usar, por favor lea

atentamente este manual para garantizar el correcto uso de los

mismos. Por favor, guarde el manual correctamente para uso futuro.

Esta serie de cámaras tienen un CCD de alta sensibilidad como sensor

de imagen, todos los circuitos tienen una larga vida útil y alta fiabilidad.

Una excelente imagen que sera la mejor elección para su cámara.

Características principales

1.Fácil de instalar y ensamblar.

2.Alta resolución, alta sensibilidad y alto rango s/n.

3.Baja iluminación, alta calidad de imágen.

4.El sensor CCD prolonga la vida útil de la cámara.

5.Con DSP y chip CCD SONY, imagen clara y estable.

Precauciones

1. No instale la cámara en lugares donde la temperatura es mayor

a 50°C o inferior a -10°C.

2. No toque la superficie del CCD con el dedo. Si es necesario limpiar,

use un trapo suave con un poco de alcohol.

3. No instalar en lugares altamente húmedos,puede causar serios

daños en la imágen.

4. Cuidar de que no reciba golpes fuertes o se caiga.

5. No exponer la cámara frente a luz fuerte, esto puede dañar el CCD.

6. No exponga la cámara a un ambiente polvoriento o lluvioso.

7. Es sumamente importante usar la electricidad correcta (DC12V)

para la cámara.

8. Solo personal profesional y calificado tecnicamente

puede instalar y probar esta cámara.

9. Durante el uso, si alguna falla ocurre, corte la corriente

inmediata mente y contacte a su distribuidor local.

15 16

ES ES

3. MODELOS PZ

Paso 1.

Instalar el cable en

el soporte

Paso 2.

Conecte el cable

a la cámara

Paso 2.

Instale la cámara

en el soporte

Paso 1.

Instalar el soporte

de techo

2. MODELOS PA

17 18

ES ES

Conexión del Cable

El cable incluye poder,

RS-485 y salida de vídeo.

La interfaz RS-485 consta de

dos cables:

Color púrpura es 485 A/+

Color gris es 485 B/-

interfaz de salida de video

Interface de poder:

necesita conectar +12V DC

adentro es (+), afuera es (-).

Conguración del interruptor DIP

La unidad DIP estará ubicada debajo de la etiqueta en el

montaje para el techo.

La unidad DIP esta ubicada en el tablero de la cámara

debajo de la cubierta plástica.

2-Modelos PZ/PA

1-Modelos PI

Con el interruptor DIP usted puede congurar la dirección,

el protocolo y la velocidad de transmisión de la cámara.

Para congurar la dirección, protocolo y velocidad de

transmisión con el interruptor DIP use los siguientes valores:

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Provision ISR Caméra de sécurité

Provision ISR

Provision ISR IP Series Manuel utilisateur

Provision ISR

Provision ISR UltraVision Series Manuel utilisateur

Provision ISR

Provision ISR Ultra-Z Z-20AHD-1(IR) Manuel utilisateur

Provision ISR

Provision ISR PT-737 Instructions d'utilisation et d'entretien

Provision ISR

Provision ISR AUTO SYNC FOCUS SERIES Manuel utilisateur

Provision ISR

Provision ISR I5PT-390IPX4 Manuel utilisateur

Provision ISR

Provision ISR Z-22IR Manuel utilisateur

Provision ISR

Provision ISR DA-352CS DA-322CS Manuel utilisateur

Provision ISR

Provision ISR DAI-390IPVF Manuel utilisateur

Provision ISR

Provision ISR Mini Ultra-Z Z-10AHD-1 (IR) PTZ Manuel utilisateur

Provision ISR

Provision ISR PRO-AHD series Manuel utilisateur

Provision ISR

Provision ISR DAI-390IP04 Manuel utilisateur

Provision ISR

Provision ISR PT-848 Manuel utilisateur

Provision ISR

Provision ISR ISR BOX CAMERA Manuel utilisateur

Provision ISR

Provision ISR I1-325CS Manuel utilisateur

Provision ISR

Provision ISR I2-350A-28 Manuel utilisateur

Provision ISR

Provision ISR I1-380AHDB36 Manuel utilisateur

Provision ISR

Provision ISR MN-322CS43 Manuel utilisateur

Provision ISR

Provision ISR I3-380IP04 Manuel utilisateur

Provision ISR

Provision ISR I2-320A-28 Manuel utilisateur

Provision ISR

Provision ISR I5PT-320IPMX10-P Manuel utilisateur

Provision ISR

Provision ISR DI-380IPVF Manuel utilisateur

Provision ISR

Provision ISR ZP-20A-2(IR) Manuel utilisateur

Provision ISR

Provision ISR PT-737 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
