Provision ISR I5PT-390IPX4 Manuel utilisateur

Precautions:

Please read this manual carefully before installing and operating the camera.

Please refer to the technical specs to confirm you are using a suitable power supply. Do

not use power supply with higher/lower rating than specified.

Do not attempt to disassemble the camera; in order to prevent electric shock, do not

remove any screws or covers.

There are no user-serviceable parts inside. Please contact the nearest service center if

there is any technical failure.

Avoid incorrect operation, shock vibration or heavy weight pressing which can damage

the camera.

Do not use corrosive detergent to clean the camera. If necessary, please use a soft dry

cloth to wipe dirt. For tough contamination, use neutral detergent. Any cleanser for high

grade furniture is applicable.

Avoid aiming the camera directly towards extremely bright objects such as the sun, as it

may permanently damage the image sensor.

Please follow the installation instructions.

Do not operate the camera in environments that exceeds the specified temperature,

humidity or power.

Keep away from any heat sources such as radiators, heat registers, stoves, etc.

Do not expose the product to the direct airflow of an air conditioner.

All pictures and examples used in the manual are for reference only.

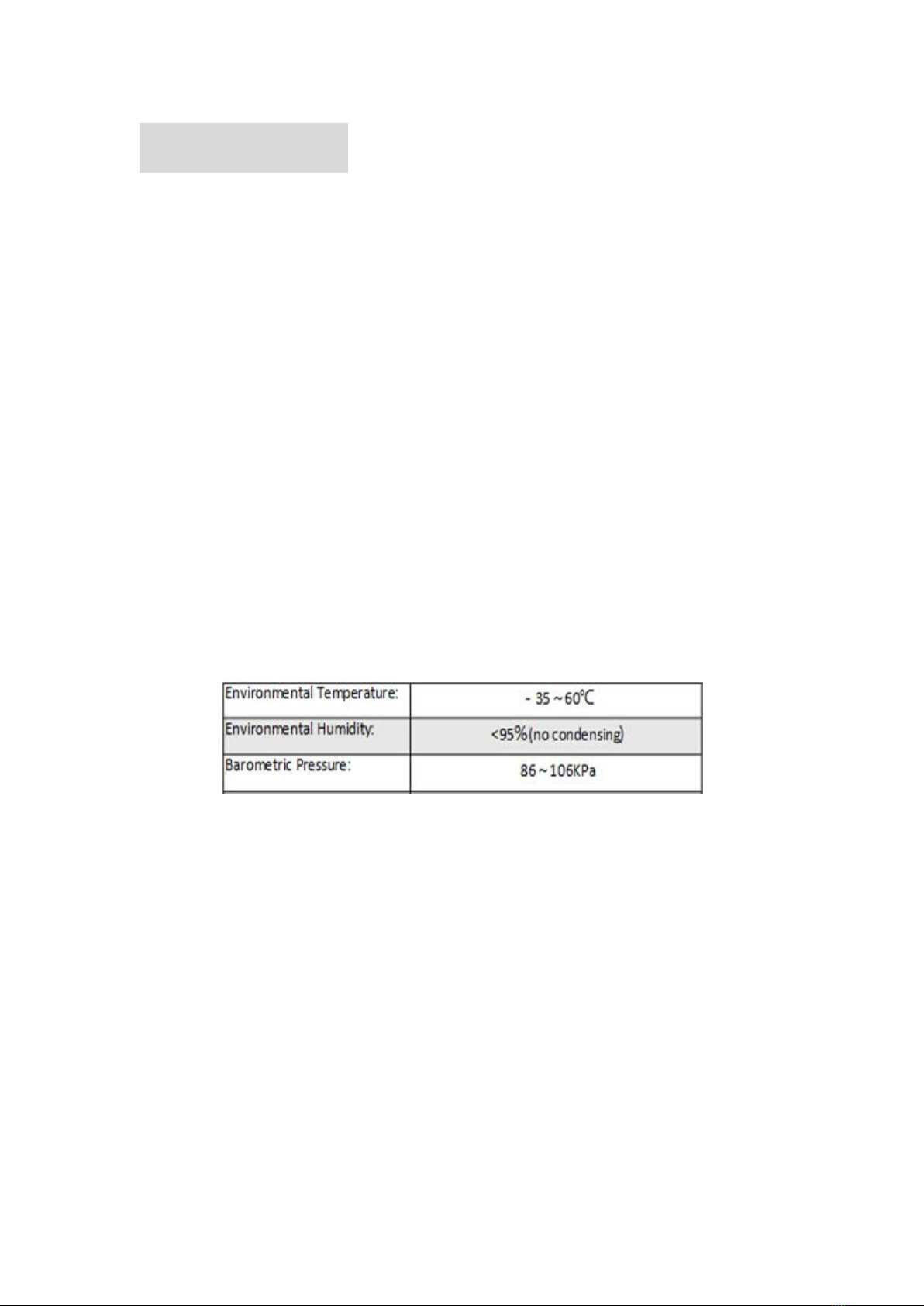

Please use our production under the following environmental standards:

1. Product Overview

1.1 Features

1.1.1 Special Features:

●PT Capabilities: The camera is equipped with Pan/Tilt motors that allow movement range of

250°pan and 80°tilt.

●Motorized Vari-Focal with auto-focus: The camera is equipped with x4/10 optical zoom

lens and features accurate auto focus algorithm.

●Double stream: The camera support dual stream video streaming for different

requirements and applications.

●Supported network protocols: Support TCP/IP, PPPoE, DDNS, FTP, UPNP & Onvif

●ROI function: ROI (Region of interest) means that the marked ROI areas will be less

compressed than other areas especially in low bitrate conditions.

●OSD function: On screen display of selected information.

●All-weather outdoor design:

IP66 Protection standard

TVS 3000V Protection standard

1.1.2 Function Introduction:

●Movement proportional to zoom: higher zoom values will automatically reduce the camera

speed while on manual control.

●Auto movement functions:

256 presets slots.

Auto scan with left/right boundaries

4 patterns

1.2 Technical Specs:

Specifications

I5PT-390IPx4/x10

Camera

Video

Effective Pixels

1080P(1920X1080)

Electronic Shutter

1/25s ~ 1/30000s

Day & Night

ICR

Min. Illumination

0lux (IR ON)


Enhancement

Image Settings

AWB, AGC Adjustable

Selectable Exposure Modes

Sharpness, Saturation, Brightness & Contrast Adjustable

WDR Range

Digital WDR

Noise Reduction

2D/3D-DNR

Image Orientation

Mirror/Flip

Motion Detection

Yes

Compression

Video Compression

H.264

Resolution

50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080)

Bit rate

32kbps-8Mbps

Encode Mode

VBR/CBR

Image Quality

Six levels under VBR; Free adjustment under CBR

Housing

Iris

Auto Iris

Water-proof

IP66

Bracket

Wall Bracket

Dimensions

153mm×93mm×130mm（L×W×H）

Weight(gross)

920g

PTZ

Optical Zoom

10X

IR Distance

50M

Pan Rotation Range

0〫~250 〫

Tilt Rotation Range

0〫~60 〫

Pan Speed

0.5〫~12 〫/s

Tilt Speed

0.5〫~10 〫/s

Preset Position

255

Connectivity

Network

RJ45

Power

DC Socket

Network

Remote Monitoring

IE Browsing

User Access

Supports simultaneous monitoring for up to 4 users

Network Protocol

TCP/IP, UDP, DHCP, RTSP, PPPoE, DDNS

ONVIF

Yes

Ethernet

100Mbps

Others

Power Supply

DC12V

Work Environment

-30℃~60℃, 10%~90% Humidity

1.4 OSD Menu operation

● Call up OSD menu

Call Preset 95 to enter the main OSD menu; call Preset 96 to close the OSD menu or

Select “Exit”

● Confirm

The “Left "and “Right "button is controlled by PTZ can change the required item, and

the changed item is the confirmed one without further confirmation. You can directly click

“Up" and “Down" button to go on your further operation. When setting the left and right

boundary for scan and pattern, you can click the “Focus Far" for confirmation.

● Cancel

The “up” and “down” button controlled by PTZ carry out the request for Further action;

meanwhile, it carries out the “Cancel” order for last operation.

2 Web Browse Operation Guide

2.1 Common Operations

Factory settings：

IP camera is a kind of network equipment, you need configure network IP address, gateway

and other information reasonably, and camera with default IP address in factory, and user could

change it according to their requirement.

Default IP address：192.168.0.99

Subnet mask：255.255.255.0

Gateway：192.168.0.1

WEB port：8000

Network parameters

Take the example of Windows XP operating system. Make sure the IP address in network

parameters of the user computer is in accordance with the one of the camera, they are in same

segment, the IP address in the same LAN cannot be the same, otherwise, it will interfere with

each other, causing the equipment couldn't operate normally.

After setting IP address, you could test whether it has been connected between the

computer and the camera by using the PING order from clicking the “start”-”run" button in the

bottom left corner. The format of the command: ping 192.168.0.99

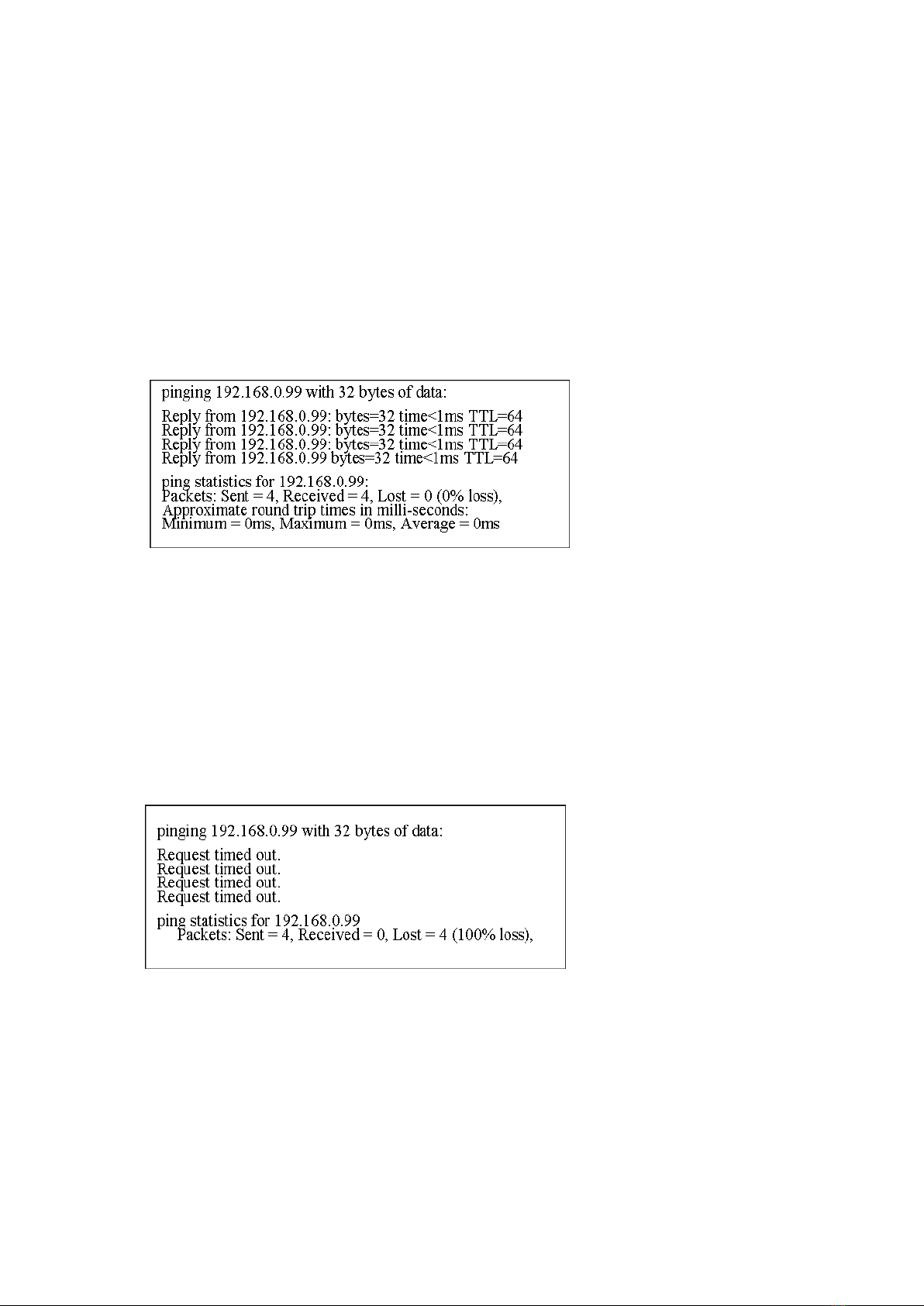

If the screen shows like this:

As the picture shown above, it indicates that it has been successfully connected between

the computer and the camera. However, if the screen shows like this:

It indicates equipment is failure to install, you could check from the following aspects:

●If hardware connection is correct

●If computer TCP/IP is in the same segment as the camera

●If network forbid ping order, please connect network administrator

2.2 Web Login

2.2.1 Login

Enter IP address (default: 192.168.0.99) to open the interface, dialog box as follows comes out:

◆user name：Admin

◆password：Admin

◆Port：Default 8000

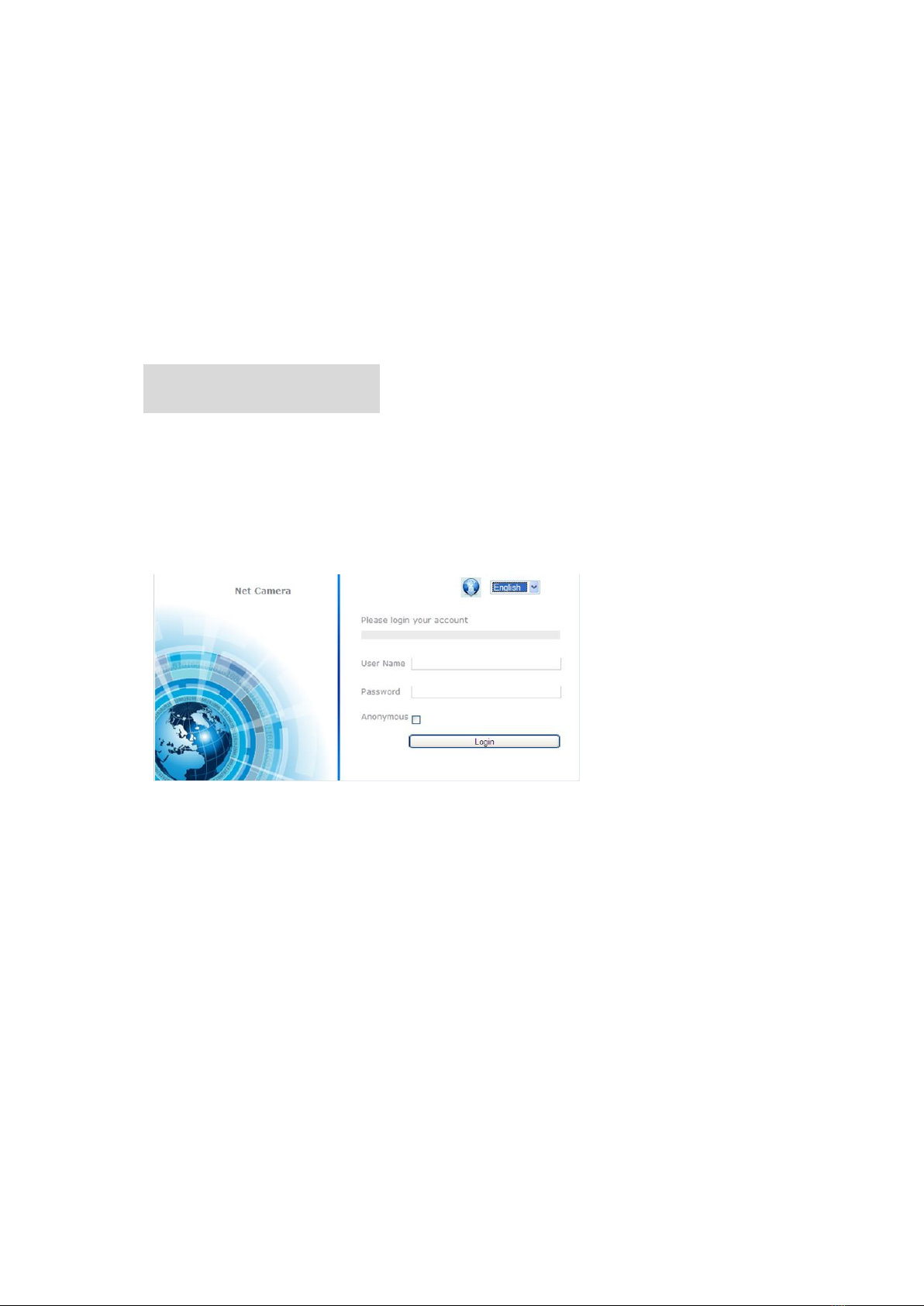

Picture 2.2.1-1 login interface

2.2.2 Download playing component

After you logged in, if the WEB browser indicates it is the first time of visiting or plug-in

reminds you of the update of the new version. （See 2.2.2-1). Double-click this plug-in and it

will remind you of the downloading process. Or you can double-click the icon at the top-right

corner of the login interface. Double-click the downloaded WebPluginInstaller.exe and start

install the playing plug-in for WEB browser, then confirm its installation as well as clicking the

“Next "button until finished. You need to return to the WEB browser screen and refresh the

display if you want to run this plug-in after installment, then you can watch the video.

The IP address again to the login screen after you have installed the plug-in and then input user

name, code, and then click the “login "button to enter the “preview "screen. See 2.2.3-1

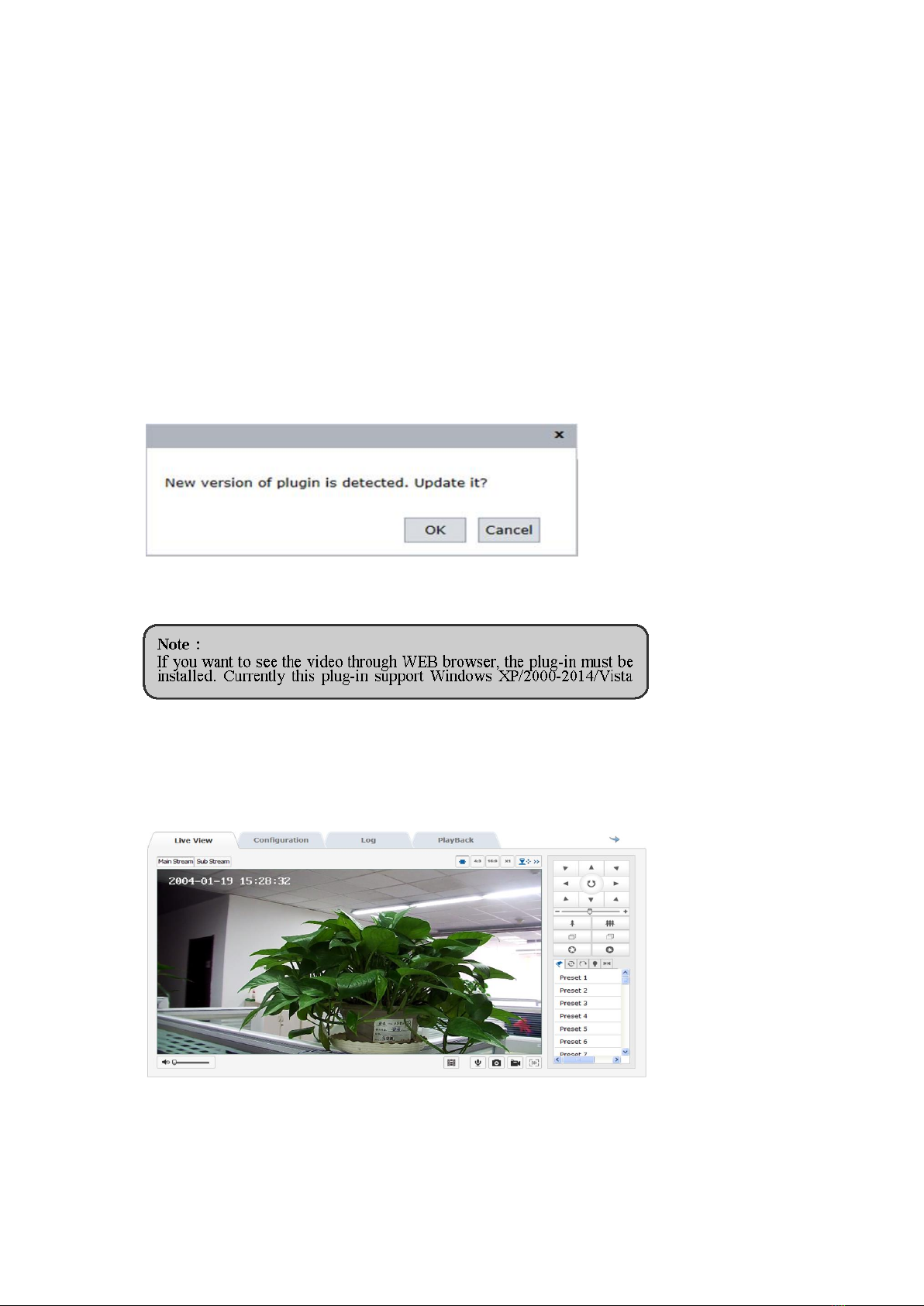

Picture 2.2.3-1 Preview screen

Picture 2.2.2-1 Plug-in installation

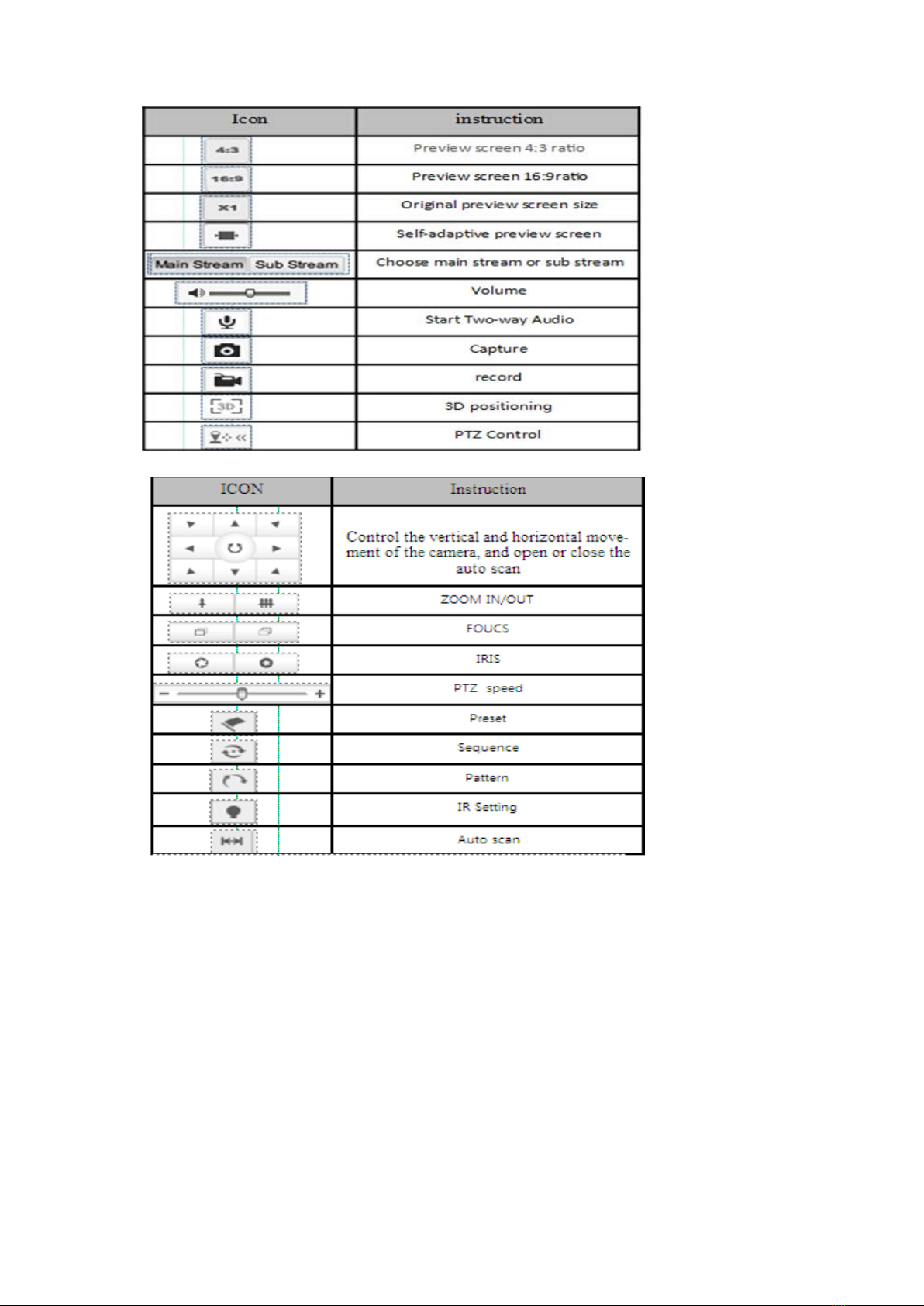

Sheet 2.2.3-3 PTZ control screen information

In the preview screen, you can control the preview, video recording, snapshot, intercom and

the on/off of the sound. The size of the image can be adjusted according to the needs of the

user to set its original size; we have “4:3””16:9”or “self-adaptation "mode. Preview code

stream can be set as “main stream” ”sub stream". See 2.2.3-2

Click “camera "can open the control screen of the camera. See 2.2.3-3

Sheet 2.2.3-2 Preview screen information
