Provision ISR PT-848 Manuel utilisateur
As Simple As It Gets!
Quick Installation Guide
PT-848
תירבעל
1
1 PnV2 App Installation Page 2
2 Registration Page 2
3 Add Camera Page 3
4 Additional Actions Page 8
Table of contents
2
Provision-ISR PnV IP Camera
Quick Installation Guide:
a. Install the free 'Provision PnV2' App on your device.
b. Open the App and register for it.
1. Click on 'Register new' or
'Quick Registration.'
2. Input the desired username and password.
Note: The username must be at least 6
characters long, and the password at least 8
characters (letters and digits.)
3.Click on 'Submit.'
Note:After registration, it is recommended
to bind an email address with the account
for password reset (if necessary.)
1 PnV2 App Installation
1Scan for
1iOS /Android
2 Registration
3
A. Camera Installation using the App's QR code
(The camera is reset and connected to power only (no network cable))
3. The camera will rotate and prompt the
message: “Wireless connection waiting.”
4. Tick the circle to conrm that the
required preparations have been completed.
5. Click on 'Next.'
1. On the home page, click the at the upper
right corner or the 'Add device' button.
Note: for this procedure to be successful,
your smartphone must be wirelessly
connected to the same network you want
the camera to connect to.
6. The WiFi network the smartphone is
connected to will be displayed. Please
ensure it is the right network before
proceeding.
7. Please enter the wireless network's
password and click 'OK.'
8. A pop-up message will ask you to
conrm the password. Click on 'Conrm it'
to continue.
2. Scan the QR code located on the side or
bottom of the camera.
3 Add Camera
4
11. Click the 'Add it' button in the pop-up
window to nish the camera installation
process.
Notes: If the QR code does not appear on the smartphone's screen on step 9, please follow
these steps:
A. return to home page.
B. Click on the at the upper right corner.
C. Click on the 'Others' icon located at the bottom of the scan page.
D. Choose the 'Scanning QR code option' and repeat steps 4-12.
9. Please place the QR code display on your
phone screen in front of the camera lens
from a distance of 15-30 cm.
12.After the camera has been added
successfully, you can start watching by
clicking the button on the home page.
10. If the scan is successful, the camera
will beep, and the App will ask to add the
camera.
5
B. Wireless Installation (supported on specic models only)
(The camera is reset and connected to power only (no network cable))
3. Click on the 'Others' icon located at the
bottom of the scan page.
4. Click the 'New sound wave' option. 5. Tick the circle to conrm that the
required preparations have been completed.
6. Click on 'Next.'
Note: for this procedure to be successful,
your smartphone must be wirelessly
connected to the same network you want
the camera to connect to.
1. The camera will rotate and prompt the
message: “Wireless connection waiting.”
2. On the home page, click the at the
upper right corner or the 'Add device'
button.
6
10. The App will transmit an encrypted
connection sound. Please ensure the mobile
phone volume is maximum and as close to
the camera as possible.
7. The WiFi network the smartphone is
connected to will be displayed. Please
ensure it is the right network before
proceeding.
8. Please enter the wireless network's
password and click 'OK.'
11. When the wireless synchronization is
nished, the App will prompt the message:
"wireless connection success."
12. Click the 'Add it' button in the pop-up
window to nish the camera installation
process.
9. A pop-up message will ask you to conrm
the password. Click on 'Conrm it' to
continue.
7
C. Camera Installation by local network search
(The camera is reset, connected to power, and to the router)
D. Manual Installation
(The camera is reset, connected to power, and to the router)
1 . On home page, click the at the upper
right corner or the 'Add device' button.
2. Click on the 'Others' icon located at the
bottom of the scan page.
3. Click the 'Add manually' option.
3. Click the 'LAN installation' option.
4. Click on 'Already connected to Ethernet
cable' at the bottom of the screen.
4. Click the and scan the QR code
located on the side or bottom of the
camera, or enter the camera's UID using
the keyboard.
5. Enter the default password: 888888
6. Click the 'OK' button to nish the
camera installation process.
5. The App will perform a search for the
camera on the network.
6. If the camera is connected correctly, the
App will locate it and ask to add it.
7. Click the 'Add it' button to nish the
camera installation process.
Note: for this procedure to be successful, your smartphone must be wirelessly connected
to the same network you want the camera to connect to.
1. On home page, click the at the upper right corner or the 'Add device' button.
2. Click on the 'Others' icon located at the bottom of the scan page.
8

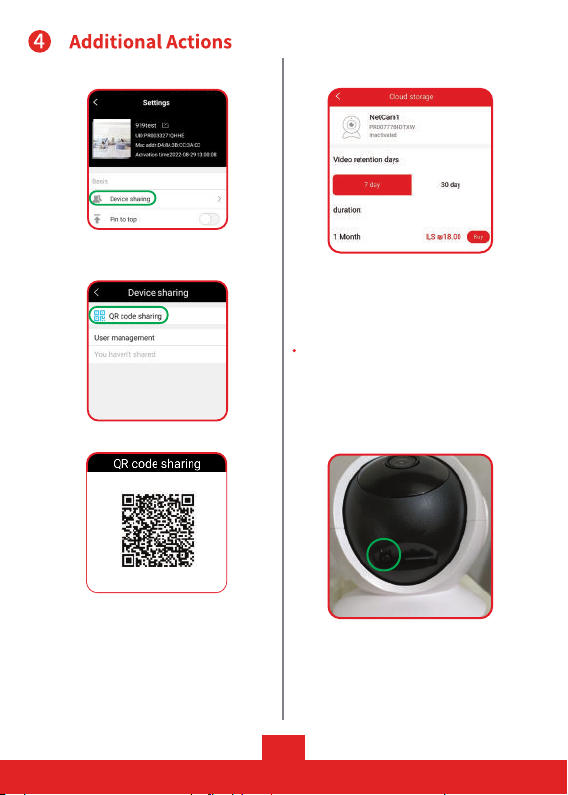

A. Camera Sharing B. Cloud Storage
C. Camera Reset
1. Click the settings (gear icon) located below
the camera image on home page.
2. Click the 'Device sharing' option.
4. Present the QR code to the user you share the
camera with. That user must scan the QR code with
the PnV2 App.
You can save the QR code as an image to your
mobile phone gallery by clicking 'Save pictures'
at the bottom of the screen and sending it to the
user with whom you share the camera.
Important:the code is dynamic and valid for about
half an hour.
5. If the camera sharing is successful, the user with
whom it is shared will be asked to add it.
3. Click on ‘QR code sharing.’
1. The camera is connected to power.
2. Turn the camera head vertically to reveal
the SD card slot and the Reset button.
3. Press the Reset button for 10 seconds or
Until you hear the message prompt: “Device
will restart.”
Click the cloud icon located below the
Camera image on the home page.
Pick the desired plan (there are two:
7-day and 30-day retentions.) Cloud
recordings are motion based only!
Note: Cloud recordings are accessible
Depending on the purchased plan, even if
The camera is unplugged or stolen.
The recordings are available if the camera
has yet to be deleted from the account.
9
Technical Support:
Website: http://pikok.co.il
Tel: 073-7500848 / WhatsApp: 050-7337235
Provision-ISR Group, 11 Atir Yeda St., Kfar Sava, 4464310
The guide is available for download at the company's website: www.pikok.co.il
