Protech PA-6610 Manuel utilisateur

USER’S

MANUAL

PA-6610

Mini POS Terminal Powered by

NVIDIA

Tegra

3 Platform

PA-6610 POS System

With LCD/Touchscreen

All trademarks and registered trademarks mentioned herein are the property of their

respective owners.

This manual is copyrighted May. 2013. You may not reproduce or transmit in any

form or by any means, electronic, or mechanical, including photocopying and

recording.

DISCLAIMER

This user’s manual is meant to assist users in installing and setting up the system. The

information contained in this document is subject to change without any notice.

CE NOTICE

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference

in which case the user will be required to correct the interference at his own expense.

You are cautioned that any change or modifications to the equipment not expressly

approve by the party responsible for compliance could void your authority to operate

such equipment.

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instructions.

WARNING! Some internal parts of the system may have high electrical voltage. And

therefore we strongly recommend that qualified engineers can open and disassemble the

system.The LCD and Touchscreen are easily breakable, please handle them with extra

care.

Contents

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION

1-1 About This Manual…...................................................................

1-2

1-2 POS System Illustration…............................................................

1-3

1-3 System Specification….................................................................

1-5

1-4 Safety Precautions…....................................................................

1-8

CHAPTER 2 SYSTEM CONFIGURATION

2-1 Jumper & Connector Quick Reference Table…...........................

2-2

2-2 How to Set the Jumpers…............................................................

2-4

2-3 Main Board Component Locations & Jumper Settings………….

2-6

2-4 Printer Board Component Locations & Jumper Settings..............

2-23

2-5 VFD Board Component Locations & Jumper Settings.................

2-28

2-6 MSR Board Component Locations & Jumper Settings................

2-31

2-7 Inverter Board Component Locations & Jumper Settings………

2-34

CHAPTER 3 SOFTWARE UTILITIES

3-1 Version List…..............................................................................

3-2

3-2 OS API………………………………..........................................

3-4

3-3 Firmware Control Command……................................................

3-18

3-4 Utility Update…………...............................................................

3-83

CHAPTER A SYSTEM DIAGRAMS

Exploded Diagram for System Top Module…………………………….

A-2

Exploded Diagram for MSR………….…………………………............

A-6

Exploded Diagram for VFD………..………………………...................

A-9

Exploded Diagram for Printer……………..……………………………

A-12

Exploded Diagram for System Bottom Module………………………...

A -17

Page:1-1

INTRODUCTION

This chapter gives you the information for the PA-6610. It also outlines

the system specifications.

Sections included:

About This Manual

POS System Illustration

System Specifications

Safety precautions

Experienced users can jump to chapter 2 on page 2-1

for a quick start.

CHAPTER

Chapter 1 Introduction

Page: 1-2 PA-6610 USER

′

S MANUAL

1-1. ABOUT THIS MANUAL

Thank you for purchasing our PA-6610 Series System. The PA-6610 is an updated

system designed to be comparable with the highest performance of IBM AT personal

computers. The PA-6610 provides faster processing speed, greater expandability and

can handle more tasks than before. This manual is designed to assist you how to install

and set up the whole system. It contains four chapters and two appendixes. Users can

configure the system according to their own needs.

Chapter 1 Introduction

This chapter introduces you to the background of this manual. It also includes

illustrations and specifications for the whole system. The final section of this chapter

indicates some safety reminders on how to take care of your system.

Chapter 2 System Configuration

This chapter outlines the location of motherboard components and their function. You

will learn how to set the jumpers and configure the system to meet your own needs.

Chapter 3 Applications & Widgets

This chapter contains information of system applications and Widgets pre-installed in

PA-6610.

Appendix A System Diagrams

This chapter shows the exploded diagrams and part numbers of PA-6610 components.

Chapter 1 Introduction

PA-6610 USER

′

S MANUAL Page: 1-3

1-2. POS SYSTEM ILLUSTRATION

Top View Bottom View

320

315

Front View Side View

160

20.5°

27.5°

Chapter 1 Introduction

Page: 1-4 PA-6610 USER

′

S MANUAL

Quarter View

10.4” LCD & Touch Screen

Power LED Ventilation Hole

VFD Customer Display

I/O Port Thermal Printer

(inside the cover)

Side I/O Rear I/O

Power USB3

button

USB2

USB1 LAN VGA DWR COM1

COM2

DC IN

Unit: mm

Ventilation Hole

Angle Adjustor Foot

Power Button & Side USB

(inside the shield)

MSR Slide Hole

Open Button of Printer Door

Chapter 1 Introduction

PA-6610 USER

′

S MANUAL Page: 1-5

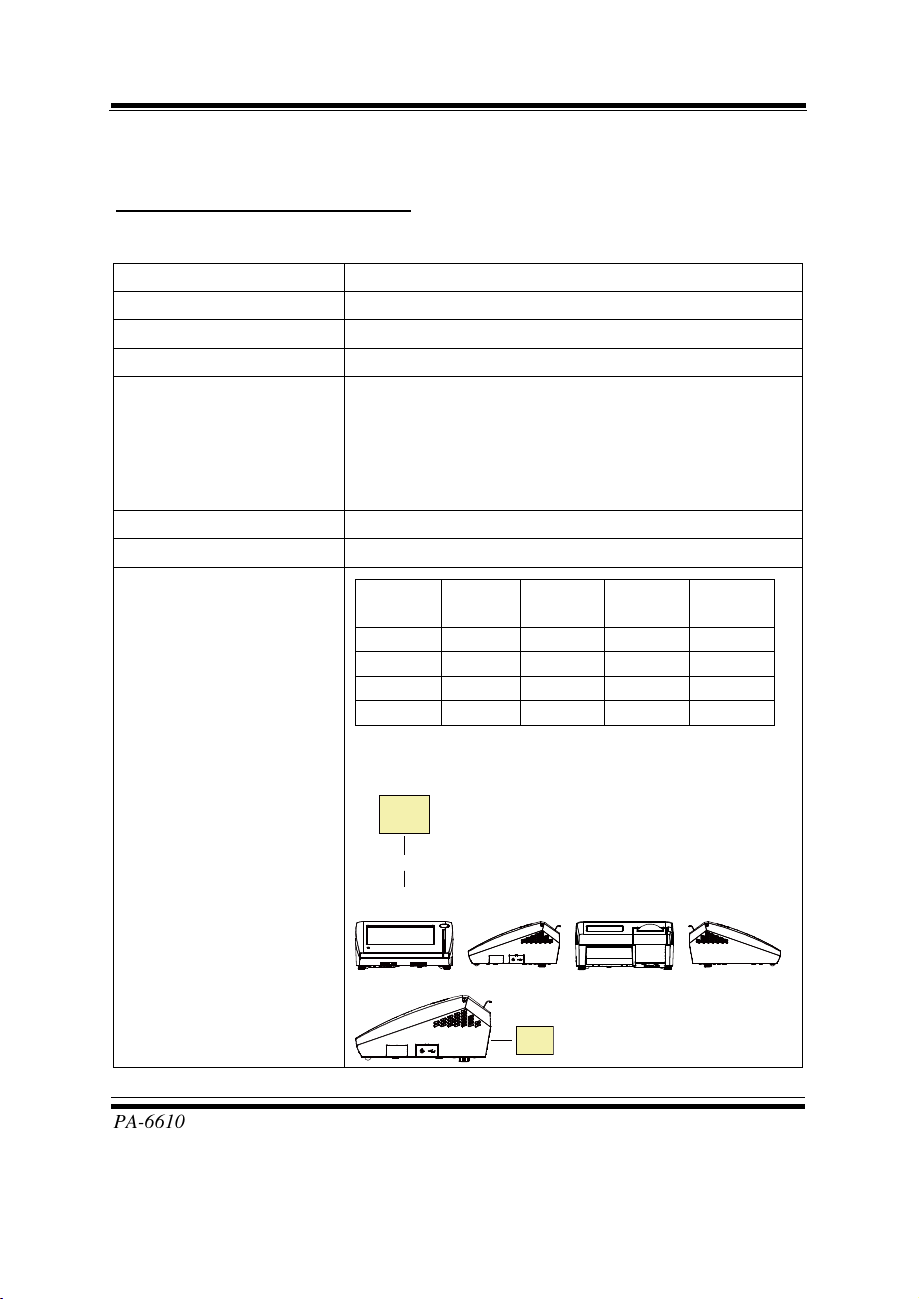

1-3. SYSTEM SPECIFICATIONS

MAINBOARD (PB-6810-G0A)

System

CPU NVIDIA

Tegra

Memory DDR3 1GB

OS Support Android 4.1

Power Supply 72 Watt power adapter

Power Consumption System off: 2.2W

System idle: 17.6W (Panel backlight is on)

System running: 29.7W (Printer+ VFD + MSR)

System full-loading: 46.2W (Printer + VFD + MSR

+ USB + COM)

Flash eMMC 8GB

SD Standard SDHC (up to 32GB)

Wireless LAN Signal

distance

0˚ 90˚ 180 270

1M -26 dBm

-42 dBm

-25 dBm

-39 dBm

3M -45 dBm

-37 dBm

-45 dBm

-47 dBm

5M -51 dBm

-46 dBm

-49 dBm

-54 dBm

10M -61 dBm

-53 dBm

-56 dBm

-55 dBm

The above data are tested from the configuration of

AP & POS system as follows (both are lain flat).

Angle: 0°

(Distance)

Angle: 180°Angle: 90°

Angle: 270°

Chapter 1 Introduction

Page: 1-6 PA-6610 USER

′

S MANUAL

VFD 20 columns & 2 lines.

Each column allows 5x7 dots 1

character to 20

character speed: 360mm/sec.

MSR JIS I & II; ISO I & II & III tracks, support i-Button

reader.

Printer 2”/3” thermal printer with auto-cutter.

2” speed: 200mm/sec.

3” speed: 170mm/sec.

Color Top: white/deep grey

Bottom: deep grey

System Weight Without power adapter: 5 kg

With power adapter: 6 kg

Dimension (W x H x D) 315mm x 320mm x 160mm

Certificate FCC/CE/LVD

I/O Ports

Serial Port 1 x DB-9 (COM2)

1 x RJ45 (COM1), supports embedded VFD

3 x Wafer on board:

- Co-lay COM2

- COM4 supports embedded printer

- COM5 supports embedded MSR

5/12V Selectable (COM1/2/5)

USB 2 x USB2.0 (1 x USB Type A; 1 x Micro USB)

1 x USB2.0 on side bezel (USB Type A)

LAN 1 x 10/100 Mbps

VGA 1 x DB-15 VGA Interface

Display

LCD 10.4” TFT XGA

Max. Resolution 1024 x 768

Brightness Average: 180 cd/m

Point 3: 200 cd/m
