ProLights STARKBLADE8 Manuel utilisateur

MANUALE UTENTE

USER MANUAL

IT - EN

MOVING HEAD

STARKBLADE8

reproduced in any form or by any means for any commercial use.

In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the

characteristics stated in this instruction manual at any time and without prior notice.

All revisions and updates are available in the ‘manuals’section on site www.musiclights.it

REV.03-04/18 - FW V1.2.00

STARKBLADE8

Packing content • STARKBLADE8

• Mount bracket

• User manual

TABLE OF CONTENTS Safety

General instructions

Warnings and installation precautions

1 Introduction

1. 1 Description

1. 2 Technical specications

1. 3 Operating elements and connections

2 Installation

2. 1 Mounting

3 Functions and settings

3. 1 Operation

3. 2 Basic

3. 3 Menu structure

3. 4 Linking

3. 5 DMX mode

3. 6 DMX conguration

3. 7 DMX addressing

3. 8 DMX control

3. 9 Wireless control settings

3. 10 Display settings

3. 11 Special functions

3. 12 Fixture settings

3. 13 Lamp settings

3. 14 Fixture information

3. 15 Operation in automatic mode

3. 16 Slave Receive mode

3. 17 Scenes Record mode

3. 18 Music mode

3. 19 Sensitivity microphone

3. 20 Connection of the DMX line

3. 21 Construction of the DMX termination

4 Maintenance

4. 1 Maintenance and cleaning the unit

4. 2 Fuse replacement

4. 3 Trouble shooting

STARKBLADE8

WARNING! Before carrying out any operations with the unit, carefully read this instruction

manual and keep it with cure for future reference. It contains important information about

the installation, usage and maintenance of the unit.

SAFETY

General instruction

• The products referred to in this manual conform to the European Community Directives and are there-

fore marked with .

• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.

Never make any modications on the unit not described in this instruction manual, otherwise you will

risk an electric shock.

• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-

cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units

from indirect contact and/or shorting to earth by using appropriately sized residual current devices.

• The connection to the main network of electric distribution must be carried out by a qualied electrical

installer. Check that the main frequency and voltage correspond to those for which the unit is designed

as given on the electrical data label.

• This unit is not for home use, only professional applications.

• Never use the xture under the following conditions:

- in places wet;

- in places subject to vibrations or bumps;

- in places with an ambient temperature of over 45°C.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Do not dismantle or modify the xture.

• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for

an inspection or contact the manufacturer directly.

• If the unit is to be put out of operation denitively, take it to a local recycling

plant for a disposal which is not harmful to the environment.

Warnings and installation precautions

• If this device will be operated in any way dierent to the one described in this manual, it may suer

damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like

short circuit, burns, electric shock, etc.

• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.

• Always additionally secure the projector with the safety rope.When carrying out any work, always com-

ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country

in which the xture’s being used.

• For inside use only. Not designed for outside use.

• The minimum distance between the xture and surrounding walls must be more than 50 cm and the

air vents at the housing must not be covered in any case.

• Install the xture in a well ventilated place.

• Keep any inammable material at a safe distance from the xture.

• The maximum temperature that can be reached on the external surface of the tting, in a thermally

steady state, is high. After power o, please cool down over 15 minutes.

• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent

that their eectiveness is impaired.

• The lamp (LED) shall be changed if it has become damaged or thermally deformed.

• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may

trigger epileptic seizures in photosensitive persons or persons with epilepsy.

STARKBLADE8

- 1 - INTRODUCTION

1.1 DESCRIPTION

STARKBLADE is a moving batten luminaire designed to deliver a powerful, zoomable “blade” of beams.

Each of the 40W Osram Ostar RGBW LED pixels are individually controllable, and completely consistent

with the rest of the STARK family.

1.2 TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 8x40W RGBW Osram Ostar LED

• CT: Tunable 2000K~10000K

• Lux: (3°) 36391 lux - (45°) 3113lux @3m Full

• Source Life Expectancy: >50.000 h

OPTICS

• Zoom: 3°-45° Motorised linear zoom

• Lens Diameter: Square 50x50mm

• Lens Type: HQ glass lens optics

COLOR SYSTEM

• Color Mixing: RGBW/FC

• White Presets: 2000~10000K

• Color Wheel: Virtual color wheel with presets

• Macros: Several pre-build pixel macros with adjustable speed

DYNAMIC EFFECTS

• Pixel Patterns: Preprogrammed dynamic and static patterns

• FX Generator: Adjustable foreground/background color, index, speed, direction

• Static Color Mode: Selection of static color

• Manual Color Mode: Manual adjustment of color

BODY

• Pan Angle: 540/630° with 360° continuous rotation

• Tilt Angle: 360° with 360° continuous rotation

• Pan/Tilt Resolution: 16 bit

• Feedback: Automatic repositioning after accidental movement

• Body: Aluminium structure with hi-resistance polycarbonate cover

• Body Color: Black

CONTROL

• Protocols: DMX512, RDM, Art-Net

• Pixel Control: Pixel2Pixel control

• W-DMX: Included, Wireless Solution receiver

• RDM: RDM ready for xture remote monitor and settings

• Display: LCD high resolution color display with autoip

• Firmware Upgrade: Via menu with internal memory or via USB-DMX interface (UPBOX2) not included

• Hibernation: Power Safe Mode when lost DMX

• Master/Slave: for synchronized operation of more units linked in a chain

STARKBLADE8

Fig.1

ELECTRONICS

• Dimmer: Linear 0~100% electronic dimmer

• Dimmer Curves: Dierent dimming curves available

• Strobe/Shutter: 1-25 Hz, electronic

• Battery Backup: Battery backup for user operation without connecting to the main power

• Operating Temperature: -10° ~ +45°

• Flicker: Flicker free operation

ELECTRICAL

• Power Supply: 100-240V – 50/60Hz

• Power Consumption (at 230V): 310W

• Power Consumption (at 120V): 310W

PHYSICAL

• Cooling: Combination of heat pipe cooling system and low noise fan

• Suspension And Fixing: Any position with“quick-lock” omega brackets

• Signal Connection: 5p in/out, RJ45 in/out

• Power Connection: PowerCON TRUE1 in

• IP: 20

• Dimensions (WxHxD): 560x433x206mm

• Weight: 12kg

560mm

22,04in

470mm

18,5in

387mm

15,23in

200mm

7,86in

433mm

17,04in

206mm

8,11in

Technical drawing Fig.1

STARKBLADE8

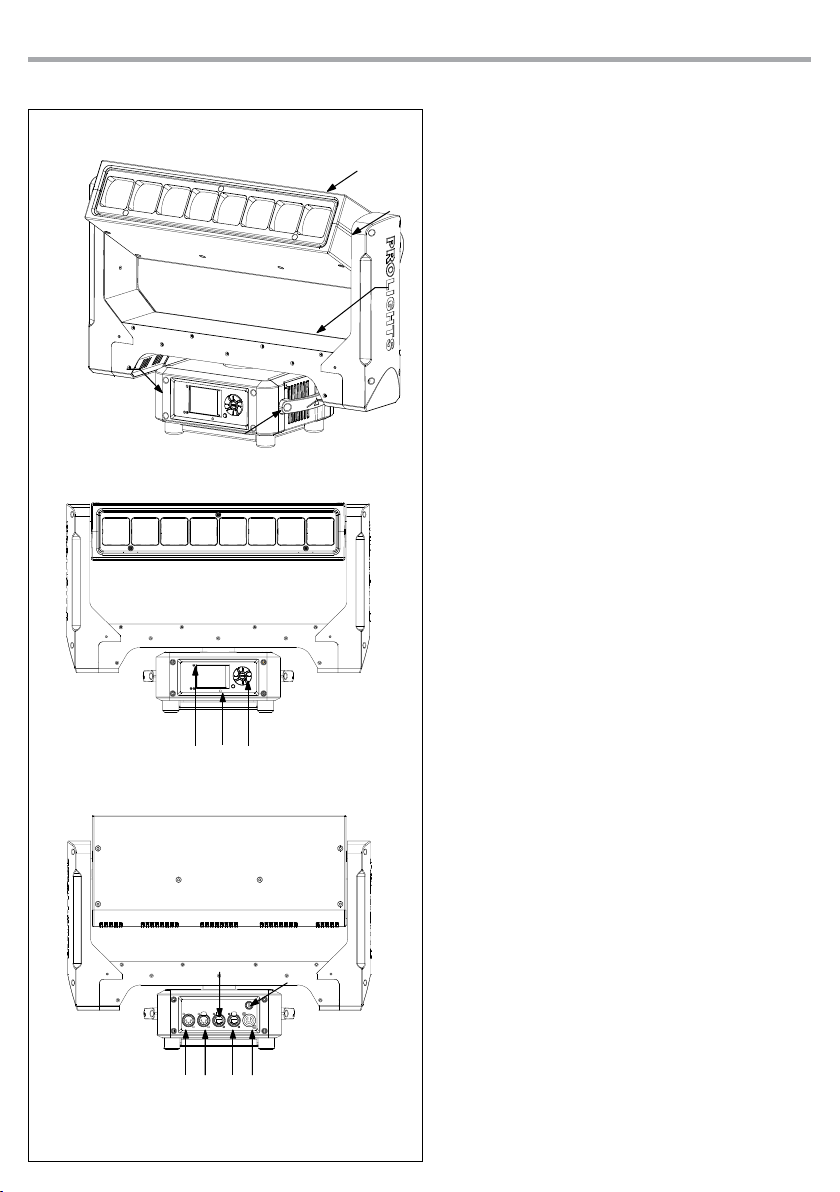

1.3 OPERATING ELEMENTS AND CONNECTIONS

Fig.3

1. LED BAR

2. ROTARY ARM

3. HANDLE

4. LED INDICATOR "WDMX"

5. MICROPHONE

6. CONTROL PANEL with LCD display and 5

button used to access the control panel

functions and manage them.

7. DMX IN (5-pole XLR): 1 = ground, 2 = DMX-, 3

= DMX+, 4 N/C, 5 N/C

8. DMX OUT (XLR a 5 poli): 1= massa, 2 = DMX -,

3 = DMX +, 4 N/C, 5 N/C

9. EtherCON connector Signal IN/OUT

10. EtherCON connector Signal IN/OUT

11. POWER IN (PowerCON IN): for connection to a

socket (100-240V~/50-60Hz) via the supplied

12. MAIN FUSE HOLDER: replace a burnt-out fuse

by one of the same type onlymains cable.

564

10 117 8

View B

View A

STARKBLADE8

2.1 MOUNTING

The may be set up on a solid and even surface. By means of the xing facilities of the baseplate, the

unit can also be mounted upside down to a cross arm. The base plate is shown in g.3. For xing, stable

mounting clips are required. According to the gure, the bolts of the brackets are placed into the openings

provided in the base plate and turned clockwise until they lock (to the stop). Always ensure that the unit

is rmly xed to avoid vibration and slipping while operating. The mounting place must be of sucient

stability and be able to support a weight of 10 times of the unit’s weight. When carrying out any installa-

tion, always comply scrupulously with all the regulations (particularly regarding safety) currently in force

in the country in which the xture’s being used. Always additionally secure the projector with the safety

rope from falling down. For this purpose, fasten the safety rope at a suitable position so that the maximum

fall of the projector will be 20 cm.

Fig.3

ALISCAFF

CLAMP

SAFETY

CABLE

OMEGA

BRACKETS

- 2 - INSTALLATION

STARKBLADE8

- 3 - FUNCTIONS AND SETTINGS

3.1 OPERATION

Connect the supplied main cable to a socket (100-240V~/50-60Hz). The unit will run built-in program to re-

set all motors to their home position. Shortly after that the STARKBLADE8 is ready for operation. To switch

o, disconnect the mains plug from the socket. For a more convenient operation it is recommended to

connect the unit to a socket which can be switched on and o via light switch.

3.2 BASIC

The STARKBLADE8 has a LCD display and 5 button used to access the control panel functions and manage

them (g.4).

Fig.4 - Functions of the buttons and display icons

LEFT RIGHT UP DOWN ENTER BATTERY

Return to the top

level

Commute from

units, tens, hundred

in the menu

Increases the value

displayed or passes

to the previous item

in a menu

Decreases the value

displayed or passes

to the next item in

the menu

Conrms the

displayed value,

or activates the

displayed function,

or enters the

successive menu

Used to activate the

backup battery. It

allows to switching

display interface

without main power

CONNECT LIGHT INFORMATION SET PROGRAM

STARKBLADE8

3.3 MENU STRUCTURE

1CONNECT ðAddress ðDMX ðValue (1-512)

W-DMX ðValue (1-512)

Artnet ðValue (1-512)

DMX Mode ðMode ðWASH / FX / PIXFX

Edit User ðMax Channel/Control// Fine/Tilt/...

Wireless ðDMX Out ðON/OFF

Reset Connect ðYES/NO

Ethernet ðDMX Out ðON/OFF

IP Address ð2.XX.XX.01

IP Mask ð255.0.0.0

Universe ð00000

RDM ID ðName ðFixture ID Name

Mode ðMode1 / Mode2

Password ð050 (unlocks the following settings)

PID Code ð00001

2SET UP ðTemperature ðTemperature C/F ðCelsius/Fahrenheit

Max Temperature ðValue (60°-139° C)

Movement ðPan Reverse ðYES/NO

Tilt Reverse ðYES/NO

Pan degree ðYES/NO

Tilt Feedbacks ðYES/NO

Tilt Mode ðStandard/Smooth

Screen ðBacklight ðAlways On/Min (01-99)

Flip Display ðYES/NO/AUTO

Display Bright ðValue (00-31)

Key Lock ðON/OFF

Language ðEN/FR/SP...

Fixture ðFans Mode ðAuto Speed/High Speed

No Signal ðClose/Hold/Auto/Music

Hibernation ðDisable/Min (01-99)

Theater Mode ðYES/NO

Frequency ð600Hz ...(1200Hz)

Adjust ðControl,Pan,Pan Fine,

Tilt, Tilt Fine, Tilt Speed,

Shutter, Dimmer, Dimmer

Fade, [...]

ðValue (000-255) for each function

Table des matières

Autres manuels ProLights Matériel de DJ

ProLights

ProLights Chromatrix Manuel utilisateur

ProLights

ProLights CROMOSPOT400 Manuel utilisateur

ProLights

ProLights PHYRO600SNOW Manuel utilisateur

ProLights

ProLights SmartBat Wash Manuel utilisateur

ProLights

ProLights EclSoft LinearIP Manuel utilisateur

ProLights

ProLights LEDPINSPOT Manuel utilisateur

ProLights

ProLights Tribe LUMIPIX12UQPRO Manuel utilisateur

ProLights

ProLights LUMIPAR12UQ Manuel utilisateur

ProLights

ProLights ARCLED1107UV Manuel utilisateur

ProLights

ProLights ARCPOD27Q Manuel utilisateur

ProLights

ProLights STARK1000 Manuel utilisateur

ProLights

ProLights 6BEAMQ Manuel utilisateur

ProLights

ProLights RADIONSTR Manuel utilisateur

ProLights

ProLights Eclipse FC Manuel utilisateur

ProLights

ProLights PINSPOT Manuel utilisateur

ProLights

ProLights SMARTOWER Manuel utilisateur

ProLights

ProLights SMARTTUBE32 Manuel utilisateur

ProLights

ProLights VERSAPAR PARLED ZOOM Manuel utilisateur

ProLights

ProLights LUMIPAR12UQPRO Manuel utilisateur

ProLights

ProLights SOLAR27Q Manuel utilisateur

ProLights

ProLights LUMIPIX 12QIP Manuel utilisateur

ProLights

ProLights CONFETTIGUNNER Manuel utilisateur

ProLights

ProLights DISPLAYCOBFC Manuel utilisateur

ProLights

ProLights EMERALD Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
