ProLights SMARTOWER Manuel utilisateur

USER MANUAL

MANUALE UTENTE

SMARTOWER

SMARTOWERPACK

LED BATTERY LIGHTING

EN - IT

reproduced in any form or by any means for any commercial use.

In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the

characteristics stated in this instruction manual at any time and without prior notice.

All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it

REV. 01-05/19

SMARTOWER - SMARTOWERPACK

TABLE OF CONTENTS Safety

General instructions

Warnings and installation precautions

1 Introduction

1. 1 Description

1. 2 Technical specifications

1. 3 SMARTOWERPACK (optional)

1. 4 Operating elements and connections

2 Installation

2. 1 Mounting

3 Functions and settings

3. 1 Operation

3. 2 Basic

3. 3 Recharge Process

3. 4 Menu structure

3. 5 DMX configuration

3. 6 DMX mode

3. 7 Display settings

3. 8 WIFI function

3. 9 Controller IR

3. 10 Fixture information

3. 11 Presents

3. 12 Auto

3. 13 Pattern

3. 14 Manual mode

3. 15 DMX Control

Battery Guide

Packing content

SMARTOWER:

• SMARTOWER

• M10 ring for security

cable

• Single charger

• IR controller

• User manual

SMARTOWERPACK:

• 6 pz SMARTOWER

• Flight case with integrated battery

charger kit

• IR controller

• PowerCON power cable

• User manual

SMARTOWER - SMARTOWERPACK

WARNING! Before carrying out any operations with the unit, carefully read this instruction

manual and keep it with cure for future reference. It contains important information about

the installation, usage and maintenance of the unit.

SAFETY

General instruction

• The products referred to in this manual conform to the European Community Directives and are there-

fore marked with .

• The unit is supplied with hazardous network voltage. Leave servicing to skilled personnel only. Never

make any modiﬁcations on the unit not described in this instruction manual, otherwise you will risk an

electric shock.

• Connection must be made to a power supply system ﬁtted with eﬃcient earthing (Class I appliance ac-

cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units

from indirect contact and/or shorting to earth by using appropriately sized residual current devices.

• The connection to the main network of electric distribution must be carried out by a qualiﬁed electrical

installer. Check that the main frequency and voltage correspond to those for which the unit is designed

as given on the electrical data label.

• This unit is not for home use, only professional applications.

• Never use the ﬁxture under the following conditions:

- in places subject to vibrations or bumps;

- in places with an ambient temperature of over 40°C.

• Make certain that no inﬂammable liquids, water or metal objects enter the ﬁxture.

• Do not dismantle or modify the ﬁxture.

• All work must always be carried out by qualiﬁed technical personnel. Contact the nearest sales point for

an inspection or contact the manufacturer directly.

• If the unit is to be put out of operation deﬁnitively, take it to a local recycling

plant for a disposal which is not harmful to the environment.

Warnings and installation precautions

• If this device will be operated in any way diﬀerent to the one described in this manual, it may suﬀer

damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like

short circuit, burns, electric shock, etc.

• Before starting any maintenance work or cleaning the projector, cut oﬀ power from the main supply.

• Always additionally secure the projector with the safety rope.When carrying out any work, always com-

ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country

in which the ﬁxture’s being used.

• Install the ﬁxture in a well ventilated place.

• Keep any inﬂammable material at a safe distance from the ﬁxture.

• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent

that their eﬀectiveness is impaired.

• The lamp (LED) shall be changed if it has become damaged or thermally deformed.

• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ﬂashing light, may

trigger epileptic seizures in photosensitive persons or persons with epilepsy.

• Do not touch the product’s housing when operating because it may be very hot. After power oﬀ, please

cool down over 15 minutes.

• This product was designed and built strictly for the use indicated in this documentation. Any other use,

not expressly indicated here, could compromise the good condition/operation of the product and/or

be a source of danger.

• We decline any liability deriving from improper use of the product.

SMARTOWER - SMARTOWERPACK

- 1 - INTRODUCTION

1.1 DESCRIPTION

SMARTOWER is a new concept of outdoor portable pixel and decor luminaire, featuring a full cable-free

operation and delivering a multitude of visual eﬀects projecting a full 360°. SMARTOWER consists of a

vertical tubular housing with pixel battens on 4 sides delivering both colourful accent lighting as well

as eye-catching visual eﬀects through the many built-in pixel macros which can be easily individually

customised. The unit is waterproof and equipped with on-board Wireless DMX and can be used anywhere

from corporate events and weddings right through to showrooms.

1.2 TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Light source: 360° projection with 4 pcs strips of 60x0.2W RGB/FC LEDs working together

• Source: 4x60x0.2W RGB/FC LED

COLOUR SYSTEM

• Colour mixing: RGB/FC

• CTC: CTC control through independent DMX channel

• White presets: linear change from 2600K to 10000K

• Colour wheel: virtual colour wheel with presets

• Macros: several pre-build pixel macros with adjustable speed

DYNAMIC EFFECTS

• Pixel patterns: pre-programmed dynamic and static patterns

• FX generator: adjustable foreground/background colour, index, speed, direction

• Static colour mode: selection of static colour

• Manual colour mode: manual adjustment of dimmer and strobe

• Auto mode: built-in programs with execution speed adjustment

BODY

• Hardware on-board: ﬁxture for independent use, adjustable height of the base

• Body: sturdy die-cast aluminium body conceived for long-time durability

• Body colour: black with white wash strips

• Other: Stand-up usable as accessorie for increase height of installation

CONTROL

• Control units: WDMX

• Protocols: DMX512

• DMX channels: 8 / 15 / 18channel

• Pixel control: 4 pcs strips pixel2pixel controllable all together

• W-DMX: included, wireless solution receiver

• Display: black OLED high resolution display

• Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included

• Hibernation: power safe mode when lost DMX

• IR: infrared sensor controlled by remote

ELECTRONICS

• Dimmer: linear 0~100% electronic dimmer

• Strobe / shutter: 1-25 Hz, electronic

SMARTOWER - SMARTOWERPACK

• Operating temperature: -20° ~ +40°

• Flicker: ﬂicker free operation

BATTERY

• Battery: 14.8V Lithium batteryV

• Estimated battery life in colour change mode up to: 12h

• Estimated battery life in single colour mode up to: 18h

• Estimated battery life in full-mode up to: 6h

• Re-charge time: 6h/max

• Battery status: shown on display

• Other: recharge available throught fast recharge adaptor available under the base

PHYSICAL

• Cooling: natural cooling of the peculiar chassis and to absence of fans

• Sospension and ﬁxing: M10 threaded insert for easy clamp installation

• Adaptors: fast recharge adaptor available under the base

• Signal connection: WDMX

• Power connection: Adaptor base with external charger

• IP rating: 65 for temporary outdoor application, not for ﬁxed installation

• Dimensions (WxHxD): 119x632x119mm

• Weight: 6kg

Technicaldrawing Fig.1

632

Ø119

SMARTOWER - SMARTOWERPACK

1.3 SMARTOWERPACK (optional)

The pack includes:

• 6 pcs SMARTOWER

• 1 Flight case with integrated battery charger kit

• 1 IR controller

• 1 PowerCON power cable

NOTE

Always charge with

ﬂight-case open

671

600 600

117

788

Fig.2

Technical drawing

SMARTOWER - SMARTOWERPACK

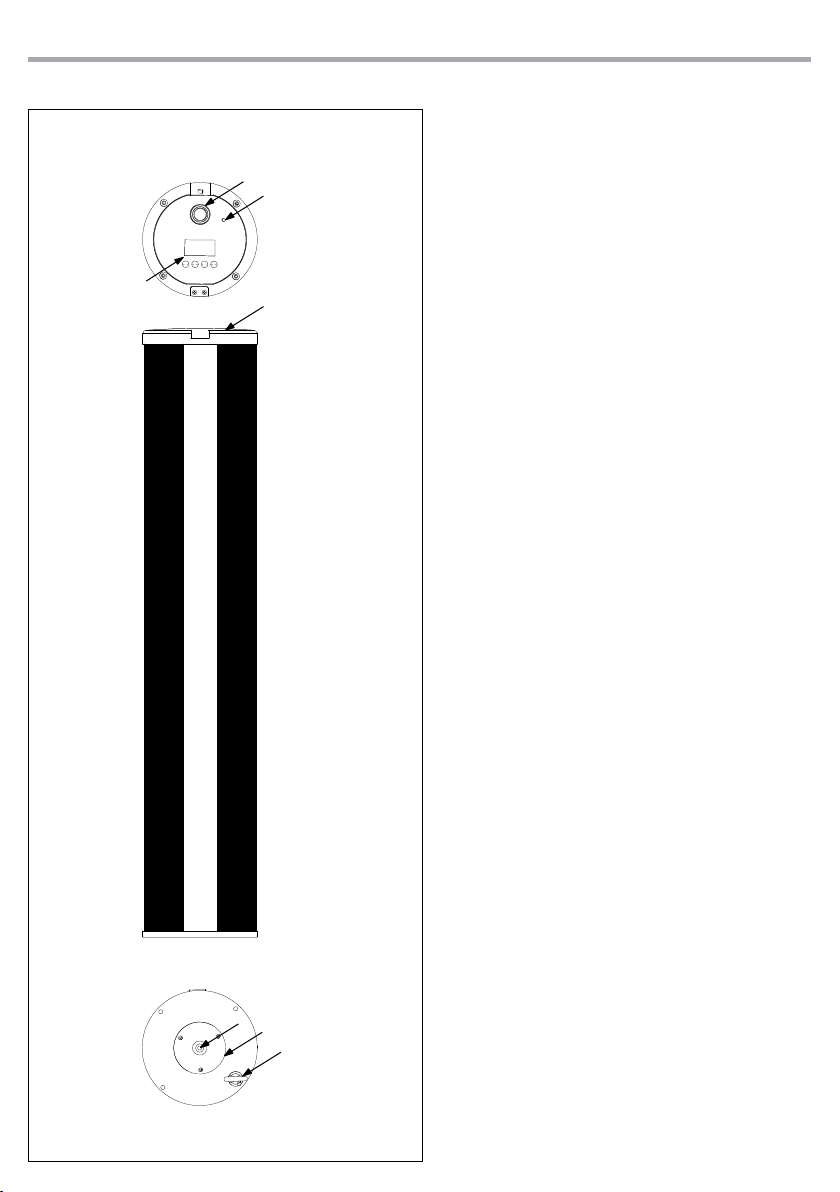

1.4 OPERATING ELEMENTS AND CONNECTIONS

Fig.3

1. ON/OFF SWITCH

2. IR RECEIVER SIGNAL

3. CONTROL PANEL with LCD display and 4

button used to access the control panel

functions and manage them.

4. TOP COVER

5. HOLE for tripode stand.

6. Base for recharge operations through

magnetic charge in case.

7. HOLE for secutity cable.

SMARTOWER - SMARTOWERPACK

1005 mm

39.57 in

1610 mm

63.38 in

CLAMP

SECURITY

CABLE

2.1 MOUNTING

The SMARTOWER can be placed on a solid plane. Moreover, thanks to the (optional) extendable stand,

it can exceed a height of 1.6m (ﬁg.4). As you can see in the illustration, you have to insert the coupling

system in the appropriate seat of the plate where it is locked with a clockwise rotation (until the stop).

Always ensure that the unit is ﬁrmly ﬁxed to avoid vibration and slipping while operating. The mounting

place must be of suﬃcient stability and be able to support a weight of 10 times of the unit’s weight. When

carrying out any installation, always comply scrupulously with all the regulations (particularly regarding

safety) currently in force in the country in which the ﬁxture’s being used.

- 2 - INSTALLATION

Fig.4

SMARTOWER - SMARTOWERPACK

- 3 - FUNCTIONS AND SETTINGS

3.1 OPERATION

Switch on the SMARTOWER with the power switch.The unit is ready for operation and can be operated via

a DMX controller or it independently performs its show program in succession.

After operation, switch oﬀ the unit with the power switch.

3.2 BASIC

The SMARTOWER has a OLED display and 4 button used to access the control panel functions and manage

them (ﬁg.5).

3.3 RECHARGE PROCESS

To recharge the SMARTOWER, use the Flight-case or use the IP connector for the quick magnetic charger.

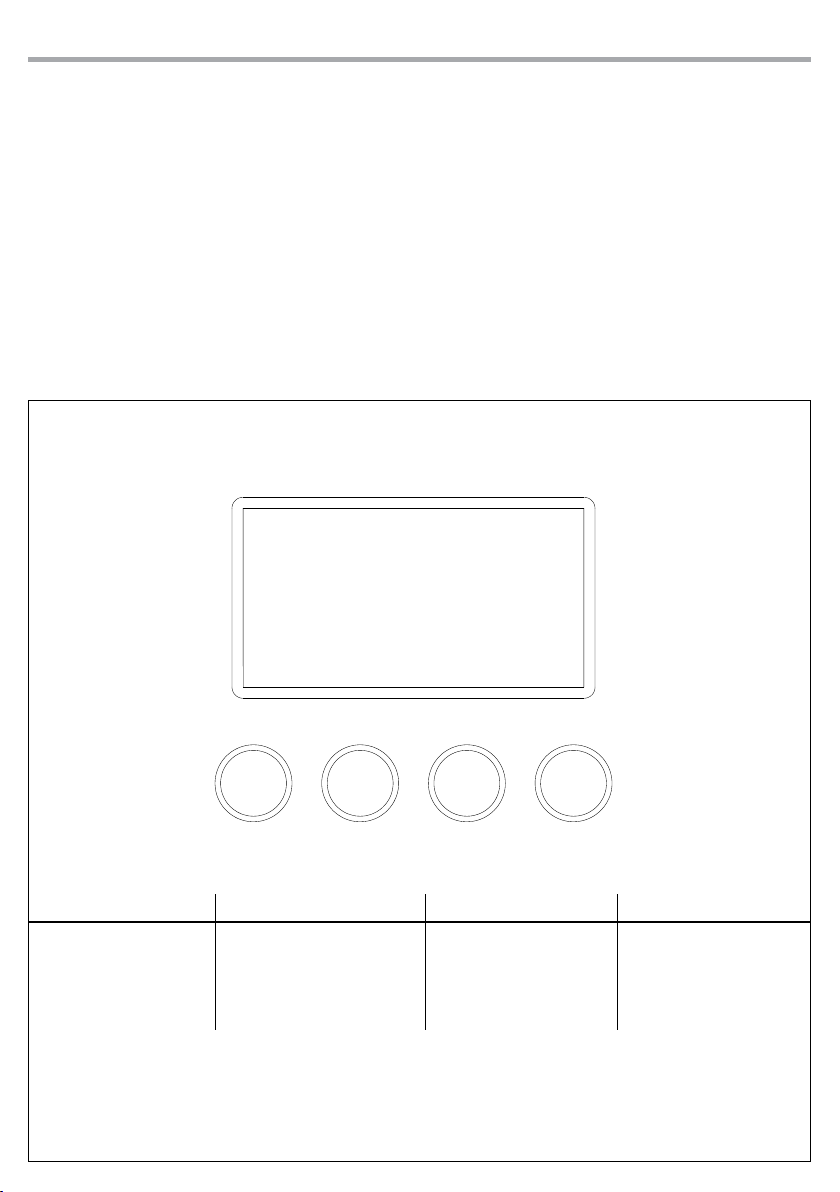

Fig.5 - Functions of the buttons

MODE / ESC UP DOWN ENTER

Used to access the menu or

to return a previous menu

option

Navigates downwards through

the menu list and increases

the numeric value when in a

function

Navigates upwards through

the menu list and decreases

the numeric value when in

a function

Used to select and store the

current menu or confirm the

current function value or

option within a menu

MODE

/ ESC

UP DOWN ENTER
