ProLights PIXIEWASHXB Manuel utilisateur

USER MANUAL

MANUALE UTENTE

PIXIEWASHXB

WASH MOVING HEAD

EN - IT

reproduced in any form or by any means for any commercial use.

In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the

characteristics stated in this instruction manual at any time and without prior notice.

All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it

REV. 02-05/19

PIXIEWASHXB

• PIXIEWASHXB

• OS24 (2 pcs)

• Power cable

• Safety cable

• User manual

Packing content

TABLE OF CONTENTS Safety

General instructions

Warnings and installation precautions

1 Introduction

1. 1 Description

1. 2 Technical specifications

1. 3 Operating elements and connections

2 Installation

2. 1 Mounting

3 Functions and settings

3. 1 Operation

3. 2 Basic

3. 3 Menu structure

3. 4 DMX addressing

3. 5 DMX configuration

3. 6 Wireless settings

3. 7 Ethernet

3. 8 Movement

3. 9 Screen

3. 10 Fixture settings

3. 11 Auto test

3. 12 Manual test

3. 13 Advanced

3. 14 Information on the device

3. 15 Dmx view

3. 16 DMX channels

3. 17 Construction of the DMX termination

3. 18 Connection of the DMX line

4 Maintenance

4. 1 Maintenance and cleaning the unit

4. 2 Fuse replacement

4. 3 Trouble shooting

PIXIEWASHXB

WARNING! Before carrying out any operations with the unit, carefully read this instruction

manual and keep it with cure for future reference. It contains important information about

the installation, usage and maintenance of the unit.

SAFETY

General instruction

• The products referred to in this manual conform to the European Community Directives and are there-

fore marked with .

• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.

Never make any modiﬁcations on the unit not described in this instruction manual, otherwise you will

risk an electric shock.

• Connection must be made to a power supply system ﬁtted with eﬃcient earthing (Class I appliance ac-

cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units

from indirect contact and/or shorting to earth by using appropriately sized residual current devices.

• The connection to the main network of electric distribution must be carried out by a qualiﬁed electrical

installer. Check that the main frequency and voltage correspond to those for which the unit is designed

as given on the electrical data label.

• This unit is not for home use, only professional applications.

• Never use the ﬁxture under the following conditions:

- in places wet;

- in places subject to vibrations or bumps;

- in places with an ambient temperature of over 45°C.

• Make certain that no inﬂammable liquids, water or metal objects enter the ﬁxture.

• Do not dismantle or modify the ﬁxture.

• All work must always be carried out by qualiﬁed technical personnel. Contact the nearest sales point for

an inspection or contact the manufacturer directly.

• If the unit is to be put out of operation deﬁnitively, take it to a local recycling

plant for a disposal which is not harmful to the environment.

Warnings and installation precautions

• If this device will be operated in any way diﬀerent to the one described in this manual, it may suﬀer

damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like

short circuit, burns, electric shock, etc.

• Before starting any maintenance work or cleaning the projector, cut oﬀ power from the main supply.

• Always additionally secure the projector with the safety rope.When carrying out any work, always com-

ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country

in which the ﬁxture’s being used.

• For inside use only. Not designed for outside use.

• The minimum distance between the ﬁxture and surrounding walls must be more than 50 cm and the

air vents at the housing must not be covered in any case.

• Keep any inﬂammable material at a safe distance from the ﬁxture.

• The maximum temperature that can be reached on the external surface of the ﬁtting, in a thermally

steady state, is high. After power oﬀ, please cool down over 15 minutes.

• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent

that their eﬀectiveness is impaired.

• The lamp (LED) shall be changed if it has become damaged or thermally deformed.

• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ﬂashing light, may

trigger epileptic seizures in photosensitive persons or persons with epilepsy.

• This product was designed and built strictly for the use indicated in this documentation. Any other use,

not expressly indicated here, could compromise the good condition/operation of the product and/or

be a source of danger.

• We decline any liability deriving from improper use of the product.

PIXIEWASHXB

- 1 - INTRODUCTION

1.1 DESCRIPTION

PIXIEWASHXB reinvents the concept of the moving LED wash light; bringing together the classic styling of

a traditional wash luminaire and applying the very latest innovations in the ﬁeld of LED technology. The

large frontal plano-convex lens delivers a stunning level of brightness and an exceptional zoom range

with a 1:8 ratio, combined with a proprietary 280W RGB and warm white LED module delivering a high-

quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning.

PIXIEWASHXB is an ideal solution for any application where users want a superior light quality but without

the view of multi-cell ﬁxtures. Being compact, fast and silent, the PIXIEWASHXB oﬀers unprecedented ﬂex-

ibility and is ideal for use in theatres, TV, corporate and festivals.

1.2 TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 280W RGB + warm white

• CT: 6500K

• CRI: >92

• R9: >94

• Luminous ﬂux: (6°) 3670 lm - (45°) 3795lm

• Lux: (6°) 29900 lux - (45°) 1590lux @3m full

• Lux: (6°) 10764 lux - (45°) 572lux @5m full

• Source life expectancy: 70000

• Other: TM-30-15RF/RG: 90/99 - TLCI: >85

OPTICS

• Zoom: 6° - 45° motorised linear zoom

• Field angle: 11° - 43°

• Lens diameter: 125mm

• Lens type: high-quality glass lens optics

COLOUR SYSTEM

• Colour mixing: RGB+Warm White

• CTC: CTC control through independent DMX channel, plus/minus green and magenta correction and

amber shift activation by DMX

• White presets: 2800K-10000K

• Colour wheel: virtual colour wheel with presets

• Macros: several pre-build macros with adjustable speed

BODY

• Hardware on-board: OMEGA sockets for quick rigging (clamp included)

• Pan angle: 540°

• Tilt angle: 250°

• Pan/Tilt resolution: 8/16bit

• Feedback: automatic repositioning after accidental movement

• Body: aluminium die-casting

• Body colour: black

CONTROL

• Protocols: DMX512, RDM, Art-Net,W-DMX

• DMX channels: 13 / 15 / 16 / 18 / 22 / 23channel

• W-DMX: included, wireless solution receiver

PIXIEWASHXB

• RDM: RDM ready for ﬁxture remote monitor and settings

• Display: LCD high resolution colour display with autoﬂip

• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

ELECTRONICS

• Dimmer: linear 0~100% electronic dimmer

• Dimmer curves: diﬀerent dimming curves available

• Strobe / shutter: 1-30 Hz, electronic

• Battery backup: battery backup for user operation without connecting to the main power

• Operating temperature: -10° ~ +45°

• Flicker: ﬂicker free frequency with adjustable PWM

ELECTRICAL

• Power consumption: 338W

• Power supply: 100-240V – 50/60Hz

• Power consumption (at 230V): 338W

• Power consumption (at 120V): 342W

• Output (at 230V): 3 units on a single power line

• Output (at 120V): 2 units on a single power line

• Power factor: pF 0.99 @ 120V - pF 0.95 @ 230V

PHYSICAL

Cooling: combination of heat pipe cooling system and low noise fan

• Sospension and ﬁxing: any position with quick-lock omega brackets

• Signal connection: Amphenol XLR 5p IN/OUT connectors

• Data connection: Art-Net RJ45 IN/OUT

• Power connection: Seetronic powerCON waterproof IN/OUT connectors

• IP rating: 20

• Dimensions (WxHxD): 308x448x230mm

• Weight: 13.6kg

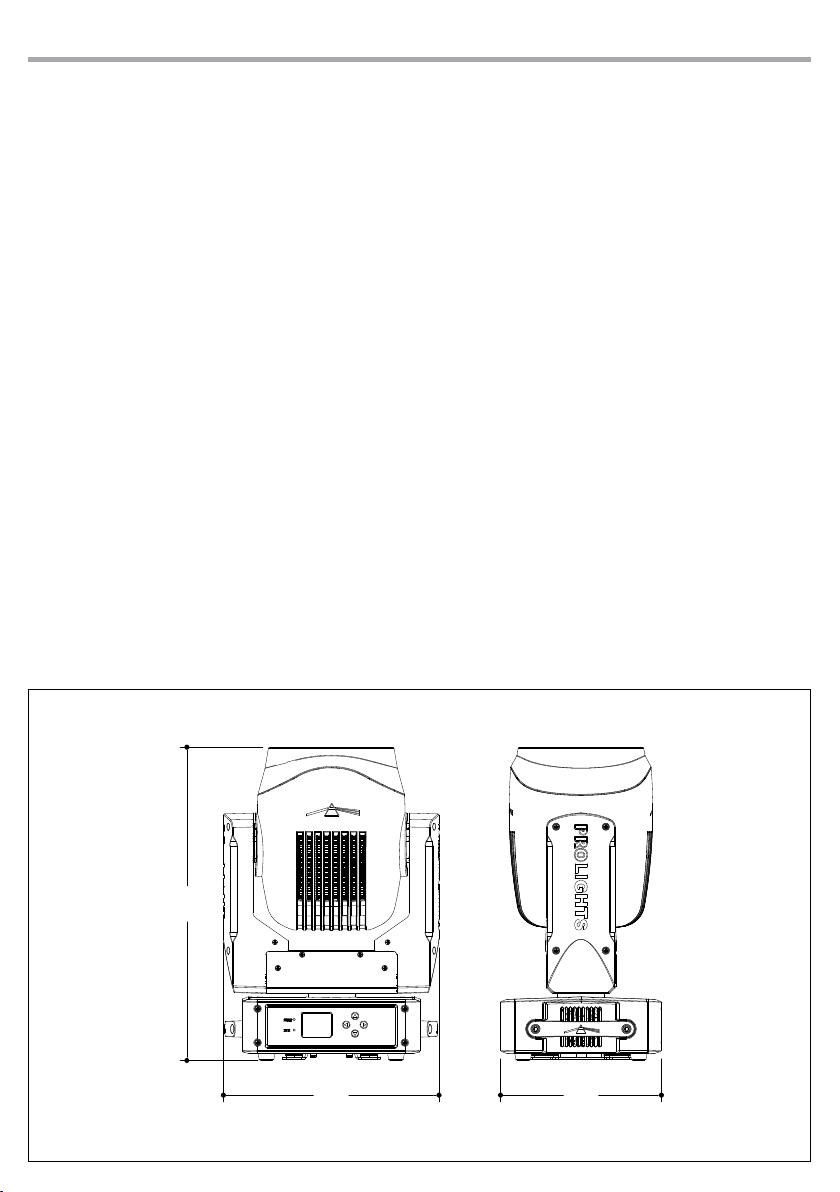

Technical drawing Fig.1

448

308 230

PIXIEWASHXB

89 10 11 12

111415

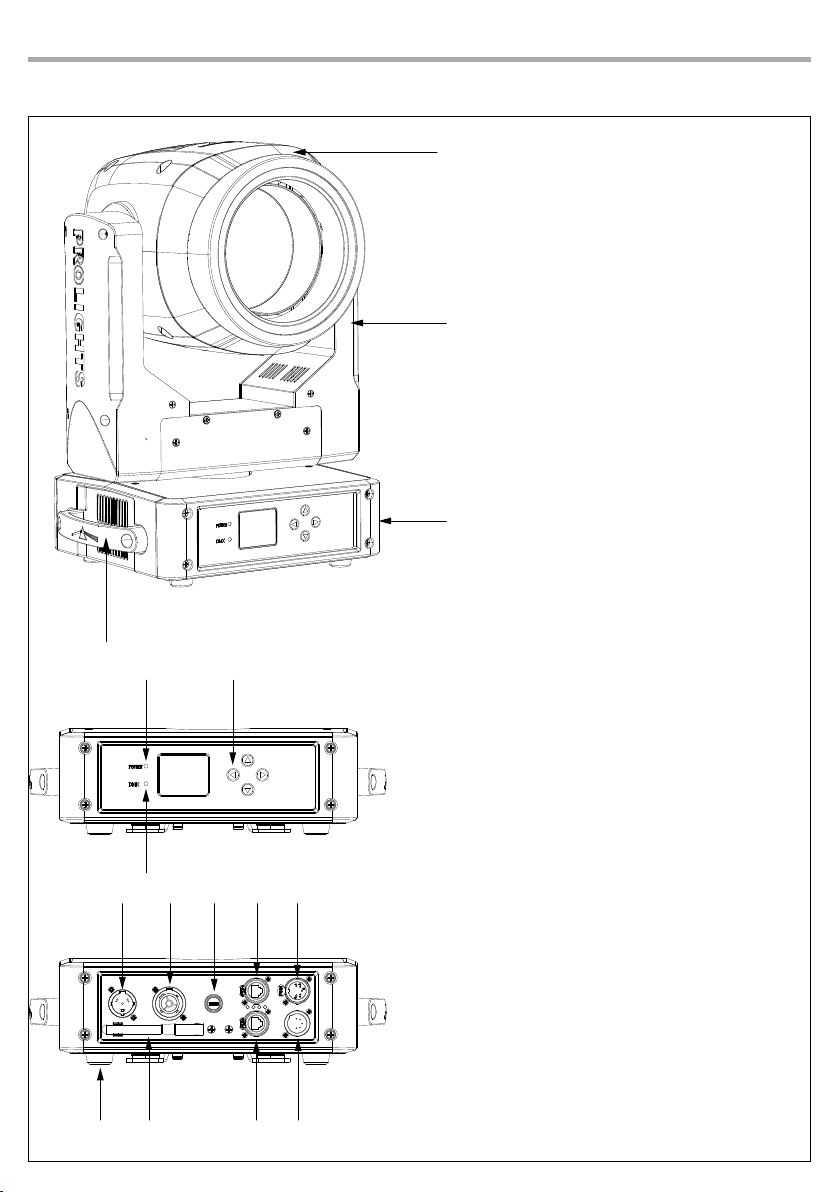

1. MOVING HEAD

2. ROTARY ARM

3. BASE

4. HANDLE

5. LED INDICATOR "POWER"

6. LED INDICATOR "DMX"

7. CONTROL PANEL with OLED

display and 4 button used to

access the control panel functions

and manage them.

8. POWER IN (PowerCON TRUE

IN): for connection to a socket

(100-240V~/50-60Hz) via the

supplied mains cable.

9. POWER OUT (PowerCON

TRUE OUT): power output for

connection of multiple units in

series.

10. MAIN FUSE HOLDER: replace a

burnt-out fuse by one of the same

type only.

11. EtherCON CONNECTORS IN / OUT

signal.

12.DMX OUT (5-pole XLR): 1 = ground,

2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C.

13. DMX IN (5-pole XLR):

1 = ground, 2 = DMX-, 3 = DMX+,

4 N/C, 5 N/C.

14.ANTENNA

15.RUBBER FEET

1.3 OPERATING ELEMENTS AND CONNECTIONS

Fig.2

PIXIEWASHXB

- 2 - INSTALLATION

2.1 MOUNTING

The PIXIEWASHXB may be set up on a solid and even surface. By means of the ﬁxing facilities of the base-

plate, the unit can also be mounted upside down to a cross arm.The base plate is shown in ﬁg.3. For ﬁxing,

stable mounting clips are required. According to the ﬁgure, the bolts of the brackets are placed into the

openings provided in the base plate and turned clockwise until they lock (to the stop). Always ensure that

the unit is ﬁrmly ﬁxed to avoid vibration and slipping while operating. The mounting place must be of

suﬃcient stability and be able to support a weight of 10 times of the unit’s weight. When carrying out any

installation, always comply scrupulously with all the regulations (particularly regarding safety) currently

in force in the country in which the ﬁxture’s being used. Always additionally secure the projector with the

safety rope from falling down. For this purpose, fasten the safety rope at a suitable position so that the

maximum fall of the projector will be 20 cm.

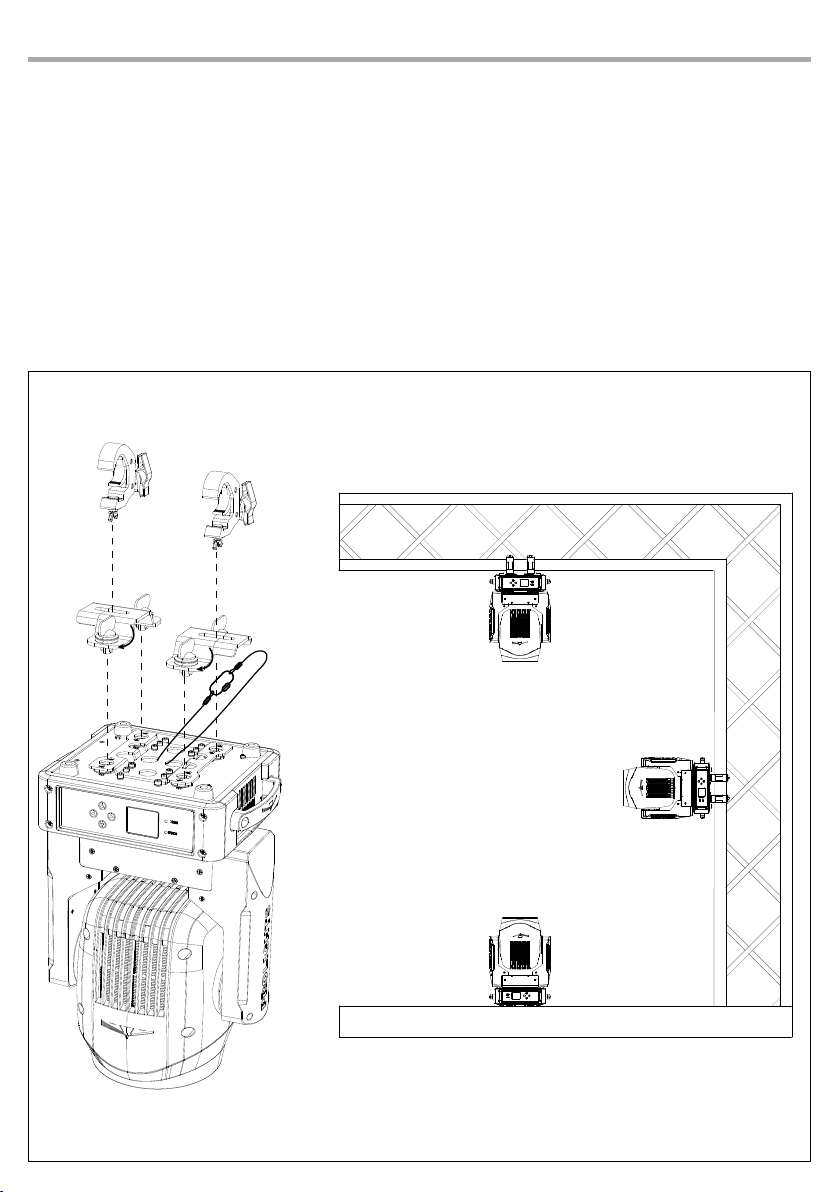

Fig.3

CLAMPS

SAFETY

CABLE

OMEGA

BRACKETS

PIXIEWASHXB

- 3 - FUNCTIONS AND SETTINGS

3.1 OPERATION

Connect the supplied main cable to a socket (100-240V~/50-60Hz). The unit will run built-in program to re-

set all motors to their home position. Shortly after that the PIXIEWASHXB is ready for operation. To switch

oﬀ, disconnect the mains plug from the socket. For a more convenient operation it is recommended to

connect the unit to a socket which can be switched on and oﬀ via light switch.

NOTE: for factory default settings, the Calibrated function is active on the PIXIEWASHXB. Refer to paragraph

“Fixture Settings”(pag.12 and 13).

3.2 BASIC

The PIXIEWASHXB has a LCD display and 4 button used to access the control panel functions and manage

them (ﬁg.4).

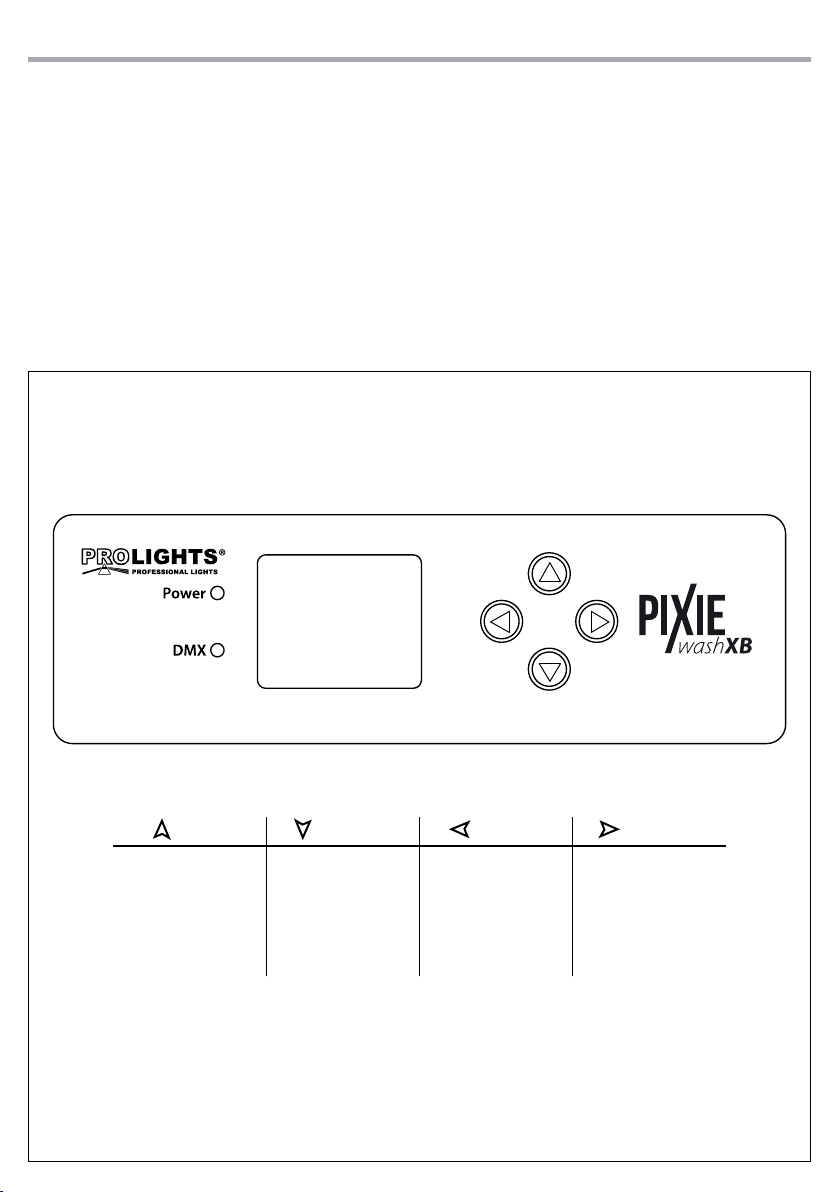

Fig.4 - Functions of the buttons and display icons

UP DOWN LEFT RIGHT

Increases the value

displayed or passes to

the previous item in a

Decreases the value

displayed or passes to

the next item in the

To enter in the main

menù or to return to the

top level

Confirms the displayed

value, or activates the

displayed function, or

enters the successive

PIXIEWASHXB

3.3 MENU STRUCTURE

1CONNECT ðDMX Address ðValue (1-512) Default: 1

DMX Mode ðSTANDARD-13CH

STANDARD-15CH

STANDARD-16CH

EXTENDED-18CH

EXTENDED-22CH

EXTENDED-23CH

Default:

EXTENDED

22CH

Wireless Setting ðReceive Oﬀ/On ðOff

Default :Oﬀ

Receive Reset ðNo

Yes

Default :No

Wireless To DMX ðNo

Yes

Default :Yes

Ethernet ðUniverse ð0-255 Default: 0

Start Channel ð1-512 Default:1

IP Address ð2.133.139.215

Ethernet To DMX ðNO Default :Yes

2SETUP ðMovement ðPan Reverse ðNo

Yes

Default: No

Tilt Reverse ðNo

Yes

Default: No

Zoom Reverse ðNo

Yes

Default: No

Pan Feedback ðNo

Yes

Default: Yes

Tilt Feedback ðNo

Yes

Default: Yes

ðScreen ðBack Light ðOn

10s

20s

30s

Default: 10s

Flip Display ðNo

Yes

Auto

Default: No

DMX Led ðOff

Default:Off

Warn Cue ðOff

Default:On

Key Lock ðNo

Yes

Default: No

ðFixture ðFull On Mode ðHB

Studio

Default:

Studio

ðWhite Balance ðOﬀ

Manual ðRed

Green

Blue

Warm

White

ð125-255

ðCalibrated Default: Activeted

Table des matières

Langues :

Autres manuels ProLights Matériel de DJ

ProLights

ProLights RA2000PROFILE Manuel utilisateur

ProLights

ProLights SMARTBATHEX Manuel utilisateur

ProLights

ProLights 6BEAMQ Manuel utilisateur

ProLights

ProLights SmartBat PlusG2 Manuel utilisateur

ProLights

ProLights CROMOBEAM260 Manuel utilisateur

ProLights

ProLights V575WASH Manuel utilisateur

ProLights

ProLights ASTROBEAM Manuel utilisateur

ProLights

ProLights LASERCOMBY Manuel utilisateur

ProLights

ProLights EclFresnel JrVW Manuel utilisateur

ProLights

ProLights VX1300SNOW Manuel utilisateur

ProLights

ProLights LEDPINSPOT Manuel utilisateur

ProLights

ProLights ECLIPSEHDTWC Manuel utilisateur

ProLights

ProLights LEDPAR64363RGB Manuel utilisateur

ProLights

ProLights ARCLED7314HD Manuel utilisateur

ProLights

ProLights EclProfile CT+ Manuel utilisateur

ProLights

ProLights BEAMSPOT10 Manuel utilisateur

ProLights

ProLights PINSPOT Manuel utilisateur

ProLights

ProLights PHYROBUB Manuel utilisateur

ProLights

ProLights LumiPix XB050 Manuel utilisateur

ProLights

ProLights ARCPOD27Q Manuel utilisateur

ProLights

ProLights SUNRISE2 Manuel utilisateur

ProLights

ProLights PHYRO600SNOW Manuel utilisateur

ProLights

ProLights ECLFRJPTU-DY Manuel utilisateur

ProLights

ProLights BATPAR180 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
