INSTRUCTIONS FOR USE

Pro-Ject Primary

Controls, features and connections

1 Power switch

2/22 Stepped drive pulley and drive belt *

3 Platter with felt mat *

4 Tonearm counterweight

5 Tonearm lift lever

6/66 Tonearm rest and removable transport lock

7 Tonearm tube

8 Headshell with finger lift and fitted Ortofon OM 5E cartridge

9 Hinge with hinge fasteners

10 Power supply socket

11 Signal output cable

Universal power supply (not shown) *

Two hexagonal keys (not shown)*

Signal output and USB cable (not shown)*

Single adapter (not shown)*

Dear music lover,

Thank you for purchasing a Pro-Ject Audio Systems record player.

In order to achieve maximum performance and reliability, please study these instructions carefully.

Warning of a hazard for the user, the unit or possible misuse

Important notice

The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a

different model at a later date.

During assembling and adjustment small parts could be lost if they are not carefully placed in a suitable

receptacle. Before starting assembly make yourself acquainted with the parts listed above which are

correspondingly numbered in the technical drawings above. Separately packed items are marked with an

asterisk *.

Safety instructions

The power supply is used to connect and disconnect the unit from the mains. Make sure that the plug

is easily accessible at all times. Hold the plug when unplugging the power cord. Never handle the

power cord while your hands are wet or damp.

Avoid letting liquids enter the device. Never place any item containing liquid, like a flower vase, on

or near the device. Never spill any liquid on the device. Never place any naked flame sources, like

lighted candles, on or near the device. The product shall not be used in damp or wet locations, next to

a bathtub, sink, swimming pool or any other similar conditions.

Keep plastic bags away from children to prevent any risk of suffocation.

Set-up

The deck is supplied partially disassembled and carefully packed for a safe transport. Remove all parts from

the transport packaging carefully.

Make sure the surface you wish to use the turntable on is levelled (use the spirit level) before placing the

turntable on it.

Fit the drive belt (22) around the platter (3) and the smaller diameter part of the motor pulley (2). Avoid

getting sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use

absorbent kitchen paper to remove any oil or grease from the outer edge of the hub and the belt.

Fit the felt mat over the spindle of the platter (3). Remove the transport lock (66) from the tonearm tube.

Store it in the original packaging so they are available for any future transportation.

Cartridge downforce adjustment

The counterweight (4) supplied is suitable for cartridges weighing between 3,5 - 5,5g. The counterweight is

pre-set perfectly from the factory.

Connection to the amplifier

The record player has a captive tonearm signal lead (11) for connection to the amplifier. Use the Phono input

(sometimes labelled gram, disc or RIAA) on your amplifier. Make sure that the phono input offers correct matching

and amplification for the type of cartridge used. Line inputs (such as CD, Tuner, Tape or Video) are not suitable.

Take care about connecting the left and right channel correctly. The right channel is usually marked red, the

left channel black or white. Check the manual of your amplifier for relevant information. An earthing wire

may be connected to the screw terminal between the sockets if you encounter humming problems.

If your amplifier does not have an input suitable for phono cartridges you will require a separate phono

amplifier stage for MM or MC cartridges which is then connected between the record player and a free line

level input of the amplifier.

For detailed product information regarding Pro-Ject Audio Phono Amplifiers please refer to the Pro-Ject web

site

www.project-audio.com.

Mains power connection

A universal power supply with 3 exchangeable sockets adapters suitable for all countries is supplied. Select

the correct adapter for your country and insert the adapter to the exchangeable part of the power supply.

Connect the low voltage plug from the power supply to the socket (10) on the rear side of the record player

before connecting the power supply to the mains.

Fitting the lid

Fit the lid (dust cover) carefully over the hinge prongs and adjust the screws (9) until the lid stays open where

you want it to without being too stiff to open or close.

Switching on and off

Pressing the power switch (1) alternately starts or stops the motor.

Changing replay speed

Put the belt (22) over the larger diameter part of the motor pulley (2). To revert to 33 r.p.m. repeat the

proceedings using the smaller step on the pulley.

Maintenance and cleaning

Your record player requires little or no regular maintenance. Remove dust with a slightly moistened antistatic

cloth. Never use a dry cloth because this will create static electricity which attract more dust! Antistatic

cleaning fluids are available at specialist stores but must be applied sparingly to avoid damage to rubber

parts. It is recommended to fit the needle cover before cleaning or maintenance is carried out to avoid damage.

If the player is not used over a long period of time the drive belt can be removed to prevent unequal stretching.

Mounting and connecting the cartridge

All cartridges with half inch mounting holes can be mounted. Leave the needle's protection cover on, fit the

cartridge to the headshell by using the supplied screws by passing one screw through each slot in the

headshell (8). Do not tighten the nuts yet.

Connect the tonearm wires with the cartridge pins as follows:

white left channel positive (L+)

red right channel positive (R+)

green right channel return (R -)

blue left channel return (L -)

The full sound quality of the record player can only be achieved if the cartridge is adjusted correctly. Particular

tools like the Pro-Ject Audio Systems alignment tool are required to accomplish this job properly. If you are not

well acquainted with the adjustment of cartridges, please call for the willing help of your Pro-Ject Audio Systems

dealer.

Please note: adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging

the cartridge or tonearm bearings. Ask your local dealer for help if you are unsure in any of the

necessary steps and precautions which must be taken.

Useful tips

The record player should be positioned on a low-resonance surface such as wood or multiple layer ply board

to avoid structural vibrations disturbing replay.

Technical specifications Pro-Ject Primary / Pro-Ject 8.6E

Nominal speeds

33/45 r.p.m.

Speed variance

33: 0,80% 45: 0,70%

Wow and flutter

33: 0,29% 45: 0,27%

Signal to noise

65dB

Effective tonearm mass

Effective tonearm length

8,6" (218,5mm)

Overhang

22mm

Power consumption

4,5W

Outboard power supply

15V/500mA DC, suitable for your country's mains supply

Dimensions (W x H x D)

420 x 112 x 330mm (WxHxD)

Weight

4,0kg

Technical specifications MM-Cartridge Ortofon OM 5E

Frequency range

20-25.000Hz

Channel separation

22dB/1kHz

Output voltage

4mV

Recommended load impedance

47kohms/amplifier connection – MM-input

Compliance/stylus type

20µm/mN – elliptical

Recommended tracking force

17,5mN

Weight

Potential incorrect use and fault conditions

Pro-Ject turntables are manufactured to the highest standards and undergo strict quality controls before

leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but

can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the following list of common

fault symptoms is included.

The platter doesn't turn although the unit is switched on:

The unit is not connected to the mains power supply.

No mains at the socket.

Drive belt is not fitted or has slipped off.

No signal through one or other channel or both channels:

No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or

from that to the phono box or between that and the amplifier. This could be due to a faulty plug,

broken wire or solder joint or simply loose plug/socket connection.

Phono input not selected at amplifier.

Amplifier not switched on.

Amplifier or speakers is defective or muted.

No connection to the loudspeakers.

Strong hum on phono input:

No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.

Distorted or inconsistent sound from one or both channels:

Record player is connected to wrong input of amplifier, or MM/MC switch incorrectly set.

Needle or cantilever damaged.

Wrong r.p.m., drive belt is overstretched or dirty, platter bearing without oil, dirty or damaged.

Service

Should you encounter a problem which you are not able to alleviate or identify despite the above information,

please contact your dealer for further advice. Only when the problem cannot be resolved there should the

unit be sent to the responsible distributor in your country.

Guarantee repairs will only be affected if the unit is returned correctly packaged. For this reason we recommend

keeping the original packaging.

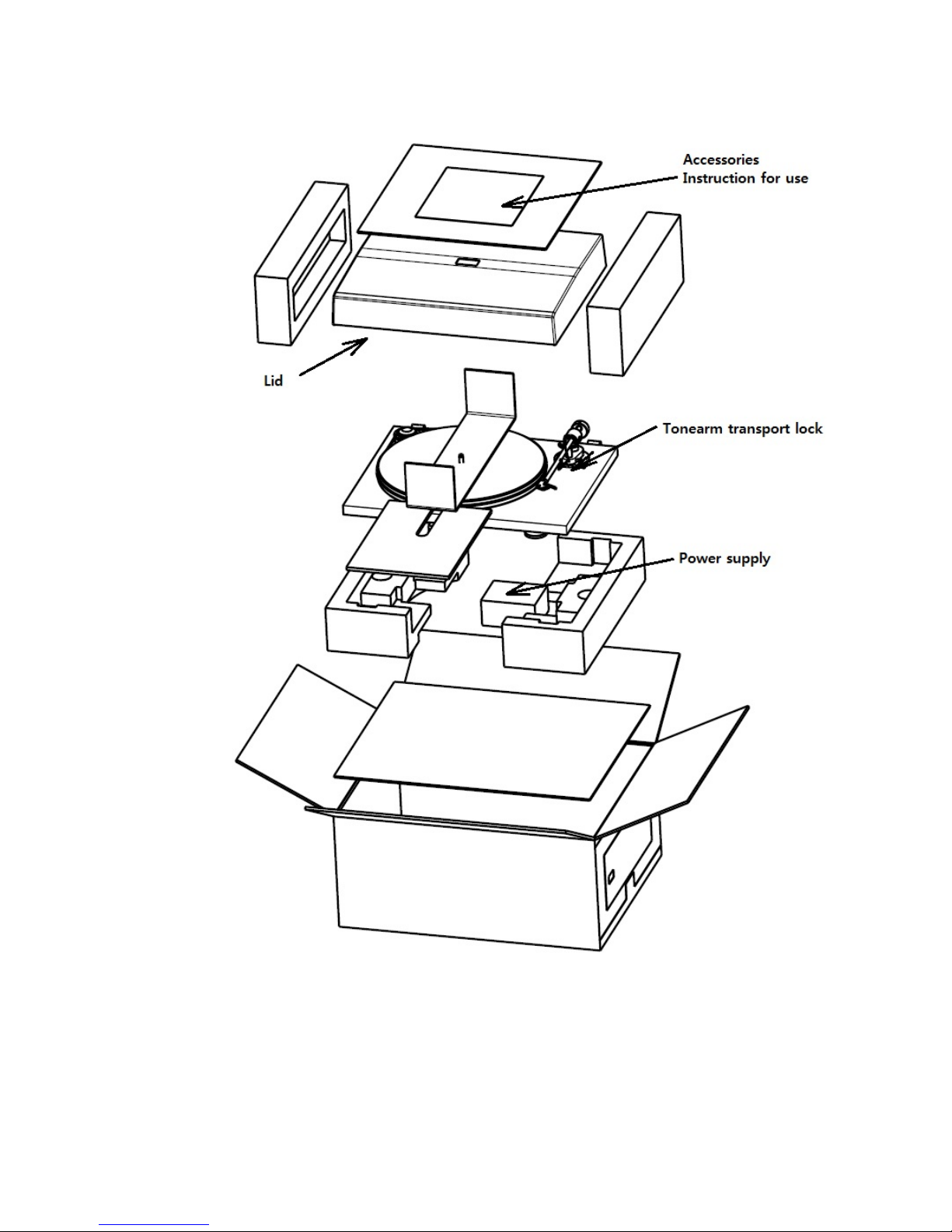

Never return a record player without making sure that is it safely disassembled and correctly packaged in the

original packaging according to the diagrams on the last page of this user guide.

Fit the cartridge protection cap and the transport lock for the tonearm tube (66), prior to carefully packaging

the record player.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use and/or by transportation without the original packaging. Modification or change to any part

of the product by unauthorized persons, release the manufacturer from any liability over and above

the lawful rights of the customer.

Pro-Ject Audio Systems is a Registered Trademark of

H. Lichtenegger.

This guide was produced by: Pro-Ject Audio Systems

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed neces

sary to uphold the ongoing

process of technical development.
