Planet WGS-804HPT Manuel utilisateur
Industrial Wall-mount Managed
Gigabit Ethernet Switch
WGS-804HPT/WGS-4215-8T
WGS-4215-8T2S/WGS-4215-8P2S/WGS-4215-16P2S
Quick Installation Guide
Table of Contents
1. Package Contents................................................................................. 3
2. Requirements....................................................................................... 5
3. Wiring the Power Inputs ....................................................................... 6
3.1 Terminal Block Connector Pinout ..................................................... 7
3.2 DC Power Jack .............................................................................. 7
4. Hardware Installation............................................................................ 8
4.1 Wall-mount Installation .................................................................. 8
4.2 Magnet Installation ........................................................................ 9
4.2.1 Magnet Installation of WGS-4215-16P2S................................. 9
4.3 DIN-rail Mounting ........................................................................ 11
5. Web Login ......................................................................................... 13
5.1 Starting Web Management............................................................ 13
5.2 SavingCongurationviatheWeb.................................................. 16
6. SSH Login ......................................................................................... 18
6.1 ConguringIPAddress ................................................................. 18
6.2 StoringtheCurrentSwitchConguration ....................................... 20
7. RecoveringBacktoDefaultConguration ............................................. 21
8. Customer Support .............................................................................. 22
3
1. Package Contents
Thank you for purchasing PLANET Industrial Wall-mount Managed Gigabit
Switch, WGS-804HPT or WGS-4215 series. The table below shows the models
with the number of ports:
Model Name 10/100/1000T
Copper Ports 802.3atPoEPorts 100/1000 SFP Fiber
Optic Interface
WGS-4215-8T 8 _ _
WGS-4215-8T2S 8 _ 2
WGS-804HPT 8 4 _
WGS-4215-8P2S 8 8 2
WGS-4215-16P2S 16 16 2
In the following sections, unless specied, the term “Wall-mount Managed
Switch” mentioned in this quick installation guide refers to the above models.
4
Open the box of the Wall-mount Managed Switch and carefully unpack it. The
box should contain the following items:
The Wall-mount Managed
Switch x 1
Quick Installation
Guide Sheet x 1 pc DIN-rail Kit x 1 set
(Vary on the model)
Wall-mounted Kit x 1 set Magnet Kit x 1 set 3-pin Terminal Block
Connector x 1 pc
RJ45 Dust Cap x 8 pcs SFP Dust Cap x 2 pcs
(x16 for WGS-4215-
16P2S only)
(WGS-4215-8T2S/WGS-4215-8P2S/
WGS-4215-16P2S only)
If any item is found missing or damaged, please contact your local reseller for
replacement.
5
2. Requirements
zWorkstations running Windows XP/2003/Vista/7/8/2008/10/11, MAC OS X
or later, Linux, UNIX, or other platforms are compatible with TCP/IP proto-
cols.
zWorkstations are installed with Ethernet NIC (Network Interface Card).
zEthernet Port Connection
Network cables -- Use standard network (UTP) cables with RJ45 connec-
tors.
The above PC is installed with Web browser.
It is recommended to use Google Chrome or above to access
the Wall-mount Managed Switch. If the Web interface of the
Wall-mount Managed Switch is not accessible, please turn off
the anti-virus software or firewall and then try it again.
6
3. Wiring the Power Inputs
The Wall-mount Managed Switch features a strong dual power input system
(terminal block and DC jack) incorporated into customer’s automation network
to enhance system reliability and uptime.
Power Input
Range
Model
3-pin Terminal Block DC Jack
WGS-4215-8T 12~48VDC,24VAC 12~48VDC,24VAC
WGS-4215-8T2S 12~48VDC,24VAC 12~48V DC
WGS-804HPT 48~54V DC 48~54V DC
WGS-4215-8P2S 48~54V DC 48~54V DC
WGS-4215-16P2S 48~54V DC 48~54V DC
Maximum power requirements also rely on the real site applica-
tion.
3 421
7 865
Data+ Power
Data
120W
PoE Usage
90W
60W
30W
PWR
ACTLNK
1000
ACTLNK
PoE-in-Use
V+
Ground
DC Input Range
Gigabit 802.3at PoE+ Port
10/100/1000BASE-T RJ45 Port
Power LED
PoE Power Usage
3-pin Terminal Block
DC Plug-in
V+
Ground
DC Input Range
7
3.1 Terminal Block Connector Pinout
To install the 3-pin Terminal Block Connector on the Wall-mount Managed
Switch, simply follow the following steps:
Step 1: Insert positive DC power wire into V+, negative DC power wire into
V-, and grounding wire into Ground.
V+
V
-
Ground
Step 2: Tighten the wire-clamp screws for preventing the wires from
loosening and plug into the Wall-mount Managed switch.
1.Thewiregaugeshouldbeintherangefrom12to24AWG
2. The device must be grounded.
3.2 DC Power Jack
The WGS-804HPT/WGS-4215 PoE models requires DC 48V~54V power input,
and the WGS-4215-8T/WGS-4215-8T2S requires DC 12~48V power input.
Should you have the issue of power connection, please contact your local sales
representative.
2.1mm
DC Receptacle 2.1mm
DC receptacle is 2.1mm wide that conforms to the WGS-4215 series
2.1mm DC jack's central post. Do not install any improper power
adaptor.
8
4. Hardware Installation
4.1 Wall-mount Installation
To install the Wall-mount Managed Switch on the wall, simply follow the
following steps:
Step 1: Drive four 8mm diameter holes into the wall horizontally with
the distance between the 2 holes is 133mm (WGS-804HPT/
WGS-4215-8T), 163mm (WGS-4215-8T2S/WGS-4215-8P2S) and
230mm (WGS-4215-16P2S) Refer to the table below.
Step 2: Lightly hammer the wall anchors into the four holes.
Step 3: Place the unit on the wall where there are four holes, and screw the
boltsintothewallanchorstonishtheinstallation.
3 421
7 865
Data+ Power
Data
120W
PoE Usage
90W
60W
30W
PWR
ACTLNK
1000
ACTLNK
PoE-in-Use
V+
Ground
W
D
Hole sizes for mounting
Distance (mm) 8-port 8+2S 16+2S
W133 163 230
D118 118 124
9
4.2 Magnet Installation
To install the Wall-mount Managed Switch on a magnetic surface, simply follow
the following diagram:
3 421
7 865
Data+ Power
Data
120W
PoE Usage
90W
60W
30W
PWR
ACTLNK
1000
ACTLNK
PoE-in-Use
V+
Ground
4.2.1 Magnet Installation of WGS-4215-16P2S
There are six holes on the unit, using six round magnets to install. Please refer
to the following.
Step 1: Turn the switch to the back and place the six round magnets with
holes on the back of the switch where the holes are.
ACTLNK
ACTLNK
1000
100
SYS
PWR
180W
240W
SFP
17
18
120W
60W
5 731
6 842
13 15119
14 161210
PoE
SFP
17 18
WGS-4215-16P2S
Managed
Fiber
PoE+ Magnet Mounting
PoE-in-Use
LNK/ACT
PoE Usage
V+
Ground
10

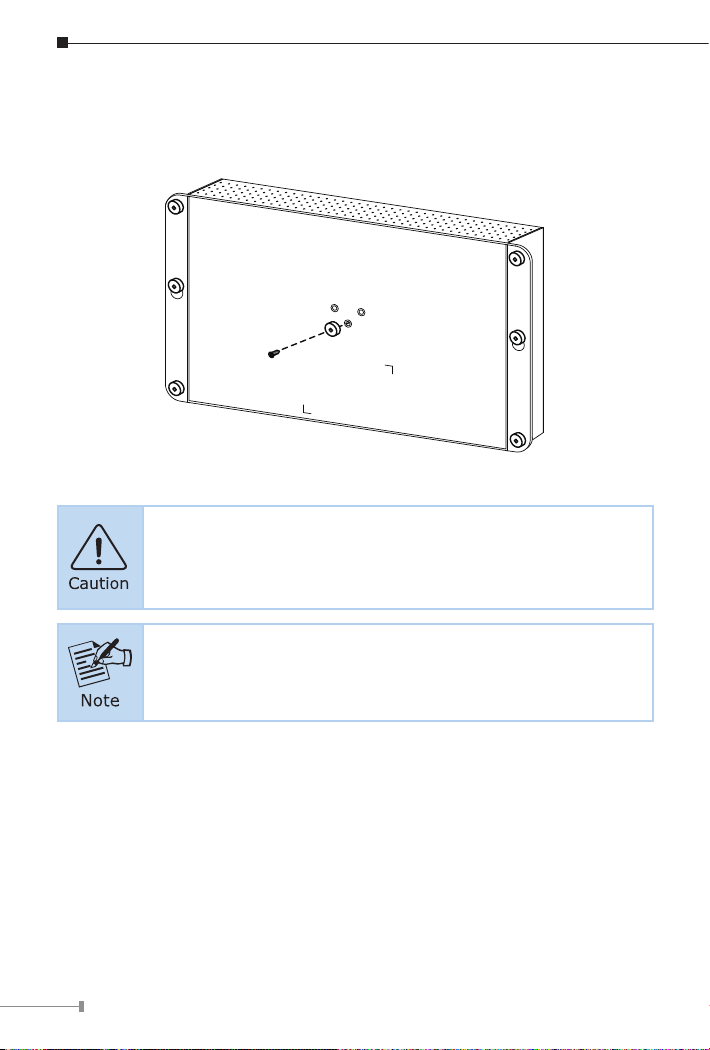

Step 2: Turn the switch to front and push the plastic bolts into the holes to
secure the magnets.
Step 3: Onelastroundmagnetshouldbexedinthemiddleoftheswitch.
Step 4: Now the you can place the switch on to any magnetic surface.
As the magnetic mounting is not securely fixed, be aware that
the switch will not fall or break due to vibration when installing
the switch.
Please use the screw from the magnet kit to avoid breaking the
device.
