Planet GS-5220-8UP2T2X Manuel utilisateur

L3 8-Port 10/100/1000T 802.3at/bt PoE + 2-Port

10/100/1000T + 2-Port 10G SFP+ Managed Switch

GS-5220-8P2T2X/GS-5220-8UP2T2X

Quick Installation Guide

Table of Contents

1 Package Contents ....................................................................................... 3

2. Requirements ............................................................................................. 4

3. Terminal Setup ........................................................................................... 5

3.1 Logging on to Console ......................................................................... 6

3.2 ConguringIPAddress......................................................................... 6

3.3 StoringCurrentSwitchConguration..................................................... 8

4. Starting Web Management .......................................................................... 9

4.1 LoggingintotheManagedPoESwitch .................................................. 9

4.2. SavingConguration...........................................................................14

5. RecoveringBacktoDefaultConguration.....................................................15

6. Customer Support .....................................................................................16

1 Package Contents

Thank you for purchasing PLANET Managed PoE Switch, GS-5220-8P2T2X/GS-

5220-8UP2T2X.Thedescriptionsofthesemodelsareshownbelow:

GS-5220-

8P2T2X(v2)

L38-Port10/100/1000T802.3atPoE+2-Port

10/100/1000T+2-Port10GSFP+ManagedSwitch

GS-5220-8UP2T2X L38-Port10/100/1000T802.3btPoE+2-Port

10/100/1000T+2-Port10GSFP+ManagedSwitch

“Managed PoE Switch” is used as an alternative name in this Quick Installation

Guide.

Open the box of the Managed PoE Switch and carefully unpack it. The box should

containthefollowingitems:

zTheManagedPoESwitchx1

zQuickInstallationGuidex1

zRJ45 to RS232 Cable x 1

zRubberFeetx4

zTwoRack-mountingBracketswithAttachmentScrewsx1

zPowerCordx1

zSFPDust-proofCapsx2

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Requirements

zWorkstations running Windows 10/XP/2003/Vista/7/8/2008, MAC OS X or later,

Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.

zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)

zSerialPortConnection(Terminal)

 The above Workstations come with COM Port (DB9) or USB-to-RS232

converter.

 The above Workstations have been installed with terminal emulator, such as

TeraTerm,PuTTYorHyperTerminalincludedinWindowsXP/2003.

 Serial cable -- one end is attached to the RS232 serial port, while the other

endtotheconsoleportoftheManagedPoESwitch.

zEthernetPortConnection

 Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.

 The above PC is installed with Web browser and JAVA runtime environment

plug-in.

Note

It is recommended to use Internet Explorer 8.0 or above to access

the Managed PoE Switch. If the Web interface of the Managed PoE

Switch is not accessible, please turn off the anti-virus software or

firewallandthentryitagain.

3. Terminal Setup

To congure the system, connect a serial cable to a COM port on a PC or

notebookcomputerandtoRJ45typeofserialportoftheManagedPoESwitch.

Managed Switch

PC / Workstation

with

Terminal Emulation Software

Serial Port

RS232 to RJ45 Cable

Console Port

RJ45

Figure 3-1: Managed PoE Switch Console Connectivity

A terminal program is required to make the software connection to the Managed

PoESwitch.

1. Run terminal program on the OS.

2.When the following screen appears, make sure that the COM port should be

conguredas:

Baud:115200

Databits:8

Parity:None

Stopbits:1

Flowcontrol:None

Figure 3-2: COM Port Conguration

3.1 Logging on to Console

Once the terminal is connected to the device, power on the Managed PoE Switch,

and the terminal will display “running testing procedures”. Then, the following

message asks to log in user name and password. The factory default user name

andpasswordareshownasfollowsandtheloginscreeninFigure3-3appears.

Username:admin

Password:admin

Note

The following console screen based on GS-5220-8P2T2X will be the

sameasthatofGS-5220-8UP2T2X.

Figure 3-3: Managed PoE Switch Console Login Screen

The user can now enter commands to manage the Managed PoE Switch. For a

detaileddescriptionofthecommands,pleaserefertothefollowingchapters.

Note

1.For security reason, please change and memorize the new pass-

wordafterthisfirstsetup.

2.Onlyacceptcommandinlowercaseletterunderconsoleinterface.

3.2 ConguringIPAddress

TheManagedPoESwitchisshippedwithdefaultIPaddressshownbelow.

IPAddress:192.168.0.100

SubnetMask:255.255.255.0

To check the current IP address or modify a new IP address for the Switch, please

usetheproceduresasfollows:

Show the current IP Address

1.Atthe“#”prompt,enter“show ip interface brief”.

2.ThescreendisplaysthecurrentIPaddressasshowninFigure3-4.

Figure 3-4: IP Information Screen

 ConguringIPAddress

3.At the “#” prompt, enter the following command and press <Enter> as shown

inFigure3-5.

GS-5220-8P2T2X#congureterminal

GS-5220-8P2T2X(cong)#interfacevlan1

GS-5220-8P2T2X(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0

The previous command would apply the following settings for the Managed PoE

Switch.

IP Address: 192.168.1.100

Subnet Mask: 255.255.255.0

Figure 3-5: Conguring IP Address Screen

4.Repeatstep1tocheckiftheIPaddresshaschanged.

If the IP is successfully congured, the Managed PoE Switch will apply the new IP

addresssetting immediately. Youcanaccess theWebinterface ofthe ManagedPoE

SwitchthroughthenewIPaddress.

3.3 StoringCurrentSwitchConguration

In the Managed PoE Switch, the running conguration sequence running-cong

can be saved from the RAM to FLASH by “copy” command, so that the running

conguration sequence becomes the start-up conguration le, which is called

congurationsave.

Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.

#copyrunning-congstartup-cong

Figure 3-6: Saving Current Conguration Command Screen

Note

If you are not familiar with the console command or the related

parameter, enter “help” anytime in console to get the help

description.

4. Starting Web Management

The following shows how to start up the Web Management of the Managed

PoE Switch. Note the Managed PoE Switch is congured through an Ethernet

connection. Please make sure the manager PC must be set to the same IP subnet

address.

Forexample,thedefaultIPaddress oftheManagedPoESwitchis192.168.0.100,

then the manager PC should be set to 192.168.0.x (where x is a number

between1and254,except100),andthedefaultsubnetmaskis255.255.255.0.

PC / Workstation

with Web Browser

192.168.0.x

Managed Switch

RJ45/UTP Cable

IP Address: 192.168.0.100

Figure 4-1: IP Management Diagram

4.1 Logging in to the Managed PoE Switch

1.Use Internet Explorer 8.0 or above Web browser and enter IP address

http://192.168.0.100(the factorydefaultIPaddressortheonethatyouhave

justchangedinconsole)toaccesstheWebinterface.

2.When the following dialog box appears, please enter the default user name and

password “admin” (or the password you have changed via console). The login

screeninFigure4-2appears.

DefaultIPAddress:192.168.0.100

DefaultUsername:admin

DefaultPassword:admin

Figure 4-2: Login Screen

Note

The following web screen based on GS-5220-8P2T2X will be the

sameasthatofGS-5220-8UP2T2X.

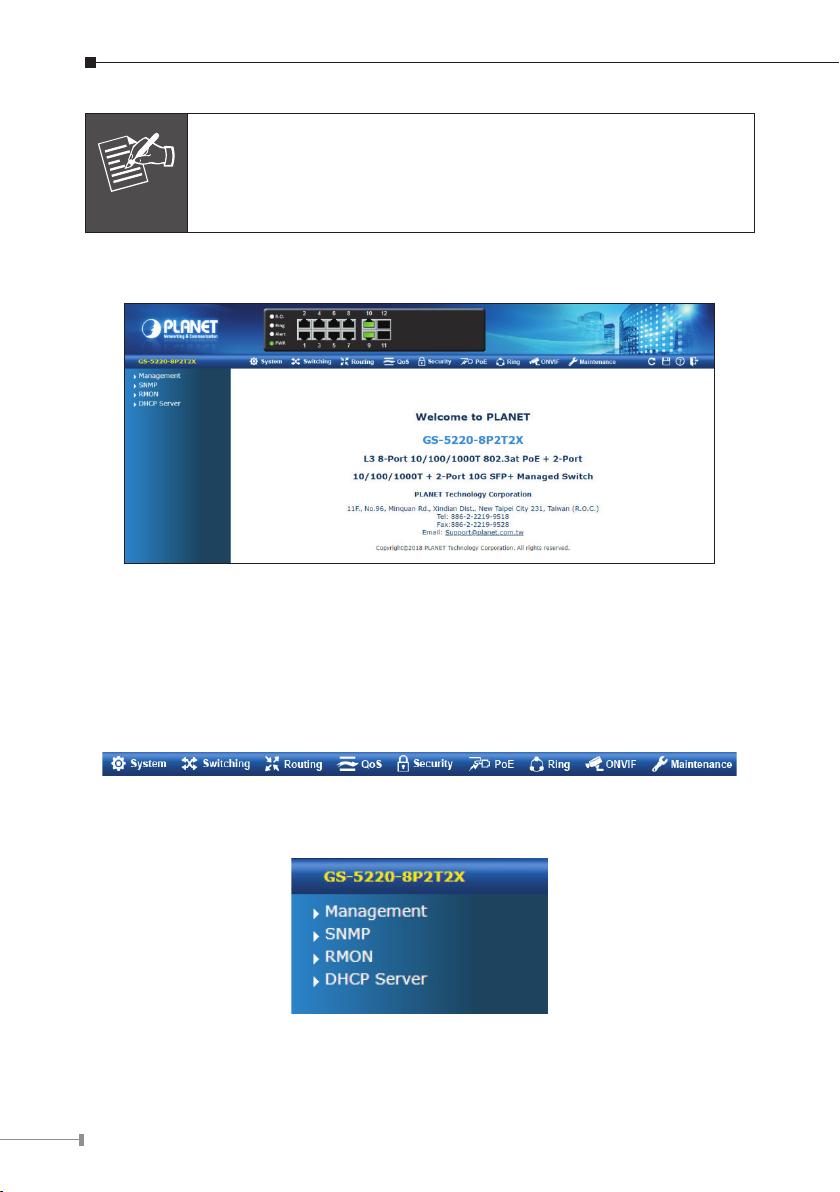

3.Afterenteringthepassword,themainscreenappearsasFigure4-3shows.

Figure 4-3: Web Main Screen of Managed PoE Switch

The Switch Menu on the top of the Web page lets you access all the commands

and statistics the Managed PoE Switch provides. The Switch Menu always contains

one or more buttons, such as “System”, “Switching”, “Routing” “QoS”,

“Security”, “PoE” , “Ring” , “ONVIF” and “Maintenance”.

Figure 4-4: Switch Menu

Figure 4-5: Switch Menu -- System
