Planet GS-5220 Series Manuel utilisateur
L2+ Managed Gigabit/10 Gigabit Ethernet Switch
GS-5220 Series
Quick Installation Guide
Table of Contents
1. Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Terminal Setup ........................................................................................... 5
3.1 Logon to Console................................................................................. 6
3.2 ConguringIPAddress......................................................................... 7
3.3 Storecurrentswitchconguration......................................................... 8
4. Starting Web Management .......................................................................... 9
4.1 LoggingintotheManagedSwitch .......................................................10
4.2 SavingConguration...........................................................................12
5. RecoveringBacktoDefaultConguration.....................................................14
6. Customer Support .....................................................................................15
3
1. Package Contents
Thank you for purchasing PLANET L2+ Managed Gigabit/10 Gigabit Ethernet
Switch.Thedescriptions oftheGS-5220seriesareshownbelow:
Model Name Gigabit RJ45
Ports
Gigabit SFP
Slots
10G SFP+
Slots
GS-5220-16S8C 8 combo 24 -
GS-5220-16S8CR 8 combo 24 -
GS-5220-16T4S2X 16 4 2
GS-5220-16T4S2XR 16 4 2
GS-5220-20T4C4X 24 4 combo 4
GS-5220-20T4C4XR 24 4 combo 4
“Managed Switch” is used as an alternative name in this Quick Installation
Guide.
Open the box of the Managed Switch and carefully unpack it. The box should
containthefollowingitems:
zTheManagedSwitch
zQuickInstallationGuide
zRJ45 to RS232 Cable
zRubber Feet
zTwoRack-mountingBracketswithAttachmentScrews
zPowerCord
zSFPDust-proofCaps
Items SFP Dust-proof Caps
GS-5220-16S8C(R) 24
GS-5220-16T4S2X(R) 6
GS-5220-20T4C4X(R) 8
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Requirements
zWorkstationsrunningWindowsXP/2003/2008/2012/Vista/7/8/10,MACOSXor
later,Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard).
zSerial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
The above Workstations have been installed with terminal emulator, such as
TeraTerm,PuTTYorHyperTerminal.
Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedSwitch.
zEthernet Port Connection
Network cables--Usestandardnetwork(UTP)cableswithRJ45connectors.
TheabovePCisinstalledwithWeb browser.
Note
It is recommended to use Internet Explorer 8.0 or above to access
the Managed Switch. If the Web interface of the Managed Switch
is not accessible, please turn off the anti-virus software or firewall
andthentryitagain.
5
3. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebookcomputerandtoRJ45typeofserialportoftheManagedSwitch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45
Figure 3-1: Managed Switch Console Connectivity
A terminal program is required to make the software connection to the Managed
Switch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:115200
Databits:8
Parity:None
Stopbits:1
Flowcontrol:None
Figure 3-2: COM Port Conguration
6
3.1 Logon to Console
Once the terminal is connected to the device, power on the Managed Switch, and
the terminal will display “running testing procedures”. Then, the following message
asks to log in user name and password. The factory default user name and
passwordareshownasfollowsandtheloginscreeninFigure3-3appears.
Username:admin
Password:admin
Figure 3-3: Managed Switch Console Login Screen
The user can now enter commands to manage the Managed Switch. For a detailed
descriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.For security reason, please change and memorize the new pass-
wordafterthisfirstsetup.
2.Only accept command in lowercase letter under console inter-
face.
7
3.2 ConguringIPAddress
TheManagedSwitchisshippedwithdefaultIPaddressshownbelow.
IPAddress:192.168.0.100
SubnetMask:255.255.255.0
To check the current IP address or modify a new IP address for the Switch, please
usetheproceduresasfollows:
ShowthecurrentIPAddress
1.Atthe“#”prompt,enter“show ip interface brief”.

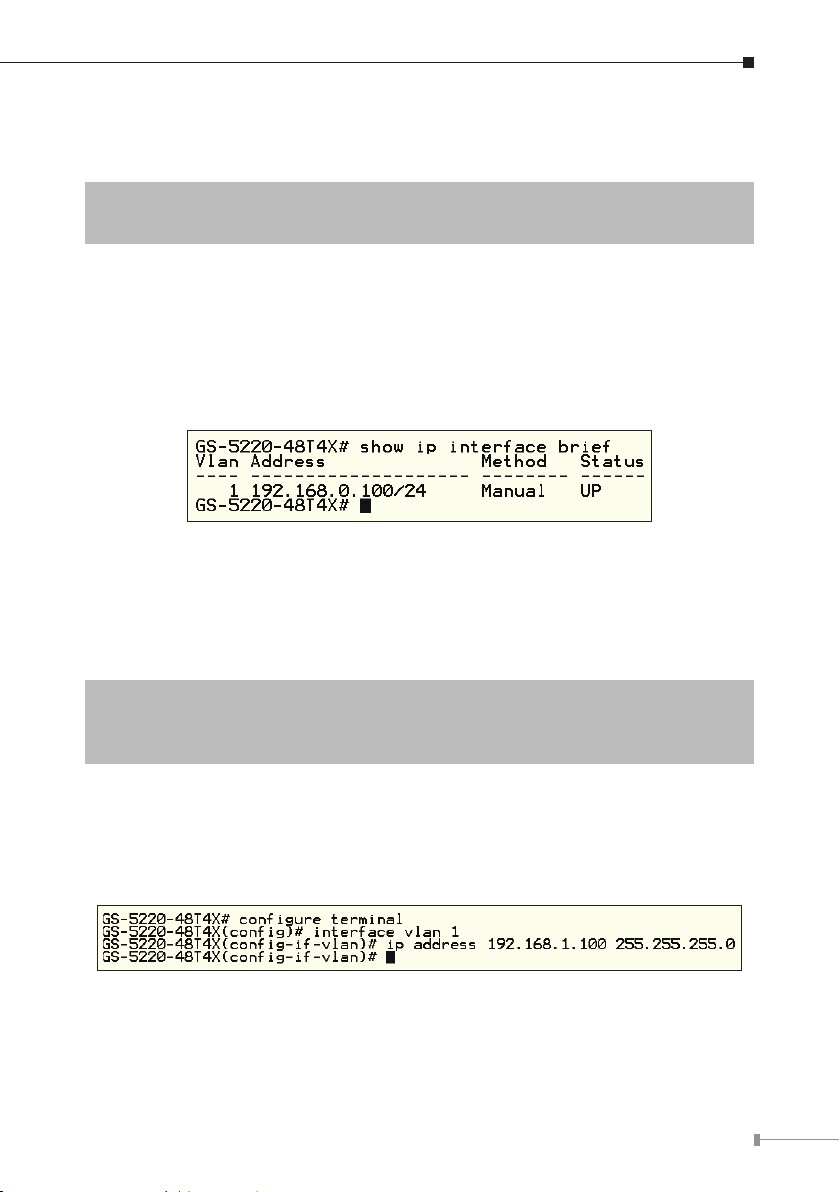

2.ThescreendisplaysthecurrentIPaddressasshowninFigure3-4.
Figure 3-4: IP Information Screen
ConguringIPAddress
3.At the “#” prompt, enter the following command and press <Enter> as shown
inFigure3-5.
GS-5220Series#congure terminal
GS-5220Series(cong)#interface vlan 1
GS-5220Series(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0
ThepreviouscommandwouldapplythefollowingsettingsfortheManagedSwitch.
IPAddress:192.168.1.100
SubnetMask:255.255.255.0
Figure 3-5: Conguring IP Address Screen
4.Repeatstep1tocheckiftheIPaddresshaschanged.
8
3.3 Storingcurrentswitchconguration
Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.
# copy running-cong startup-cong
Figure 3-6: Saving Current Conguration Command Screen
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of the Managed
SwitchthroughthenewIPaddress.
Note
If you are not familiar with the console command or the related
parameter, enter “help” anytime in console to get the help
description.
9
4. Starting Web Management
The following shows how to start up the Web Management of the Managed
Switch. Note the Managed Switch is congured through an Ethernet connection.
Please make sure the manager PC must be set to the same IP subnet address.
For example, the default IP address of the Managed Switch is 192.168.0.100,
then the manager PC should be set to 192.168.0.x (where x is a number
between1and254,except100),andthedefaultsubnetmaskis255.255.255.0.
PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address:
192.168.0.100
Figure 4-1: IP Management Diagram
10
4.1 Logging in to the Managed Switch
1.Use Internet Explorer 8.0 or above Web browser and enter IP address
http://192.168.0.100(thefactorydefaultIPaddressortheonethatyouhave
justchangedinconsole)toaccesstheWebinterface.
2.When the following dialog box appears, please enter the default user name and
password “admin” (or the password you have changed via console). The login
screeninFigure4-2appears.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
DefaultPassword:admin
Figure 4-2: Login Screen
