Planet WGs-4215-8HP2S Manuel utilisateur

Industrial Wall-mount Managed

Gigabit Ethernet Switch

WGS-4215-8HP2S

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................................... 3

2. Requirements ............................................................................................. 4

3. Hardware Installation .................................................................................. 5

3.1 Wall Mount Installation......................................................................... 5

3.2 Wall Hanging Installation...................................................................... 6

4. Wiring the Power Inputs.............................................................................. 8

4.1 Terminal Block Connector Pinout ........................................................... 8

4.2 Wiring Completed in Three Steps.......................................................... 9

5. Web Login.................................................................................................10

5.1 Starting Web Management ..................................................................10

 5.2 SavingCongurationviatheWeb ........................................................12

6. SSH Login.................................................................................................13

 6.1 ConguringIPAddress........................................................................13

 6.2 StoringtheCurrentSwitchConguration ..............................................14

7. RecoveringBacktoDefaultConguration.....................................................15

8. Customer Support .....................................................................................16

1. Package Contents

Thank you for purchasing PLANET Industrial Wall-mount Managed Gigabit Switch,

WGS-4215-8HP2S.Thetablebelowshowsthemodelwiththenumberofports:

ModelName Copper Port Fiber Port

WGS-4215-8HP2S 8 x 10/100/1000T 2 x 100/1000X

In the following sections, unless specied, the term “Wall-mount Managed

Switch” mentioned in this quick installation guide refers to the above model.

Open the box of the Wall-mount Managed Switch and carefully unpack it. The box

shouldcontainthefollowingitems:

TheWall-mountManagedSwitchx1 QuickInstallationGuidex1pc

Wall-mountedKitx1set RJ45 Dust Cap x 8 SFP Dust Cap x 2

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Requirements

zAat-bladescrewdriver

zWorkstationsrunningWindowsXP/2003/Vista/7/8/2008/10,MAC OSXor later,

Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.

zWorkstations are installed with Ethernet NIC(NetworkInterfaceCard)

zEthernet Port Connection

Networkcables--Usenetwork(UTP)cableswithRJ45connectors.

The workstation is installed with Web browser.

The above Workstations have been installed with SSH and telnet client soft-

ware,suchasTeraTermorPuTTY.

Note

It is recommended to use Internet Explorer 8.0 or above to access

the Wall-mount Managed Switch. If the Web interface of the Wall-

mount Managed Switch is not accessible, please turn off the anti-

virus software or firewall and then try it again.

3. Hardware Installation

3.1 Wall Mount Installation

To install the Wall-mount Managed Switch on the wall, simply follow the following

steps:

Step 1: Drill 4 holes with 8mm diameter on the wall. The horizontal and vertical

distances between the 2 holes are 230mm and 124mm,respectively.

230mm

124mm

Ø4mm

6mm

Ø8mm

Step 2: Hammer the four anchors into the four holes.

Step 3: Then the four given screws are screwed into the anchors to nish the

wall-mountinstallation,asshownbelow.

ACTLNK

1G/2.5G

100

1000 LNK/ACT

10/100 LNK/ACT

bt PoE-in-Use

at PoE-in-Use

R.O.

Ring

PWR 2

PWR 1

SFP

PWR 1

V1+

PWR 2

V2+

3 421 7 865

WGS-5225-8UP2SV

Managed

Fiber

SFP

910

Alarm

Smart LCD

DC Input Range

48-54V

, 8A max.

PoE++

Dual power input is required

for maximum PoE loading.

Max. Fault Alarm Loading: 24V,1A

1000 LNK/ACT

10/100 LNK/ACT

bt PoE-in-Use

at PoE-in-Use

3 421

PoE++

1000 LNK/ACT

10/100 LNK/ACT

7 865

PoE+

V+

Ground

SFP

910

ACTLNK

1000

100

120W

240W

360W

PWR

SFP

PoE Usage

DC Input Range

48-54V

, 8A max.

WGS-4215-8HP2S

Managed

Fiber

PoE++

at PoE-in-Use

230mm

124mm

3.2 Wall Hanging Installation

To hang the Wall-mount Managed Switch on the wall, simply follow the following

steps:

Step 1: Drill 2 holes (one hole on each side) with 8mm diameter on the wall; the

distance between the 2 holes is 230 mm and the line through them must

be horizontal.

1 2

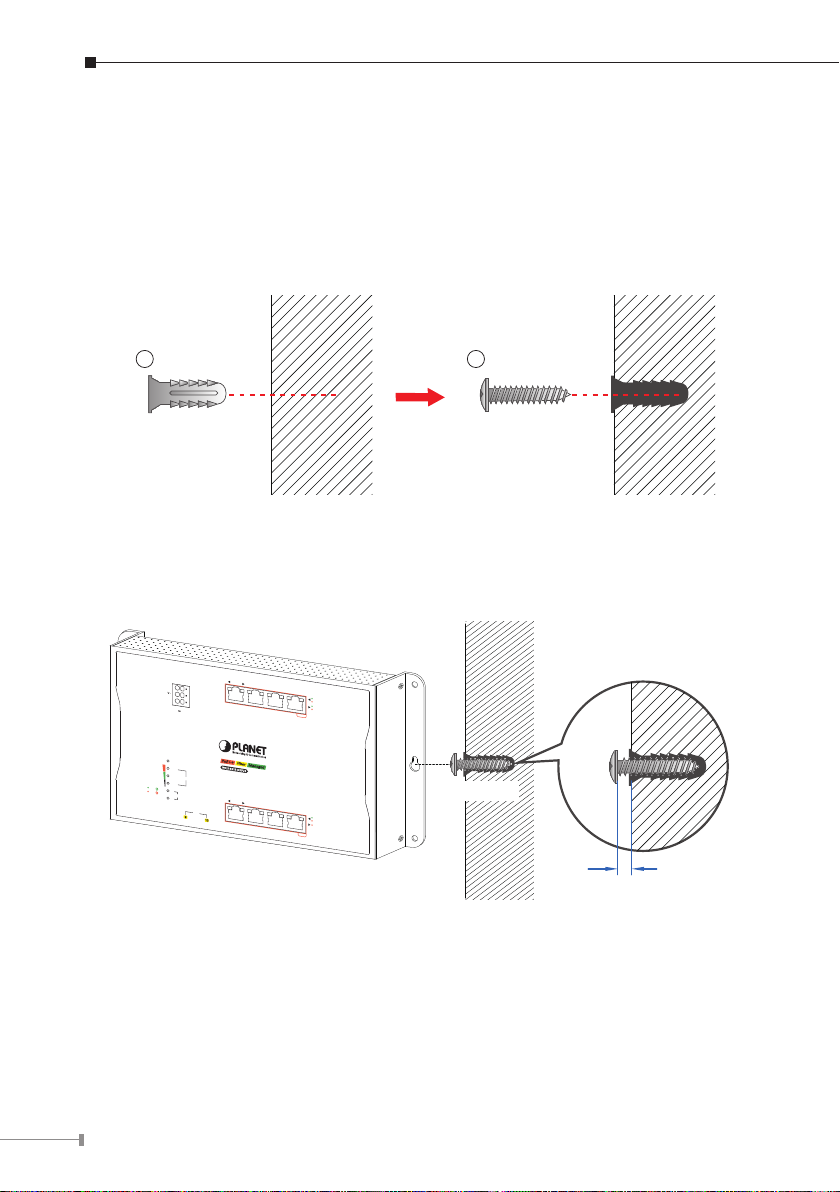

Step 2: Place two anchors inside the hole by hammering them. Then screw the

two screws leaving a space of 2mm apart as shown in the circled diagram

below.

ACTLNK

1G/2.5G

100

1000 LNK/ACT

10/100 LNK/ACT

bt PoE-in-Use

at PoE-in-Use

R.O.

Ring

PWR 2

PWR 1

SFP

PWR 1

V1+

PWR 2

V2+

3 421 7 865

WGS-5225-8UP2SV

Managed

Fiber

SFP

910

Alarm

Smart LCD

DC Input Range

48-54V

, 8A max.

PoE++

Dual power input is required

for maximum PoE loading.

Max. Fault Alarm Loading: 24V,1A

1000 LNK/ACT

10/100 LNK/ACT

bt PoE-in-Use

at PoE-in-Use

3 421

PoE++

1000 LNK/ACT

10/100 LNK/ACT

7 865

PoE+

V+

Ground

SFP

910

ACTLNK

1000

100

120W

240W

360W

PWR

SFP

PoE Usage

DC Input Range

48-54V

, 8A max.

WGS-4215-8HP2S

Managed

Fiber

PoE++

at PoE-in-Use

2mm

4mm Screw

Step 3: Theswitch,showninthepicturebelow,cannowbehungonthewall.

ACTLNK

1G/2.5G

100

1000 LNK/ACT

10/100 LNK/ACT

bt PoE-in-Use

at PoE-in-Use

R.O.

Ring

PWR 2

PWR 1

SFP

PWR 1

V1+

PWR 2

V2+

3 421 7 865

WGS-5225-8UP2SV

Managed

Fiber

SFP

910

Alarm

Smart LCD

DC Input Range

48-54V

, 8A max.

PoE++

Dual power input is required

for maximum PoE loading.

Max. Fault Alarm Loading: 24V,1A

1000 LNK/ACT

10/100 LNK/ACT

bt PoE-in-Use

at PoE-in-Use

3 421

PoE++

1000 LNK/ACT

10/100 LNK/ACT

7 865

PoE+

V+

Ground

SFP

910

ACTLNK

1000

100

120W

240W

360W

PWR

SFP

PoE Usage

DC Input Range

48-54V

, 8A max.

WGS-4215-8HP2S

Managed

Fiber

PoE++

at PoE-in-Use

1Place against a wall

2Hang up

4mm Screw

Caution

Makesure theequipmentis securely wall-mountedas strongvibra-

tion could cause it to drop or break.

4. Wiring the Power Inputs

The Wall-mount Managed Switch features a strong and convenient power input

system incorporated into customer’s automation network to enhance system

uptime.

Model Power Input Range PWR

WGS-4215-8HP2S DC48-54V,8Amax

Note: Maximum power requirements also rely on the real site application.

1000 LNK/ACT

10/100 LNK/ACT

bt PoE-in-Use

at PoE-in-Use

3 421

PoE++

1000 LNK/ACT

10/100 LNK/ACT

7 865

PoE+

V+

Ground

SFP

9 10

ACTLNK

1000

100

120W

240W

360W

PWR

SFP

PoE Usage

DC Input Range

48-54V

, 8A max.

WGS-4215-8HP2S

ManagedFiberPoE++

at PoE-in-Use

10/100/1000BASE-T 802.3at PoE

RJ45 Port

10/100/1000BASE-T 802.3bt PoE++ RJ45 Port

3-pin Spring Terminal Block

V+

Ground

DC Input Range

48-54V

, 8A max.

4.1 Terminal Block Connector Pinout

TheFrontPaneloftheWall-mountManagedSwitchconsistsofoneterminal block

connector within 3 contacts. Please follow the steps below to insert the power

wire.

V+

Ground

Insertpositive/negativeDCpowerwiresintoContactsV+andV-forPower.

4.2 Wiring Completed in Three Steps

Step 1: Presstheat-bladescrewdriverdiagonallyintothereleasehole.

Step 2: Leave the at-blade screwdriver pressed into the release hole and insert

the wire into the terminal hole. Insert the wire until the stripped portion

is no longer visible to prevent shorting.

ACTLNK

1G/2.5G

100

1000 LNK/ACT

10/100 LNK/ACT

btPoE-in-Use

atPoE-in-Use

R.O.

Ring

PWR 2

PWR 1

SFP

PWR 1

V1+

PWR 2

V2+

3 421 7 865

WGS-5225-8UP2SV

Managed

Fiber

SFP

910

Alarm

Smart LCD

DC Input Range

48-54V

, 8A max.

PoE++

Dual power input is required

for maximum PoE loading.

Max. FaultAlarm Loading: 24V, 1A

1000 LNK/ACT

10/100 LNK/ACT

btPoE-in-Use

atPoE-in-Use

3 421

PoE++

1000 LNK/ACT

10/100 LNK/ACT

7 865

PoE+

V+

Ground

SFP

910

ACTLNK

1000

100

120W

240W

360W

PWR

SFP

PoE Usage

DC Input Range

48-54V

, 8A max.

WGS-4215-8HP2S

Managed

Fiber

PoE++

atPoE-in-Use

V+

Ground

DC Input Range

48-54V

, 8A max.

Wire

Flat-blade screwdriver

Step 3: Removetheat-bladescrewdriverfromthereleasehole.

 After you connect the wires, pull gently on the wire to make sure that it

willnotcomeoandthewireissecurelyfastenedtotheterminalblock.

ACTLNK

1G/2.5G

100

1000 LNK/ACT

10/100 LNK/ACT

btPoE-in-Use

atPoE-in-Use

R.O.

Ring

PWR 2

PWR 1

SFP

PWR 1

V1+

PWR 2

V2+

3 421 7 865

WGS-5225-8UP2SV

Managed

Fiber

SFP

910

Alarm

Smart LCD

DC Input Range

48-54V

, 8A max.

PoE++

Dual power input is required

for maximum PoE loading.

Max. FaultAlarm Loading: 24V, 1A

1000 LNK/ACT

10/100 LNK/ACT

btPoE-in-Use

atPoE-in-Use

3 421

PoE++

1000 LNK/ACT

10/100 LNK/ACT

7 865

PoE+

V+

Ground

SFP

910

ACTLNK

1000

100

120W

240W

360W

PWR

SFP

PoE Usage

DC Input Range

48-54V

, 8A max.

WGS-4215-8HP2S

Managed

Fiber

PoE++

atPoE-in-Use

V+

Ground

DC Input Range

48-54V

, 8A max.

Wire

Flat-blade screwdriver

Note

1.Thewiregaugeshouldbeintherangefrom12to16AWG.

2. The device must be grounded.

5. Web Login

5.1 Starting Web Management

The following shows how to start up the Web Management of the Wall-mount

Managed Switch. Note the Wall-mount Managed Switch is congured through an

Ethernet connection. Please make sure the manager PC must be set to the same

IP subnet address.

For example, the default IP address of the Wall-mount Managed Switch is

192.168.0.100, then the manager PC should be set to 192.168.0.x (where x

is a number between 1 and 254, except 100) and the default subnet mask is

255.255.255.0. PC / Workstation

with Web Browser

192.168.0.x

Managed Switch

RJ45/UTP Cable

IP Address: 192.168.0.100

Figure 5-1: IP Management Diagram

Logging in to the Wall-mount Managed Switch

1.Use Internet Explorer 8.0 or above Web browser and enter IP address

https://192.168.0.100 to access the Web interface.

2.When the following dialog box appears, please enter “admin” in both the

defaultusernameandpasswordelds.TheloginscreeninFigure5-2appears.

DefaultIPAddress:192.168.0.100

DefaultUsername:admin

DefaultPassword:admin

Figure 5-2: Web Login Screen

Table des matières

Autres manuels Planet Changer

Planet

Planet KVM-810 Manuel utilisateur

Planet

Planet FGSW-2620CS Manuel utilisateur

Planet

Planet GSW-2416SF Manuel utilisateur

Planet

Planet KVM-800 Manuel utilisateur

Planet

Planet GSD-805 Manuel utilisateur

Planet

Planet GS-5220 Series Manuel utilisateur

Planet

Planet GSW-601S Manuel utilisateur

Planet

Planet GSD-1603 Manuel utilisateur

Planet

Planet GSW-1602SF Manuel utilisateur

Planet

Planet ISW-1022MT Manuel utilisateur

Planet

Planet NOVASwitch FNSW-8086F Manuel utilisateur

Planet

Planet HPOE-460 Manuel utilisateur

Planet

Planet WH-2400M Manuel utilisateur

Planet

Planet WGSW-5240 Manuel utilisateur

Planet

Planet WGS-804HPT Manuel utilisateur

Planet

Planet DH-1600 Manuel utilisateur

Planet

Planet WGSD-1022 Manuel utilisateur

Planet

Planet GSW-1601 Manuel utilisateur

Planet

Planet WGSW-20160HP Manuel utilisateur

Planet

Planet IGS-501T Manuel utilisateur

Planet

Planet IPOE-270 Manuel utilisateur

Planet

Planet IGS-6325 Series Manuel utilisateur

Planet

Planet USB 2.0 External Hub UH-421 Manuel utilisateur

Planet

Planet NOVA100 Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
