Planet IGS-5225-4T2S Manuel utilisateur
Industrial L2+ Multi-Port Full Gigabit
Managed Ethernet Switch
IGS-5225-4T2S/IGS-5225-4P2S
IGS-5225-4UP1T2S/IGS-5225-8P4S
IGS-5225-8P2T2S/IGS-5225-8P2T4S
Quick Installation Guide
Table of Contents
1. Package Contents...................................................................... 3
2. Requirements............................................................................ 5
3. Wiring the Power Inputs ............................................................ 6
3.1 Grounding the Device.......................................................... 8
4. Terminal Setup.......................................................................... 9
4.1. Logging on to the Console..................................................10
4.2 ConguringIPaddress .......................................................11
5. Starting Web Management ........................................................13
5.1 Logging in to the Industrial Managed Switch ........................13
5.2 SavingCongurationviaWeb .............................................16
6. RecoveringBacktoDefaultConguration ...................................17
7. Customer Support ....................................................................20
3
1. Package Contents
Thank you for purchasing PLANET L2+ Industrial Managed Switch,
IGS-5225 Series. The number of the ports of these models is as
follows:
GbE Copper
Ports PoE Ports GbE SFP
Ports
IGS-5225-4T2S 4 - 2
IGS-5225-4P2S 4at/af: 4 2
IGS-5225-4UP1T2S 5bt: 4 2
IGS-5225-8P4S 8at/af: 8 1G: 2
2.5G: 2
IGS-5225-8P2T2S 10 at/af: 8 2.5G: 2
IGS-5225-8P2T4S 10 at/af: 8 1G: 2
2.5G: 2
“Industrial Managed Switch” mentioned in this Quick Installation
Guide refers to the above models
4
Open the box of the Industrial Managed Switch and carefully
unpack it. The box should contain the following items for each model of
the Industrial Managed Switch:
IGS-5225-
4T2S
IGS-5225-
4P2S
IGS-5225-
4UP1T2S
IGS-5225-
8P4S
IGS-5225-
8P2T2S
IGS-5225-
8P2T4S
Quick
Installation
Guide
DIN-rail Kit
Wall
Mounting
Kit
DB9 to
RJ45,
RS232
Console
Cable
RJ45 Dust
Cap 556911 11
SFP Dust
Cap 222424
If any of these are missing or damaged, please contact your dealer
immediately. If possible, retain the carton including the original packing
materials to enable you to repack the product in case there is a need
to return it to us for repair.
5
2. Requirements
The Industrial Managed Switch provides remote login interface for
management purposes. The following equipment is necessary for
further management:
zWorkstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS
X or later, Linux, UNIX, or other platforms are compatible with TCP/
IP Protocols.
zWorkstations are installed with Ethernet NIC (Network Interface
Card)
zSerial Port Connection (Terminal)
The above Workstations come with COM Port (DB9) or USB-to-
RS232 converter.
The above Workstations have been installed with terminal
emulator, such as Hyper Terminal included in Windows XP/2003,
putty or tera term.
Serial cable -- one end is attached to the RS232 serial port,
while the other end to the console port of the Industrial Managed
Switch.
zEthernet Port Connection
Network cables -- Use standard network (UTP) cables with RJ45
connectors.
The above PC is installed with Web browser.
Note
It is recommended to use Internet Explorer 8.0 or above
to access the Industrial Managed Switch.
6
3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch comes with a DC
inlet power socket and one 6-contact terminal block. Please follow the
steps below to insert the power wire.
1. Insert positive/negative DC power wires into Contacts 1 and 2 for
Power 1, or Contacts 5 and 6 for Power 2.
IGS-5225-8P4S/IGS-5225-8P2T2S/IGS-5225-8P2T4S: DC 48~56V
PWR1 PWR2
Alarm
DI1 DO0 DO1DI0 GNDGND
DC Input:
48-56V , 6A max.
Max. Fault Alarm Loading: 24V, 1A
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-1: IGS-5225-8P4S/IGS-5225-8P2T2S/IGS-5225-8P2T4S Upper Panel
IGS-5225-4UP1T2S: DC 48~56V
PWR1 PWR2
Fault
DI1 DO0 DO1DI0 GNDGND
DC Input:
48-56V , 6A max.
Max. fault loading: 24V, 1A
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-2: IGS-5225-4UP1T2S Upper Panel
7
IGS-5225-4T2S: DC 12~48V, AC 24V
Max. fault loading: 24V, 1A
V1+ V2+
PWR1 PWR2Fault
DC Input: 12-48V
, 1.2A max.
AC Input: 24V
, 1.1A max.
1 2 3 4 5 6
Figure 3-3: IGS-5225-4T2S Upper Panel
IGS-5225-4P2S: DC 48~56V
FaultPWR1
V1+ V2+
PWR2
Max. fault loading: 24V, 1A
DC Input: 48-56V
,
3.5A max.
1 2 3 4 5 6
Figure 3-4: IGS-5225-4P2S Upper Panel
2. Tighten the wire-clamp screws for preventing the wires from loos-
ening.
123456
V+ V- V+ V-
Power 1 Power 2
Positive (+) Pin Negative (-) Pin
IGS-5225 Series Pin 1/5 Pin 2/6
8
Note
1. The wire gauge for the terminal block should be in
the range from 12 to 24 AWG.
2. Please check the wire AWG Ampere specification
before connecting PLANET Industrial Managed Switch.
Caution
PWR1 and PWR2 must provide the same DC voltage
for power load balance while operating with dual power
input.
3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a
sudden lightning could cause fatal damage to the device.
PWR1 PWR2
Fault
DI1 DO0 DO1DI0 GNDGND
DC Input:
48-56V , 6A max.
Max. fault loading: 24V, 1A
1 2 3 4 5 6
1 2 3 4 5 6
Earth Ground
9
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a
PC or notebook computer and to RJ45 type serial (console) port of the
Industrial Managed Switch. The console port of the Industrial Managed
Switch is DCE already, so that you can connect the console port
directly through PC without the need of null modem.
PC/Workstation with
Terminal Emulation Software
RJ45 to DB9 RS232 Cable
Serial Port
Console Port
115200,N,8,1
IGS Industrial Managed Switch
11
Console
115200,N,8,1
P1 P2 Fault
DIDO
Ring
11
R.O.
12
12
PoE Usage
ACT1000 LNK
ACT100 LNK
A terminal program is required to make the software connected to the
IGS-5225 series Industrial Managed Switch.
1. Run terminal program on the OS.
2. When the following screen appears, make sure that the COM port
shouldbeconguredas:
zBaud: 115200
zParity: None
zData bits: 8
zStop bits: 1
zFlow control: None
10
4.1. Logging on to the Console
Once the terminal has been connected to the device, power on the
Industrial Managed Switch and the terminal will display “running testing
procedures”.
Note
The following terminal configuration of the IGS-
5225-4UP1T2S is taken for an example.
Then, the following message asks to log in user name and password.
The default user name and password are shown as follows and the
login screen in Figure 4-1 appears.
User name: admin
Password: admin

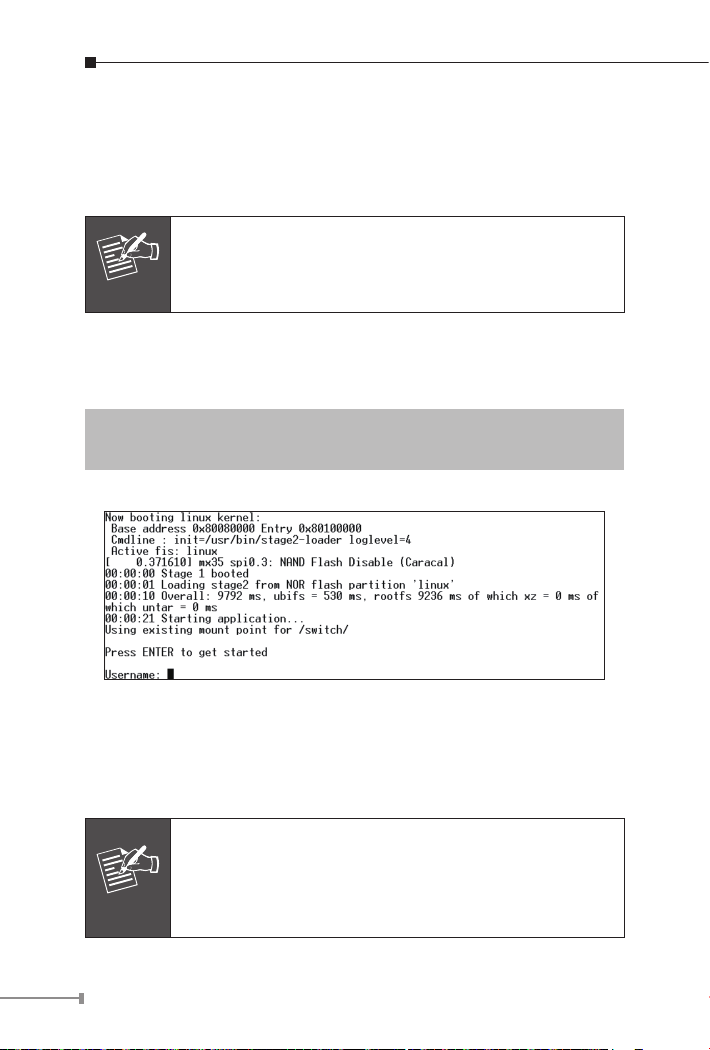

Figure 4-1: Console Login Screen
The user can now enter commands to manage the Industrial Managed
Switch. For a detailed description of the commands, please refer to the
following chapters.
Note
1. For security reason, please change and memorize
the new password after this first setup.
2. Only accept command in lowercase letter under
console interface.
