Planet FSD-808P Manuel utilisateur

8-Port 10/100Mbps PoE Fast Ethernet Switch

FSD-808P

User's Manual

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks

belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all

environments and applications, and makes no warranty and representation, either

implied or expressed, with respect to the quality, performance, merchantability, or

tness for a particular purpose.

PLANET has made every effort to ensure that this User’s Manual is accurate;

PLANET disclaims liability for any inaccuracies or omissions that may have

occurred.

Information in this User’s Manual is subject to change without notice and does not

represent a commitment on the part of PLANET. PLANET assumes no responsibility

for any inaccuracies that may be contained in this User’s Manual. PLANET makes

no commitment to update or keep current the information in this User’s Manual,

and reserves the right to make improvements to this User’s Manual and/or to the

products described in this User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect, misleading, or incomplete,

we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with

the Instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

Energy Saving Note of the Device

This power required device does not support Standby mode operation.

For energy saving, please remove the power cable to disconnect the device from

the power circuit.

Without removing power cable, the device will still consuming power from the

power source. In the view of Saving the Energy and reduce the unnecessary power

consuming, it is strongly suggested to remove the power connection for the device

if this device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and human health as a

result of the presence of hazardous substances in electrical and electronic

equipment, end users of electrical and electronic equipment should

understand the meaning of the crossed-out wheeled bin symbol. Do not

dispose of WEEE as unsorted municipal waste and have to collect such WEEE

separately.

Revision

PLANET 8-Port 10/100Mbps PoE Fast Ethernet Switch User's Manual

For Model: FSD-808P

Revision: 1.0 (July, 2011)

Part No.: 2351-A31190-000

Table Of Contents

1. Introduction ............................................................................................... 5

1.1 Checklist............................................................................................. 5

1.2 Product Description.............................................................................. 5

1.3 Features ............................................................................................. 6

1.4 Specication........................................................................................ 7

2. Hardware Description .................................................................................. 8

2.1 Front Panel ......................................................................................... 8

2.1.1 LED Indicators ........................................................................... 8

2.2 Rear Panel .......................................................................................... 9

3. Hardware Installation .................................................................................10

3.1 Desktop Installation ............................................................................10

3.2 Rack Mounting ...................................................................................11

3.3 Product Application .............................................................................13

3.3.1 Connecting end node or Switch ..................................................13

3.3.2 Department / Workgroup PoE Switch ..........................................14

3.4 Power over Ethernet Powered Device ..................................................14

4. Power over Ethernet Overview ....................................................................15

5. Troubleshooting .........................................................................................18

Appendix A Networking Connection ..................................................................19

A.1 Data out PoE Switch RJ-45 Port Pin Assignments (Port 1 to Port 8) ........19

A.2 10/100Mbps, 10/100Base-TX ...............................................................19

1. Introduction

1.1 Checklist

Check the contents of your package for following parts:

FSD-808P x 1l

User's Manual x 1l

Power Cord x 1l

Two Rack-mounting Brackets with Attachment Screws x 8l

If any of these pieces are missing or damaged, please contact your dealer

immediately, if possible, retain the carton including the original packing material,

and use them against to repack the product in case there is a need to return it to

us for repair.

1.2 Product Description

To fulll the demand of sufcient PoE power for network applications with Fast

Ethernet transmission performance, the new member in the 802.3af PoE Fast

Ethernet Switch family - FSD-808P, the 8-Port 10/100Mbps Power over Ethernet

Switch which features high performance Fast Ethernet IEEE 802.3af PoE (Up

to 15.4 Watts) and totally 125 Watts PoE budget. The eight 802.3af PoE ports

provide PoE power injector function which is able to drive 8 IEEE 802.3af compliant

powered devices. The FSD-808P also provides a simple, cost-effective, and non-

blocking wire-speed performance with 12-inch metal shape for desktop deployment

in compact housing, SOHO ofce or department network application.

All RJ-45 copper interfaces in the FSD-808P support 10/100Mbps Auto-Negotiation

for optimal speed detection through RJ-45 Category 5 or 5e cables. It also supports

standard Auto-MDI/MDI-X that can detect the type of connection to any Ethernet

device without requiring special straight or crossover cables.

1.3 Features

RJ-45 Interfacel

8-Port 10/100Mbps Fast Ethernet ports

8-Port supports 48V DC power to PoE Powered Device

Power over Ethernetl

Comply with IEEE 802.3af Power over Ethernet Mid-Span PSE

Up to 8 IEEE 802.3af devices powered

Supports PoE Power up to 15.4 Watts for each PoE port

Auto detect powered device (PD)

Circuit protection prevents power interference between ports

Remote power feeding up to 100m

Switchingl

Hardware based 10/100Mbps Auto-Negotiation and Auto MDI/MDI-X

Flow control for Full Duplex operation and back pressure for Half Duplex operation

Integrates address look-up engine, supporting 2K absolute MAC addresses

Automatic address learning and address aging

Hardwarel

12-inch desktop size, 1U height

LED indicators for PoE ready and PoE activity

 1 silent FAN to provide stable and efcient power performance

1.4 Specication

Model FSD-808P

8-Port 10/100Mbps PoE Fast Ethernet Switch

Hardware Specication

Network Connector 8-Port RJ-45 for 10/100Base-TX

PoE Inject Port 8-Port with 802.3af PoE injector function

LED Display

System: Power (Green)

Per port : PoE (Green)

LNK/ACT (Green)

Switch Architecture Store and Forward switch architecture

MAC Address 2K MAC address table with Auto learning function

Switch Fabric 1.6Gbps

Switch Throughput 1.19Mpps@64Bytes

Power Requirement AC 100~240V, 50/60Hz, 1.5A max.

Power Consumption Max. 135 Watts / 460 BTU

Dimension (W x D x H) 280 x 180 x 43 mm

Weight 1.65kg

Power over Ethernet

PoE Standard IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply Type Mid-Span

PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 Watts

Power Pin Assignment 4/5(+), 7/8(-)

PoE Power Budget 125 Watts

Standard Conformance

EMI Safety FCC Class A, CE

Standard Compliance

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3af

Ethernet

Fast Ethernet

Flow Control

Power over Ethernet

Environment

Operating environment 0 ~ 50 Degree C

Storage environment -40 ~ 70 Degree C

Operating Humidity 5 ~ 95%, relative humidity, non-condensing

Storage Humidity 5 ~ 95%, relative humidity, non-condensing

2. Hardware Description

This product provides two different running speeds – 10Mbps and 100Mbps in the

same switch and automatically distinguishes the speed of incoming connection.

This section describes the hardware features of FSD-808P. For easier management

and control of the Switch, familiarize yourself with its display indicators, and ports.

Front panel illustrations in this chapter display the unit LED indicators. Before

connecting any network device to the FSD-808P, please read this chapter carefully.

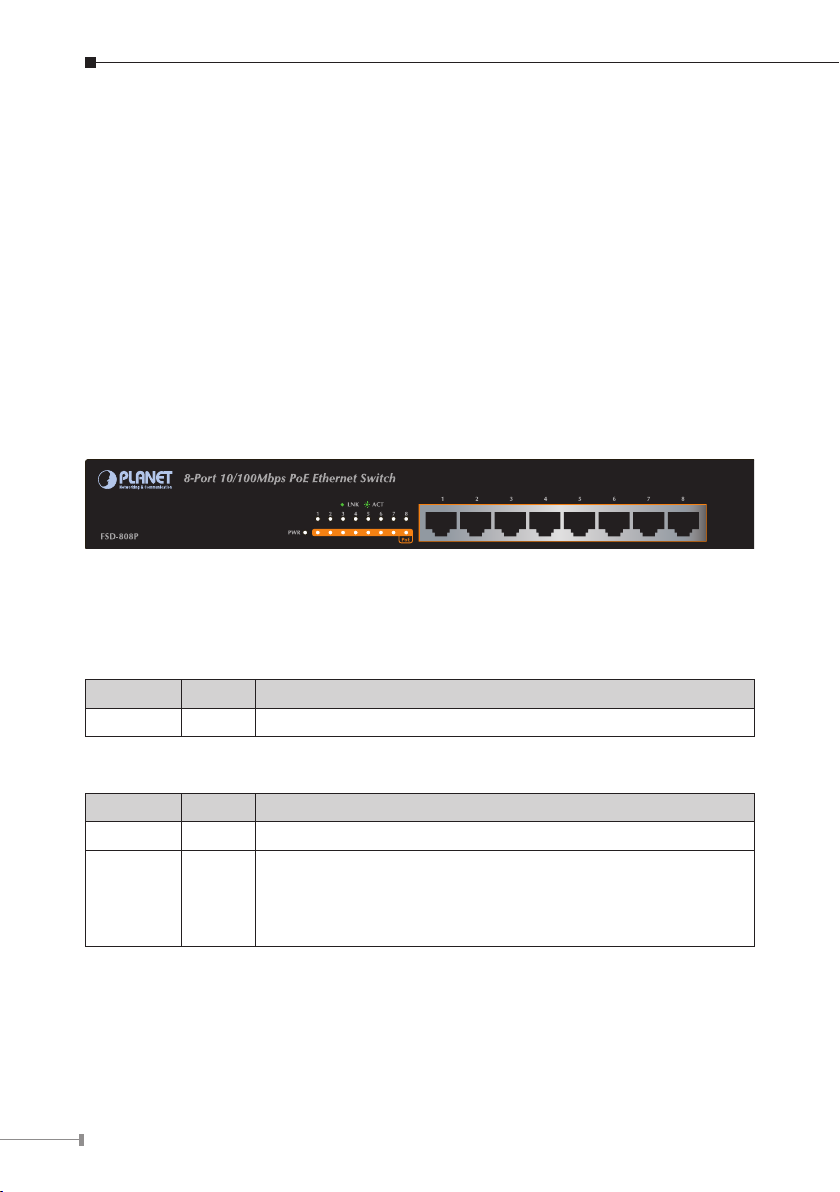

2.1 Front Panel

The Front Panel of the FSD-808P PoE Ethernet Switch consists of 8x Auto-Sensing

10/100Mbps Ethernet RJ-45 Ports. The LED Indicators are also located on the front

panel of the FSD-808P.

Figure 2-1: FSD-808P Switch Front Panel

2.1.1 LED Indicators

System

LED Color Function

PWR Green Light: Indicate the Switch has power.

Per 10/100Mbps Port

LED Color Function

PoE Green Light: Indicate the port is providing 48V DC in-line power.

LNK/ACT Green

Light: Indicate the link through that port is successfully

established.

Blink: Indicate that the Switch is actively sending or

receiving data over that port.

2.2 Rear Panel

The rear panel of the FSD-808P indicates an AC inlet power socket, which accepts

input power from 100 to 240V AC, 50-60Hz.

Figure 2-2: FSD-808P Switch Rear Panel

Power

Notice

1. The device is a power-required device, it means, it will not

work till it is powered. If your networks should active all the

time, please consider using UPS (Uninterrupted Power Supply)

for your device. It will prevent you from network data loss or

network downtime.

2. In some area, installing a surge suppression device may also

help to protect your FSD-808P from being damaged by unregu-

lated surge or current to the FSD-808P or the power adapter.

3. Hardware Installation

Start up

Please refer to the followings for your cabling:

10/100Base-TX

All 10/100Base-TX ports come with Auto-Negotiation capability. They

automatically support 100Base-TX and 10Base-T networks. Users only need to

plug a working network device into one of the 10/100Base-TX ports, and then

turn on the FSD-808P. The port will automatically runs in 10Mbps, 20Mbps,

100Mbps or 200Mbps after the negotiation with the connected device.

Cabling

Each 10/100Base-TX ports use RJ-45 sockets -- similar to phone jacks -- for

connection of unshielded twisted-pair cable (UTP). The IEEE 802.3 / 802.3u Fast

Ethernet standard requires Category 5, 5e UTP for 100Mbps 100Base-TX. 10Base-T

networks can use Cat. 3, 4, 5 (see table below). Maximum distance is 100meters

(328 feet).

Port Type Cable Type Connector

10Base-T Cat. 3, 4, 5, 2-pair RJ-45

100Base-TX Cat. 5, 5e UTP, 2-pair RJ-45

Any Ethernet devices like hubs/ PCs can connect to the FSD-808P by using

straight-through wires. The eight-10/100Mbps ports are auto-MDI/MDI-X can be

used on straight-through or crossover cable.

3.1 Desktop Installation

To install the Switch on desktop, simply follow the next steps:

Step 1: Attach the rubber feet to the recessed areas on the bottom of the Switch,

as shown in Figure 3-1.

Figure 3-1: Attaching the Rubber Feet to the POE Fast Ethernet Switch

Autres manuels pour FSD-808P

Table des matières

Autres manuels Planet Changer

Planet

Planet WGS-5225-8MT Manuel utilisateur

Planet

Planet VC24024 Manuel de l'opérateur

Planet

Planet NOVASwitch GSW-1200S Manuel utilisateur

Planet

Planet XGSW-28040HP Manuel utilisateur

Planet

Planet IGS-5225-4T2S Manuel utilisateur

Planet

Planet POE-1200G Manuel utilisateur

Planet

Planet POE-1200 Manuel utilisateur

Planet

Planet IFGS-1022HPT Manuel utilisateur

Planet

Planet GS-5220 Series Manuel utilisateur

Planet

Planet IPOE-270 Manuel utilisateur

Planet

Planet FNSW-1601 Manuel utilisateur

Planet

Planet IGS-4215-4P4T Manuel utilisateur

Planet

Planet MGSW-24160F Manuel utilisateur

Planet

Planet SOHOConnect DHD-801 Manuel utilisateur

Planet

Planet FNSW-2402 Manuel utilisateur

Planet

Planet FGSW-4840S Manuel utilisateur

Planet

Planet FSD-1008HP Manuel utilisateur

Planet

Planet FGSW-2620CS Manuel utilisateur

Planet

Planet WSW-2620 Manuel utilisateur

Planet

Planet KVM-810 Manuel utilisateur

Planet

Planet GSW-1601 Manuel utilisateur

Planet

Planet XGS-6320-8X8TR Manuel utilisateur

Planet

Planet FSD-805 Manuel utilisateur

Planet

Planet ISW-1022M Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
