Planet SGS-6340-24T4S Manuel utilisateur
L3 Multi-Port Full Gigabit Stackable Managed Switch
SGS-6340-24T4S / SGS-6340-24P4S /
SGS-6340-20S4C4X / SGS-6340-48T4S / SGS-6340-16XR
Quick Installation Guide
Table of Contents
1. Package Contents ....................................................................................... 3
2. Switch Management.................................................................................... 4
3. Requirements ............................................................................................. 5
4. Terminal Setup ........................................................................................... 6
5. Logon to the Console .................................................................................. 7
6. ConguringIPAddress................................................................................ 8
7. Setting100BASE-FXforSFPPort(SGS-6340-20S4C4XOnly) ......................... 9
8. Setting1000BASE-XforSFP+Port
(SGS-6340-16XR,SGS-6340-20S4C4XOnly) ...............................................10
9. UsingCopperInterfaceonComboPort (SGS-6340-20S4C4XOnly) ................11
10.SavingtheConguration ...........................................................................12
11.StartingWebManagement.........................................................................13
12.LoggingintotheManagedSwitch..............................................................14
13.SavingCongurationviatheWeb...............................................................15
14. Customer Support.....................................................................................16
3
1. Package Contents
Thank you for purchasing PLANET L3 Multi-Port Full Gigabit Stackable Managed
Switch, SGS-6340-24T4S/SGS-6340-24P4S/SGS-6340-20S4C4X/SGS-6340-48T4S/
SGS-6340-16XR.Thedescriptionsofthesemodelsareasfollows:
SGS-6340-24T4S Layer324-Port10/100/1000T+4-Port1000XSFP
StackableManagedSwitch
SGS-6340-24P4S Layer324-Port10/100/1000T802.3atPoE+4-Port
1000XSFPStackableManagedSwitch/370W
SGS-6340-20S4C4X Layer320-Port100/1000XSFP+4-PortGigabitTP/SFP
+4-Port10GSFP+StackableManagedSwitch
SGS-6340-48T4S Layer348-Port10/100/1000T+4-Port1000XSFP
StackableManagedSwitch
SGS-6340-16XR Layer316-Port10GBASE-SR/LRSFP+Stackable
ManagedSwitch(100~240VAC,48~60VDC)
Unless specied, “Managed Switch” mentioned in this Quick Installation Guide
referstotheabovefourmodels.
Open the box of the Managed Switch and carefully unpack it. The box should
containthefollowingitems:
zTheManagedSwitchx1
zQuickInstallationGuidex1
zRJ45-to-DB9ConsoleCablex1
zPowerCordx1
zRubberFeetx4
zTwoRack-mountingBracketswithAttachmentScrewsx1
zSFPDustCap(Pleaserefertotablebelow)
SFPDustCap ModelName
4SGS-6340-24T4S/24P4S/48T4S
16 SGS-6340-16XR
28 SGS-6340-20S4C4X
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Switch Management
To set up the Managed Switch, the user needs to congure the Managed Switch
fornetwork management.The ManagedSwitchprovides twomanagement options:
Out-of-Band ManagementandIn-Band Management.
Out-of-Band Management
Out-of-band management is the management through Console interface.
Generally, the user will use out-of-band management for the initial switch
conguration,orwhenin-bandmanagementisnotavailable.
Important
The Managed Switch is shipped without IP address assigned by
default. User must assign an IP address to the Managed Switch via
the Console interface to be able to remotely access the Managed
Switch through Telnet or HTTP.
In-Band Management
In-band management refers to the management by logging in to the Managed
Switchusing Telnetor HTTP, orusingSNMP managementsoftwareto congurethe
Managed Switch. In-band management enables the management of the Managed
SwitchtoattachsomedevicestotheSwitch.Thefollowingproceduresarerequired
toenableIn-bandmanagement:
1. Logon to console
2.Assign/CongureIPaddress
3. Create a remote login account
4.EnableHTTPorTelnetserverontheManagedSwitch
In case in-band management fails due to Managed Switch conguration changes,
out-of-band management can be used for conguring and managing the Managed
Switch.
5
3. Requirements
zWorkstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS X or later,
Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)
zSerialPortConnection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
The above Workstations have been installed with terminal emulator, such as
Tera Term or PuTTY.
Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedSwitch.
zEthernetPortConnection
Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.
The above PC is installed with Web browser and JAVA runtime environment
plug-in.
Note
It is recommended to use Internet Explore 8.0 or above to access
the Managed Switch. If the Web interface of the Managed Switch
is not accessible, please turn off the anti-virus software or firewall
andthentryitagain.
6
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to serial (console) port of the Managed Switch. The
console port of the Managed Switch is DCE already, so that you can connect the
consoleportdirectlythroughPCwithouttheneedofNullModem.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45

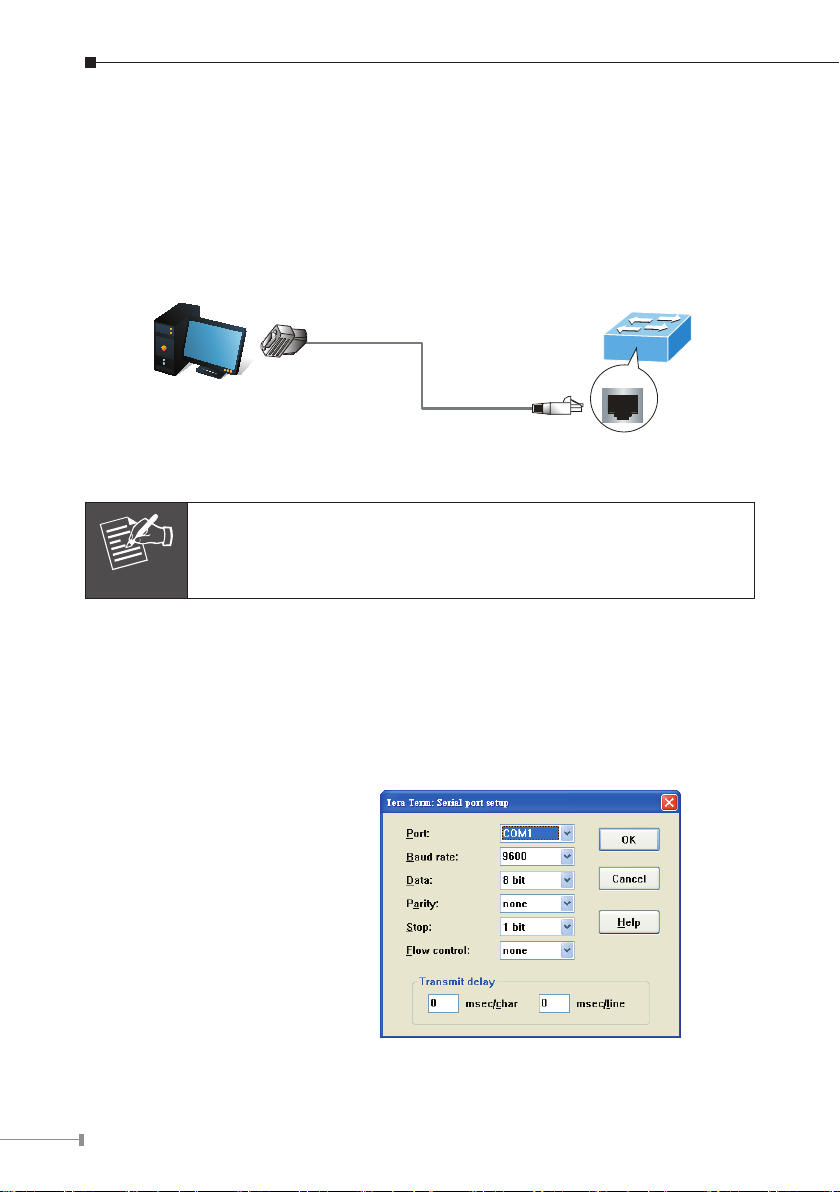

Figure 4-1 Managed Switch Console Connectivity
Note
Let’stakeSGS-6340-48T4Sforexample.
A terminal program is required to make the software connection to the Managed
Switch. Tera Term program may be a good choice. The Tera Term can be accessed
fromtheStart menu.
1. Click STARTmenu,thenPrograms,andthenTera Term.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud: 9600
Parity: None
Databits: 8
Stopbits: 1
Flowcontrol: None
Figure 4-2 Tera Term COM Port Conguration
7
5. Logon to the Console
Once the terminal is connected to the device, power on the Managed Switch, and
theterminalwilldisplay“running testing procedures”.
Then, the following message asks for the login user name and password. The
factory default user name and password are as follows as the login screen in
Figure5-1appears.
Username:admin
Password:admin
Figure 5-1 Managed Switch Console Login Screen
The user can now enter commands to manage the Switch. For a detailed
descriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.Forsecurity reason,please changeandmemorize thenewpass-
wordafterthisfirstsetup.
2.Only accept command in lowercase letter under console inter-
face.
8
6.ConguringIPAddress
The IP address conguration commands for VLAN1 interface are listed below.
Before using in-band management, the Managed Switch must be congured with
an IP address by out-of-band management (i.e. console mode). The conguration
commandsareasfollows:
SGS-6340-48T4S#cong
SGS-6340-48T4S(cong)# interface vlan 1
SGS-6340-48T4S(cong-if-Vlan1)#ip address 192.168.1.254 255.255.255.0
ThepreviouscommandwouldapplythefollowsettingsfortheManagedSwitch.
IPv4 Address: 192.168.1.254
Subnet Mask: 255.255.255.0

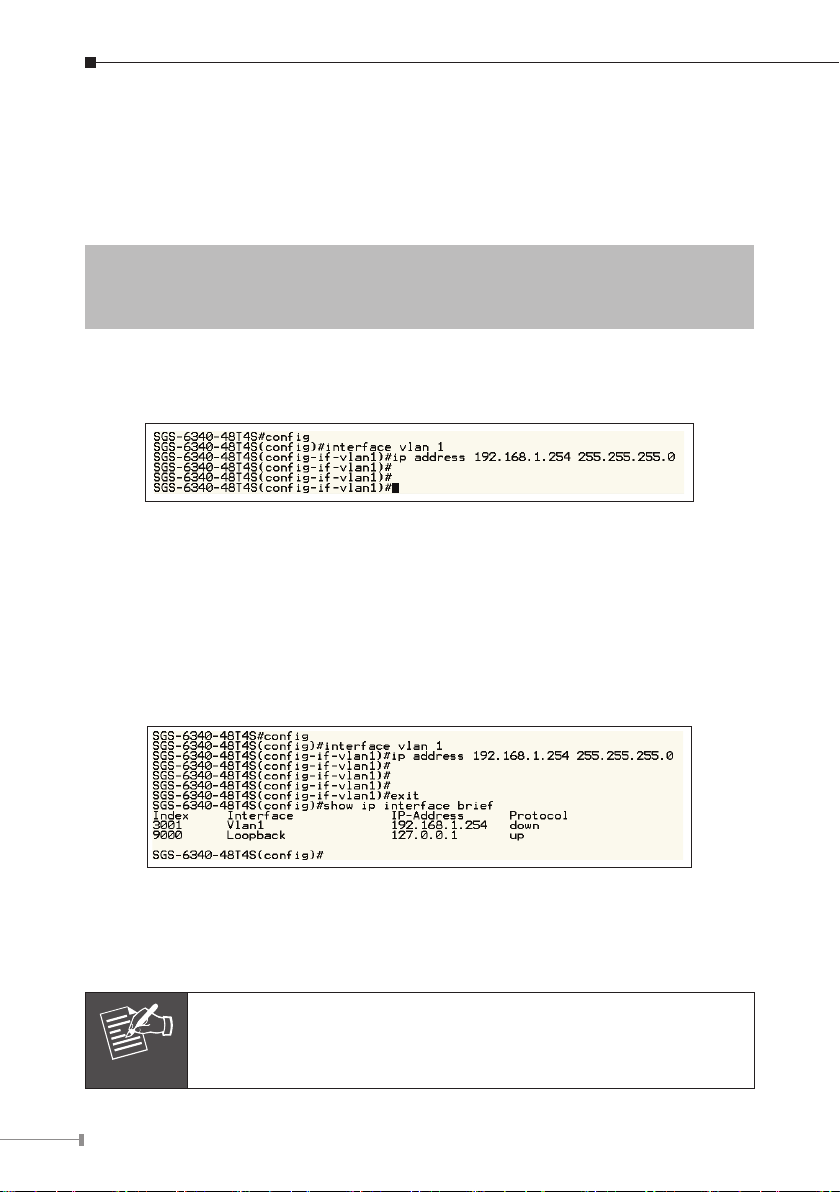

Figure 6-1 Conguring IPv4 Address Screen
To check the current IP address or modify a new IP address for the Managed
Switch,pleaseusetheproceduresasfollows:
Show the current IP address
1.On “SGS-6340-48T4S#” prompt,enter“show ip interface brief”.
2.Thescreendisplays the currentIP address, SubnetMaskand Gatewayasshown
inFigure6-2.
Figure 6-2 Showing IP Information Screen
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of Managed Switch
throughthenewIPaddress.
Note
Ifyouarenotfamiliarwithconsolecommandortherelatedparam-
eter,enter“help”anytimeinconsoletogetthehelpdescription.
9
7.Setting100BASE-FXforSFPPort(SGS-6340-
20S4C4XOnly)
The Managed Switch supports both 1000BASE-X and 100BASE-FX SFP
transceiver by manual setting and the default SFP port speed is set to 1000Mbps.
To establish the ber connection with 100BASE-FX SFP transceiver, the following
commandcongurationisrequired:
SGS-6340-20S4C4X#cong
SGS-6340-20S4C4X(cong)#interface ethernet 1/0/1-20
SGS-6340-20S4C4X(cong-if-port-range)#speed-duplex force100-fx
module-type auto-detected
SGS-6340-20S4C4X(cong-if-port-range)#exit
SGS-6340-20S4C4X(cong)#interface ethernet 1/0/21-24
SGS-6340-20S4C4X(cong-if-port-range)#media-type ber
SGS-6340-20S4C4X(cong-if-port-range)#speed-duplex force100-fx
module-type auto-detected
SGS-6340-20S4C4X(cong-if-port-range)#

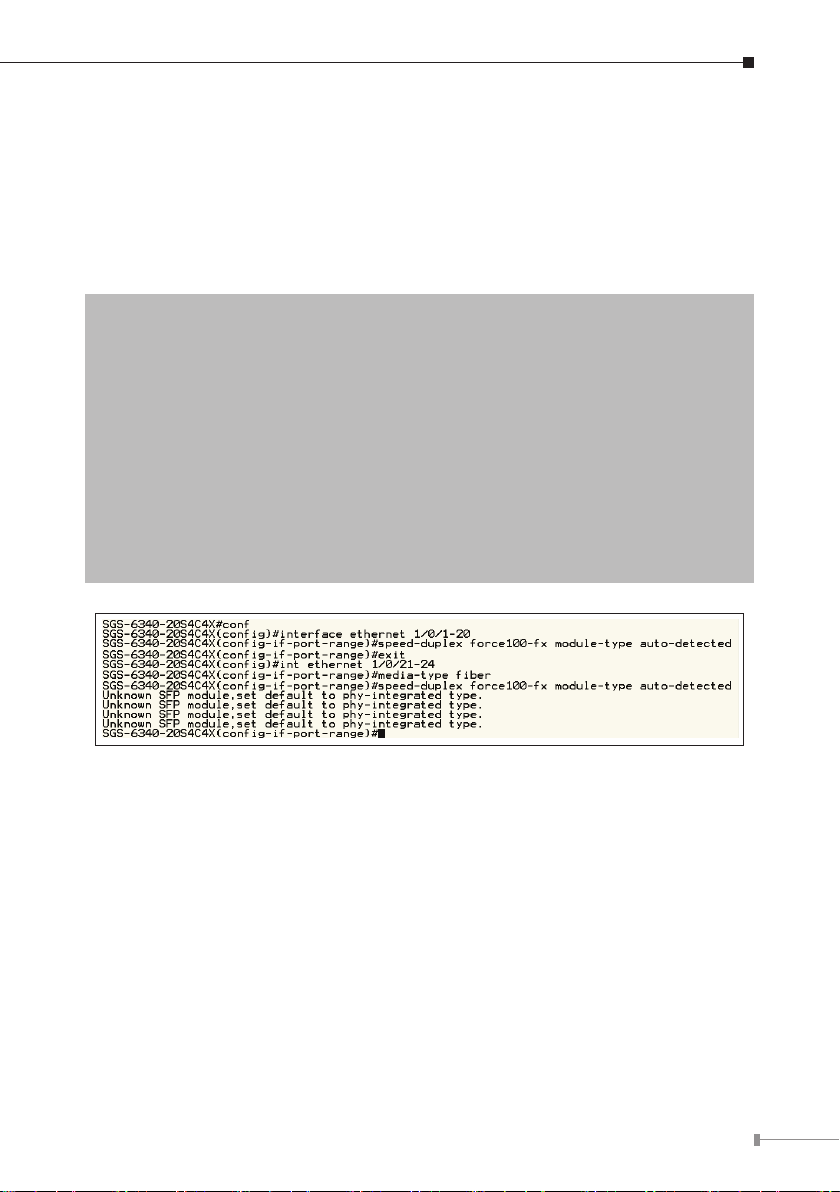

Figure 7-1 Setting 100BASE-FX Screen
10
8.Setting1000BASE-XforSFP+Port(SGS-6340-16XR,
SGS-6340-20S4C4XOnly)
The Managed Switch supports both 1000BASE-X and 10GBASE-X SFP transceiver
bymanual settingand thedefaultSFP+ portspeed isset to10Gbps. Forexample,
to establish the ber connection with 1000BASE-X SFP transceiver in the ethernet
1/0/1,thefollowingcommandcongurationisrequired:
SGS-6340-16XR#cong
SGS-6340-16XR(cong)#interface ethernet 1/0/1
SGS-6340-16XR(cong-if-ethernet1/0/1)#speed-duplex force1g-full
Figure 8-1 Setting 1000BASE-FX Screen
