Planet IGS-5225-8T2S2X Manuel de l'opérateur

Industrial L3 Multi-Port Full Gigabit

Managed Ethernet Switch

IGS-5225-8T2S2X/IGS-5225-8P2S2X

Quick Installation Guide

Table of Contents

1. Package Contents...................................................................... 3

2. Requirements............................................................................ 4

3. Wiring the Power Inputs ............................................................ 5

4. Terminal Setup.......................................................................... 7

4.1 Logon to the Console .......................................................... 8

4.2 ConguringIPAddress ........................................................ 8

4.3 StoretheCurrentSwitchConguration................................10

5. Starting Web Management ........................................................11

5.1 LoggingintotheIndustrialManagedSwitch ........................11

5.2 SavingCongurationviaWeb .............................................13

6. Resetting the Switch to Default .................................................15

7. Customer Support ....................................................................16

1. Package Contents

Thank you for purchasing PLANET L3 Industrial Managed Switch,

IGS-5225-8T2S2X and IGS-5225-8P2S2X. The descriptions of these

modelsareasfollows:

IGS-5225-8T2S2X:

IndustrialL38-Port10/100/1000T+2-Port

100/1000XSFP+2-Port10GSFP+Managed

EthernetSwitch(-40~75degreesC)

IGS-5225-8P2S2X:

IndustrialL38-Port10/100/1000T802.3atPoE

+2-Port100/1000XSFP+2-Port10GSFP+

ManagedEthernetSwitch(-40~75degreesC)

“Industrial Managed Switch” mentioned in this Quick Installation

Guidereferstotheabovetwomodels.

Open the box of the Industrial Managed Switch and carefully

unpackit.Theboxshouldcontainthefollowingitems:

zTheIndustrialManagedSwitchx1

zQuickInstallationGuidex1

zDINRailKitx1

zWallMountingKitx1

zDB9 to RJ45 Interface RS232 Console Cable x 1

zDustCap(Pleaserefertothetablebelow.)

Model RJ45 Dust Cap SFPDustCap

IGS-5225-8T2S2X

9 4

IGS-5225-8P2S2X

If any of these are missing or damaged, please contact your dealer

immediately. If possible, retain the carton including the original packing

materials to enable you to repack the product in case there is a need

to return it to us for repair.

2. Requirements

The Industrial Managed Switch provides remote login interface for

management purposes. The following equipment is necessary for

furthermanagement:

zWorkstations running Windows XP/2003/Vista/7/8/2008/10, MAC

OS X or later, Linux, UNIX, or other platforms are compatible with

TCP/IPProtocols.

zWorkstations are installed with Ethernet NIC (Network Interface

Card)

zSerial Port Connection(Terminal)

The above Workstations come with COM Port (DB9) or USB-to-

RS232 converter.

The above Workstations have been installed with terminal

emulator, such as Hyper Terminal included in Windows XP/2003,

putty or tera term.

Serial cable -- one end is attached to the RS232 serial port,

while the other end to the console port of the Industrial Managed

Switch.

zEthernet Port Connection

Network cables -- Use standard network (UTP) cables with RJ45

connectors.

The above PC is installed with Web browser and JAVA runtime

environment plug-in.

Note

Itis recommended to use Internet Explorer 8.0 or above

toaccesstheIndustrialManagedSwitch.

3. Wiring the Power Inputs

The Upper Panel of the Industrial Managed Switch indicates a DC

inlet power socket and consists of one terminal block connector within

6 contacts. Please follow the steps below to insert the power wire.

1.Insert positive/negative DC power wires into Contacts 1 and 2 for

Power1,orContacts5and6forPower2.

 IGS-5225-8T2S2X: 12~48VDC, 24VAC

Input DC 12V~48V

AC 24V

DC1 DC2

Fault

1A@24V

DI1 DO0 DO1DI0 GNDGND

1 2 3 4 5 6

Figure 3-1: IGS-5225-8T2S2X Upper Panel

 IGS-5225-8P2S2X:48~56VDC

Input DC 48-56V

DI0 DI1 DO0 DO1 GND GND

DC1

DC2Fault

1A@24V

1 2 3 4 5 6

Figure 3-2: IGS-5225-8P2S2X Upper Panel

2. Tighten the wire-clamp screws for preventing the wires from loos-

ening.

123456

V+ V- V+ V-

Power 1 Power 2

Model Positive(+)Pin Negative(-)Pin

IGS-5225-8T2S2X

Pin1/5 Pin2/6

IGS-5225-8P2S2X

Note

The wire gauge for the terminal block should be in the

range from 12 to 24 AWG.

Please check with wire AWG Ampere spec, before

connectingPLANETIndustrialSwitch.

4. Terminal Setup

To congure the system, connect a serial cable to a COM port on a

PC or notebook computer and to RJ45 type serial (console) port of the

Industrial Managed Switch. The console port of the Industrial Managed

Switch is DCE already, so that you can connect the console port

directlythroughPCwithouttheneedofnullmodem.

PC/Workstation

with

Terminal emulation software

RJ45 to DB9 RS232 Cable

Serial Port

IP Address:

192.168.0.100

IGS Industrial Managed Switch

A terminal program is required to make the software connected to the

IGS-5225-8T2S2XandIGS-5225-8P2S2XIndustrialManagedSwitch.

1. Run terminal program on the OS.

2.When the following screen appears, make sure that the COM port

shouldbeconguredas:

zBaud:115200

zParity:None

zDatabits:8

zStopbits:1

zFlowcontrol:None

4.1 Logon to the Console

Once the terminal has been connected to the device, power on the

IndustrialManagedSwitchandtheterminalwilldisplay“runningtesting

procedures”.

Then, the following message asks to log in user name and password.

The factory default user name and password are shown as follows and

theloginscreeninFigure5-1appears

UserName:admin

Password: admin

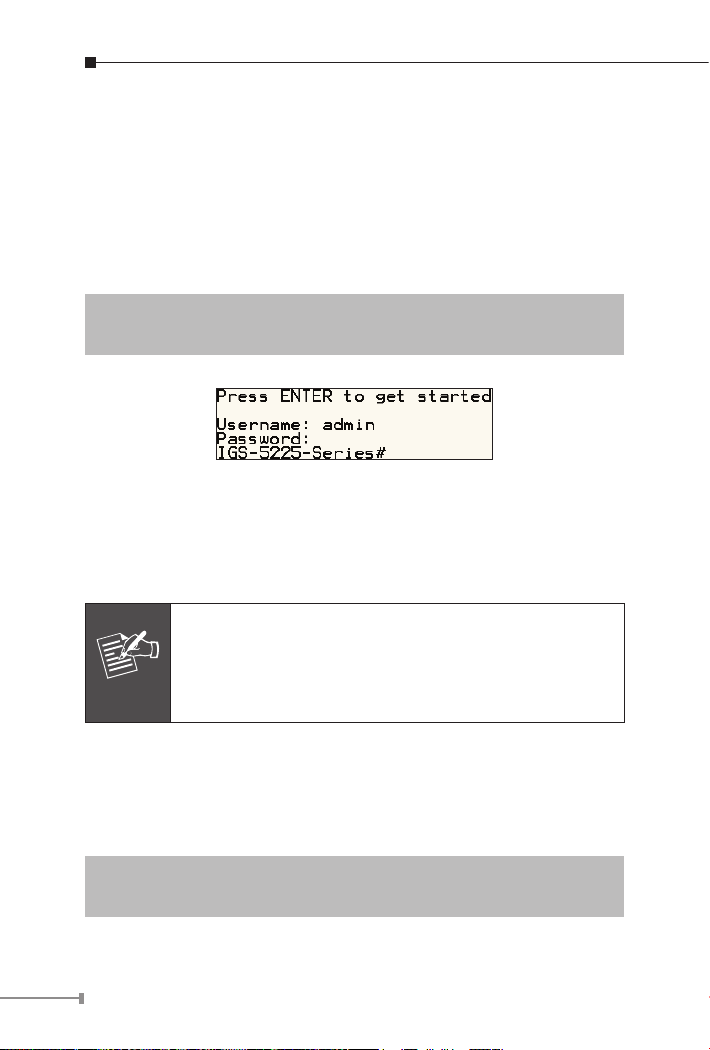

Figure 4-1: Console Login Screen

The user can now enter commands to manage the Industrial Managed

Switch. For a detailed description of the commands, please refer to the

following chapters.

Note

1. For security reason, please change and memorize

the new password after this first setup.

2. Only accept command in lowercase letter under

console interface.

4.2 ConguringIPAddress

The Industrial Managed Switch is shipped with default IP address

shownbelow:

IPAddress:192.168.0.100

SubnetMask:255.255.255.0

To check the current IP address or modify a new IP address for the

Switch,pleaseusetheprocedureasfollows:

Display of the current IP Address

1.Atthe“#”prompt,enter “show ip interface brief”.

2.ThescreendisplaysthecurrentIPaddressshowninFigure4-2

Figure 4-2: IP Information Screen

 CongurationoftheIPAddress

3.At the “#” prompt, enter the following command and press <Enter>

asshowninFigure4-3.

IGS-5225-8T2S2X#congureterminal

IGS-5225-8T2S2X(cong)#interface vlan 1

IGS5225-8T2S2X(cong-if-vlan)#ip address 192.168.1.100

255.255.255.0

The previous command would apply the following settings for the

IndustrialManagedSwitch.

IPAddress:192.168.1.100

SubnetMask:255.255.255.0

Figure 4-3: Conguring IP Address Screen

4.Repeatstep1tocheckiftheIPaddresshaschanged.

4.3 StoretheCurrentSwitchConguration

Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.

#copyrunning-congstartup-cong

Figure 4-4: Saving Current Conguration Command Screen

If the IP is successfully congured, the Industrial Managed Switch will

apply the new IP address setting immediately. You can access the Web

interfaceoftheIndustrialManagedSwitchthrough thenewIPaddress.

Note

If you are not familiar with the console command or the

related parameter, enter “help” anytime in console to

getthehelpdescription.
