Palm-Top

5/8-Port Ethernet Hub

EH-501

EH-801

Version 2.0

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET

Technology Corporation. All other trademarks belong to

their respective companies or owners.

FCC Warning

This device has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when

the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the Instruction manual, may cause

harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause

harmful interference in which case the user will be

required to correct the interference at his own expense.

Table of Contents

TABLE OF CONTENTS ...............................................1

CHAPTER 1 UNPACKING INFORMATION..............2

CHAPTER 2 GENERAL DESCRIPTION....................3

THE COVER PANEL OF EH-501/EH-801..........................3

THE REAR PANEL OF EH-501/EH-801 ............................4

PRODUCT CHARACTERISTICS..........................................5

IEEE 802.3...............................................................5

CHAPTER 3 INSTALLATION.....................................7

GETTING READY TO INSTALL THE EH-501/EH-801.........7

INSTALLING THE HUB.....................................................7

LINKING ETHERNET NODES TO THE HUB.........................8

INTERCONNECTING THE HUBS THROUGH STP PORTS......9

CONNECTION THROUGH THE BNC PORT.........................9

CHAPTER 4 TROUBLESHOOTING.........................11

CHAPTER 5 PRODUCT SPECIFICATION ..............13

CHAPTER 1 UNPACKING

INFORMATION

Thank you for purchase PLANET EH-501/EH-801 5/8-port

Ethernet Palm-Top Hub. Before your installation, please read the

following for more detail about your installation.

EH-501/EH-801 is shipped in a box that contains the following

accessories. Please contact with your authorized dealer if any

thing is missed.

♦One EH-501/EH-801 Hub

♦This User’s Manual

♦AC Adapter (7.5VDC)

♦Screws (for wall mounting)

CHAPTER 2 GENERAL

DESCRIPTION

The EH-501/EH-801 hub is a standard Ethernet concentrator that

re-times and re-transmits the signal to each network station on

the LAN. Each Hub has six/nine modular RJ-45 STP ports for

attaching network devices (file server, bridge, and workstations)

or additional concentrators.

The Cover Panel of EH-501/EH-801

On the cover panel of this Hub, there are Power, Collision

LED(EH-501) and ports' Active LED indicators. For each RJ-45

STP port, there are one LED indicators - LINK and Receiving

LED. These LEDs help in diagnosing line troubles and indicate

the status of data transmission.

Pwr 1 2 3 4 5 6 7 8/UpLink

Link/Activity

EH-801

8-Port Workgroup Hub

Figure 2-1Cover panel of EH-801

Link/Activity

EH-501

5-Port Workgroup Hub

Figure 2-2 Cover Panel of EH-501

The cover panel LEDs indicating the status as below:

LEDs Status Description

Power

Steady Green

Indicate Power ON ok

Collision Blink Red

Indicate collision detected in any

port

Link/Activity

Steady/Blink

Green Lit as UTP port connected

Blinks as data receiving

The Rear Panel of EH-501/EH-801

As shown in Figure 2-2:

Figure 2-2 Rear Panel of EH-501/EH-801

5/8 RJ-45 STP ports to connect with PC node, one RJ-45

STP port for easy hub-to-hub connection, one BNC Port

(EH-801) and one power port.

Product Characteristics

Each workstation connects to the EH-501/EH-801 hub in a

star configuration, which means each workstation connects

only to the central concentrator.

To attach a workstation to the concentrator, you can use

your own STP/UTP cable or the existing STP/UTP cable

installed in the building that is wired through the

telephone punch-down block to wire directly from the

workstation to the EH-501/EH-801 Hub.

The network cable that runs from the EH-501/EH-801 Hub

to the network station is called a cable segment. The

maximum number of cable segments between any two

stations is Five (5 segments) . The maximum distance for a

cable segment is 328 feet (100 meters).

The IEEE 802.3 standard-compliant EH-501/EH-801 Hub

supports both 10Base-2 (EH-801) and 10Base-T Ethernet

environments. The following table compares the two:

IEEE 802.3

Type 10BASE-2 10BASE-T

Topology Bus Star

Maximum nodes per cable

segment 30 1

Cable types RG-58,

RG-58/A,

RG-58/U,

RG-58A/U

Shielded/

Unshielded

Twisted-

Pairs, AWG

22, 24, 26

Maximum length of a

cable segment 606 feet

( 185 m) 328 feet

(100 m )

Maximum repeater sets 4

CHAPTER 3 INSTALLATION

Getting Ready to Install the EH-501/EH-801

Before installing the EH-501/EH-801 Hub, you should determine

the installation location.

♦Make sure that the cable distance between the concentrator

and the host device is not longer than 328 feet (10Base-T), or

606 feet(10Base-2) including all connection cables.

♦Check if you are using a external AC power adapter, 7.5 V DC

output, 400~700mA required.

Warning:

Please make sure you are using a power adapter of the right

type; otherwise, the warranty will be invalidated.

♦Make sure there is enough room to service the Hub and to

make cable connections to the rear panel.

♦Avoid direct sunlight, heat vents and warm air exhaust from

other equipment.

Installing the Hub

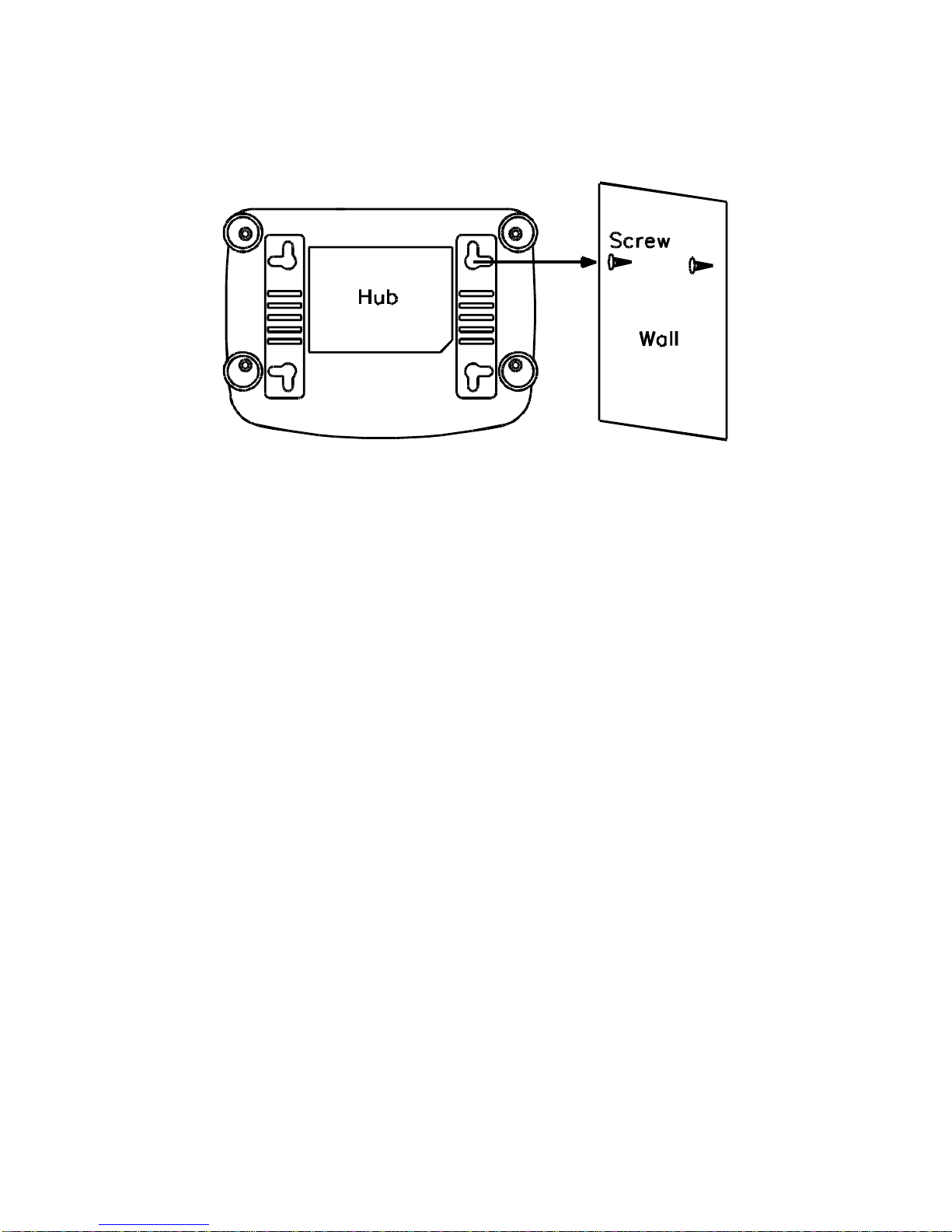

You can place the Hub on a desk or mount it on the wall.

The wall-mounting design provides space-saving and flexibility

in cable routing and expansion. Fix the two screws on the wall,

as Figure 3-1. Hook up the two front rubber pads on the Hub

bottom to the crews.

Figure 3-1 Mounting the hub on the wall

Follow the steps below to attach the power adapter to the Hub:

1.Insert the jack end of the power adapter into the power port of

EH-501/EH-801.

2.Insert the plug end of the power adapter into a grounded power

outlet.

Now, the Power LED indicator on the cover panel of the Hub

should be lit. If this LED is still off, check the cable connection,

or refer to Chapter 4, "Troubleshooting".

If you want to power off the Hub, unplug the power adapter from

the grounded power outlet.

Linking Ethernet Nodes to the Hub

You can connect a workstation or file server to the EH-501/EH-

801 through the STP port.

1.Insert one end of the STP/UTP cable to any STP port of the

Hub.
