Planet ISW-800T-M12 Manuel utilisateur
Industrial IP67 Rated 8-Port 10/100Mbps M12 Ethernet Switch
ISW-800T-M12 & ISW-804PT-M12
User’s Manual
Trademarks
Copyright © PLANET Technology Corp. 2011.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks
belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty and representation, either
implied or expressed, with respect to the quality, performance, merchantability, or
tness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate;
PLANET disclaims liability for any inaccuracies or omissions that may have
occurred.
Information in this User’s Manual is subject to change without notice and does not
represent a commitment on the part of PLANET. PLANET assumes no responsibility
for any inaccuracies that may be contained in this User’s Manual. PLANET makes
no commitment to update or keep current the information in this User’s Manual,
and reserves the right to make improvements to this User’s Manual and/or to the
products described in this User’s Manual, at any time without notice.
If you nd information in this manual that is incorrect, misleading, or incomplete,
we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the Instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a
result of the presence of hazardous substances in electrical and electronic
equipment, end users of electrical and electronic equipment should
understand the meaning of the crossed-out wheeled bin symbol. Do not
dispose of WEEE as unsorted municipal waste and have to collect such WEEE
separately.
Revision
PLANET Industrial IP67 Rated 8-Port 10/100Mbps M12 Ethernet Switch User’s
Manual
For Models: ISW-800T-M12 & ISW-804PT-M12
Revision: 1.0 (August, 2011)
Part No: EM-ISW-800T-M12_804PT-M12_v1.0 (2350-AH0450-000)
Table of Contents
1. Introduction ............................................................................................... 5
1.1 Package Contents ................................................................................ 5
1.2 How to Use This Manual....................................................................... 5
1.3 Product Features ................................................................................. 6
1.4 Product Specications .......................................................................... 7
1.5 Physical Dimension .............................................................................10
2. Installation ...............................................................................................12
2.1 Product Description.............................................................................12
2.1.1 Product Overview ......................................................................13
2.1.2 Switch Front Panel ....................................................................13
2.1.3 LED Indicators ..........................................................................14
2.1.4 M12 DC Power Cable Pinout .......................................................14
2.1.5 10/100Mbps Ports with M12 Interface Cable Pinout ......................15
2.2 Mounting Installation ..........................................................................16
2.2.1 DIN-Rail Mounting .....................................................................16
2.2.2 Wall Mount Plate Mounting .........................................................17
3. Applicaiton ...............................................................................................18
4. Power Over Ethernet Overview ...................................................................22
5. Troubleshooting .........................................................................................25
Appendix A: Networking Connection .................................................................26
A.1 Switch’s RJ-45 Pin Assignments ...........................................................26
A.2 RJ-45 Cable Pin Assignments...............................................................26
5
1. Introduction
1.1 Package Contents
Check the contents of your package for following parts:
Industrial IP67 Rated M12 Ethernet Switch x 1l
User's Manual x 1l
1.2m M12-to-RJ45 UTP Cable x 1l
1.2m M12 Power Cable x 1l
DIN Rail Kit x 1l
Wall Mount Kit x 1l
If any of these are missing or damaged, please contact your dealer immediately,
if possible, retain the carton including the original packing material, and use them
against to repack the product in case there is a need to return it to us for repair.
In the following section, the term “Industrial M12 Ethernet Switch” means the
ISW-800T-M12 and ISW-804PT-M12.
1.2 How to Use This Manual
This Industrial M12 Ethernet Switch User Manual is structured as follows:
Chapter 2 Installation
The chapter explains the feature, functionality and the physical installation of the
Industrial M12 Ethernet Switch.
Chapter 3 Application
The chapter explains the Industrial M12 Ethernet Switch application.
Chapter 4 Power over Ethernet overview (ISW-804PT-M12 only)
The section explains the IEEE 802.3af Power over Ethernet theories.
Chapter 5 Troubleshooting
The chapter explains the troubleshooting of the Industrial M12 Ethernet Switch.
Appendix A
This chapter contains cable information of the Industrial M12 Ethernet Switch.
6
1.3 Product Features
Physical Port
8-Port 10/100Mbps M12 Connector with IP67 protectionl
4-Port IEEE 802.3af PoE Portsl(ISW-804PT-M12) (Port 5 to port 8)
Layer 2 Features
Supports Auto-negotiation and 10/100Mbps half / full duplex model
High performance Store and Forward architecture, runt/CRC ltering eliminates l
erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSEl
frame ow control (Full-Duplex)
Backplane (Switching Fabric): 1.6Gbpsl
Integrated address look-up engine, support 2K absolute MAC addressesl
Automatic address learning and address agingl
CSMA/CD Protocoll
Industrial Case / Installation
IP67 Aluminum metal case / Protectionl
DIN Rail and Wall Mount Designl
Waterproof / dustproof designl
12 to 48V DC, redundant power with polarity reverse protect function andl
connective removable terminal block for master and slave power (ISW-
800T-M12)
48V DC, redundant power with polarity reverse protect function and connectivel
removable terminal block for master and slave power (ISW-804PT-M12)
Supports EFT protection 6000 VDC for power linel
Supports 6000 VDC Ethernet ESD protectionl
-40 to 75 Degree C operating temperaturel
7
1.4 Product Specications
Model ISW-800T-M12
Hardware Specication
10/100Base-TX Ports 8 x M12, 4-Pin D-coded female connector
Power Connector 1 x M12, 5-Pin A-Coded male connector
Enclosure IP67 Aluminum
Dimension (W x D x H) 163 x 103 x 53 mm
Weight 976g
Power Requirement 12~48V DC, Redundant power with polarity reverse
protection function
Power Consumption / Dissipation 4 Watts / 13 BTU
Installation DIN rail kit and wall mount ear
ESD Protection 6KV DC
EFT Protection 6KV DC
LED Indicators Power LED: Power 1 / Power 2 (Green), FAULT (Green)
10/100Base-TX Port (Port-1 to Port-8): LNK/ACT (Green)
Network Cables
10Base-T: 2-Pair UTP Cat.3,4,5 up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat.5, 5e, 6 up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m, max.)
Switch Specication
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Switch Fabric 1.6Gbps
Throughput (packet per second) 1.19Mpps@64Bytes
Maximum Transmit Unit 1536 bytes
Standards Conformance
Standards Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Environment
Temperature Operating: -40~75 Degree C
Storage: -40~75 Degree C
Humidity Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)
8
Model ISW-804PT-M12
Hardware Specication
10/100Base-TX Ports 8 x M12, 4-Pin D-coded female connector
IEEE 802.3af PoE Ports 4, port 5 to port 8
Power Connector 1 x M12, 5-Pin A-Coded male connector
Enclosure IP67 Aluminum
Dimension (W x D x H) 163 x 103 x 53 mm
Weight 976g
Power Requirement 48V DC, Redundant power with polarity reverse
protection function
Power Consumption / Dissipation 65 Watts / 221 BTU
Installation DIN rail kit and wall mount ear
ESD Protection 6KV DC
EFT Protection 6KV DC
LED Indicators
Power LED: Power 1 / Power 2 (Green), FAULT (Green)
10/100Base-TX Port (Port-1 to Port-8): LNK/ACT (Green)
PoE Port (Port-5 to Port-8): PoE In-Use (Orange)
Network Cables
10Base-T: 2-Pair UTP Cat.3,4,5 up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat.5, 5e, 6 up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m, max.)
Switch Specication
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Switch Fabric 1.6Gbps
Throughput (packet per second) 1.19Mpps@64Bytes
Maximum Transmit Unit 1536 bytes
Standards Conformance
Standards Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
9
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output 48V DC Per Port, 350mA. Max. 15.4 Watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Budget 60 Watts
Environment
Temperature Operating: -40~75 Degree C
Storage: -40~75 Degree C
Humidity Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)
10

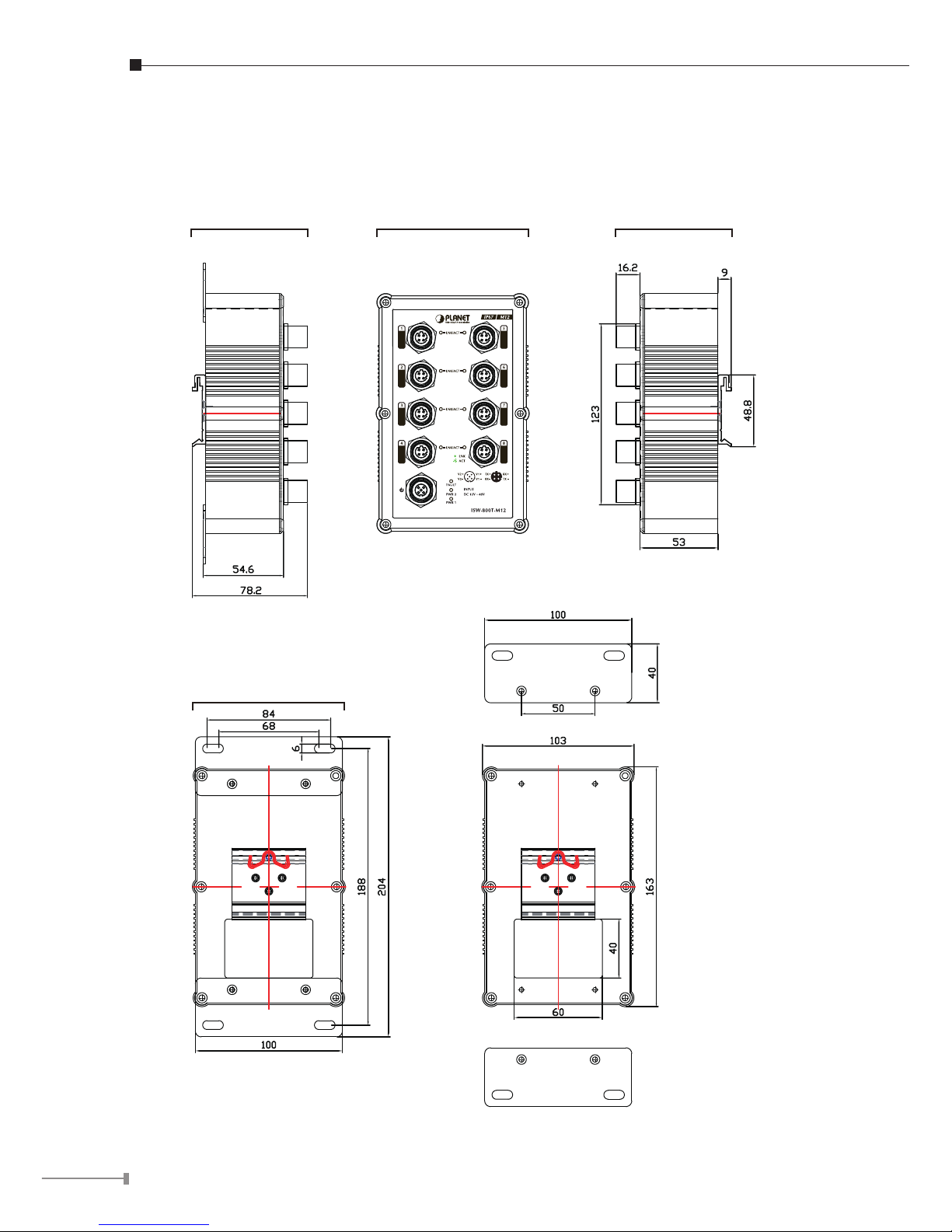

1.5 Physical Dimension
ISW-800T-M12 Industrial M12 Ethernet Switch dimension (W x D x H): 163 x
103 x 53mm
Mounting Kit
Mounting Kit
DIN-Rail Kit
Rear View
Front ViewSide View Side View
