Planet Networking & Communication GS-6322 Series Manuel utilisateur

L3 24-Port 10/100/1000T 802.3bt + 2-Port 10GBASE-T

+ 2-Port 10G SFP+ Managed Switch with Dual Modular

Power Supply Slots

GS-6322 Switch Series

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................................... 3

2. Requirements ............................................................................................. 4

2.1 Power Requirements ............................................................................ 4

3. Terminal Setup ........................................................................................... 6

3.1 Logging on to Console ......................................................................... 7

 3.2 ConguringIPAddress......................................................................... 8

4. Starting Web Management .........................................................................10

 4.1 LoggingintotheManagedPoESwitch .................................................10

 4.2 SavingCongurationviaWeb ..............................................................12

5. RecoveringBacktoDefaultConguration.....................................................13

6. PowerOperationModeManagement............................................................14

7. Customer Support .....................................................................................16

1. Package Contents

Thank you for purchasing PLANET L3 Multiple Gigabit + 4-Port 10G Managed

Switch with dual modular power supply slots. The description of this model is

shown below:

ModelName PoEPorts 10G

RJ45

10G

SFP+ PoEBudget

GS-6322-24P4X 24-Port802.3bt 2 2 Dependedonpower

supply

“Managed PoE Switch” is used as an alternative name in this Quick Installation

Guide.

Open the box of the Managed PoE Switch and carefully unpack it. The box should

contain the following items:

zTheManagedPoESwitch

zQuickInstallationGuide

zRJ45 to RS232 Cable

zRubber Feet

zTwoRack-mountingBracketswithAttachmentScrews

zSFPDust-proofCapx2

If any of these pieces are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original packing material,

andusethemagaintorepacktheproductincasethereisaneedtoreturnittous

for repair.

2. Requirements

zWorkstations running Windows 10/XP/2003/Vista/7/8/2008, MAC OS X or later,

Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.

zSerial Port Connection (Terminal)

The above Workstations come with RS232 COM Port(DB9) orUSB-to-RS232

converter.

TheaboveWorkstationshavebeeninstalledwithterminal emulator, such as

HyperTerminalincludedinWindowsXP/2003.

Serial cable -- one end is attached to the RS232 serial port, while the other

endtotheconsoleportoftheManagedPoESwitch.

zEthernet Port Connection

WorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)

Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.

TheabovePCisinstalledwithWeb browser.

Note

It is recommended to use Internet Explorer 8.0 or above to access

the Managed PoE Switch. If the Web interface of the Managed PoE

Switch is not accessible, please turn off the anti-virus software or

firewallandthentryitagain.

2.1 Power Requirements

The GS-6322-24P4X is designed with two modular power supply slots. It can work

with three optional 920W/1200W/2000W AC power supplies. The nal package of

switch and power supplies will depend on your purchase. It doesn’t install a power

supply by default. Please contact your local distributor or retailer for conrming

your purchase package.

Modular Power Supply Maximum Power Output Power Connector

PWR-CRPS920 920W (100-240 VAC)

IEC C16, max. 12A

PWR-CRPS1200 1200W (220-240 VAC)

PWR-CRPS2000 2000W (220-240 VAC)

For compatibility with electrical voltages in most areas of the world, the Managed

PoE Switch’s modular power supply can automatically adjust line power in the

range of 100-240V AC and 50/60 Hz. However, if you’d like to have maximum

poweroutput,it’srequiredspecicpowerinput.

Plug the female C15 end of the power cord rmly into the receptacle on the rear

panel of the Managed PoE Switch and the other end of the power cord into an

electricaloutletandthepowerwillbeready.

The GS-6322-24P4X is also equipped a power eject button for safe operations and

indicationsofpowersupplies.

FAN1

Power Eject

Press for 5-10s Activated

Processing

Ready for removal

PWR2

Figure 2-1: Power eject button

Caution

To ensure system normal operation, do not remove power supply

before starting power ejection button. Please refer to user manual

forstandardoperationprocedures.

3. Terminal Setup

To congure the system, connect a serial cable to a RS232 COM port on a PC or

notebookcomputerandtoRJ45typeofserialportoftheManagedPoESwitch.

Managed Switch

PC / Workstation

with

Terminal Emulation Software

Serial Port

RS232 to RJ45 Cable

Console Port

RJ45

Figure 3-1: Managed PoE Switch Console Connectivity

A terminal program is required to make the software connection to the Managed

PoESwitch.

1. Run terminal program on the OS.

2.When the following screen appears, make sure that the COM port should be

conguredas:

zBaud:115200

zData bits: 8

zParity:None

zStop bits: 1

zFlowcontrol:None

Figure 3-2: COM Port Conguration

3.1 Logging on to Console

Once the terminal is connected to the device, power on the Managed PoE Switch,

and the terminal will display “running testing procedures”. Then, the following

message asks to log in user name and password. The factory default user name

andpasswordareshownasfollowsandtheloginscreeninFigure3-3appears.

Username:admin

Password:admin

Figure 3-3: Managed PoE Switch Console Login Screen

The user can now enter commands to manage the Managed PoE Switch. For a

detaileddescriptionofthecommands,pleaserefertothefollowingchapters.

Note

1.For security reason, please change and memorize the new pass-

wordafterthisfirstsetup.

2.Only accept command in lowercase letter under console inter-

face.

3.2 ConguringIPAddress

TheManagedPoESwitchisshippedwithdefaultIPaddressshownbelow.

IPAddress:192.168.0.100

Subnet Mask: 255.255.255.0

To check the current IP address or modify a new IP address for the Switch, please

usetheproceduresasfollows:

ShowthecurrentIPAddress

1.Atthe“#”prompt,enter“show ip interface brief”.

2.ThescreendisplaysthecurrentIPaddressasshowninFigure3-4.

Figure 3-4: IP Information Screen

ConguringIPAddress

3.At the “#” prompt, enter the following command and press <Enter> as shown

inFigure3-5.

Switch#congure terminal

Switch(cong)#interface vlan 1

Switch(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0

The previous command would apply the following settings for the Managed PoE

Switch.

IPAddress:192.168.1.100

Subnet Mask: 255.255.255.0

Figure 3-5: Conguring IP Address Screen

4.Repeatstep1tocheckiftheIPaddresshaschanged.

Storecurrentswitchconguration

5.Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.

# copy running-cong startup-cong

Figure 3-6: Saving Current Conguration Command Screen

If the IP is successfully congured, the Managed PoE Switch will apply the new IP

addresssetting immediately. You canaccessthe Webinterface oftheManaged PoE

SwitchthroughthenewIPaddress.

Note

If you are not familiar with the console command or the related

parameter, enter “help” anytime in console to get the help

description.

4. Starting Web Management

The following shows how to start up the Web Management of the Managed

PoE Switch. Note the Managed PoE Switch is congured through an Ethernet

connection. Please make sure the manager PC must be set to the same IP subnet

address.

Forexample,thedefaultIPaddress of theManagedPoESwitchis192.168.0.100,

then the manager PC should be set to 192.168.0.x (where x is a number

between1and254,except100),andthedefaultsubnetmaskis255.255.255.0.

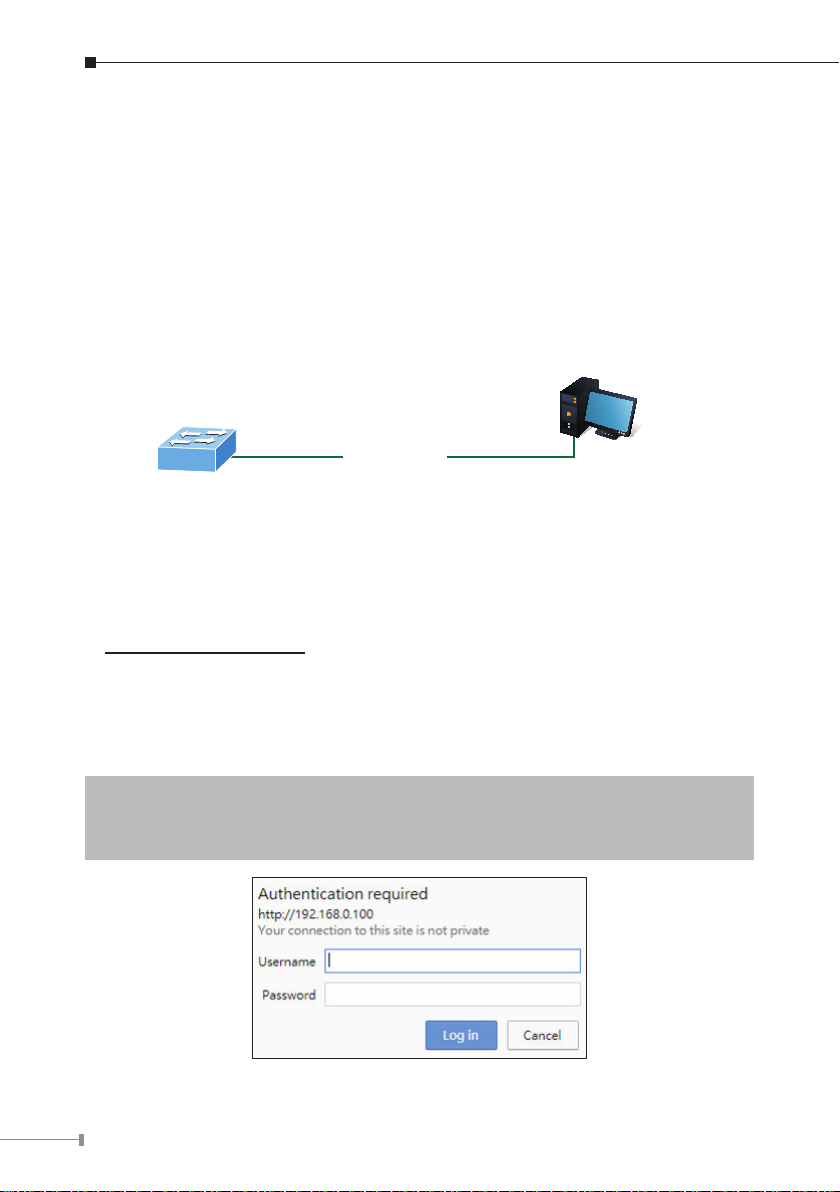

PC / Workstation with Web Browser

192.168.0.x

Managed Switch

RJ45/UTP Cable

IP Address: 192.168.0.100

Figure 4-1: IP Management Diagram

4.1 Logging in to the Managed PoE Switch

1.Use Internet Explorer 8.0 or above Web browser and enter IP address

https://192.168.0.100 (the factory default IP address or the one that you

havejustchangedinconsole)toaccesstheWebinterface.

2.When the following dialog box appears, please enter the default user name and

password “admin” (or the password you have changed via console). The login

screeninFigure4-2appears.

DefaultIPAddress:192.168.0.100

DefaultUsername:admin

DefaultPassword:admin

Figure 4-2: Login Screen
