Planet Networking & Communication IGS-10020MT Manuel utilisateur

Industrial L2+ Multi-Port Full Gigabit

Managed Ethernet Switches

IGS-10020MT/IGS-10080MFT

IGS-12040MT/IGS-20040MT

Quick Installation Guide

Table of Contents

1. Package Contents...................................................................... 3

2. Requirements............................................................................ 4

3. Wiring the Power Inputs ............................................................ 5

4. Terminal Setup.......................................................................... 8

4.1 Logging on to the Console................................................... 9

 4.2 ConguringIPAddress .......................................................10

5. Starting Web Management ........................................................12

 5.1 LoggingintotheIndustrialL2+ManagedSwitch .................12

 5.2.SavingConguration ..........................................................17

6. RecoveringBacktoDefaultConguration ...................................18

7. Customer Support ....................................................................20

1. Package Contents

Thank you for purchasing PLANET Industrial L2+ Multi-Port Gigabit

Managed Ethernet Switches, such as IGS-10020MT, IGS-10080MFT,

IGS-12040MT and IGS-20040MT. The descriptions of these models are

as follows:

IGS-10020MT Industrial8-Port10/100/1000T+

2-Port100/1000XSFPManagedSwitch

IGS-10080MFT Industrial8-Port100/1000XSFP+

2-Port10/100/1000TManagedSwitch

IGS-12040MT Industrial8-Port10/100/1000T+

4-Port100/1000XSFPManagedSwitch

IGS-20040MT Industrial16-Port10/100/1000T+

4-Port100/1000XSFPManagedSwitch

“Industrial L2+ Managed Switch” mentioned in this Quick

InstallationGuidereferstotheabovefourmodels.

Open the box of the Industrial L2+ Managed Switch and carefully

unpackit.Theboxshouldcontainthefollowingitems:

zTheIndustrialL2+ManagedSwitchx1

zQuickInstallationGuidex1

zDIN-railKitx1

zWallMountingKitx1

zDB9 to RJ45 Interface RS232 Console Cable x 1

 (OnlyIGS-10020MTdoesn’thaveconsoleinterface.)

zDustCap(Pleaserefertothetablebelow.)

RJ45 Dust Cap SFP Dust Cap

IGS-10020MT 8 2

IGS-10080MFT 3 8

IGS-12040MT 9 4

IGS-20040MT 17 4

If any item is found missing or damaged, please contact your local

reseller for replacement.

2. Requirements

Workstations running Windows XP/2003/Vista/7/8/10/2008, MAC OS

X or later, Linux, UNIX, or other platforms are compatible with TCP/

IP protocols

Serial Port Connection (Terminal)

The above Workstations come with COM Port (DB9) or USB-to-

RS232 converter.

The above Workstations have been installed with terminal

emulator, such as Hyper Terminal included in Windows XP/2003,

putty or tera term.

Serial cable -- one endisattached to the RS232 serial port,while

the other end to the RJ45 console port of the Industrial L2+

ManagedSwitch.

Ethernet Port connection

Workstations are installed with Ethernet NIC (Network Interface

Card)

Network cables -- Use standard network (UTP) cables with RJ45

connectors.

The above PC is installed with Web browser and JAVA runtime

environmentplug-in.

Note

Itis recommended to use Internet Explorer 8.0 or above

toaccess the IndustrialL2+ Managed Switch. If the Web

interface of the Industrial L2+ Managed Switch is not

accessible, please turn off the anti-virus software or fire-

wallandthentryitagain.

3. Wiring the Power Inputs

The Upper Panel of the Industrial L2+ Managed Switch indicates a DC

inlet power socket and consists of one terminal block connector within

6 contacts. Please follow the steps below to insert the power wire.

1.Insert positive/negative DC power wires into Contacts 1 and 2 for

Power1,orContacts5and6forPower2.

IGS-10020MT: 12~48VDC,24VAC

Input

DC 12V~48V, AC 24V

V1- V1+

PWR1

V2- V2+

PWR2

Fault

Figure 3-1: IGS-10020MT Upper Panel

IGS-10080MFT:12~48VDC,24VAC

Input DC 12V~48V

V1- V1+

V2- V2+

PWR1

PWR2 Fault

1A@24V

Figure 3-2: IGS-10080MFT Upper Panel

IGS-12040MT: 12~72VDC,24VAC

Input DC 12-72V

AC 24V

DC1

DC2 Fault

0 DI

1 DO

0DO

GND

Figure 3-3: IGS-12040MT Upper Panel

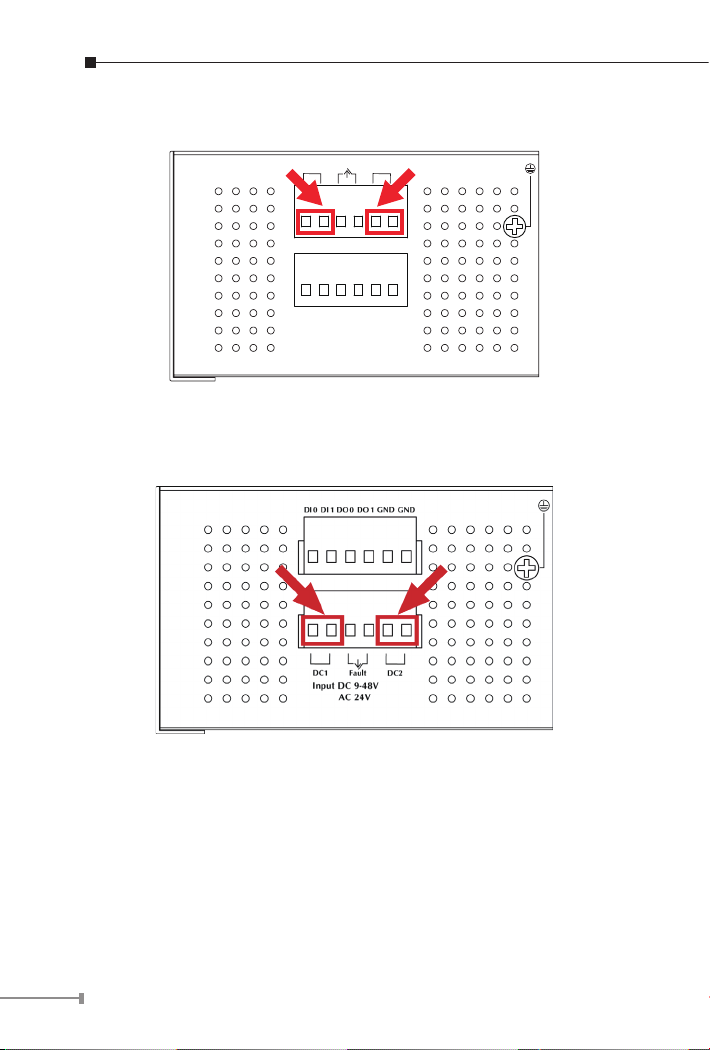

IGS-20040MT: 9~48VDC,24VAC

Figure 3-4: IGS-20040MT Upper Panel

2.Tighten the wire-clamp screws for preventing the wires from loos-

ening.

123456

V1+ V1- V2+ V2-

Power 1 Power 2

Positive(+)Pin Negative(-)Pin

IGS-10020MT Pin2/6 Pin1/5

IGS-10080MFT Pin2/6 Pin1/5

IGS-12040MT Pin1/5 Pin2/6

IGS-20040MT Pin1/5 Pin2/6

Note

The wire gauge for the terminal block should be in the

range from 12 to 24AWG.

4. Terminal Setup

To congure the system, connect a serial cable to a COM port on a

PC or notebook computer and to RJ45 type serial (console) port of the

Industrial L2+ Managed Switch. The console port of the Industrial L2+

Managed Switch is DCE already, so that you can connect the console

portdirectlythroughPCwithouttheneedofnullmodem.

PC/Workstation

with

Terminal emulation software

RJ45 to DB9 RS232 Cable

Serial Port

IP Address:

192.168.0.100

IGS Industrial Managed Switch

Figure 4-1: Industrial L2+ Managed Switch Console Connectivity

A terminal program is required to make the software connected to the

Industrial L2+ Managed Switch. Windows' Hyper Terminal program

may be a good choice. The Hyper Terminal can be accessed from the

Start menu.

1. Click START, then Programs, Accessories and then Hyper

Terminal.

2.When the following screen appears, make sure that the COM port

shouldbeconguredas:

Baud:115200

Parity:None

Data Bits: 8

Stop Bits: 1

FlowControl:None

Figure 4-2: COM Port Conguration

4.1 Logging on to the Console

Once the terminal has been connected to the device, power on the

Industrial L2+ Managed Switch and the terminal will display “running

testingprocedures”.

Note

1.Therearethreeswitches (IGS-10080MFT/IGS-12040MT/

IGS-20040MT)withtheRJ45typeconsoleinterface.

2.The following console screen is based on the IGS-

10020HPT; the display of the IGS-10020HPT is the

same as that of the IGS-10080MFT/IGS-12040MT/

IGS-20040MT.

Then, the following message asks to log in user name and password

as shown in Figure 4-3. Please enter the factory default user name

"admin"andpassword“admin”.

Username:admin

Password:admin

Figure 4-3: Console Login Screen

Note

1. For security reason, please change and memorize

the new password after this first setup.

2. Only accept command in lowercase letter under

console interface.

4.2 ConguringIPAddress

The Industrial L2+ Managed Switch is shipped with default IP address

shown below:

IPAddress:192.168.0.100

Subnet Mask: 255.255.255.0

To check the current IP address or modify a new IP address for the

IndustrialL2+ManagedSwitch,pleaseusetheprocedureasfollows:

DisplayofthecurrentIPAddress

1.Atthe“#”prompt,enter “show ip interface brief”.

2.ThescreendisplaysthecurrentIPaddressshowninFigure4-4.

Figure 4-4: IP Information Screen

CongurationoftheIPAddress

3.Atthe“#” prompt,enterthe followingcommandand press<Enter>

asshowninFigure4-5.

The previous command would apply the following settings for the

IndustrialL2+ManagedSwitch.

IPAddress:192.168.1.100

Subnet Mask: 255.255.255.0

Figure 4-5: Conguring IP Address Screen
