PLANET 8-/16-Port Gigabit 60W Ultra PoE Managed Injector Hub User's Manual

FOR MODELS: UPOE-800G, UPOE-1600G

REVISION: 1.0 (JUNE, 2016)

Part No.: EM-UPOE-800G_1600G_v1.0

User’s Manual of UPOE-800G / UPOE-1600G

TABLE OF CONTENTS

1. INTRODUCTION ........................................................................................ 5

1.1 PACKAGE CONTENTS.....................................................................................................5

1.2 PRODUCT DESCRIPTION .................................................................................................6

1.3 HOW TO USE THIS MANUAL..........................................................................................11

1.4 PRODUCT FEATURES ...................................................................................................12

1.5 PRODUCT SPECIFICATIONS...........................................................................................14

2. INSTALLATION........................................................................................ 16

2.1 HARDWARE DESCRIPTION ............................................................................................16

2.1.1 Injector Front Panel ..........................................................................................16

2.1.2 LED Indicators..................................................................................................17

2.1.3 Injector Rear Panel...........................................................................................18

2.2 INSTALLING THE ULTRA POEMANAGED INJECTOR HUB .................................................19

2.2.1 Desktop Installation ..........................................................................................19

2.2.2 Rack Mounting .................................................................................................20

2.2.3 Network Application Installation........................................................................22

2.2.4 Power over Ethernet Powered Device..............................................................23

3 Management............................................................................................. 24

3.1 OVERVIEW ..................................................................................................................24

3.2 REQUIREMENTS...........................................................................................................24

3.3 MANAGEMENT METHOD ...............................................................................................25

3.3.1 Web Management ............................................................................................25

3.3.2 PLANET Smart Discovery Utility ......................................................................26

4 WEB CONFIGURATION ........................................................................... 28

4.1 MAIN MENU.................................................................................................................28

4.2 WEB PANEL................................................................................................................29

4.3 SYSTEM ......................................................................................................................29

4.3.1 System Information ..........................................................................................30

4.3.2 IP Configuration................................................................................................31

4.3.3 NTP Configuration............................................................................................32

4.3.4 Password Setting .............................................................................................33

4.3.5 Firmware Upgrade............................................................................................34

4.3.6 Configuration Setting........................................................................................35

4.3.7 Factory Default .................................................................................................37

4.3.8 System Log ......................................................................................................39

4.3.9 System Reboot.................................................................................................40

User’s Manual of UPOE-800G / UPOE-1600G

4.3.10 Logout ............................................................................................................41

4.4 SNMP........................................................................................................................43

4.4.1 SNMP Management .........................................................................................43

4.5 POWER OVER ETHERNET..............................................................................................45

4.5.1 PoE Configuration ............................................................................................46

4.5.2 PoE Schedule Profile........................................................................................48

4.5.3 PoE Alive Check Configuration ........................................................................52

4.5.4 PoE Status .......................................................................................................54

5. Power Over Ethernet Overview.............................................................. 55

6. The PoE Provision Process ................................................................... 57

6.1 LINE DETECTION..........................................................................................................57

6.2 CLASSIFICATION..........................................................................................................57

6.3 START-UP ...................................................................................................................58

6.4 OPERATION.................................................................................................................58

6.5 POWER DISCONNECTION SCENARIOS............................................................................58

APPENDIX A................................................................................................ 60

A.1 MDI SETTINGS............................................................................................................60

A.2 POWER DEVICE CLASSIFICATION VALUES.....................................................................60

A.3 DATA OUT POEINJECTOR RJ45 PORT PIN ASSIGNMENTS..........................................61

User’s Manual of UPOE-800G / UPOE-1600G

1. I NTRODUCTI ON

Thank you for purchasing PLANET 8-/16-Port Gigabit 60W Ultra PoE Managed Injector Hub, UPOE-800G/UPOE-1600G.

The description of this model is shown below:

UPOE-800G 8-Port Gigabit 60W Ultra PoE Managed Injector Hub (400 watts)

UPOE-1600G 16-Port Gigabit 60W Ultra PoE Managed Injector Hub (600 watts)

1.1 Package Contents

Open the box of the Ultra PoE Managed Injector Hub and carefully unpack it. The box should contain the following items:

The UPOE-800G or UPOE-1600G x 1

Quick Installation Guide x 1

Power Cord x 1

Rubber Feet x 4

19” Rack-mounting Brackets x 2

If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the carton including the

original packing material, and use them again to repack the product in case there is a need to return it to us for repair.

In the following section,

■ The term “Ultra PoE Managed Injector Hub”mentioned in this user’s manual refers to the

UPOE-800G/UPOE-1600G.

User’s Manual of UPOE-800G / UPOE-1600G

1.2 Product Description

PLANET Ultra PoE Managed Injector Hub series, a cost-effective and quick Ultra PoE solution, is designed to perfectly

upgrade an existing network infrastructure to Ultra Power over Ethernet network system without replacing the existing

Ethernet Switch.

Ready to Deploy Next Generation Power over Ethernet

The Ultra PoE Managed Injector Hub is a high-density, rack-mountable managed Ultra PoE Managed Injector Hub

featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 8/16

10/100/1000BASE-T Ethernet ports featuring Ultra PoE injector with a total PoE budget of 400/600 watts. Each PoE port

can deliver up to 60-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit

simultaneously to a remote 60W and 802.3at/af powered device (PD).

The Ultra PoE Managed Injector Hub enables centralization of the power supply and optimizes the installation and power

management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network

solution for small businesses and enterprises.

Quick and Easy PoE Network Deployment

The Ultra PoE Managed Injector Hub is installed between a regular Ethernet Switch and the PDs. There are totally 16/32

RJ45 STP ports on the front panel of the Ultra PoE Managed Injector Hub, of which the 8/16 ports are on the lower stack

functioned as "Data input" while the other 8/16 ports are on the upper stack functioned as "PoE (Data and Power)

output". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing

network performance and functions. With data and Power over Ethernet from one unit, the Ultra PoE Managed Injector Hub

can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any

unreachable place.

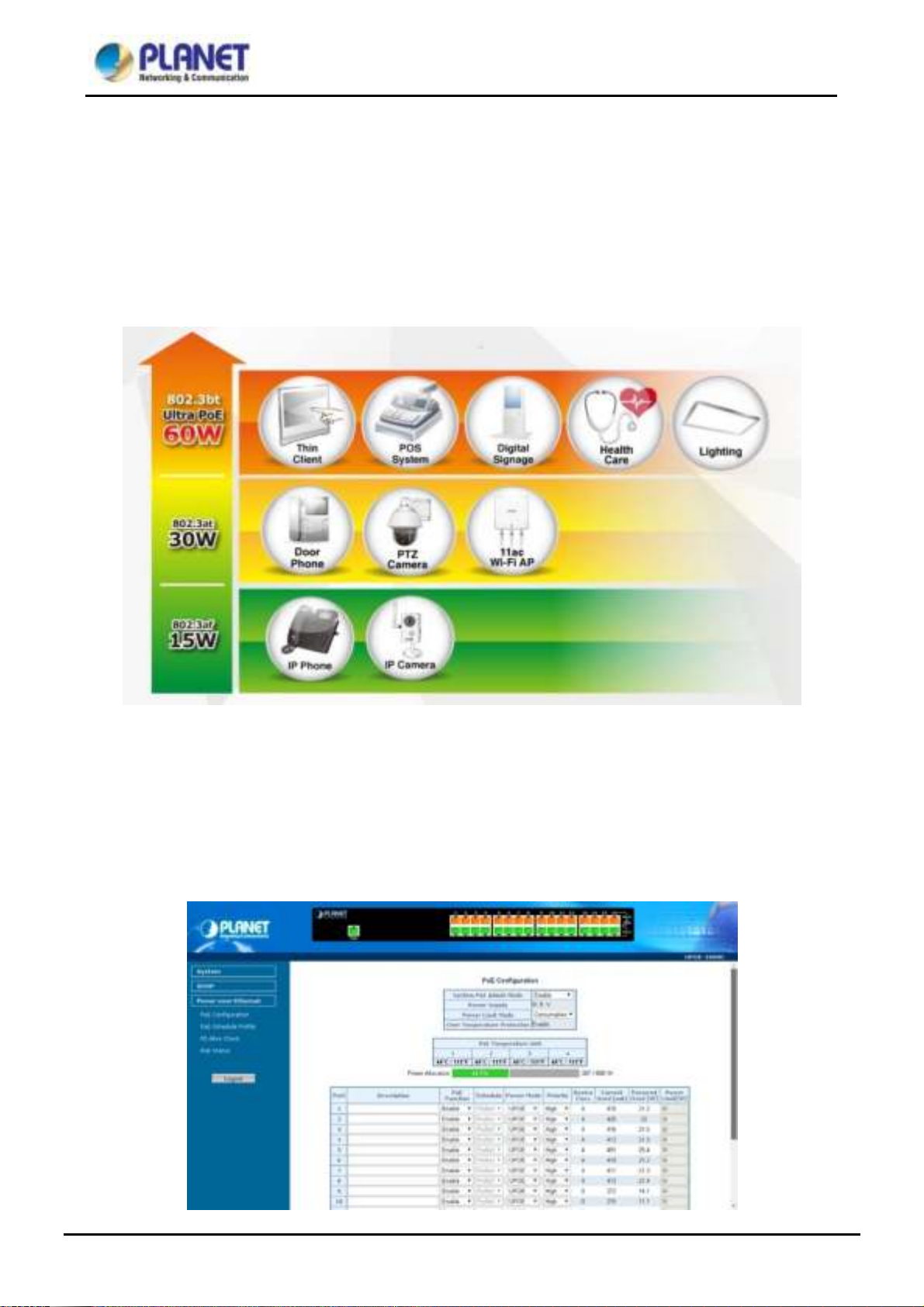

802.3bt Ready -- 60 Watts of Power over 4-pair UTP System

The Ultra PoE Managed Injector Hub solution adopts the IEEE 802.3at/af PoE standard. Instead of delivering power over

2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source

up to 60 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, the Ultra

PoE Managed Injector Hub is able to deliver per port up to 60 watts of power to each remote PoE compliant powered

User’s Manual of UPOE-800G / UPOE-1600G

device. It possesses double amount of power capability than the conventional 802.3at PoE and is an ideal solution to

satisfying the growing demand for higher power consuming network PDs, such as:

■PoE PTZ speed dome

■Any network device that needs higher PoE power to work normally

■Thin-client

■AIO (all-in-one) touch PC, point of sale (POS) and information kiosks

■Remote digital signage display

Friendly Web Management Interface

To efficiently manage the powered devices, the Ultra PoE Managed Injector Hub provides simple Web management

interface in which administrators can control the system and PoE functions for powered devices. It can automatically

detect the power status of each port and show messages on its Web management interface. These features also provide

users with a cost-effective way to manage the device via Internet whenever they are at work or at home.

User’s Manual of UPOE-800G / UPOE-1600G

Built-in Unique PoE Functions for Powered Device Management

As it is the Ultra PoE Managed Injector Hub for VoIP, wireless and surveillance networks, the Ultra PoE Managed Injector

Hub features the following special PoE management functions:

PoE schedule

PD alive check

Scheduled power recycling

UPOE, end-span or mid-span selectable in PoE power output mode

PoE usage monitoring

Over temperature protection

Intelligent Powered Device Alive Check

PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and

real-time PoE status. The Ultra PoE Managed Injector Hub can be configured to monitor connected PD’s status in real time

via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the Ultra PoE Managed

Injector Hub will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network

reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

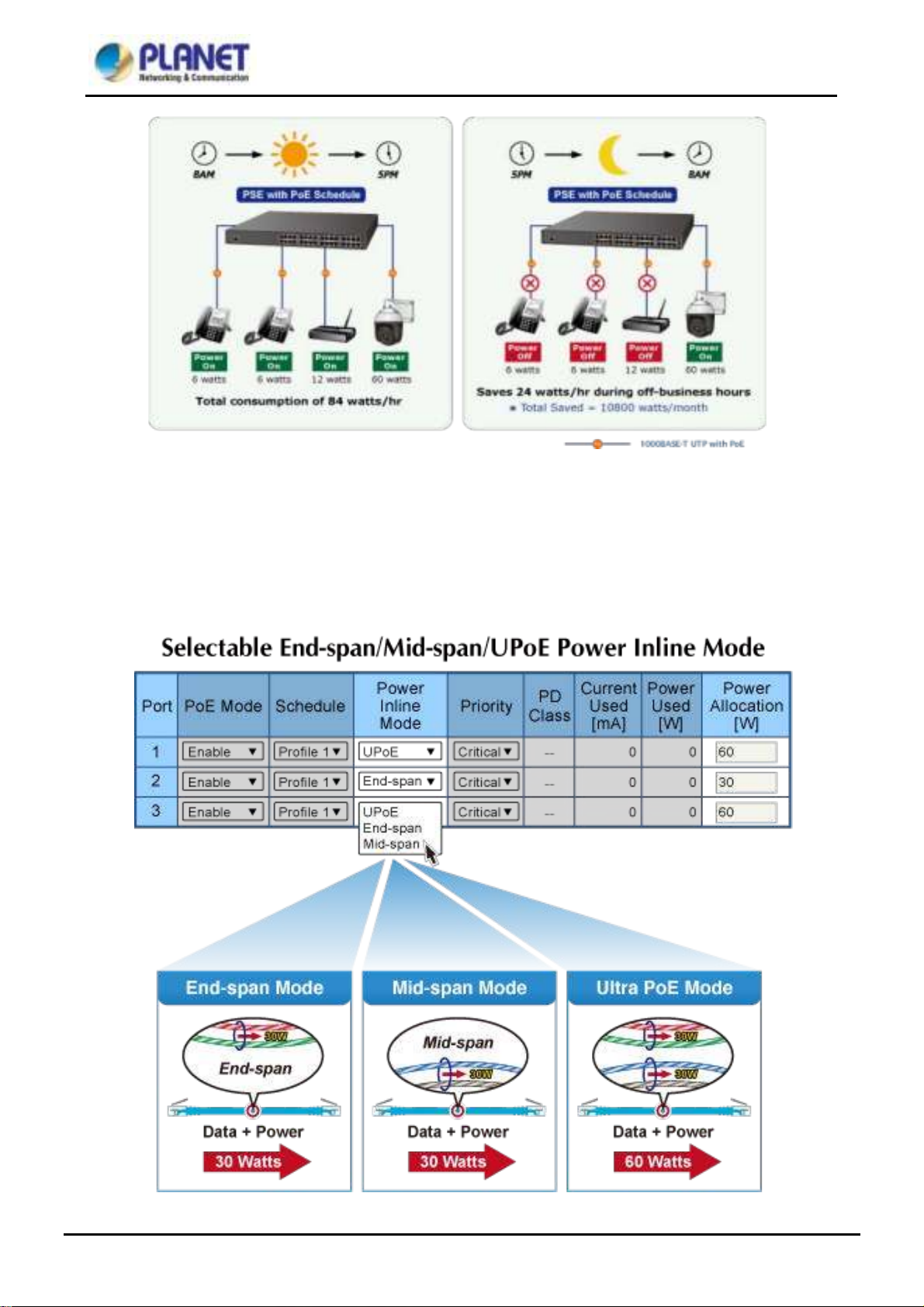

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the Ultra PoE

Managed Injector Hub can effectively control the power supply besides its capability of giving high watts power. The built-in

“PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time

intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by

powering off PDs that should not be in use during non-business hours.

User’s Manual of UPOE-800G / UPOE-1600G

Advanced PoE Power Output Mode Management

To fulfill the demand of various powered devices consuming stable PoE power, the Ultra PoE Managed Injector Hub

provides three different PoE power output modes for selection.

60W UPOE PoE Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)

30W End-span PoE Power Output Mode (Pins 1, 2, 3, 6)



30W Mid-span PoE Power Output Mode (Pins 4, 5, 7, 8)

User’s Manual of UPOE-800G / UPOE-1600G

Advanced Power Management

To facilitate power management, the Ultra PoE Managed Injector Hub comes with powerful PoE management features

such as over temperature protection, usage threshold alert and auto power allocation to prevent power budget

overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power

usage reaches the defined threshold.

Intelligent LED Indicator for Real-time PoE Usage

The Ultra PoE Managed Injector Hub helps users to monitor the current status of PoE power usage easily and efficiently by

its advanced LED indication. The front panel of the UPOE-800G has four green LEDs indicating 100W, 200W, 300W and

400W of PoE power usage.

The front panel of the UPOE-1600G also has four green LEDs indicating 150W, 300W, 450W and 600W of PoE power

usage.

PoE Usage Monitoring

Via the power usage chart in the web management interface, the Ultra PoE Managed Injector Hub enables the

administrator to monitor the status of the power usage of the connected PDs in real time.

High Power Budget for 802.3at PoE Extension

With IEEE 802.3af/802.3at PoE output capability, the Ultra PoE Managed Injector Hub can extend much longer distance by

using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By

daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance

of PoE network.

Autres manuels pour UPOE-800G

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Planet Networking & Communication Changer
