Philips FC6844 Manuel utilisateur

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC6844

06/05

PRODUCT INFORMATION

- Type no. name : HR68xx Triathlon (dry, wet and

shampoo)

- Versions : FC6844 Deep black

Safety

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

OPTIONAL (accessories)

- FC8032 : AFS-MICRO filters

4822 015 70056. Item 20

- FC8042 : Super parquet nozzle

- FC8043 : Turbo nozzle

- HR6947 : Athena 8836 947 01000 = 4822 015 70058

Contains: 4 Paper dust bags, 1 motor filter

and 1 AFS-MICRO filter.

Items 29, 24 and 20

- HR6965 : Cleaning liquid for carpets

4822 390 80176

TECHNICAL INFORMATION

- Voltage : 230 V AC 50 Hz; 240 V AC 50 Hz

- Power : 1300 W (IEC) / 1500 W max.

- Air displacement : 51 l/sec. measured without accessories

- Vacuum : 230 cm measured without accessories

(water col.)

- Noise level : 77 dB

- Capacity : Supply tank 3 litres

Recovery tank 9 litres wet

Recovery tank 17 litres dry

Dust bag (HR6947) 10 litres dry

- Cord length : 6.3 or 9.3 m

(depends on the national version)

- Shampoo system : Motorised pump

- Air exhaust : AFS-MICRO filter FC8032

- Dimensions : 46 x 45 x 32 cm

- Net weight : 8.3 kg (without tools)

FC6844

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

Motor unit:

- To open the motor unit,

remove the inlay by pressing

the inlay on the cord winder

push-button and remove 2

screws (A). (The inlay is

mounted on the cover by

means of a snap

construction).

- Use a long Philips screwdriver 9965 000 08332 to remove

the 6 screws (B) of the lower housing / top housing.

(Holes in lower housing are 13 cm deep).

Accessories:

- See drawing for replacing of the shampoo pressure hose, for

example the pistol handgrip.

REPAIR INSTRUCTION

- The type no. plate is placed on the outside of the lower

housing (Item 38).

- For safety reasons, make sure that the cap clamps do not

come above the panel surface (Item 31) after replacing of

the switch (Item 30).

If the lower housing (Item 38) must be separated from the

top housing (Item 15) always replace waterproofing foam

(Item 22). Press hard on the housing during assembly of

this unit to prevent the foam from moving during assembly.

- The cord winder lever

(Item 14) must be assembled

through the top cover at an

angle (as shown in the figure)

to operate the cord winder.

- Depending on the national version, the cleaner has a 6.3

or 9.3 m cord. The spring unit (Item 101) is standard

provided with a 9.3 m spring.

- To demount the cord winder use TORX screw driver no.

T15, which is one of a set consisting of T20, T15, T10, T9,

T8 and T6 4822 395 50145.

- To check the shampoo circuit, it is neccessary to use the

male plug (Item 61) to open the valve in the female plug

(Item 32).

If the real half spring unit (Item 101) is replaced, shaft E

must be lubricated with silicone grease. Do not apply any

silicone grease to or spill any grease on terminals (Item 103)

or conductors (Item 102).

30˚±

2-6

FC6844

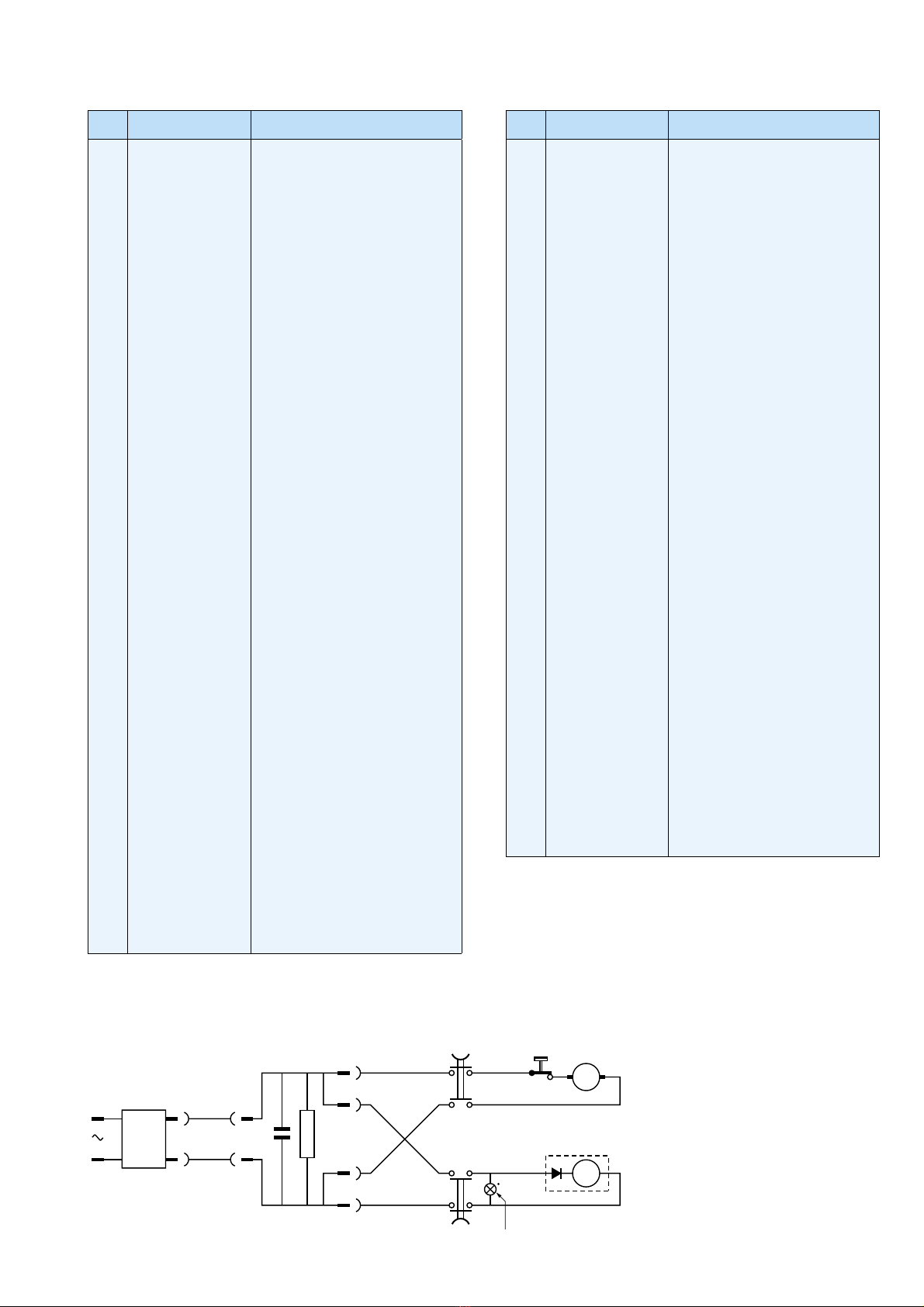

PARTS LIST

ELECTRICAL DIAGRAM

BROWN

BLUE

BROWN

CUT-OUT

BLUE

pos. 27

C1 R1

C.W.

3-6

Pos Service code Description

38a

40a

4322 005 13140

4322 003 19630

4322 003 28430

4322 000 36710

4322 005 13160

4322 003 28870

4322 005 20710

4322 009 05100

4322 007 29700

4322 003 09710

4322 009 09480

4322 005 00100

4322 000 67530

4322 009 09500

4322 006 20180

4322 009 08690

4322 009 05120

4322 009 05290

4322 005 20730

4822 015 70056

4322 009 09550

4322 000 36810

4322 009 05260

4322 000 36750

4322 006 22540

4322 004 92790

4322 009 09510

4322 005 20690

4322 005 00480

4322 000 67510

4322 005 00080

4322 009 06890

4322 009 08470

4322 009 09530

4322 001 72460

8836 947 01000

4322 005 13090

4322 003 05120

4322 001 73120

Supply tank cap

Male coupling of item 1

Supply tank

Foam sleeve

Float assy

Clamp

Recovery tank compl.

Wheel compl. (stand.)

Caster arm

Diffusor

Shelter

Motor suppressor assy

Lever spring cord winder

Upper housing

Motor thermal fuse

Motor sealing / buffers

Motor 230 V

Motor 240 V

AFS ﬁlter holder

AFS air ﬁlter

Cord outlet

Waterprooﬁng foam

Pump vac. hose assy (stand.)

Motor safety ﬁlter

Pump lamp

Cotton dustbag (opt.)

Switch unit

Panel

Speed coupler female

Fork washer

Term. plate unit

Pump shampoo 220 - 240 V

Pump press. hose assy

Lower housing

Sealing rim

Paper dustbags / ﬁlters

Dustbag carrier

Dustbag lock

Sealing rim

Pos Service code Description

64a

101

102

103

104

107

108

109

111

4822 479 30138

4822 479 20039

4822 479 20038

4322 004 22570

4322 003 19920

4322 004 22560

4322 009 08060

4322 002 22530

4322 003 19760

4322 007 16000

4322 004 22800

4822 530 10508

4322 003 14920

4322 004 22780

4322 004 22790

4322 009 05280

4322 003 19770

4322 003 17820

4322 004 23410

4322 001 99120

4322 007 31650

4322 004 23400

4322 004 23380

4322 009 09440

4322 009 09450

4322 009 09460

4322 001 72360

4322 006 01720

4322 006 01410

4322 006 01670

4322 001 98540

5322 390 20011

4322 002 82550

8836 965 01010

Nozzle D272

Strip of nozzle

Fluff. coll.

Furniture brush

Crevice nozzle

Small nozzle

Bend and ﬂex tube

Speed coupler male

Clamping bush (stand.)

Tube leaf spring

Valve pistol complete

O-ring (Ø 6 x 1,5 mm)

Shampoo hose (l = 215)

Wet sweep nozzle

Mopper of wet sweep nozzle

Mopper replacement set

Female plug

Mini wet sweep

Tri-scopic tube (stainl.steel)

Tube coupling bush

Tube coupling spring

Flexible Crevice nozzle

Turbo nozzle

Reel half spring unit

Reel half contact unit

Contact ring plate

Brake tyre

U.K. / H.K.

Euro 4.8 mm pins L= 9.3 m

Swiss L= 9.3 m

Cord winder draw rod

Silicon grease for the shaft

Screw 3.5 x 12 / T10

Cleaning liquid

FC6844

EXPLODED VIEW

101÷111

38a

40a

4-6

FC6844

EXPLODED VIEW

64a

57 80

56 58

5-6

FC6844

EXPLODED VIEW

103

102

101

111

104

Europe Ø 4.8mm 108

Swiss 109

Italy 110

107U.K. / H.K.

6-6
