Philips FC9152 Manuel utilisateur
ServiceManual
Philips Domestic Appliances and Personal Care
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
Vacuum cleaner
FC9152
05/08
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Colour : Translucent Deep Red
- Power consumption : 1800 W
(IEC) 230V
- Maximum Air displacement : 40 l/s
- Vacuum : 290 mbar / 29.0 kPa
- Type number dustbag : FC8021
- Duststorage capacity : 4 L
- Cord length : 9 m
- Fiter system : Double layered
compatible s-bag™
: 3 layer permanent motor
protection filter
: Ultra Clean Air HEPA13
exhaust filter
- Dimensions of cleaner : 472 x 324 x 276 mm
- Dimensions of packaging : 593 x 393 x 296 mm
- Net weight : 6.3 kg
ACCESSORIES
- Special nozzle : Super Parquet nozzle
- Nozzle : Tri-Active all purpose nozzle
- Tubes : Metal lacquered telescopic tubes
- Accessories : Brush, crevice nozzle and
small nozzle
- Accessory storage : Active accessory storage bridge in
handgrip
- Coupling : Button coupling
OPTIONAL (accessories)
- FC 8021 : S-bag Classic
- FC 8022 : S-bag Clinic
- FC 8023 : S-bag Anti-Odour
- FC 8024 : S-bag Long Performance
- FC 8030 : Super Clean Air filter, High-Flow
AFS exhaust filter
- FC 8031 : Super Clean Air HEPA filter,
HEPA12 exhaust filter
- FC 8041 : Replacement pads
Super Parquet nozzle
FC9152
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- Open the appliance, first remove the filter cover (item 22)
and then remove the 2 screws (A) of the button assy
(item 10).
- The button assy can be removed by lifting up the back of
the assy and then pull the assy out of the appliance.
- When the dustcover and the handle have been removed, the
electronics, DBFI valve assy, CW-lever and the switch lever
can be removed.
- The dustchamber and the backpanel can be removed from
the appliance by removing 15 screws (Band C).
- You will require a screwdriver with a 14.5 cm long shrank
for this. Screwdriver 4322 009 08490 for T15 can be used.
- When the cordwinder has been taken out, the final screw
(D) for releasing the lower front from the appliance can be
removed.
- When the repair is finished, check whether all functions of
the appliance work properly.
- To disassemble the cordwinder, use TORX screwdriver no.
T10, which is one of a set consisting of T20; T15; T10; T9;
T8; T7 and T6 (code number 4822 395 505145).
REPAIR INSTRUCTION
- Cotton dustbags, are used in countries in which paper
dustbags are not available.
- If the reel half spring unit is replaced, shaft Gmust be
lubricated with silicone grease. Do not apply any silicone
grease to or spill any grease on terminals (37) or conductors
(36).
- The cord winder spring must be tensioned to the maximum
level and then be rewound approx. 1.5 turn.
- Item 14, air valve, opens to cool the motor if the air
displacement is too low or if the airflow is blocked.
- If the function of the electronic control unit is not required,
the Triac must be short-circuited in the manner shown in
the circuit diagram.
- When the vacuum cleaner is used to suck up fine dust the
pores of the dustbag may become clogged, causing the
passage of air through the dustbag to become obstructed.
As a result, the dustbag-full indicator will indicate that the
dustbag needs to be replaced, eventhough the dustbag is not
full at all.
ELECTRICAL DIAGRAM
Triac
Ti
c
Short-circuit
ort-circu
t
S
Short-circuit
MOTOR
POWER
MODULE
Blue
Brown
CORD WINDER
Black
Black/White
M
2-7
FC9152
PARTS LIST
3-7
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
4322 005 17370
4322 005 17600
4322 000 67810
4322 003 24790
4322 003 24780
4322 000 37300
4322 003 23820
4322 003 24650
4322 009 09350
4322 009 09360
4322 003 24810
4322 003 24590
4322 006 22750
4322 005 17330
4341 003 02390
4322 003 24620
4322 003 24720
4322 003 24600
4322 003 24860
4322 005 17010
4322 003 24690
4322 003 24850
4322 004 92980
4322 001 73360
4322 000 38700
Dustc. / Transl. Deep Red / LB Pr
Dustcover lock assy
DB detector spring
DB detector / LB / Cool grey
CCC (DB holder)
Triple inletfilter
Inlet grille
Dustchamber / Black
Handle performer / FC9152
Button panel assy / Pr / FC9152
Cord winder lever
Control wheel
PCB assy 220-240 V 50/60 Hz
DBFI/Valve assy
Switch lever
Back panel / Black
Cord outlet / Black
Lower / LB / Back
Lower front / Transl. burgundy
Caster assy / Select grey
Filter cover lock / Select grey
Filter cover / Transl. Deep Red
Hepa 13 filter
Exhaust sealing
Silencer 4 wall backpanel
Pos Service code Description
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
42a
43
44
45
46
47
48
49
50
51
52
53
54
4322 003 23220
4322 000 38670
4322 000 38680
4322 003 23880
4322 001 73400
4322 006 97670
4322 000 38690
4322 001 73300
4322 003 23870
4322 009 07940
4322 009 07950
4322 009 07970
4322 006 01720
4322 006 01410
4322 003 18850
4322 005 12760
4322 005 12720
4322 004 22630
4322 007 16000
4322 004 22510
4322 001 99120
4322 007 45550
4322 004 22570
4322 003 18870
4322 005 12530
4322 004 22560
4322 004 23200
4322 005 11040
8838 041 01010
4322 004 23250
S-class H-sealing
Silencer 1 wall
Silencer 2 bottom
Motorhousing top inside
Bufferring front ANS-Atlas
Motor A 1451 / 230 V
Silencer 3
Buffer back
Motor housing bottom ANS
Reel half spring unit (L = 9 m)
Reel half contact unit
Contact ring plate
U.K. / H.K. L = 9.3 m
Euro 4.8 mm pins L = 9.3 m
C. Bend B1
LC Swivel assy
C. Bend B1 / Hose / Swivel assy
Conical hose assy / LC
Leaf spring assy
Telescopic tube Silver, Standard
Coupling bush
Coupling spring
Plumeau assy
Crevicle nozzle
Accessory bridge assy
Small nozzle
Tri-active nozzle / LB
Polishing disc (opt.)
Polishing brushes (opt.)
Super Parquet nozzle, Standard
FC9152
EXPLODED VIEW
5
8
6
7
1
2
3
4
9
10
11
12
15
14
13
A
B
B
B
B
B
B
A
YBlack/
White
Black
Z
brown
blue
4-7
FC9152

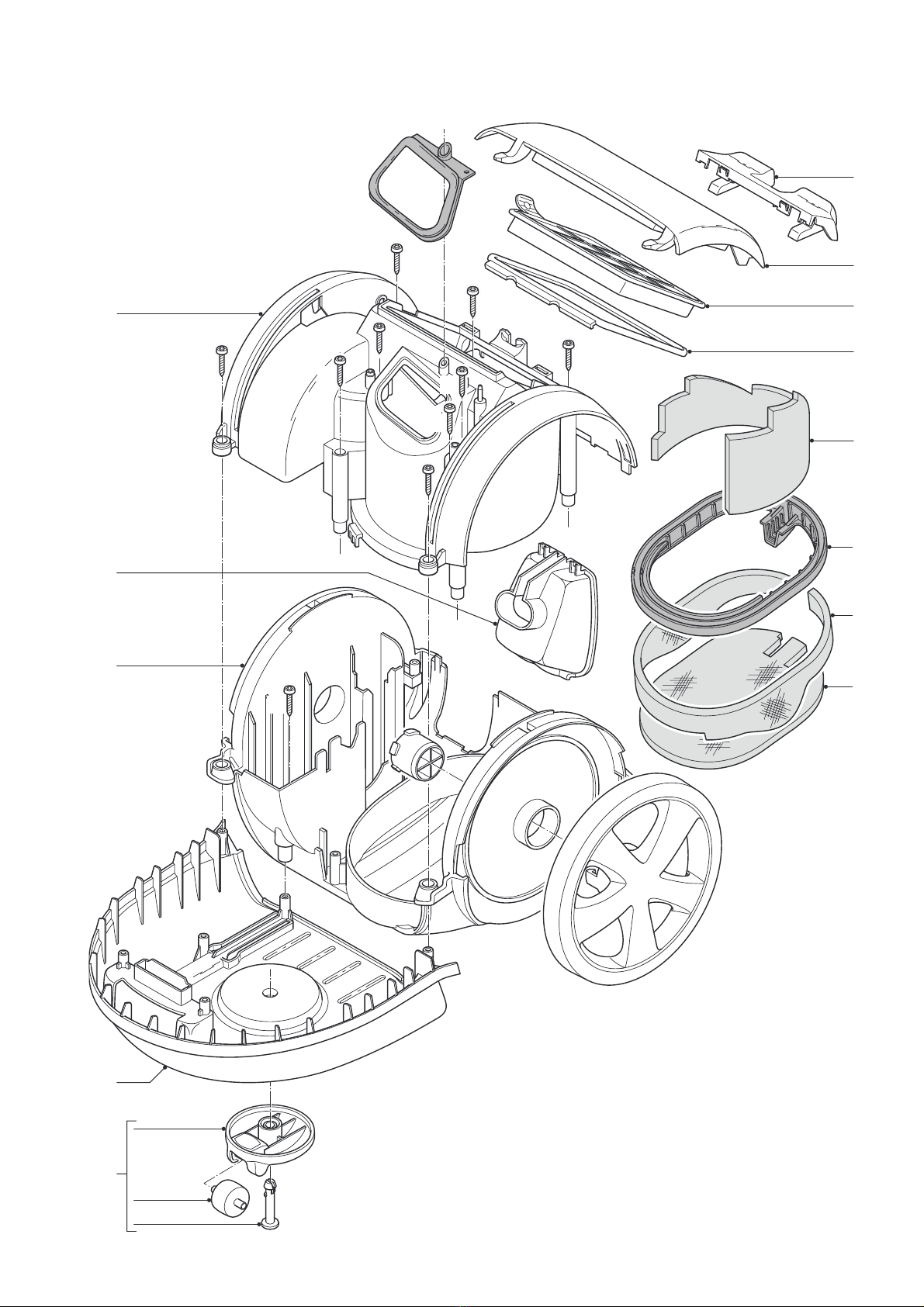

EXPLODED VIEW
C
C
C
C
C
C
C
C
C
D
20
19
18
17
16
26
25
24
23
22
21
27
28
5-7
FC9152
EXPLODED VIEW
37
38 39
29
33
30
31
32
34
35
36
E
F
F
F
F
E
E
+
G
Black/
White
Black
Z
brown
blue
Y
6-7
FC9152
EXPLODED VIEW
44
51
50
45
46
52
53
54
4947
48
41
43
42
40 42a
Europe Ø 4.8mm 39
Swiss
Italy
38U.K. / H.K.
7-7
